ID: 1149947
Product code: EMEA_PER360SPL3_SCS
In stock 1 units
Warranty: 3 years

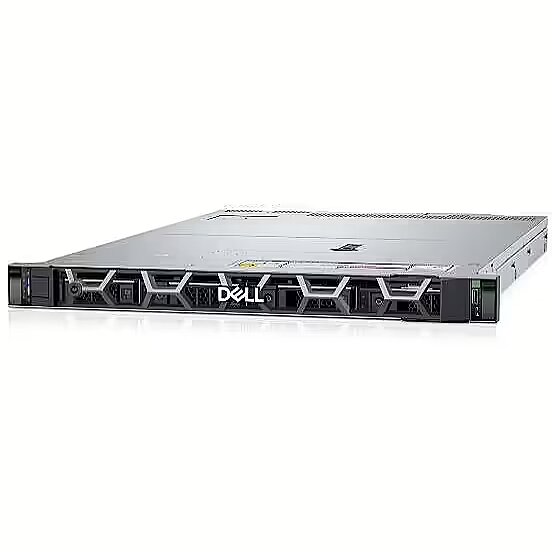

Dell SERVER R360 E-2414 H355 4X3.5/2X700W/RAILS/3YNBD SCS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery by courier to the addressWithin 1-2 working days5.99 €
More detailed specification
3.5" SAS/SATA Hot-swap Drive Bays - 4
Case Type - 1U rack
Category Code - SER
Chipset - Intel C262
Clock speed - 2600 MHz
CPU Model Number - E-2414
Description - PowerEdge R360 Server Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM Intel Xeon E-2414 2.6GHz, 4C/4T, 12M Cache, Turbo, HT (55W), DDR5 PERC H355 Controller Front Chassis with up to 4, 3.5" Hot Plug Hard Drives No Memory (UDIMM ECC max 128GB) No HDD/SSD (SAS/SATA max 64TB) Hot-Plug Dual Power Supply, Redundant (1+1), 700W MM HLAC (200-240V AC) iDRAC9, Basic (16GEN) TPM 2.0 V3 3Yr Basic Next Business Day Warranty Accessories: 1U Standard Bezel ReadyRails Sliding Rails Without Cable Management Arm 2x Power Cord C13 to C14, PDU style, 10AMP, 2m Factory Settings: Performance Optimized Power Saving BIOS Settings ?UEFI BIOS Boot Mode with GPT Partition
Full Description Line - Case Type 1U rack|Chipset Intel C262|Socket LGA1700|CPU Model Number E-2414|Clock speed 2600 MHz|Installed CPUs 1|Maximum number of CPUs 1|4x3.5" SAS/SATA Hot-swap|Memory type DDR5|Memory features UDIMM/ECC|Memory slots 4|RAID PERC H355 Controller Front|PSU Hot-swap|PSU model code Titanium PSU configuration|PSU Output Power 700 Watts|Installed PSUs 2|Server management iDRAC9 Basic (16GEN)
Installed CPUs - 1
Installed PSUs - 2
Maximum number of CPUs - 1
Maximum number of PSUs - 2
Memory features - ECC/UDIMM
Memory slots - 4
Memory type - DDR5
Model - PowerEdge R360
PSU - Hot-swap
PSU model code - Titanium PSU configuration
PSU Output Power - 700 Watts
RAID - PERC H355 Controller Front
Server management - iDRAC9 Basic (16GEN)
Shipping Box Depth Shipping/Package Box Dimensions - 90 cm
Shipping Box Height Shipping/Package Box Dimensions - 61 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 18 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
Socket - LGA1700
Unit Box Height - 0.24
Unit Box Length - 0.92
Unit Box Width - 0.59
Unit Brutto Volume - 0.1812 cubm
Unit Gross Weight - 18 kg
Unit Net Weight - 16 kg
Vendor Homepage - https://www.delltechnologies.com/asset/en-gb/products/servers/technical-support/poweredge-r360-spec-sheet.pdf
Warranty - 36 months
