3.5" SAS/SATA Hot-swap Drive Bays - 4
Case Type - 1U rack
Category Code - SER
Chipset - Intel C256
Clock speed - 2800 MHz
CPU Model Number - E-2314
Description - PowerEdge R250 Server Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM V3, Ti Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), DDR4-3200 PERC H355 Adapter, Low Profile Chassis with up to 4, 3.5" Hot Plug Hard Drives with Backplane, Ti 1x 16GB UDIMM, 3200MT/s, ECC 1x 2TB SATA 6Gbps 7.2K 512n 3.5in Hot-plug Hard Drive Single Cabled Power Supply 700W (ONLY FOR 200-240Vac), Titanium iDRAC9, Basic (15GEN) PCIe Riser with Fan with 1 x16 and 1 x8 Slots Standard Fan On-Board LOM TPM 2.0 V3 3Yr Basic Next Business Day Warranty Accessories: Standard Bezel 1U/2U Static Rails for 2-Post and 4-Post Racks 1x European Power Cord 220V Factory Settings: Performance Optimized Power Saving BIOS Settings UEFI BIOS Boot Mode with GPT Partition
Full Description Line - Case Type 1U rack|Chipset Intel C256|Socket LGA1200|CPU Model Number E-2314|Clock speed 2800 MHz|Installed CPUs 1|Maximum number of CPUs 1|4x3.5" SAS/SATA Hot-swap|HDD Capacity 2TB|HDD 1|Memory 16 GB|Memory configuration 1|Memory type DDR4|Memory features UDIMM/ECC|Memory slots 4|RAID PERC H355 Adapter, Low Profile|NIC On-Board LOM|PSU model code Titanium PSU Configuration 200-240V AC, cabled|PSU Output Power 700 Watts|Installed PSUs 1|Server management iDRAC9, Basic (15GEN)|Included Accessories 1U/2U Static Rails for 2-Post and 4-Post Racks
HDD Capacity - 2TB
HDD configuration - 1
Included Accessories - 1U/2U Static Rails for 2-Post and 4-Post Racks
Installed CPUs - 1
Installed PSUs - 1
Maximum number of CPUs - 1
Maximum number of PSUs - 1
Memory - 16 GB
Memory configuration - 1
Memory features - ECC/UDIMM
Memory slots - 4
Memory type - DDR4

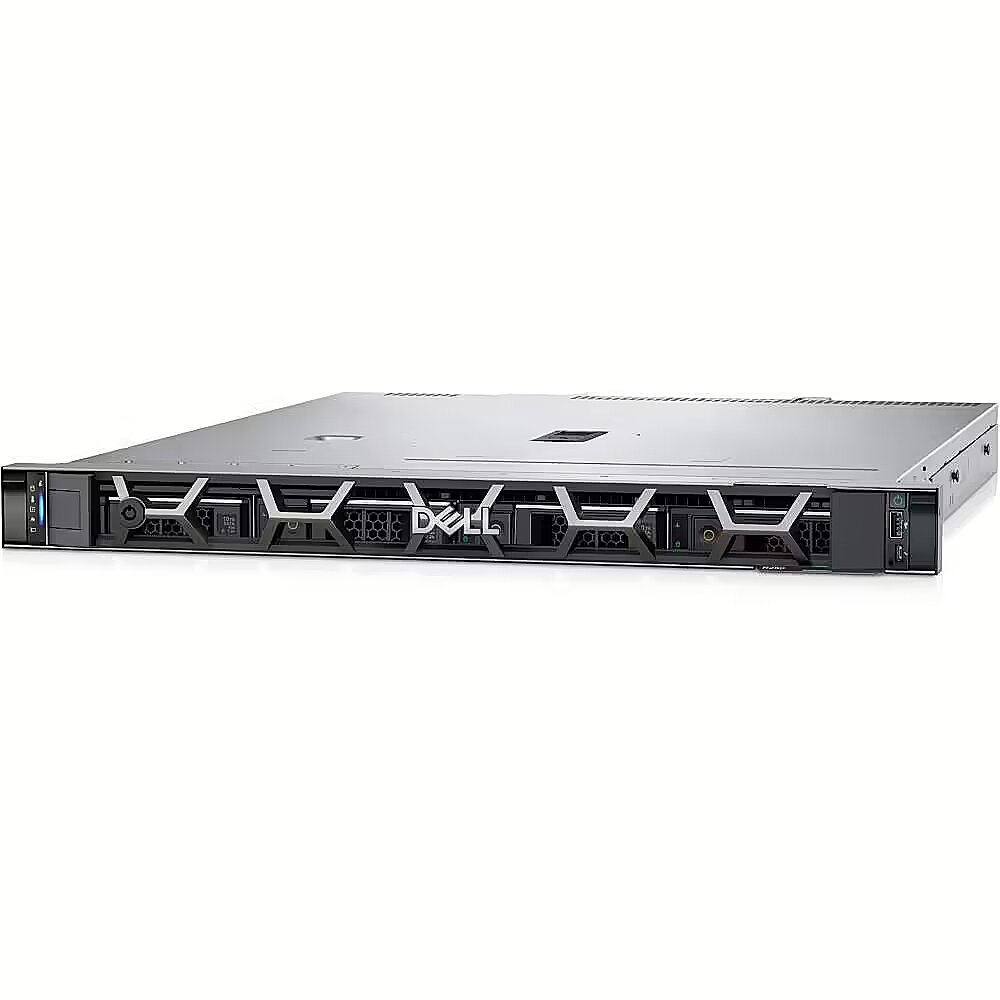

Model - PowerEdge R250
NIC - On-Board LOM
Product Net Weight - 11 kg
PSU model code - Titanium PSU Configuration 200-240V AC, cabled
PSU Output Power - 700 Watts
RAID - PERC H355 Adapter, Low Profile
Server management - iDRAC9, Basic (15GEN)
Shipping Box Depth Shipping/Package Box Dimensions - 92 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping Box Weight Shipping/Package Box Dimensions - 15.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 59.5 cm
Socket - LGA1200
Unit Box Height - 0.24
Unit Box Length - 0.92
Unit Box Width - 0.595
Unit Calculated Volume - 0.1314 cubm
Unit Calculated Weight - 15.6 kg
Units per Shipping Box - 1
Vendor Homepage - https://i.dell.com/sites/csdocuments/Product_Docs/en/dell-emc-poweredge-r250-technical-guide.pdf
Warranty - 36 months
