Antenna - Antenna type - Internal & external
ARTIKEL1 - WDC10C INSTASHOW USB-C

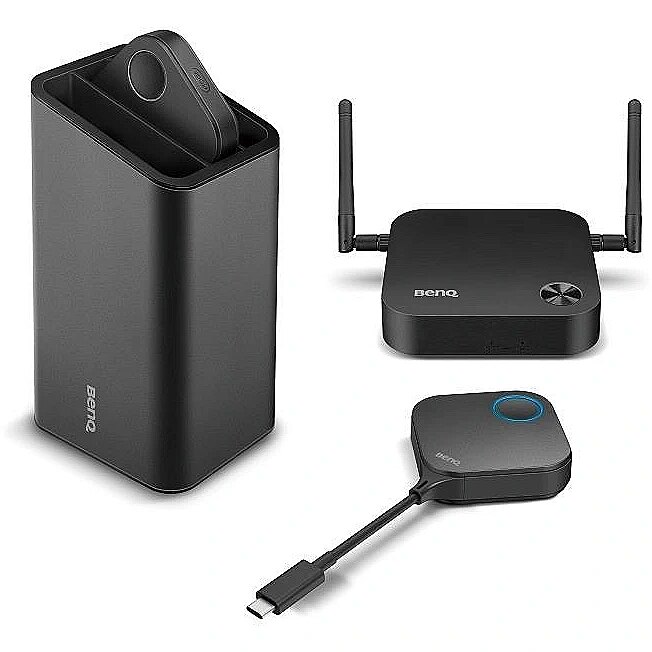

ARTIKEL2 - INKL. 2X BUTTON 1X HOST 1X CADLE
Brand - BenQ
BrandPartCode - 9H.JLD78.N3E
Breite - 0.17
Category - Wireless Presentation Systems
Color - Black
Colour of product - Black
Compatible operating systems - Windows, MAC, Chrome
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - USB
Connectors - 1 x HDMI
Connectors - 1 x USB (Type C)
Description - BENQ INSTASHOW WDC10C USB-C

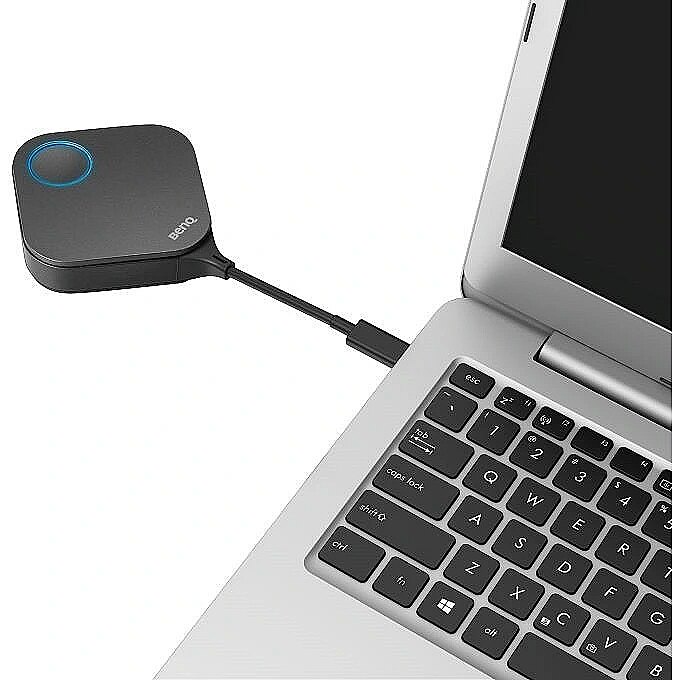

Description - InstaShow WDC10C NEW model 9H.JLD78.N3E InstaShow from USB-C adds a smooth display of Full HD 1080p video and 16-bit wireless audio streaming to any display device, from a USB-C source device (with DisplayPort Alt mode), such as a MacBook or PC without HDMI output. The new transmitter, connected to the USB-C socket, is fully compatible with the previous InstaShow WDC10 receivers, thanks to which the sets of transmitters can be easily added to existing InstaShow configurations and lead wireless projection from devices with USB-C. InstaShow is a unique, completely hardware plug-and-play solution that does not require installation or configuration of any software and is completely compatible with every operating system. Connecting a source laptop to the USB-C port provides power and video transmission. Starting the transmission of video signal comes down to connecting the transmitter to the USB-C socket and pressing the synchronization button with the receiver, connected to the HDMI socket of the display device of the monitor or projector. InstaShow works with every Mac and PC system and hardware platform. No need to install software or drivers on the connected equipment, InstaShow provides absolute data security, with WPA2-PSK protection with 128-bit encryption. Seamless connection and intuitive use InstaShow allows you to simplify the wireless cooperation of meeting participants and avoid tangled cables disturbing the aesthetics of conference rooms.
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 175 mm
dimension height - 345 mm
Dimensions -
dimension weight - 2205 g
dimension width - 345 mm
ean - 4718755078804
EANCode - 4718755078804
Features - Concurrent users - 16 user(s)
Features - Maximum frame rate - 60 fps
Features - Security updates end date - 31/12/2024
Features - Supported graphics resolutions - 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Features - Supported video modes - 720p, 1080p
Gewicht - 1.78
GRUPPE1 - Network
GRUPPE2 - Wireless Adapters
GTIN - 0840046041380
GTIN - 840046041380
GTIN - 4718755078804
guarantee - 36
guarantee_type - external
Height - 151.000000
HERSTELLER - BENQ
Hoehe - 0.15
HSTNUMMER - 9H.JLD78.N3E
Laenge - 0.36
Length - 357.000000
Logistics data - Country of origin - Taiwan
Logistics data - Harmonized System (HS) code - 8517620000
Logistics data - Products per pallet - 144 pc(s)
LongDesc - Relentless Innovation. Flawless PresentationInstaShow™ Plug & Play – Instant Wireless Meeting SolutionBenQ's InstaShow™ WDC10C is a unique no software solution that allows multiple presenters to lead from any device with USB-C port or Thunderbolt 3. The plug and play operation requires no driver installation and is compatible with any OS or hardware platform, making it simple to use.Instant Visual Communication and Collaboration for Modern EnterprisesIt’s human nature to resist change, which is why new technology can be intimidating. InstaShow™ requires zero learning curve, plugging right into your daily routine to start sharing instantly. Anyone that tries InstaShow immediately knows how to use it for collaborative presentations. InstaShow is a wireless solution that ushers opportunities in network collaboration without additional facility investment or training. Any business customer, even those without Wi-Fi infrastructure, can deploy InstaShow for employees and visitors to enjoy simple and quick wireless presentations without awkward moments setting up, allowing instant teamwork and immediate resultsOne Simple Button to Start PresentationJust a single button, InstaShow™ is an all-hardware solution that simply plugs into the source laptop. It takes mere seconds to start presenting wirelessly. There is no software at all to install, configure, or execute, reducing downtime and uncomfortable silences to kick off a productive meeting.Plug In and Present ImmediatelyEasy for anyone to set up, InstaShow™ is ready to use from the moment it’s plugged in. It also significantly enhances corporate efficiency and agility by allowing up to 16 users to connect and present in turn without the usual tech-related delays between presenters. Furthermore, InstaShow™'s support for integrated hardware encoding and decoding ensures it can provide smooth presentation and video playback regardless of the operating system and capabilities of the source notebook.High-Performance Wireless with Full HD Video SharingOur exclusive InstaVideo function optimizes InstaShow’s audiovisual settings to spontaneously switch from clear presentation mode to smooth video mode with stereo sound at the click of a side button. This is all done without IT support, cable clutter or complex software settings. By letting presenters quickly customize displayed content, users can confidently blend text, graphs and charts, pictures and video to create a powerfully effective meeting, all done wirelessly in Full HD.Versatile Compatibility on Any Display DeviceInstaShow™ allows users to share their presentations to a wide variety of display devices, such as a projector, an interactive display, or a digital signage monitor, with just a standard HDMI input. This affords presenters great flexibility to accommodate different locations as well as the display devices available.Software-Free Highly Secure OperationJust plug InstaShow™ into a laptop and you are ready to share securely. Because it’s an all-hardware solution that requires no software, drivers, or downloads of any kind, InstaShow™ completely eliminates many potential entry points that viruses and malware can exploit.Trustworthy Security ProtectionInstaShow™ keeps important corporate intellectual property private and safe from tampering or unintended disclosure, ensuring future business sustainability. AES 128-bit security encryption and the WPA2 authentication protocol guarantee that presentations are absolutely secure. The security handshake also assures smooth, high-quality wireless streaming of presentations. This allows presenters to share confidential information without worrying about security breaches. InstaShow™ also supports HDCP to ensure content with digital rights management will play smoothly without delay, error messages, or interruption.Simple Pairing and Hassle-Free MaintenanceInstaShow™ is ready to use immediately out of the box. But if you need to pair additional transmitters to a receiver, you will find the process is incredibly simple. Just hold down the pairing key on the host for 5 seconds, then do the same on the transmitter, and the two devices will pair automatically. The host can even be put into pairing mode via web control if it is installed onto a ceiling-mounted projector or otherwise hard to reach location.Optimal Intelligent Resolution MatchingUtilizing EDID, InstaShow automatically configures the source notebook’s resolution setting to match the display device pixel-by-pixel for perfectly clear picture quality, whether it is a projector, flat-panel display, monitor or TV. InstaShow users can focus on the meeting rather than adjusting resolution settings or requesting IT support to adjust display timing.Reliably Stable Wireless ConnectionOur exclusive automatic Wi-Fi channel selection and auto-reconnect features allow presenters to trust InstaShow, without any concern for stoppages or interruptions caused by unstable Wi-Fi environments. Equipped with Wi-Fi 802.11ac for high transmission speed up to 400Mbps, InstaShow provides smooth wireless streaming of Full HD 1080p content without lagging, even in wireless traffic-heavy environments.Fast Response for Presentation Video and AnimationInput latency lag less than 100ms enables natural, precise mouse movements and smooth execution of PowerPoint animations and transitions for professional-looking presentations. Corporate presenters and participants can concentrate on the meeting with the smoothest flow and follow critical points of the content intuitively.Eco-Conscious Operation for Efficiency and ProductivityInstaShow offers multiple ways that users may select via web management to conserve energy for eco-conscious corporations. First, HDMI Standby cuts InstaShow’s power consumption to near zero after the connected device is turned off, extending InstaShow’s lifespan. When the display device is turned back on, InstaShow also wakes up automatically without the need for a separate remote control. This is especially useful when InstaShow is ceiling mounted. In addition, InstaShow can be configured to enter Network Standby when there is no source activity within a user-defined timeout, cutting HDMI transmission and triggering sleep modes on connected display devices, which simply need to be turned back on when the presentation or meeting resumes. This reduces corporate TCO not only from power savings and extended lifespan from the InstaShow device, but from meeting room displays that are left running unused as well. In fact, up to 50% of display power consumption* can be conserved by InstaShow activating Blank Mode when used in conjunction with a BenQ projector.
LongProductName - IEEE 802.11ac 5GHz, AES 128 bit, 1080p, HDMI 1.4 (HDCP), USB Type-C
LongSummaryDescription - BenQ InstaShow WDC10C. Product colour: Black. Supported graphics resolutions: 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x..., Supported video modes: 720p, 1080p, Maximum frame rate: 60 fps. Antenna type: Internal & external. Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi data rate (max): 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Interface: USB Type-C
Management features - Reset button - Yes
Manufacturer - BenQ
ManufacturerPartNumber - 9H.JLD78.N4E
name - InstaShow WDC10C NEW model 9H.JLD78.N3E
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Frequency band - 5 GHz
Network - Maximum operating distance - 8 m
Network - Security algorithms - 128-bit AES, WPA2, WPA2-Enterprise, WPA2-PSK
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi data rate (max) - 867 Mbit/s
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Operating temperature range (T-T), °C - 0-40
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 60 °C
Other features -
Packaging content - Cables included - HDMI, USB
Packaging content - Quick start guide - Yes
PeriodofWarranty -
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Interface - USB Type-C
Ports & interfaces - Number of HDMI outputs - 1
Power - Input voltage - 5 V
Power - Power source type - DC, USB
producer - Benq
ProductName - InstaShow WDC10C
Range, m - 8
ShortSummaryDescription - BenQ InstaShow WDC10C, Black, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x..., 720p, 1080p, 60 fps, 16 user(s), Internal & external
Stck_Kart - 3
Stck_Pal - 3
Storno - Y
Supported operating systems - Chrome OS
Supported operating systems - Mac OS
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - BenQ InstaShow WDC10C wireless presentation system USB Type-C
URL - https://business-display.benq.com/en/findproduct/wireless-solution/instashow-wireless-collaboration/wdc10c.html
vendpn - 9H.JLD78.N3E
WarrantyInfo -
Weight - 1.760000
Weight & dimensions - Package depth - 485 mm
Weight & dimensions - Package height - 205 mm
Weight & dimensions - Package weight - 7.6 kg
Weight & dimensions - Package width - 390 mm
Weight & dimensions - Weight - 1.27 kg
Wi-Fi - Yes
Width - 167.000000
