Vogels Projector Ceiling mount, Turn, Tilt, Silver

BrandCode - VOGELS
Code - 7015554
Design > Colour of product - Silver
Dimensions - weight - 3.9
EAN - 8712285325106
Ergonomics > Adjustable - Yes
Ergonomics > Height adjustment - y
Ergonomics > Height adjustment range - 400 - 1350 mm
Ergonomics > Swivel angle - 15 °
Ergonomics > Telescopic - Yes
Features > Product type - Projector ceiling mount
General parameters - manufacturer - Vogel's
Gross weight - 3.8 kg
GrossWeight - 3.9400
Group - IT > IT ACCESSORIES > PROJECTOR ACCESSORIES > PROJECTOR BRACKETS
Height - 0.1400
Length - 0.5700
Link - http://www.vogels.com/ppc-1555-projector-ceiling-mount.html#.U4OpNvmSx1A

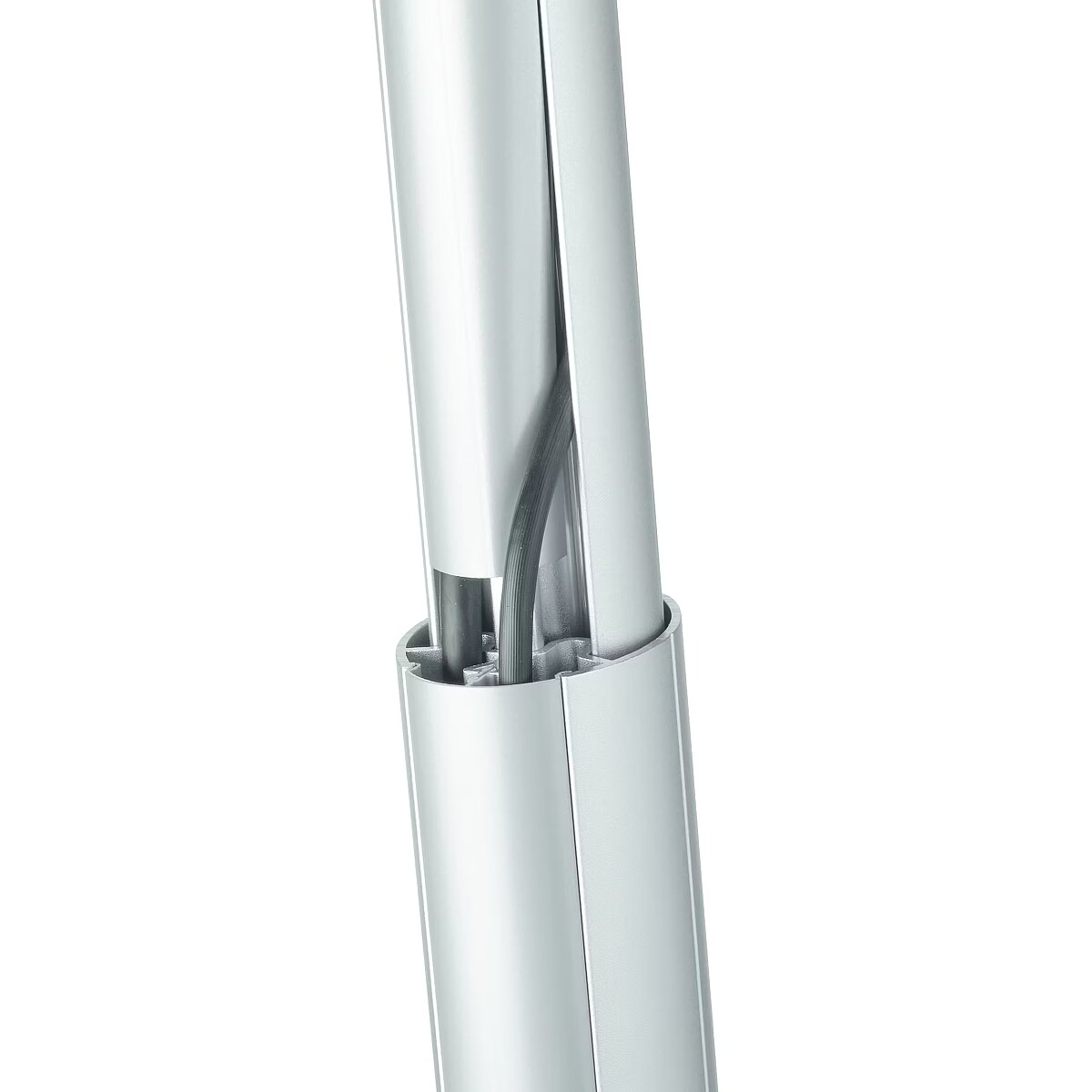

MediumDescription EN - The PPC 1555 projector mount is specially designed for the latest generation of projectors weighing up to 15 kg. This projector interface is equipped with fine tune adjustability for precise alignment with the projection surface. Once aligned, the projector stays in position. Turning the unique friction ring will eliminate all play from the interface connections, making the mount a solid and very stable solution. The CIS® Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The CIS® offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds. • Adjustable height 550-850 mm
MediumDescription ET - Laekinnitus PPC 1555 on loodud spetsiaalselt uusima generatsiooni projektoritele, mis kaaluvad kuni 15 kg. Kinnitus on varustatud täpse seadistussüsteemiga, et tagada täpne joondus projekteeritava pinnaga. Saavutatud joondus ei nihku paigast. Unikaalne hõõrdumisrõngas fikseerib positsiooni täielikult, muutes antud lahenduse ülimalt stabiilseks ja kindlaks. Juhtmete peitmise süsteem CIS® jookseb täispikkuses mööda kinnitust ning võimaldab kaablite varjamist ka pärast paigaldamist. CIS® mahutab kõik vajalikud juhtmed ja seda sekundite jooksul. • Reguleeritav kõrgus 550-850 mm
MediumDescription LV - PPC 1555 projektora stiprinājums speciāli veidots priekš jaunākās paaudzes projektoriem līdz 15kg. Turētājs ir aprīkots ar regulācijas sistēmu precīzai projektora augstuma iestatīšanai.Augstuma regulēšana 55 - 85 cm
Mounting > Maximum distance to ceiling - 85 cm
Mounting > Minimum distance to ceiling - 550 mm
Mounting and bases - settings - turn
Mounting and bases - type - Ceiling mount
Name - Vogels | Projector Ceiling mount | Turn, Tilt | Silver
Name EN - Projector ceiling mount Vogel 55-85cm
Name ET - Projektori laekinnitus Vogels 55-85cm
NameInWeb EN - Projector ceiling mount Vogel´s PPC 1555 (55-85 cm)
NameInWeb ET - Projektori laekinnitus Vogel´s PPC 1555 (55-85 cm)
NameInWeb LV - Projektora griestu stiprinājums PPC 1555, Vogel´s / 55-85 cm
Name LV - Projektora stiprinājums Vogel 55-85cm
NetWeight - 3.0000
Other features > Colour - Silver
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 570 mm
Package features > Gross height (mm) - 135 mm
Package features > Gross width (mm) - 255 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 88 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01962225 m³
Package features > WEEE tax - No
ProductCode - PPC1555
ProductionCountry - CN
TariffNo - 83025000
Technical details > Functions - Turn, Tilt
Technical details > Holding capacity - 15 kg/cm
Technical details > Net weight - 3.4 kg
Technical details > Placement - Projector Ceiling mount
Technical details > Producer - Vogels
Technical details > Producer product name - PPC1555
Technical details > Warranty - 24 month(s)
UnitOfMeasureCode - tk
UnitsPerPackage - 1
Volume - 0.02074800
Warranty - 24
Width - 0.2600
