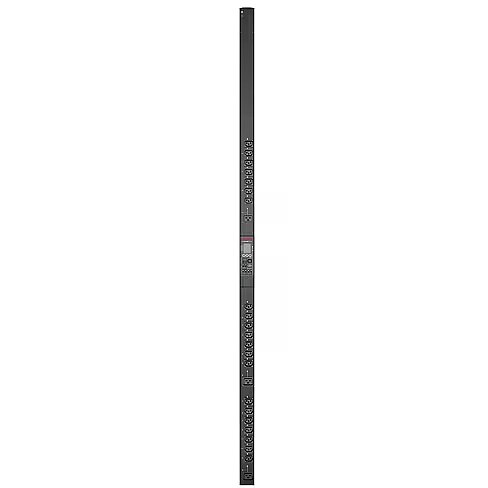

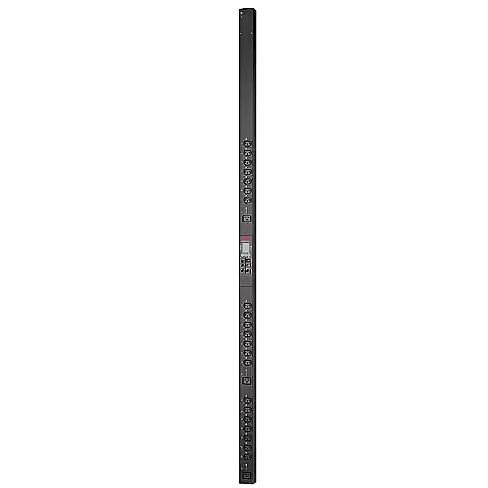

APC RACK PDU 9000 SWITCHED ZEROU 16A 230V C13 C19 IEC309 CORD

Accessories included -
ARTIKEL1 - RACK PDU 9000 SWITCHED ZEROU

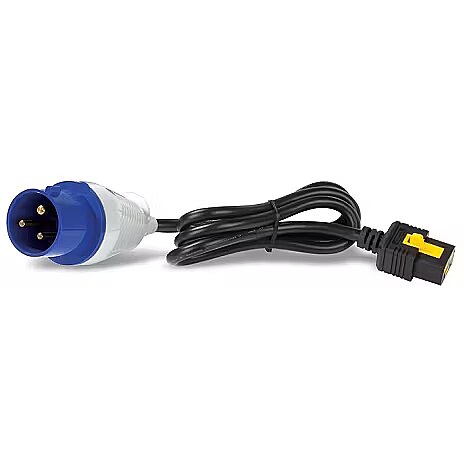

ARTIKEL2 - 16A 230V C13 C19 IEC309 CORD
Brand - APC
BrandPartCode - APDU9959EU3
Cable length - 3 m
Category - Power Distribution Units (PDUs)
Certificates - Certification - EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003, RCM, VDE
Color - Black
Description -
Design - Display - LCD
Design - Mounting - Vertical
Design - On/off switch - No
Design - PDU types - Switched
Design - Product colour - Black
Design - Rack capacity - 0U
Design - Type - Single-phase
Designation - CE+WEEE
dimension depth - 115 mm
dimension height - 2000 mm
Dimensions - 1794 x 55 x 46 mm
dimension weight - 8000 g
dimension width - 165 mm
ean - 731304356295
EANCode - 0731304356295
Features - Cable length - 3 m
Features - Daisy chain - Yes
Gewicht - 7.96
GRUPPE1 - Power Protection
GRUPPE2 - Power Product Cpnt
GTIN - 0731304356295
GTIN - 731304356295
guarantee - 24
guarantee_type - external
HERSTELLER - APC
HSTNUMMER - APDU9959EU3
Laenge - 2.01

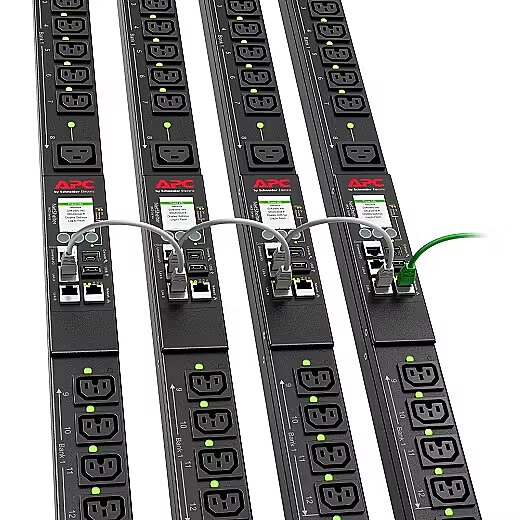

LongDesc - NetShelter Switched Rack PDUs Features & BenefitsManageability1% Metering AccuracyProviding the same level of accuracy as a utility company meter by adhering to IEC 62053-21 class 1, 1% metering accuracy provides peace of mind to use these PDUs to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Available on 9000 series PDUs.Gigabit Ethernet Connectivity9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center. All other models provide 10/100 ethernet connectivity.Network Port SharingConnect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU. Manage up to 32 PDUs with 9000 series and up to 4 PDUs with 8000 series.Multi-tier user accessSupports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.Outlet Level GroupingOutlet power sequencing can be configured to group any combination of outlets to power up or down together providing flexibility.EcoStruxure IT ReadySeamless integration of one or many PDUs including alerts and control with EcoStruxure IT. Allows IT and data center professionals to monitor and manage all of their critical IT infrastructure on-premise, in the cloud, and at the edge from anywhere.Enhanced Cybersecurity9000 series PDUs include APC Network Management card with security features including secured interfaces and a modified password policy providing peace of mind.Network Management CapabilitiesFull-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.Alarm ThresholdsDefine alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.Alarm ThresholdsDefine alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.AdaptabilityRack-MountableIncludes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.Single input power sourceSupply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.Wide range of input and output connectionsProduct family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.AgilityWireless ConnectivityCompatible with the optional APC USB WiFi Device for cableless connectivity over WiFi that speeds deployment and simplifies moves, adds, and changes (9000 Series PDUs only - expected to be available on units manufactured after March 2021).Flash UpgradeableQuickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)Availability60C Operating TemperatureSelect 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).Hydraulic Magnetic Circuit BreakersProvide increased availability by maintaining trip current over a wide temperature range.C13/C15 and C19/C21 Hybrid OutletsAvailable on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.High Retention OutletsWith no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.Field-replaceable NMCIntegrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
LongProductName - Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord
LongSummaryDescription - APC APDU9959EU3. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 230, 220 - 240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Certification: EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003, RCM, VDE
Mounting - Rack
name - Power strip APDU9959EU3 Rack PDU 9000
No. of C13 sockets - 21
No. of C19 sockets - 3
No. of type C sockets - 0
No. of type E sockets - 0
No. of type F (Schuko) sockets - 0
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 65 °C
Other features -
Other I/O ports - 1 x USB
Other I/O ports - 4 x RJ-45
Packaging data - Package depth - 114 mm
Packaging data - Package height - 2002 mm
Packaging data - Package weight - 8.59 kg
Packaging data - Package width - 165 mm
Ports & interfaces - AC outlets quantity - 24 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Power plug - IEC 60309
Power - AC input frequency - 50 - 60 Hz
Power - Load capacity - 3680 VA
Power - Maximum current - 16 A
Power - Maximum input current per phase - 16 A
Power - Maximum power - 3680 W
Power - Maximum total current draw per phase - 16 A
Power - Nominal input voltage - 230, 220 - 240 V
Power - Nominal output voltage - 239 V
Power - Output voltage - 230 V
producer - APC
ProductName - APDU9959EU3
ShortSummaryDescription - APC APDU9959EU3, Switched, 0U, Single-phase, Vertical, Black, LCD
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Switch - No
Title - APC APDU9959EU3 power distribution unit (PDU) 24 AC outlet(s) 0U Black
URL - https://www.apc.com/shop/in/en/products/APC-Rack-PDU-9000-Switched-ZeroU-16A-230V-21-C13-3-C19-IEC309-Cord/P-APDU9959EU3
vendpn - APDU9959EU3
WarrantyInfo - 3 years repair or replace
Weight - 5.61 kg
Weight & dimensions - Depth - 46 mm
Weight & dimensions - Height - 1794 mm
Weight & dimensions - Weight - 5.61 kg
Weight & dimensions - Width - 55 mm
