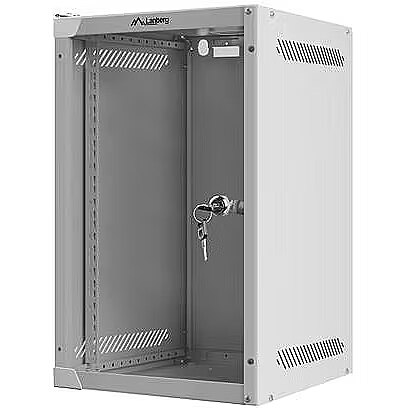

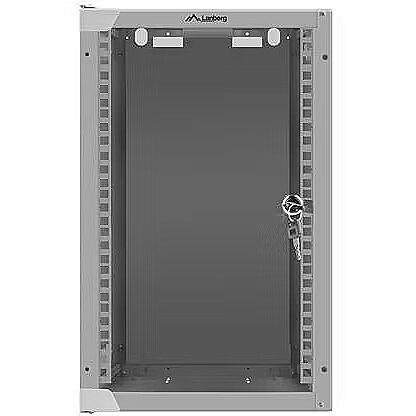

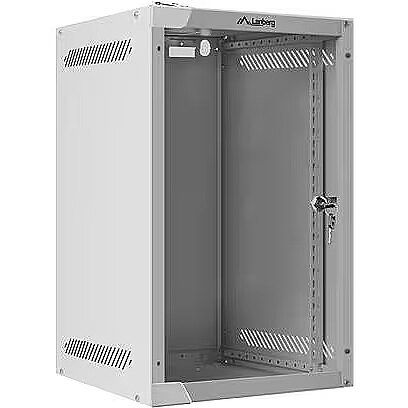

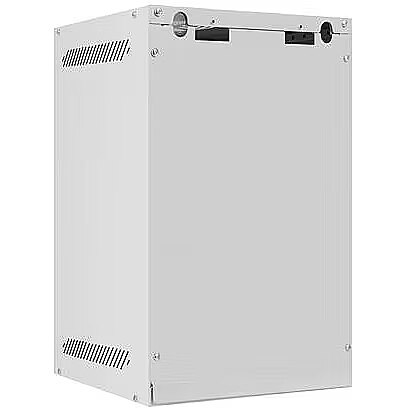

Lanberg Installation Cabinet Rack Hanger 10'' 9U 280X310 Grey

Accessories included - Elements for wall installation,  Front door lock,  M6 screws
Category - Root/Electronics/Networks and communication/19-inch and 10-inch racks
Color - Gray
Color - RAL 7035
Dane techniczne: Drzwi przednie - Szyba hartowana
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Model - Lanberg - Szafy RACK
Dane techniczne: Producent - LANBERG
Dane techniczne: Rodzaj - wisząca
Dane techniczne: Wentylacja - tak
Dane techniczne: Wymiary - 280 x 310 x 462 mm mm
Dane techniczne: Wysokość - 9 U
Dane techniczne: Zastosowanie - sieci
Description - Lanbergs compact 10" wall-mount cabinet WF10-2309-10S is a great solution designed for network construction, with cabling and equipment in size of 10" in mind, where maximum combined load capacity does not exceed 20kg. This particular product can be used for computer network systems installations / implementations within small and medium-sized companies (SMB). On top of that, cabinet also works well, as an element of low voltage installations, such as cable TV networks, security (various alarms) and access control systems, as well as, CCTV and IP surveillance systems.

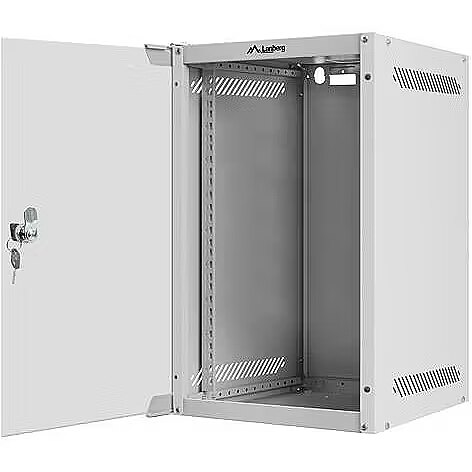

Due to the appropriate design, the cabinet allows easy, self-assembly. This product is characterized by its IP20 rating, glass front door, equipped with a lock (included with the product) with the possibility of door rotation up to 180°. Moreover, you can put the wiring through entry cable on top and bottom panels (with blank entry panels).
This networking equipment is made of high quality rolled steel, and due to the self-assembly (flat pack) construction, consisting of a one single flat package, transport is much easier. Lastly, the packaging includes additional accessories for wall installation, M6 screws and entry blank panels.
Designation - CE
dimensionalWeight - 3552
dimension depth - 560 mm
dimension height - 90 mm
Dimensions - 280 x 310 x 462 mm
dimension weight - 7500 g
dimension width - 365 mm
ean - 5901969416947
Eans - 5901969416947
Features - International Protection (IP) code - IP20
Features - Maximum weight capacity - 20 kg
Features - Product colour - Grey
Features - Rack capacity - 9U
Features - Type - Wall mounted rack
Front door type - Glass
guarantee - 36
guarantee_type - normal
Height - 9U
LCD display - No
Load (max) - 20 kg
Name - Lanberg szafa rack wisząca 10" 9U 280X310 szara drzwi szklane
name - Wall-mounted Rack 10'' 280x310mm grey

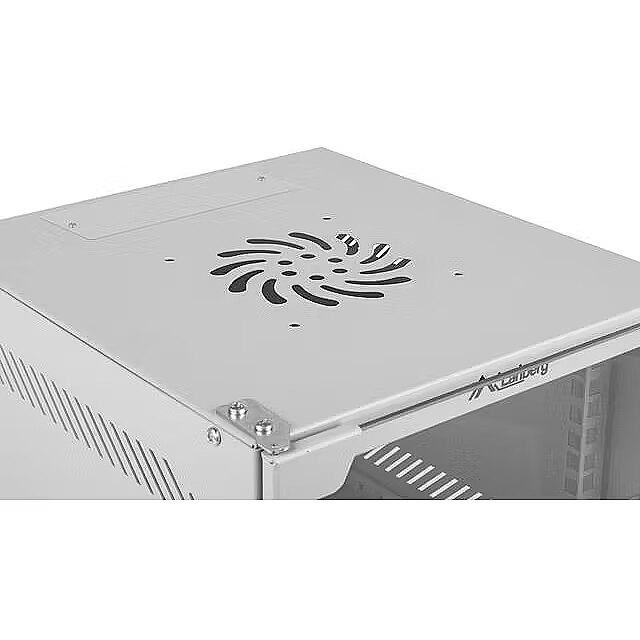

Other features - Color: Grey RAL7035, Packaging dimensions (S x G x W): 58 x 34 x 7 cm, Door type: Front - Tempered glass, Compliance with standards: ANSI / EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI, Material: High-quality rolled steel, powder coated, Ventilation hole: Yes, 120mm, 110V or 230V, Front door thickness: 5.0 mm, Sheet thickness: Mounting profile - 1.0mm, the rest 0.8 - 1.5mm, Cable entry panels: Top, Bottom,
Producent: Nazwa producenta / importera - LANBERG
Impakt S.A.
Stanisława Lema 16
62-050 Mosina
<
producer - Lanberg
Producer - LANBERG
producerCode - WF10-2309-10S
ProducerCode - WF10-2309-10S
productName - Lanberg wall-mount cabinet 10" 9U (280x310, gray)
productSize - Normal
Protection class - IP20
ShortDescription - szafa wisząca rack 10" 9U 280x310mm, do montażu, szara !SZYBA!
sizeX - 370
sizeY - 600
sizeZ - 80
Stuff - Steel
Type - Wallmounting
vendpn - WF10-2309-10S
warrantyLength - 24
warrantyType - G
weight - 7970
Weight & dimensions - Accessories included in set - Wall mounting accessories, front door lock, M6 screws
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Door material - Tempered glass
Weight & dimensions - Height - 469 mm
Weight & dimensions - Size (imperial) - 25.4 cm (10")
Weight & dimensions - Weight - 7 kg
Weight & dimensions - Width - 280 mm
Width - 280 mm
