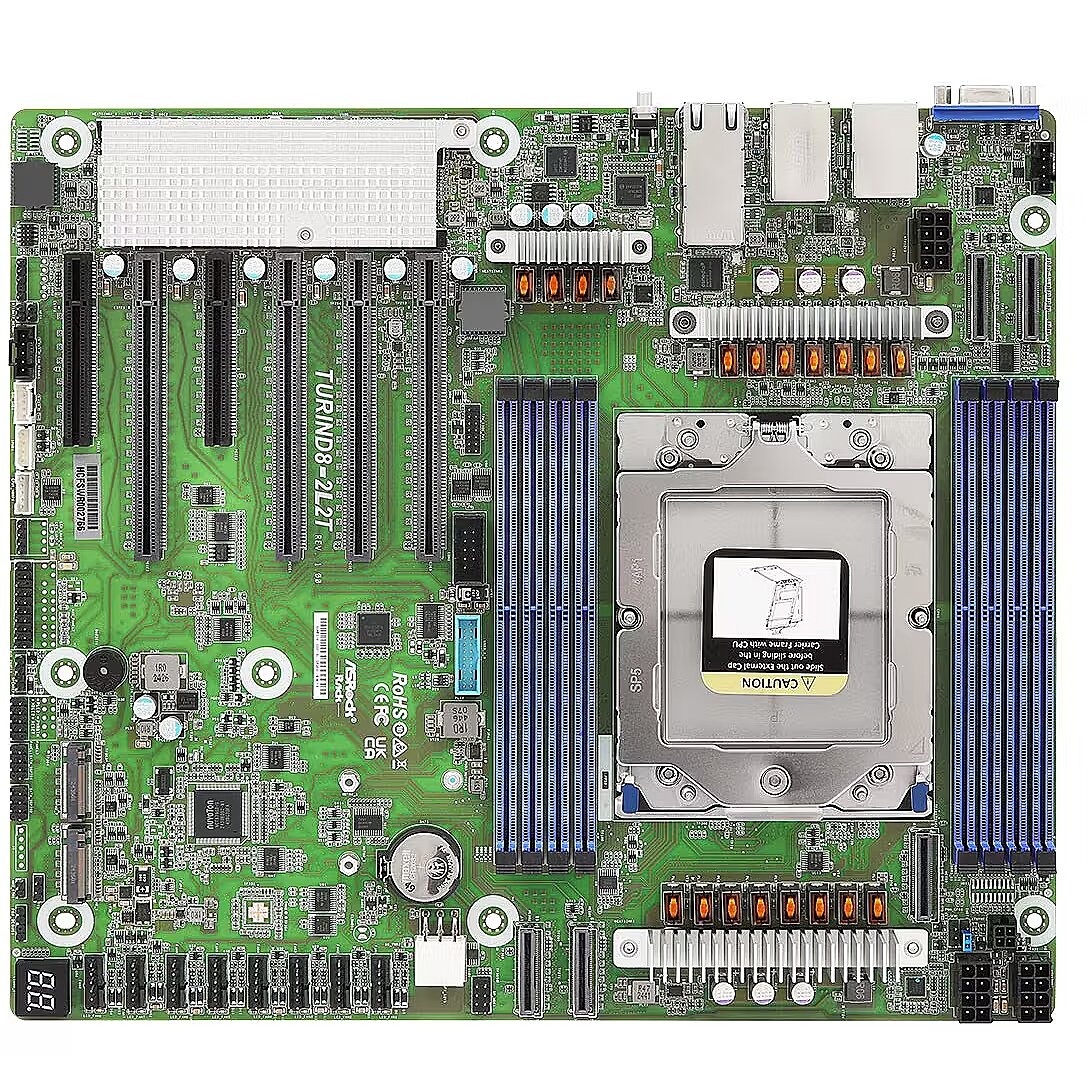

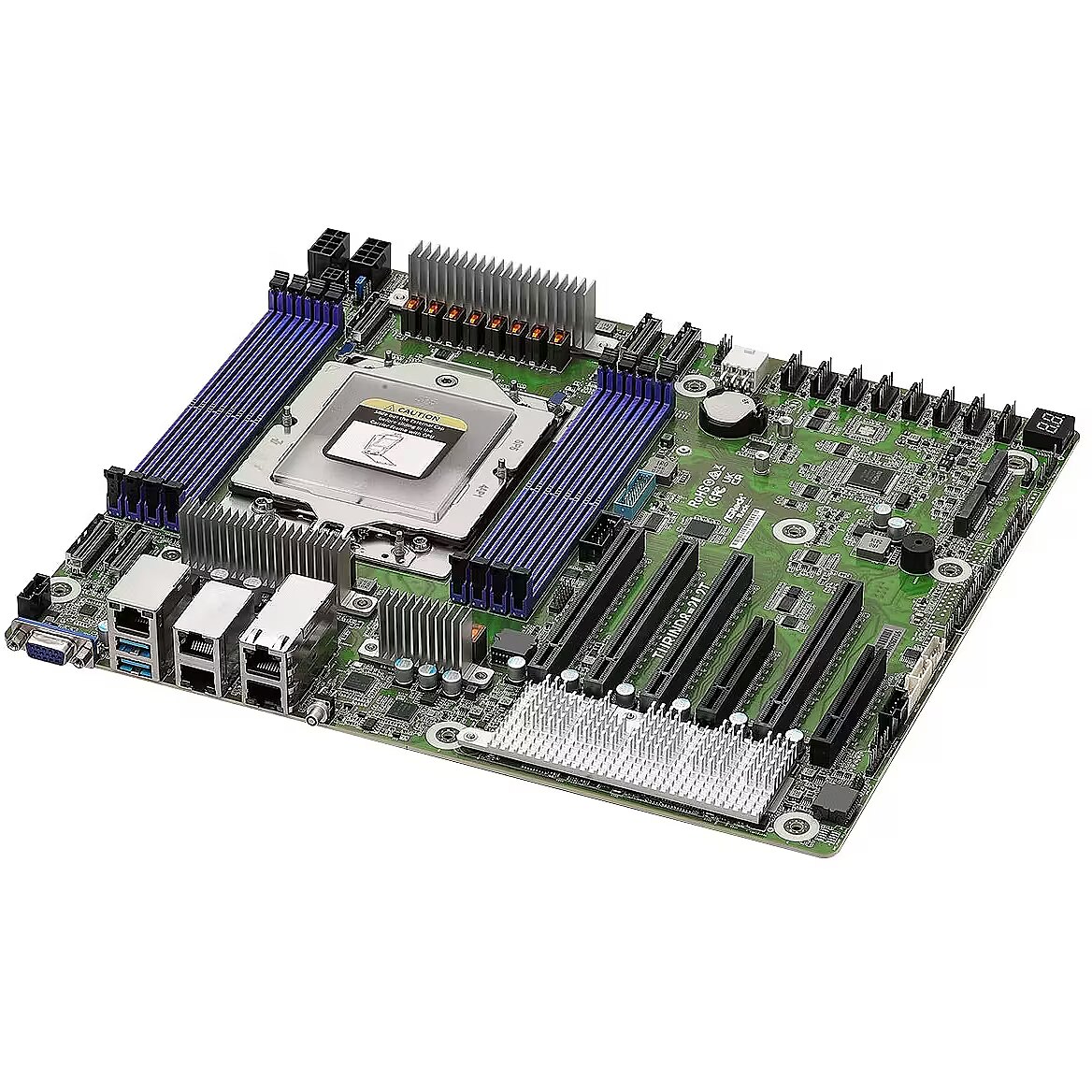

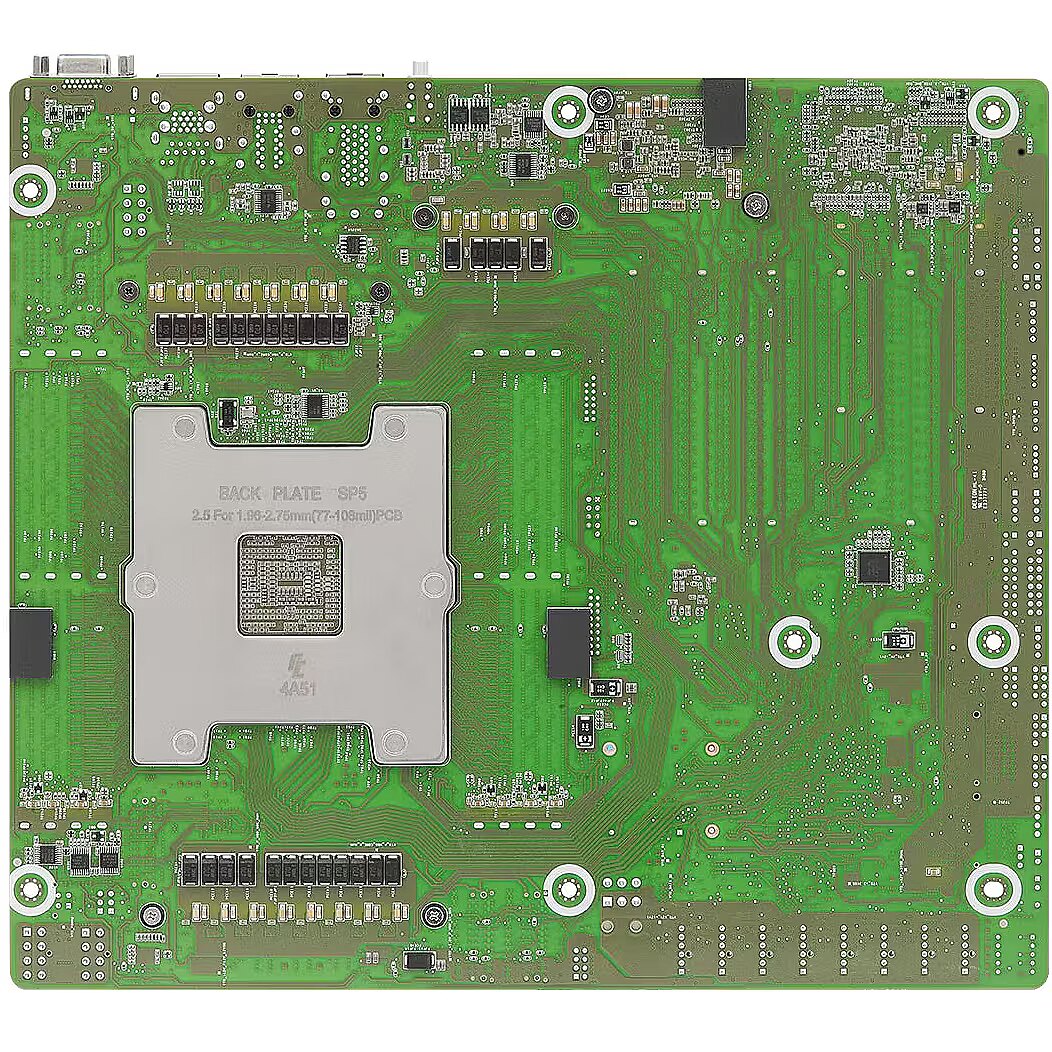

ASRock TURIND8-2L2T motherboard AMD SoC Socket SP5 CEB

BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
dimensionalWeight - 1636
Expansion slots - PCI Express x8 (Gen 5.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 4
Features - Component for - Server
Features - Motherboard chipset - AMD SoC
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - CEB
Graphics - Graphics card - AST2600
Graphics - Graphics card family - ASPEED
Graphics - On-board graphics card - Yes
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 10
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Memory - Maximum internal memory - 256 GB
Memory - Memory voltage - 1.1 V
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I210
Network - LAN controller - Intel X710-AM2
Network - Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Processor - Compatible processor series - AMD EPYC 9004
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket SP5
producerCode - TURIND8-2L2T
productName - Asrock TURIND8-2L2T motherboard AMD SoC Socket SP5 CEB
productSize - Normal

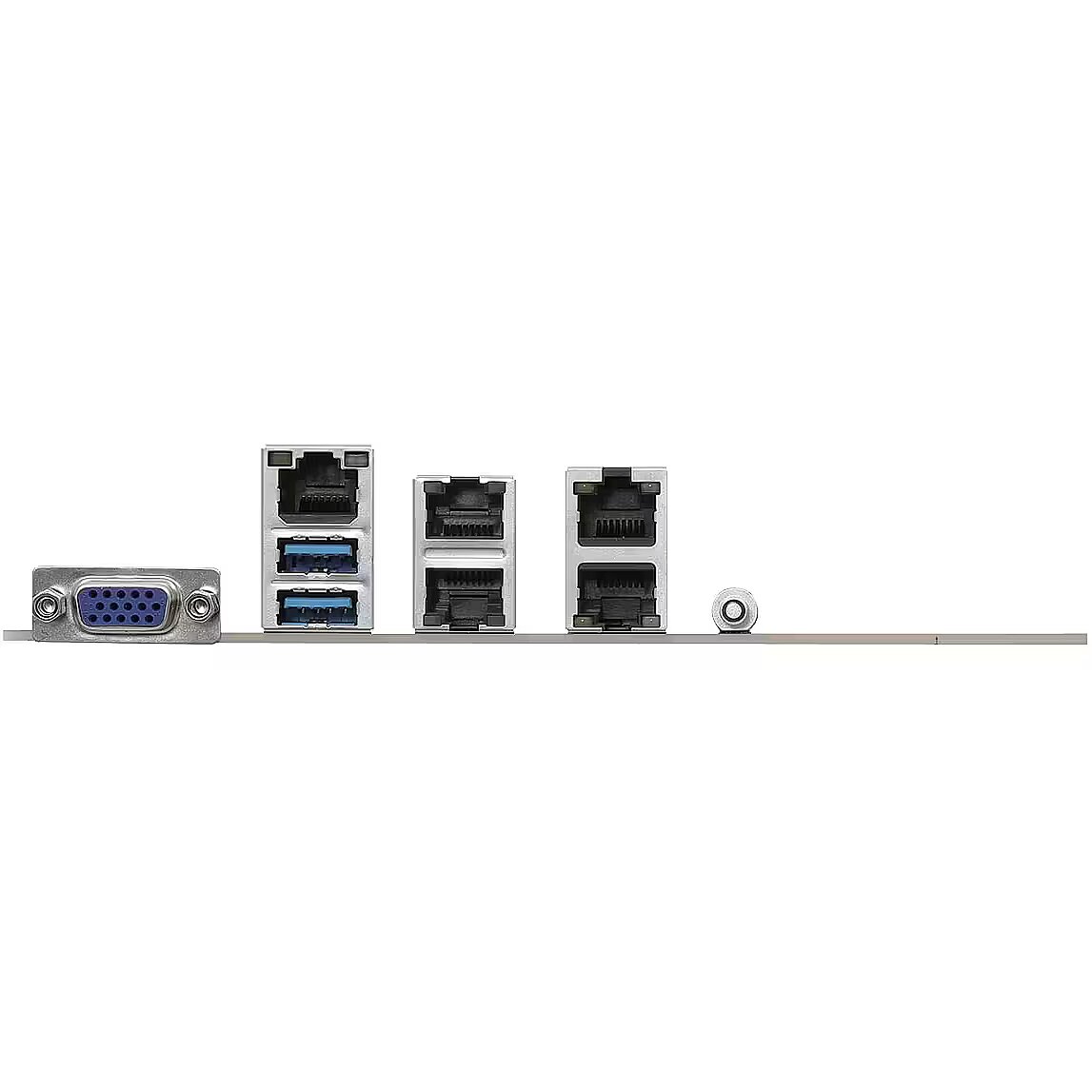

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 4
Rear panel I/O ports - IPMI LAN (RJ-45) port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
sizeX - 363
sizeY - 322
sizeZ - 70
Storage controllers - Supported storage drive interfaces - SATA III
warrantyLength - 36
warrantyType - G
weight - 1660
Weight & dimensions - Depth - 266.7 mm
Weight & dimensions - Width - 304.8 mm
