ID: 1399825
Product code: KSM32RS8/16HD
In stock 1 units
Warranty: 2 years
(Warranty for business entities 1 year)

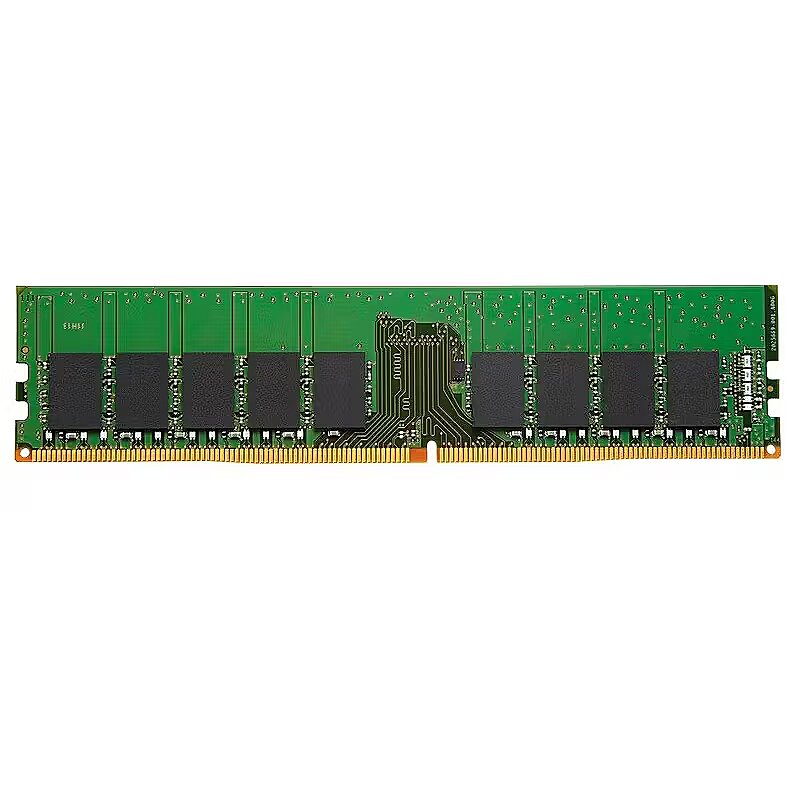

Kingston RDIMM With Parity, DDR4, 16GB, 3200MHz, CL22, Single stick (1Rx8)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
This image was created with the help of AI and is for illustrative purposes. The appearance, colours, dimensions, lighting and arrangement of the components may differ from the actual product. The image may include parts and accessories that are not included with the product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Courier delivery to your addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Capacity: 16 GB
- ECC: Is
- Maximum frequency: 3200 MHz
All parameters
Capacity
: 16 GB
CL
: 22
ECC
: Is
Maximum frequency
: 3200 MHz
Standard
: DDR4
The number of memory modules
: 1
Voltage, V
: 1.2
More detailed specification
Box Weight Brutto (kg) - 0.04 kg
Brand - Kingston Technology
BrandPartCode - KSM32RS8/16HD
Category - Memory Modules
Category1 - Memory Enterprise
Description1 - Kingston RAM Server Premier - 16 GB - DDR4 3200 RDIMM CL22
Description2 - Kingston's KSM32RS8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
EAN - 0740617354010
EAN Code - 740617354010
Features - Buffered memory type - Registered (buffered)
Features - CAS latency - 22
Features - Component for - Server
Features - ECC - Yes
Features - Internal memory - 16 GB
Features - Internal memory type - DDR4
Features - Memory data transfer rate - 3200 MT/s
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 16 GB
Features - Memory ranking - 1
Features - Memory voltage - 1.2 V
Features - Product colour - Green
Features - Refresh row cycle time - 350 ns
Features - Row active time - 32 ns
Features - Row cycle time - 45.75 ns
GTIN - 740617354010
GTIN - 0740617354010
LongDesc - Kingston's KSM32RS8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
LongProductName - 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D
LongSummaryDescription - Kingston Technology 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D. Component for: Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC, Product colour: Green
Manufacturer - Kingston
ManufacturerID - KSM32RS8/16HD
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
PackageHeight - 10
PackageLength - 160
PackageWeight - 26
PackageWidth - 40
Pack Height (mm) - 4 mm
Pack Length (mm) - 133 mm
Pack Weight Brutto (kg) - 0.04 kg
Pack Width (mm) - 31 mm
Pieces in pack - 1
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=260319104446081779&THEME=asbis&LANG=lv
ProductCategory - Atmiņa
ProductCode - KSM32RS8/16HD
ProductDescription - Kingston DRAM 16GB 3200MT/s DDR4 ECC Reg CL22 DIMM 1Rx8 Hynix D
ProductName - 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D
ProductType - Memory Server
ShortSummaryDescription - Kingston Technology 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D, 16 GB, 1 x 16 GB, DDR4, 288-pin DIMM, Green
Title - Kingston Technology 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D
UPC - 740617354010
URL - https://www.kingston.com/en/memory/server-premier/ddr4-3200mts-ecc-registered-dimm
Vendor - KINGSTON
WarrantyInfo -
Warranty Term (month) - Lifetime(s)
WEEE - DE83654239
Brand - Kingston Technology
BrandPartCode - KSM32RS8/16HD
Category - Memory Modules
Category1 - Memory Enterprise
Description1 - Kingston RAM Server Premier - 16 GB - DDR4 3200 RDIMM CL22
Description2 - Kingston's KSM32RS8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
EAN - 0740617354010
EAN Code - 740617354010
Features - Buffered memory type - Registered (buffered)
Features - CAS latency - 22
Features - Component for - Server
Features - ECC - Yes
Features - Internal memory - 16 GB
Features - Internal memory type - DDR4
Features - Memory data transfer rate - 3200 MT/s
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 16 GB
Features - Memory ranking - 1
Features - Memory voltage - 1.2 V
Features - Product colour - Green
Features - Refresh row cycle time - 350 ns
Features - Row active time - 32 ns
Features - Row cycle time - 45.75 ns
GTIN - 740617354010
GTIN - 0740617354010
LongDesc - Kingston's KSM32RS8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
LongProductName - 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D
LongSummaryDescription - Kingston Technology 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D. Component for: Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC, Product colour: Green
Manufacturer - Kingston
ManufacturerID - KSM32RS8/16HD
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
PackageHeight - 10
PackageLength - 160
PackageWeight - 26
PackageWidth - 40
Pack Height (mm) - 4 mm
Pack Length (mm) - 133 mm
Pack Weight Brutto (kg) - 0.04 kg
Pack Width (mm) - 31 mm
Pieces in pack - 1
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=260319104446081779&THEME=asbis&LANG=lv
ProductCategory - Atmiņa
ProductCode - KSM32RS8/16HD
ProductDescription - Kingston DRAM 16GB 3200MT/s DDR4 ECC Reg CL22 DIMM 1Rx8 Hynix D
ProductName - 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D
ProductType - Memory Server
ShortSummaryDescription - Kingston Technology 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D, 16 GB, 1 x 16 GB, DDR4, 288-pin DIMM, Green
Title - Kingston Technology 16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D
UPC - 740617354010
URL - https://www.kingston.com/en/memory/server-premier/ddr4-3200mts-ecc-registered-dimm
Vendor - KINGSTON
WarrantyInfo -
Warranty Term (month) - Lifetime(s)
WEEE - DE83654239
