Axagon PCEM2-N PCI-E 3.0 4x - M.2 SSD NVMe, up to 80mm SSD

-
Accessories included - PCI-Express adapter with standard plug Low profile herring Heat conductive pad Mounting material and screwdriver Printed instruction manual Packed in a cardboard box with the parameters given in a clear way
Box Weight Brutto (kg) - 1 kg
Brand - Axagon
BrandPartCode - PCEM2-N
Category - Interface Cards/Adapters
category - PC Components|Network & Adapter Cards|Adapter Cards|M.2
Category Code - HDA
Chipset type -
code - PCEM2-N
Code - PCEM2-N
Controller Features - TRIM Support Boot from Connected Disk
Controller Form Factor - Plug-in Card
Controller type - SSD
Data Transfer Rate - 8

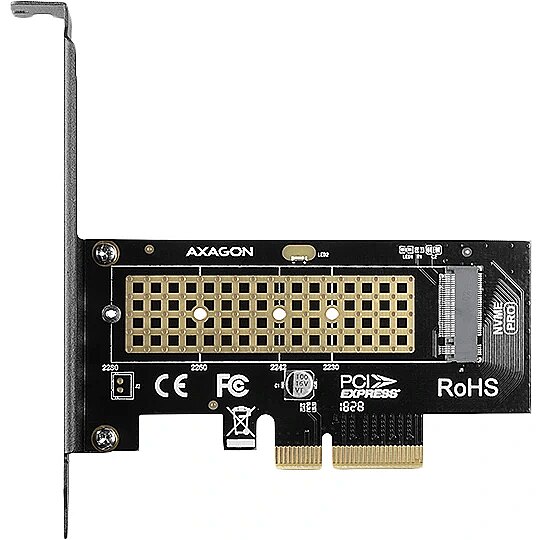

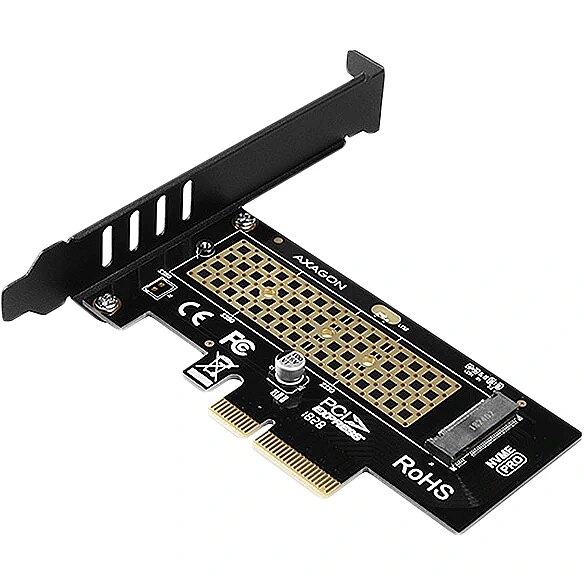

Description - The AXAGON PCEM2-N internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus. High-quality construction, compact size, and well thought-out design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M.2 slot. The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M.2 cards with a size of up to 22x80 mm can be used. Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved. The thermally conductive pad and coppered vents help to remove better heat generated during the operation of M.2 SSD disks. The LED indication indicate either connection or data transfer in the M.2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases. Input:
PCI-Express interface, compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots. Output:
NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M.2 SSD disk. Other features:
Full Plug and Play support.
Support of M.2 disks with the sizes  2230, 2242, 2260, 2280 mm.
Support of M key or B+M key NVMe (PCI-Express) M.2 SSD disks without a maximum capacity limit.
Support of both one-sided and double-sided M.2 disks.
Better heat removal due to the coppered vents and thermally conductive pad.
Support of booting from an SSD card.
Dimensions 105 x 49 x 8 mm.
Weight 32 g.
The installation of drivers is not required. Power supply:
The adapter is supplied directly from a PCI-Express bus; no external power supply is needed. Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows supported), and Linux with kernel 2.6.31 and higher.
Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported, Package contains:
PCI-Express adapter with a standard bracket,
low profile bracket,
thermally conductive pad,
mounting material and a screwdriver,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packaged in a cardboard.
Design - Certification - CE
Design - Country of origin - China
Design - Easy to install - Yes
Design - Internal - Yes
Design - LED indicators - Yes
Design - Product colour - Black, Gold
Design - Purpose - PC
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 170 mm
Dimensions - 105 x 49 x 8 mm
dimension weight - 100 g
dimension width - 130 mm
EAN - 8595247904331
ean - 8595247904331
EAN Code - 8595247904331
Features - Data transfer rate (max) - 8 Gbit/s
Features - Plug and Play - Yes
Features - TRIM support - Yes
Full Description Line - Form Factor M.2
GTIN - 8595247904331
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/600x600x600x600/200221150011671870.jpg
Image - https://content.it4profit.com/pimg/s/resize/600x600x600x600/200221150011685871.jpg
Interface - PCIe
Link - https://www.axagon.eu/en/produkty/pcem2-n
LongDesc - The AXAGON PCEM2-N internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus.high-quality constuction, compact size, and well thought-out design make the adapter an ideal choice for upgrading a desktop computer that is not equipped with an M.2 slot.The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided ones. The reduction does not have a limit of SSD disk capacities and M.2 cards with a size of up to 22 x 80 mm can be used.Due to the PCI-Express 3.0 4-lane interface rates of up to 8 GB/s can be achieved.The thermally conductive pads and coppered vents help to remove better heat generated during the operation of M.2 SSD disks. The LED indication indicates connection and data transfer.Input:• PCI-Express 3.0 interface, compatible with a PCI-Express 1.0a / 1.1 / 2.0 / 2.1.• Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots.• The throughput of a 4-Lane PCI-Express 3.0 bus is up to 8 GB/s (two-way).Output:• NGFF 75-pin M-key slot to install an NVMe (PCI-Express) M.2 SSD disk.Other features:• Full Plug and Play support.• Support of M.2 disks with the sizes – 2 230, 2 242, 2 260, and 2 280 mm.• Support of M key or B+M key NVMe (PCI-Express) M.2 SSD disks without a maximum capacity limit.• Support of both one-sided and double-sided M.2 disks.• Better heat removal due to the coppered vents and thermally conductive pads.• Support of booting from an SSD card.• Dimensions: 102 x 49 x 8 mm; weight: 35 g.• The installation of drivers is not required.Power supply:• The adapter is supplied directly from a PCI-Express bus; no external power supply is needed.Supported operating systems:• MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32- and 64-bit versions of Windows supported), and Linux with kernel 2.6.31 and higher.• Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported,Package contains:• PCI-Express adapter with a standard bracket,• 1 thermally conductive pad,• Mounting material and a screwdriver,• Printed installation manual in CZ / EN / DE / ESP / FR / HU / IT / PL / RO / RU / SK / BG,• Packaged in a cardboard.
LongProductName - PCI-Express 3.0/M.2, 8 Gbit/s, 49x102x8mm
LongSummaryDescription - Axagon PCEM2-N. Host interface: PCIe, Output interface: M.2, Expansion card form factor: Full-height / Low-profile. Product colour: Black, Gold, Purpose: PC, Country of origin: China. Data transfer rate (max): 8 Gbit/s. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Linux operating systems supported: Kernel 2.6.31, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016. Width: 49 mm, Depth: 105 mm, Height: 8 mm
M.2 - 1 (M.2 (Key M))
Model - PCEM2-N
name - AXAGON PCEM2-N PCIe-3.0-x4-Adapter, 1x M.2-NVMe-SSD, bis 2280 - passive Kühlung
Name - AXAGON The PCI-Express x4 internal adapter for connecting an NVMe M.2 SSD disk to a computer | PCEM2-N
name - PCEM2-N PCI-E 3.0 4x - M.2 SSD NVMe, up to 80mm SSD
Other features - Full Plug and Play support. Support for M.2 drives with dimensions - 2230, 2242, 2260, 2280 mm. Support M key or B+M key NVMe (PCI-Express) drives with M.2 SSD connector without limiting the maximum capacity. Support for single-sided and double-sided M.2 drives. Better heat dissipation thanks to copper ventilation holes and a heat-conducting pad. Support booting from SSD card. Input: PCI-Express interface compatible PCI-Express version: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a. Number of lanes 4-Lane, compatible with PCIe x4 / x8 / x16 slots. Output: NGFF 75-pin M-key slot for mounting an NVMe (PCI-Express) M.2 SSD.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175.00 mm
Package features > Gross height (mm) - 30.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2532 pc(s)
Package features > Paper/Pasteboard - 47.20 g
Package features > Plastic (No PET) - 11.80 g
Package features > Tare weight (kg) - 0.06 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 130 mm
Packaging data - Package height - 30 mm
Packaging data - Package type - Box
Packaging data - Package weight - 98 g
Packaging data - Package width - 175 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 1 kg
Pieces in pack - 1
Ports - 1 x M.2 PCIe
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCIe 4.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Number of M.2 (M) slots - 1
Ports & interfaces - NVMe - Yes
Ports & interfaces - Output interface - M.2
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=200220132935078202&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - PCEM2-N
ProductDescription - AXAGON PCEM2-N PCI-E 3.0 4x - M.2 SSD NVMe, up to 80mm SSD
ProductName - PCEM2-N
Product Net Weight - 0.032 kg
ProductType - Controller Card
Provides Data Channel - PCIe NVMe/SATA III
Requires Expansion Slot Standard - PCI Express 3.0 x16 PCI Express 3.0 x8 PCI Express 3.0 x4
Retail Packaging Net Weight Carton - 1 kg
Retail Packaging Net Weight Plastic - 1 kg
Shipping Box Depth Shipping/Package Box Dimensions - 3 cm
Shipping Box Height Shipping/Package Box Dimensions - 17 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.09 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortSummaryDescription - Axagon PCEM2-N, PCIe, M.2, Full-height / Low-profile, PCIe 4.0, Black, Gold, PC
System Requirements -
System requirements - Linux operating systems supported - Kernel 2.6.31
System requirements - Mac operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2016
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows 8.1
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.10 kg
Technical details > Net weight - 0.04 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - The PCI-Express x4 internal adapter for connecting an NVMe M.2 SSD disk to a computer
Technical details > Producer product name - PCEM2-N
Title - Axagon PCEM2-N interface cards/adapter Internal M.2
Unit Calculated Volume - 0.000663 cubm
Unit Calculated Weight - 0.09 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pcem2-n
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pcem2-n?ami=204
vendpn - PCEM2-N
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 32 g
Weight & dimensions - Depth - 105 mm
Weight & dimensions - Height - 8 mm
Weight & dimensions - Weight - 35 g
Weight & dimensions - Width - 49 mm
