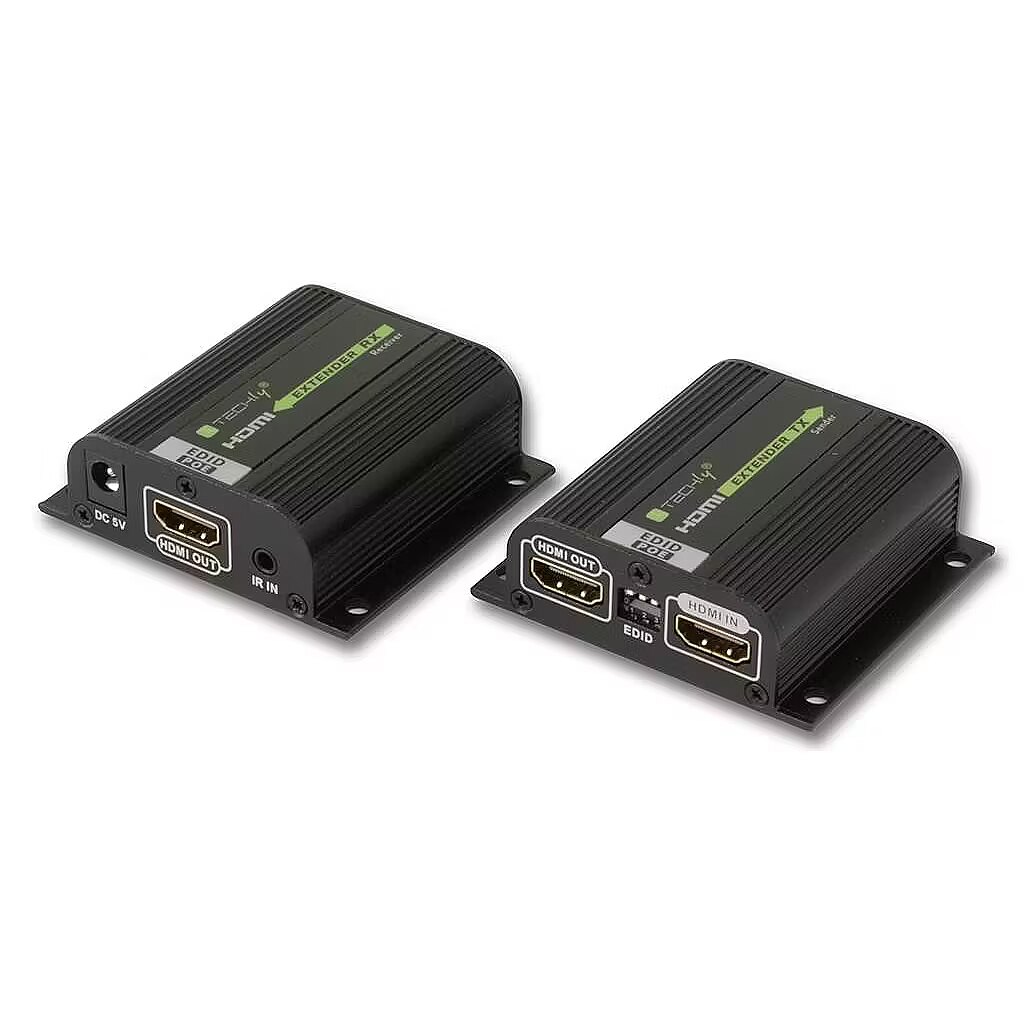

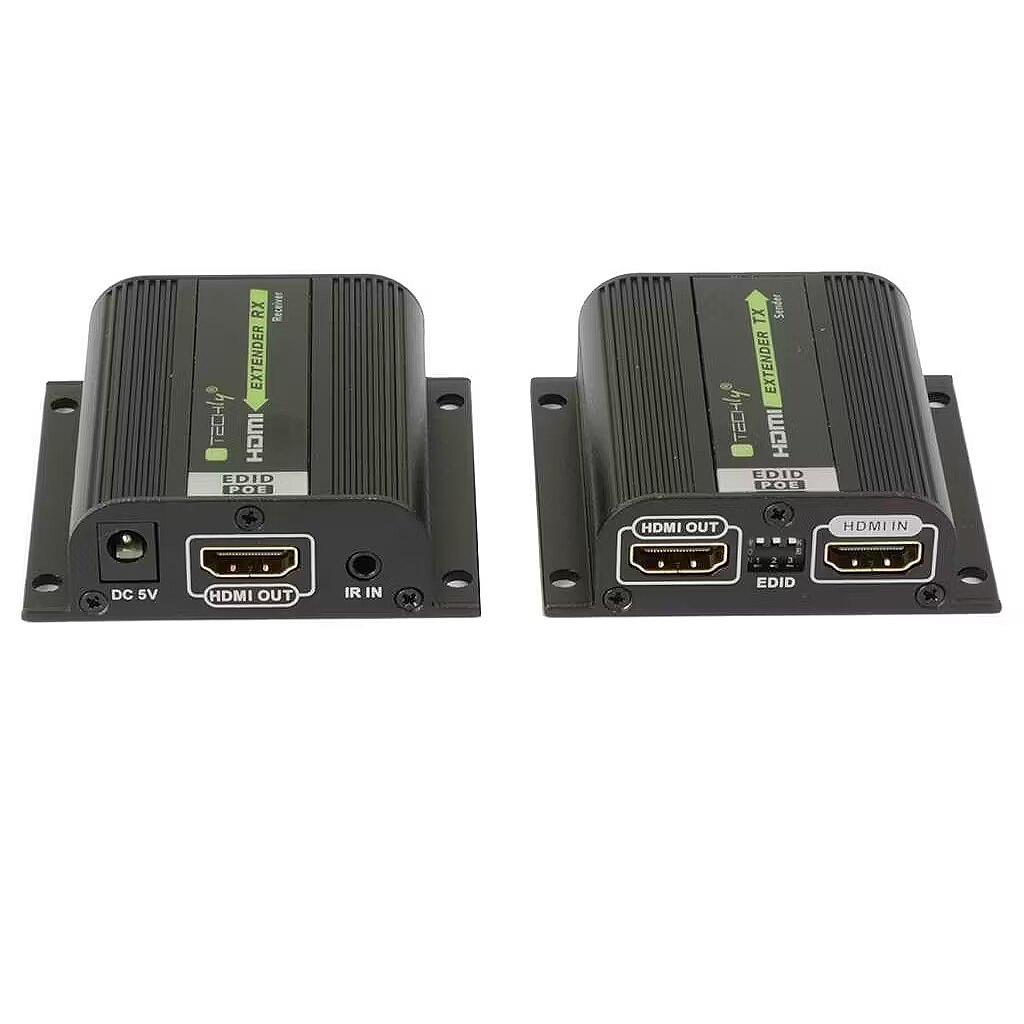

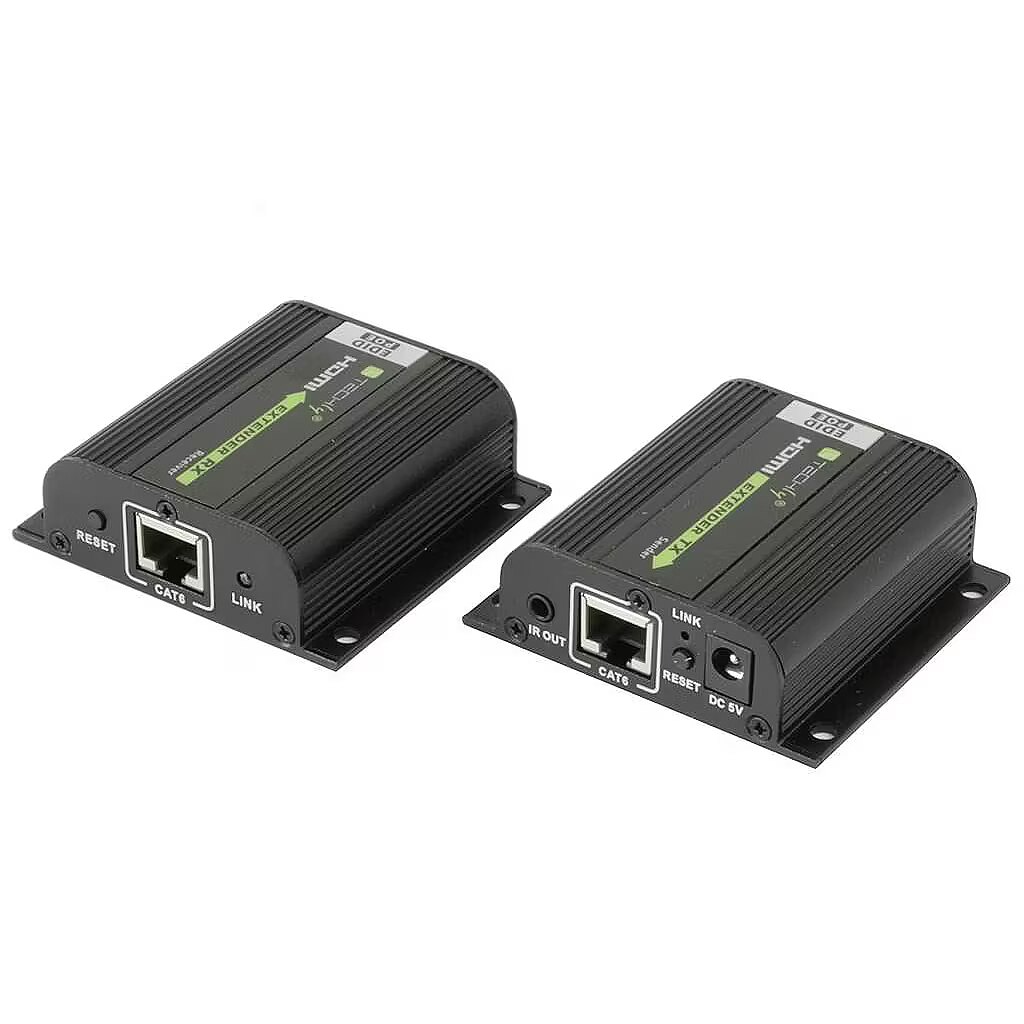

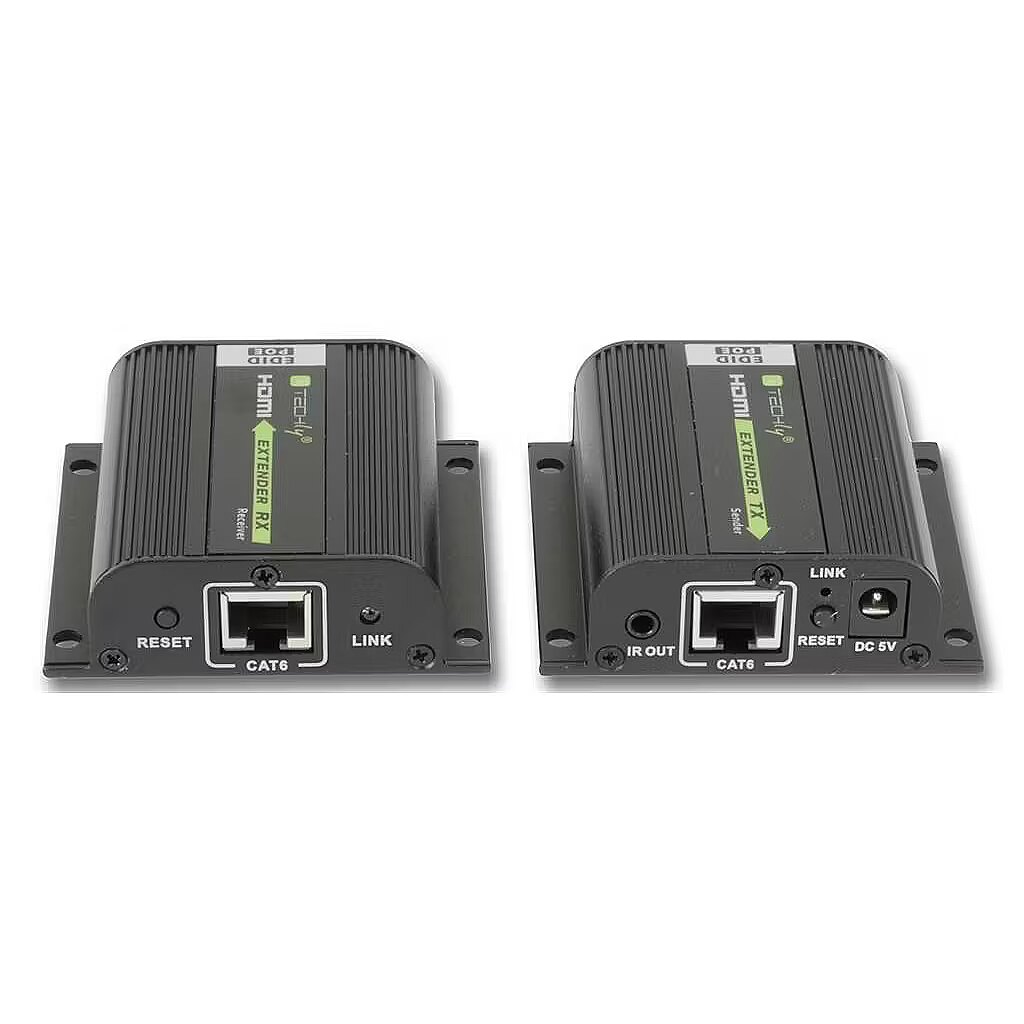

Techly HDMI amplifier extender by Cat6/6a/7 cable 40m

Brand - Techly
BrandPartCode - IDATA EXT-E70POED
Category - AV Extenders
Category - Root/Accessories | Exploitation/Cables and adapters/video spliters
Dane techniczne: Dodatkowe informacje - Obsługa PoE/PoCWspółpraca z pilotami podczerwieni 20-60 kHz
Dane techniczne: Gwarancja - 3 lata w serwisie zewnętrznym
Dane techniczne: Kategoria - 6a
Dane techniczne: Końcówka 1 - Nadajnik: 1x HDMI in, 1x HDMI outOdbiornik: 1x HDMI out
Dane techniczne: Końcówka 2 - Nadajnik: 1x gniazdo RJ45Odbiornik: 1x gniazdo RJ45, 1x IR in
Dane techniczne: Producent - Techly
Dane techniczne: Standard - HDMI
Dane techniczne: Standard - RJ-45
Dane techniczne: Typ - przedłużacz
Dane techniczne: Waga - 70 g
Dane techniczne: Wymiary - 71,6 x 66,9 x 22,6 mm
Dane techniczne: Zastosowanie - Umożliwia transmisję sygnału AV HDMI przy użyciu jednego kabla sieciowego na odległość do 40m
Eans - 8051128100709
Features - 3D - Yes
Features - Audio formats supported - AC3, PCM
Features - Cable types supported - Cat6, Cat6a, Cat7
Features - Certification - CE, FCC, RoHS
Features - HDCP - Yes
Features - HDCP & EDID bypass - Yes
Features - HDCP version - 1.2
Features - Maximum resolution - 1920 x 1080 pixels
Features - Maximum transfer distance - 40 m
Features - Product colour - Black
Features - Supported video modes - 1080p
Features - Type - AV transmitter & receiver
GTIN - 8051128100709
LongDesc - This HDMI Extender allows you to transmit HDTV signal over long distances using a Cat. 6 / 6A / 7 network cable.Thanks to the use of Network Cable you can reach up to 40m of transmission length with a video resolution of 1080p.Thanks to the Extended Display Identification Data (EDID) function via the switch, you can adjust the signal to the correct resolution and frequency and get the optimum and maximum quality from the HDMI signal.IDATA EXT-E70POED can be used canonically through the supplied power supplies or you can leverage the POE function to power the receiver.The product also features infrared IR synchronization technology, supports 3D signal and is HDCP 1.2a.Thanks to its versatility it can be used in any environment of both work and leisure as public places, studios, offices and conference rooms or just for home use.
LongProductName - Amplifier Extender HDMI Full HD 3D POE on Cat.6/6A/7 40m cable with EDID and IR
LongSummaryDescription - Techly IDATA EXT-E70POED. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat6, Cat6a, Cat7. Connectivity technology: Wired. Power consumption (transmitter) (max): 3 W, Power consumption (receiver) (max): 3 W. Width: 71.6 mm, Depth: 66.9 mm, Height: 22.6 mm
Name - Techly 100709 Extender HDMI po skrętce Cat6 / Cat6a / Cat7 RJ45, do 40m, EDID, IR, POE/POC
Operational conditions - Operating temperature (T-T) - 0 - 60 °C
Packaging content - AC adapter included - Yes
Packaging content - Manual - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - RJ-45 input ports - 1
Ports & interfaces - RJ-45 output ports - 1
Power - Power consumption (receiver) (max) - 3 W
Power - Power consumption (transmitter) (max) - 3 W
Power - Power over Ethernet (PoE) - Yes
Producent: Nazwa producenta / importera - Techly
IC Intracom Italia Spa
Viale Europa 33
33077 Sacile

Producer - Techly
ProducerCode - 100709
ProductName - IDATA EXT-E70POED
ShortDescription - Techly 100709 Extender HDMI po skrętce Cat6 / Cat6a / Cat7 RJ45, do 40m, EDID, IR, POE/POC
ShortSummaryDescription - Techly IDATA EXT-E70POED, 1920 x 1080 pixels, AV transmitter & receiver, 40 m, Wired, 3D, HDCP
Supplier features - Vendor code - 100709
Technical details - Audio support - Yes
Technical details - Compliance certificates - CE, RoHS
Title - Techly IDATA EXT-E70POED AV extender AV transmitter & receiver Black
URL - https://www.techly.com/amplifier-extender-hdmi-full-hd-3d-poe-on-cat-6-6a-7-40m-cable-with-edid-and-ir.html
WarrantyInfo -
Weight & dimensions - Depth - 66.9 mm
Weight & dimensions - Height - 22.6 mm
Weight & dimensions - Weight - 467 g
Weight & dimensions - Width - 71.6 mm
