Brand - ATEN
BrandPartCode - VE801-AT-G
Category - AV Extenders
Features - Bandwidth - 340 MHz
Features - Cable types supported - Cat5, Cat6, Cat6a
Features - HDCP - Yes
Features - LED indicators - Yes
Features - Material - Metal
Features - Maximum resolution - 3840 x 2160 pixels
Features - Maximum transfer distance - 70 m
Features - Product colour - Black
Features - Supported video modes - 1080p
Features - Type - AV transmitter & receiver
GTIN - 2000001254684
GTIN - 4719264642715
Logistics data - Master (outer) case gross weight - 4.6 kg
Logistics data - Master (outer) case height - 175 mm
Logistics data - Master (outer) case length - 325 mm
Logistics data - Master (outer) case net weight - 3.9 kg
Logistics data - Master (outer) case width - 250 mm
Logistics data - Products per master (outer) case - 5 pc(s)

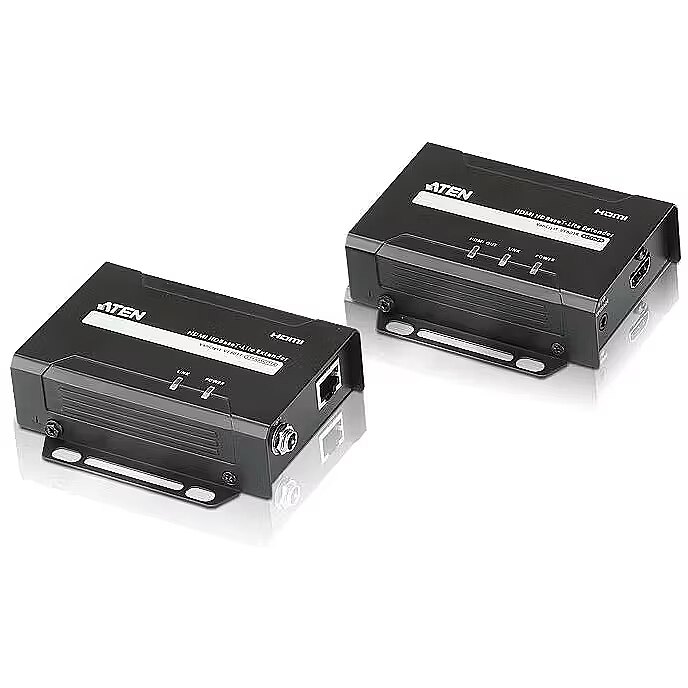

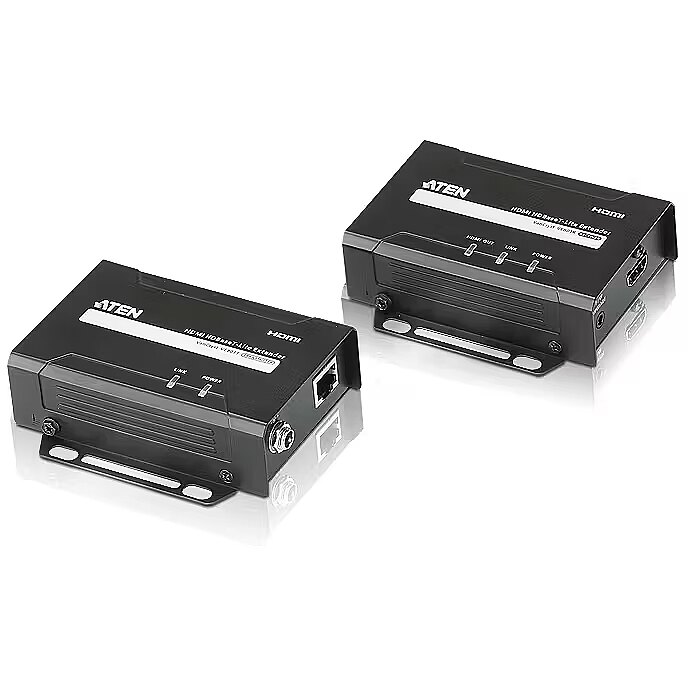

LongDesc - The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.1x VE801T/R HDMI HDBaseT-Lite Extender2x 0AD6-1F05-26EG Power Adapters1x User Instructions
LongProductName - HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
LongSummaryDescription - ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5, Cat6, Cat6a. Connectivity technology: Wired. Weight: 780 g, Receiver dimensions (WxDxH): 34.3 x 98.6 x 30 mm, Receiver weight: 250 g. Package width: 59 mm, Package depth: 239 mm, Package height: 160 mm. Master (outer) case width: 250 mm, Master (outer) case length: 325 mm, Master (outer) case height: 175 mm
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - AC adapter included - Yes
Packaging data - Package depth - 239 mm
Packaging data - Package height - 160 mm
Packaging data - Package weight - 841 g
Packaging data - Package width - 59 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes

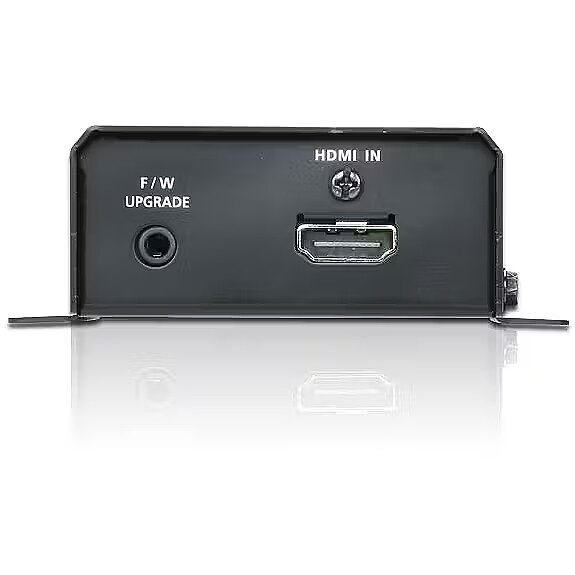

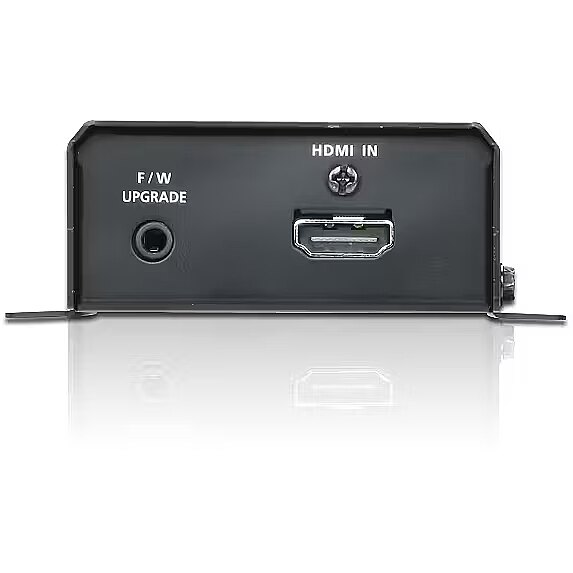

Ports & interfaces - HDMI in - 1

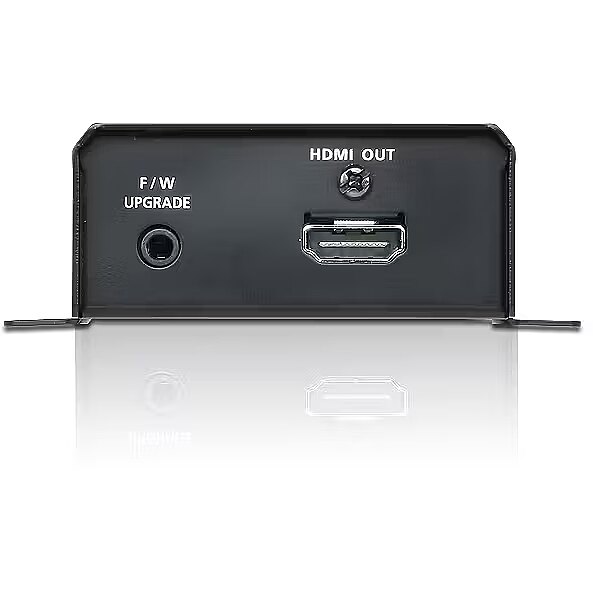

Ports & interfaces - Number of HDMI outputs - 1

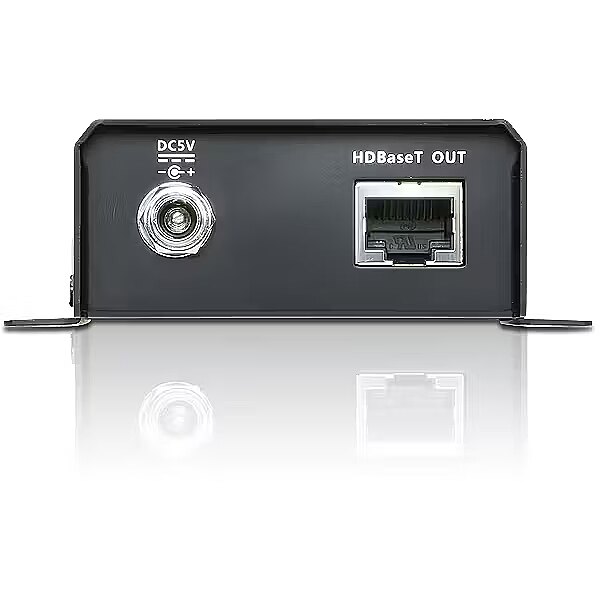

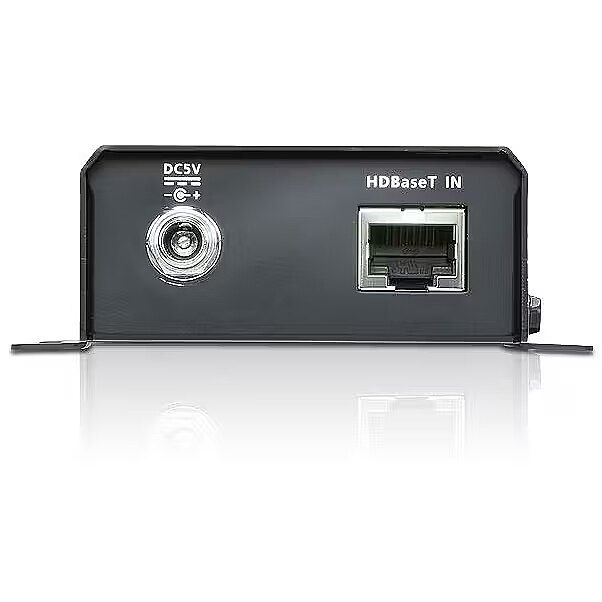

Ports & interfaces - RJ-45 input ports - 1

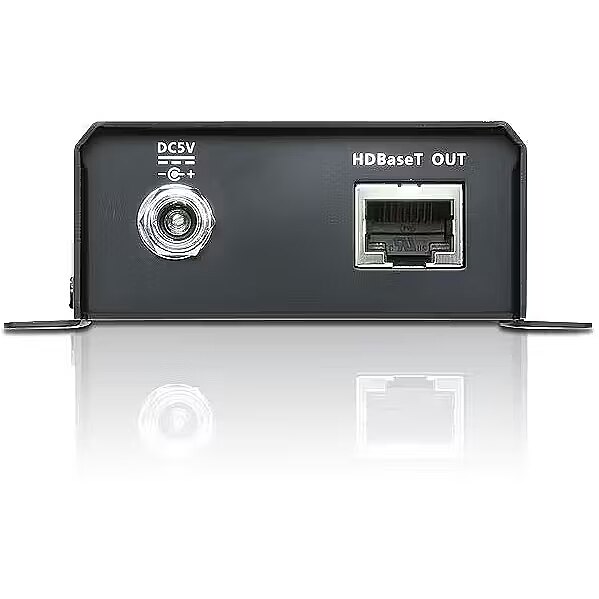

Ports & interfaces - RJ-45 output ports - 1
ProductName - HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
ShortSummaryDescription - ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B), 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Technical details - Compliance certificates - RoHS
Title - ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)
URL - https://www.aten.com/gb/en/products/professional-audiovideo/video-extenders/ve801/
WarrantyInfo -
Weight & dimensions - Receiver dimensions (WxDxH) - 34.3 x 98.6 x 30 mm
Weight & dimensions - Receiver weight - 250 g
Weight & dimensions - Transmitter dimensions (WxDxH) - 34.3 x 98.6 x 30 mm
Weight & dimensions - Transmitter weight - 240 g
Weight & dimensions - Weight - 780 g
