ARTIKEL1 - 4PT MANAGED INDUSTRIAL USB HUB
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - 5G4AINDRM-USB-A-HUB
Breite - 0
Category - Interface Hubs
EANCode - 0065030898188
Features - Data transfer rate - 5000 Mbit/s
Features - Housing material - Metal
Features - LED indicators - Power, Status
Features - Plug and Play - Yes
Features - Product colour - Black
Gewicht - 0.42
GRUPPE1 - Network
GRUPPE2 - USB Hub / Controller
GTIN - 0065030898188
GTIN - 065030898188
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - 5G4AINDRM-USB-A-HUB
Laenge - 0
Logistics data - Master (outer) case height - 270 mm
Logistics data - Master (outer) case length - 430 mm
Logistics data - Master (outer) case width - 520 mm
Logistics data - Products per master (outer) case - 25 pc(s)
LongDesc - Connect and manage up to four USB Type-A devices, using this USB hub - designed for industrial/commercial environmentsThis 4-port Managed Industrial USB 3.2 Gen 1 (5Gbps) Hub enables users to toggle individual USB ports on/off and to reboot the hub, using the USB Hub Administrator Software (free to download). With robust housing and versatile power input options, the USB Hub is designed to cater to the needs of IT Professionals working in industrial settings such as factories, warehouses, offices, and other similar environments.Managed USB HubThe USB Hub Administrator Software is to be installed on the host computer, enabling users to remotely control device access and manage operational features. With this software, users can:• Enable or disable individual or all ports on the USB Hub.• Reboot the USB Hub.• Set a password to restrict unauthorized access.• Save port states for quick setup in specific applications.• Utilize Command Line Interface (CLI) commands for command-line operation or custom application development.The software is compatible with Windows, macOS, and Linux, making it versatile across various platforms. It supports an unlimited number of Managed USB Hubs, allowing users to connect multiple Hubs to a single host computer or cascade them in sequence.Rugged and ReliableThe Industrial USB Hub features a rugged heavy-duty metal enclosure designed to shield the hub from potential damage caused by accidental drops or sudden impacts. Moreover, it protects against Electrostatic Discharge (ESD) with 15kV air and 8kV contact Level-4 ESD protection. This robust construction ensures resiliency in demanding industrial environments, providing peace of mind for users in situations where durability and reliability are paramount.Power FlexibilityThe USB Hub offers power flexibility to cater to diverse user needs. It features a terminal block power input that supports a wide voltage range from +7 to 48 volts DC, ensuring compatibility with various power sources. With an external power source connected, the USB Hub supports USB battery charging specification 1.2, delivering up to 1.5A (7.5W) on 3 of the downstream ports, so you can power and quickly charge external devices.For optimal performance an external power source is required. StarTech.com offers an external power adapter (Part Number: ITB20D3250, sold separately) that will enable the USB Hub to operate at maximum performance.Mounting OptionsThe USB Hub is thoughtfully designed for user convenience and adaptability. Equipped with built-in mounting brackets, installation is simplified. The hub may be mounted to a variety of surfaces such as walls or desks. The DIN rail bracket ensures secure mounting in industrial environments.High-PerformanceThe rugged USB Hub supports SuperSpeed USB 3.2 Gen 1 (5Gbps) and maintains backward compatibility with legacy peripheral devices. Additionally, the USB Hub offers enhanced security through the USB Event Monitor utility, a feature within the StarTech.com Connectivity Tools application. This utility logs and timestamps USB port usage, empowering IT administrators to identify potentially malicious devices. For more details and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe StarTech.com Advantage
LongProductName - StarTech.com 4-Port Managed USB Hub with 4x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps
LongSummaryDescription - StarTech.com 5G4AINDRM-USB-A-HUB. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Metal. Width: 114 mm, Depth: 67 mm, Height: 26 mm. Package width: 213 mm, Package depth: 149 mm, Package height: 51 mm. Cables included: USB Type-A to USB Type-B
Network - UASP support - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 60 °C
Operational conditions - Storage temperature (T-T) - -20 - 75 °C
Other features - Chipset - VIA - VL817-Q7 C0

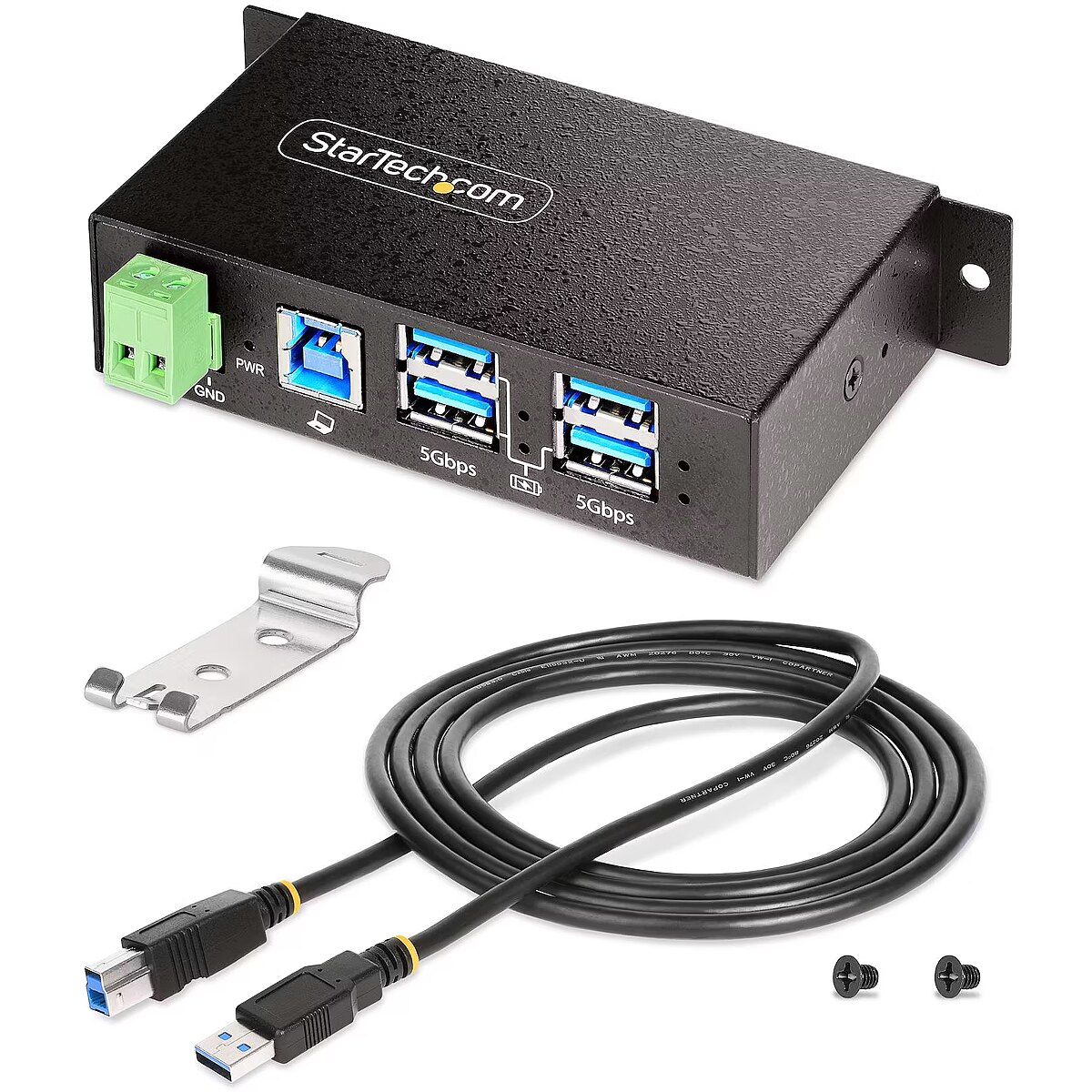

Packaging content - Cables included - USB Type-A to USB Type-B

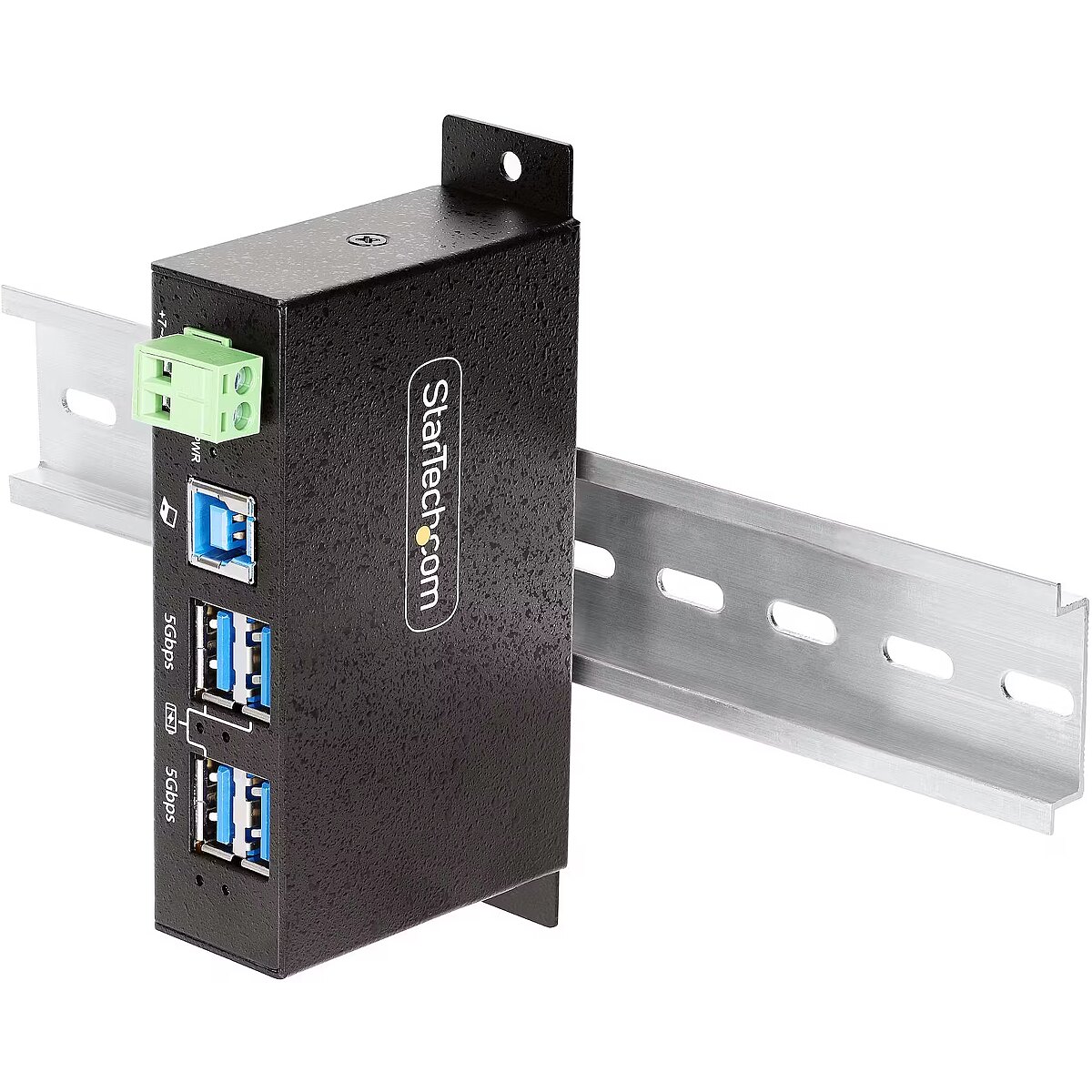

Packaging content - DIN rail kit included - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 149 mm
Packaging data - Package height - 51 mm
Packaging data - Package weight - 450 g
Packaging data - Package width - 213 mm
Performance - Mean time between failures (MTBF) - 131406 h
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Ports & interfaces - Hub interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports & interfaces - Ports quantity - 4
Ports & interfaces - Terminal block port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
ProductName - 5G4AINDRM-USB-A-HUB
ShortSummaryDescription - StarTech.com 5G4AINDRM-USB-A-HUB, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Black, Metal, Power, Status
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, Trade Agreements Act (TAA)
Title - StarTech.com 5G4AINDRM-USB-A-HUB interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black
URL - https://www.startech.com/
WarrantyInfo -
Weight & dimensions - Depth - 67 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 114 mm
