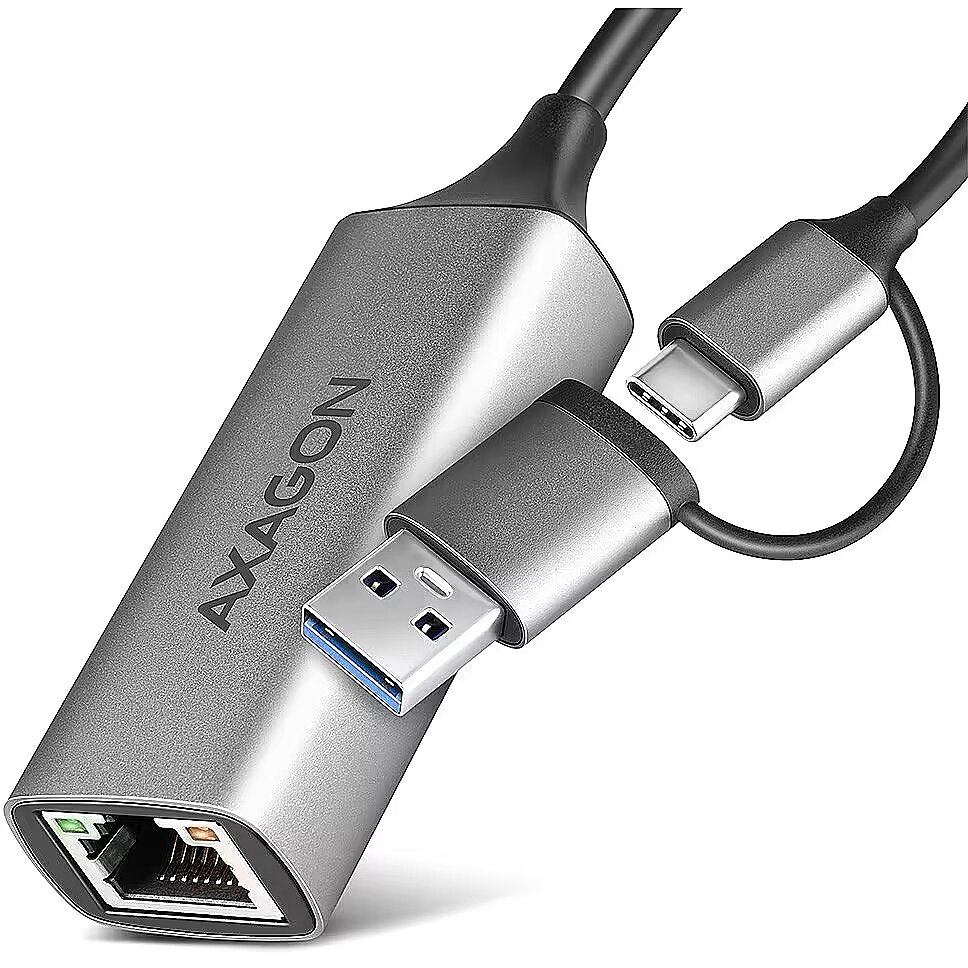

Axagon ADE-TXCA USB-A/C 3.2 Ge n 1 LAN adapter 1Gbit

Accessories included - USB - Gigabit Ethernet adapter with fixed 15 cm long USB-C cable and USB-C / USB-A reduction,  multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA, packed in a cardboard box with a hanging hole.
Antenna - Not applicable
Antenna gain - 0 dBi
Box Weight Brutto (kg) - 8.6 kg
Brand - Axagon
BrandPartCode - ADE-TXCA
Cable Compliant Standards - Gigabit Ethernet USB 3.2
Cable Features - LED Indicator Plug&Play
Cable Functionality - USB to Ethernet Adapter
Cable Length - 0.15 m
Cables included Packaging content - USB, USB Type-A to USB Type-C
Cabling technology Network - 10/100/1000BaseT(X)
Category - Network Cards
category - PC Components|Cables & Adapters|External Cables|USB|Adapter Cables
Category Code - NIC
Certification Design - CE, RoHS
Chipset Design - ASIX AX88179
Chipset type - ASIX AX88179A
code - ADE-TXCA
Code - ADE-TXCA
Compliance certificates Technical details - RoHS, CE
Component for Design - PC/Laptop
Connectivity technology Ports & interfaces - Wired
Country of origin Design - China
Depth (mm) - 16 mm
Depth Weight & dimensions - 24 mm
Description - The external network card AXAGON ADE-TXCA easily converts USB-C or USB-A 3.2 Gen 1 port to Gigabit Ethernet port. Thanks to the cable with USB-C connector, on which the USB-C -> USB-A reduction is attached, you can connect the Ethernet adapter to any computer, tablet or phone. USB network adapter compatible with 10/100/1000 Mbit/s expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection. In addition to gigabit throughput, the LAN adapter offers a wide range of features such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with VLAN and advanced Power Management features. The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Due to its minimal dimensions and weight, it is an ideal accessory for laptops and other mobile devices. The support for current versions of Windows, macOS, and Linux, Chrome or Android operating systems allows it to be used for any desktop, laptop or ultrabook equipped with a modern double-sided USB Type C connector or a classic USB-A connector. In Windows from version 8.1 and above, the adapter enables easy automatic installation without the need for an Internet connection. The Ethernet adapter will also be used by users of tablets or mobile phones supporting the possibility of a wired Ethernet connection. In addition, thanks to the chip used, the adapter is also supported by the operating system of Nintendo Switch game consoles. Input:
USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).
Backward compatible with USB 480Mbps (USB 2.0) and USB 1.1.
Compatible with Thunderbolt 3 and 4.
Connection to a computer, mobile phone or tablet via a USB-C male connector or with a connected adapter via a USB-A male connector. Output:

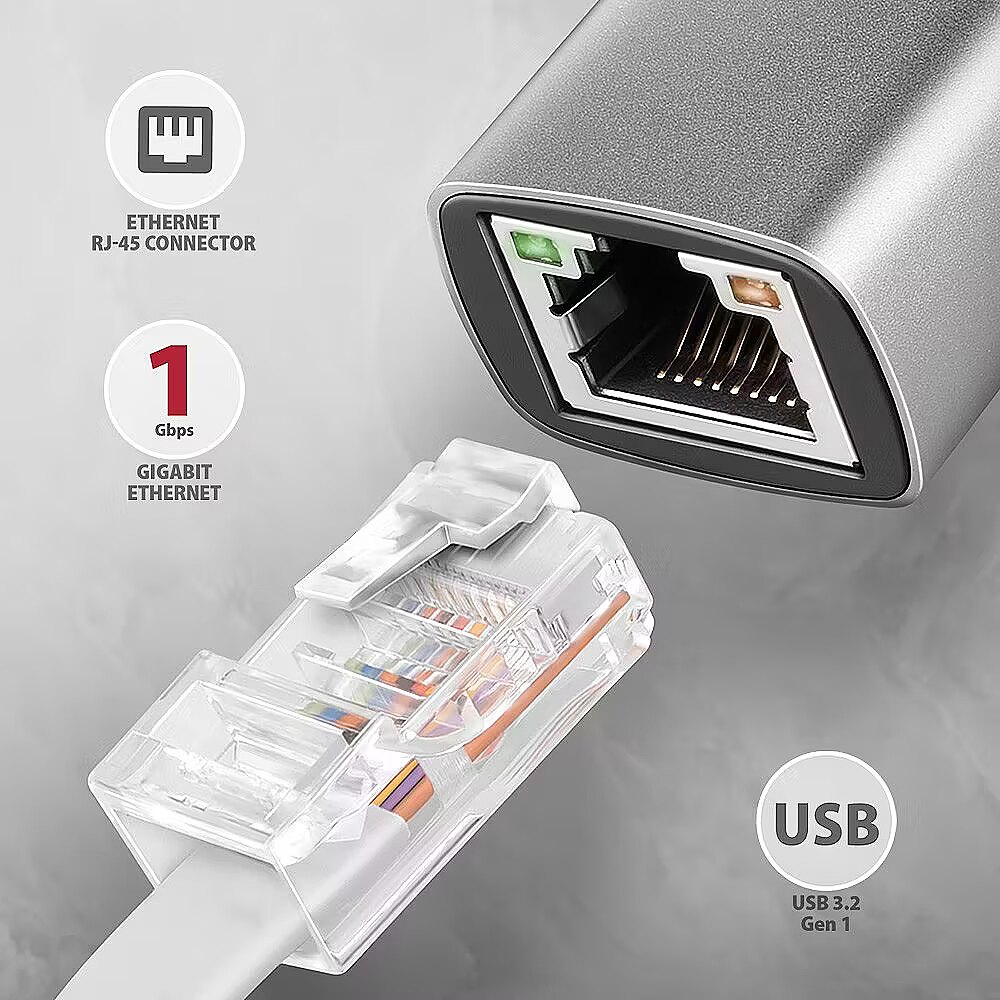

Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
10/100/1000 Mb/s auto-detection.
Supports IPv4 / IPv6 packet Checksum Offload Engine (COE) to reduce processor load, including IPv4 IP/TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 checksum control and generation.
Supports TCP Large Send Offload V1 and V2.
Supports IEEE 802.1P Layer 2 priority encoding & decoding.
Supports IEEE 802.1Q VLAN tagging.
Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest.
Supports IEEE 1588/802.1AS Timestamping precise time synchronization HW support.
Supports Jumbo frame.
Supports Auto MDI/MDIX - crossover detection and auto-correction eliminates the need for crossover cables. Other features:
Full Plug and Play and Hot Plug support.
Supports CDC-ECM for automatic installation of drivers across different OSs.
CDC-NCM support - for native support without driver installation in iOS/iPadOS/macOS/Linux.

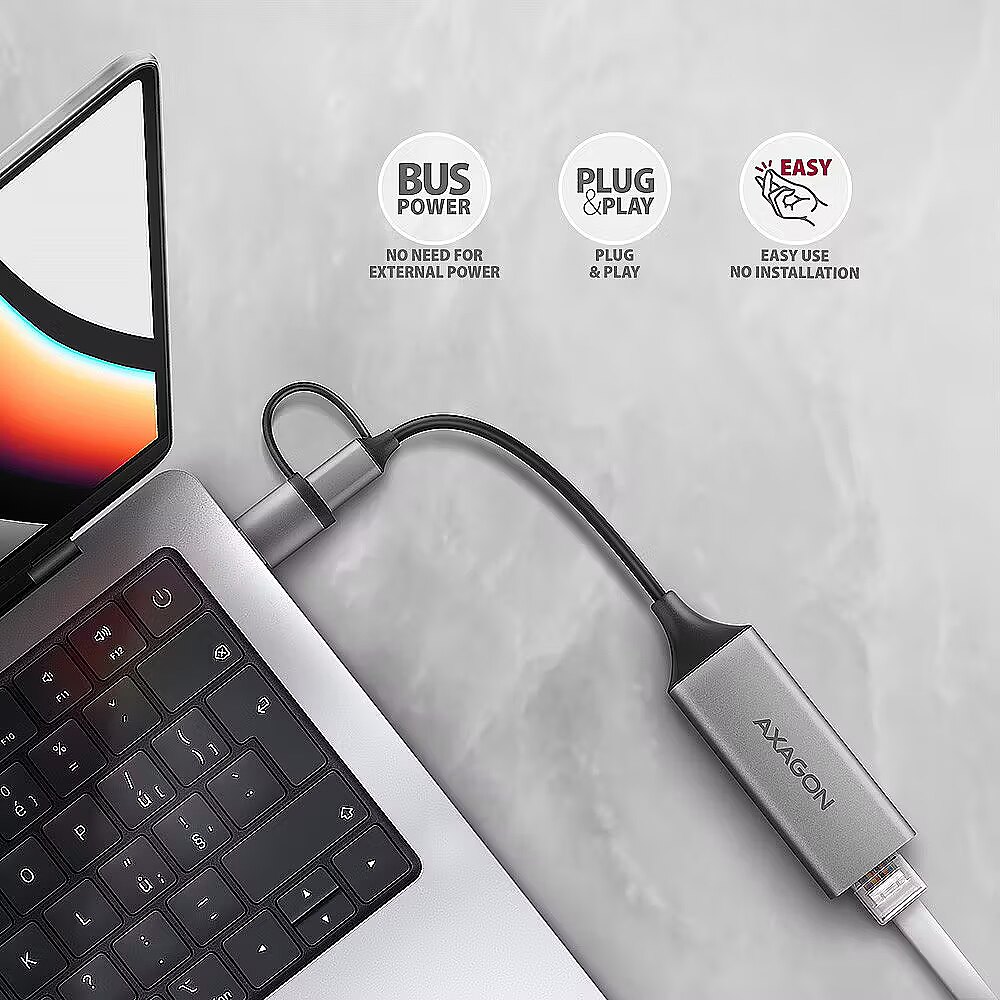

Adapter power supply via USB (bus power) - no auxiliary power supply required.
Two LEDs to indicate network activity and the adapter's connection to the network.
Dimensions 76 x 24 x 16 mm.
Weight 34 g (incl. cable and reduction).
USB cable length 15 cm.

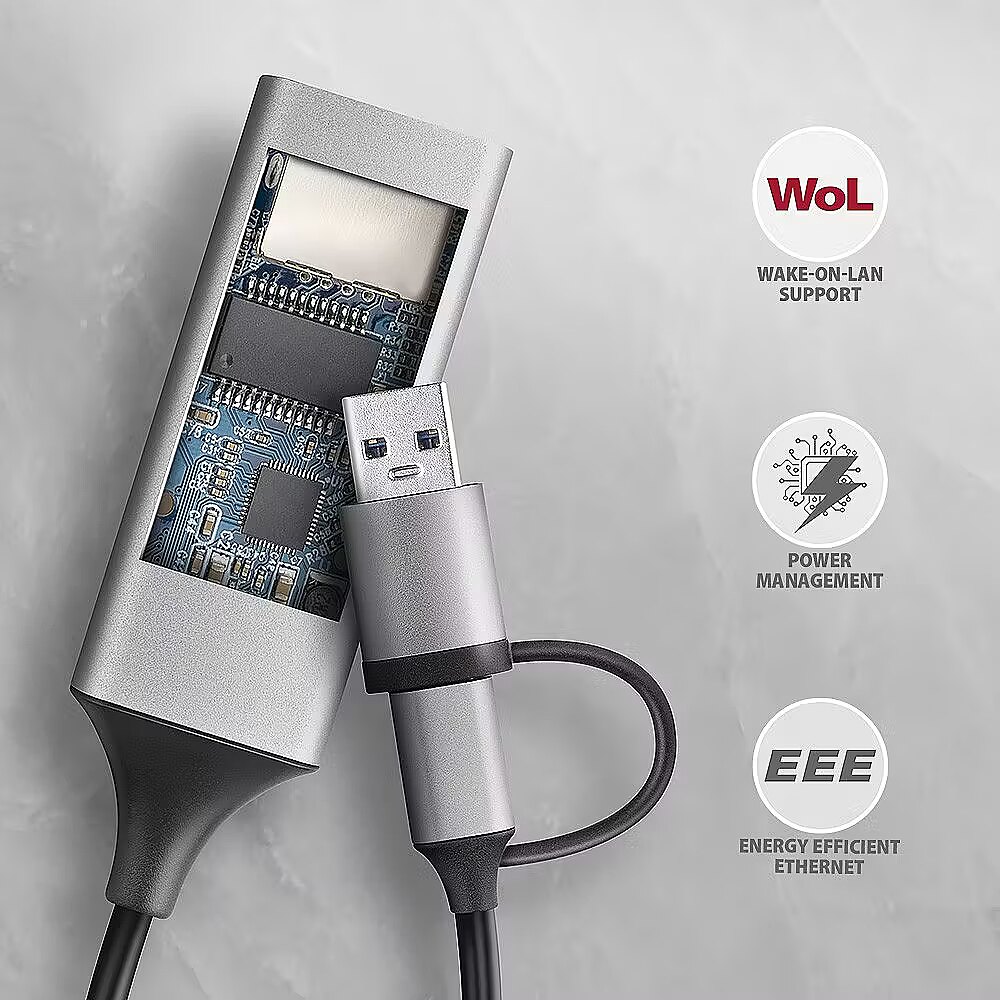

ASIX AX88179A chipset is used. Wake-on-LAN feature support in different modes:
Supports sleep mode and remote Wake Up via Magic Packet, Microsoft Wakeup Frame and Link Change Wake-up.
Supports Bonjour wake-on-demand.
Supports Wakeup Packet Indication.
Supports Microsoft Modern Standby. Advanced Power Management features:
The adapter supports advanced power management to reduce losses during standby or light traffic on the network. It further supports advanced power saving when the Ethernet cable has been disconnected.
Supports Power Management offload (ARP & NS).
Supports ECMA-393 proxZzzy standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers. Supported operating systems:

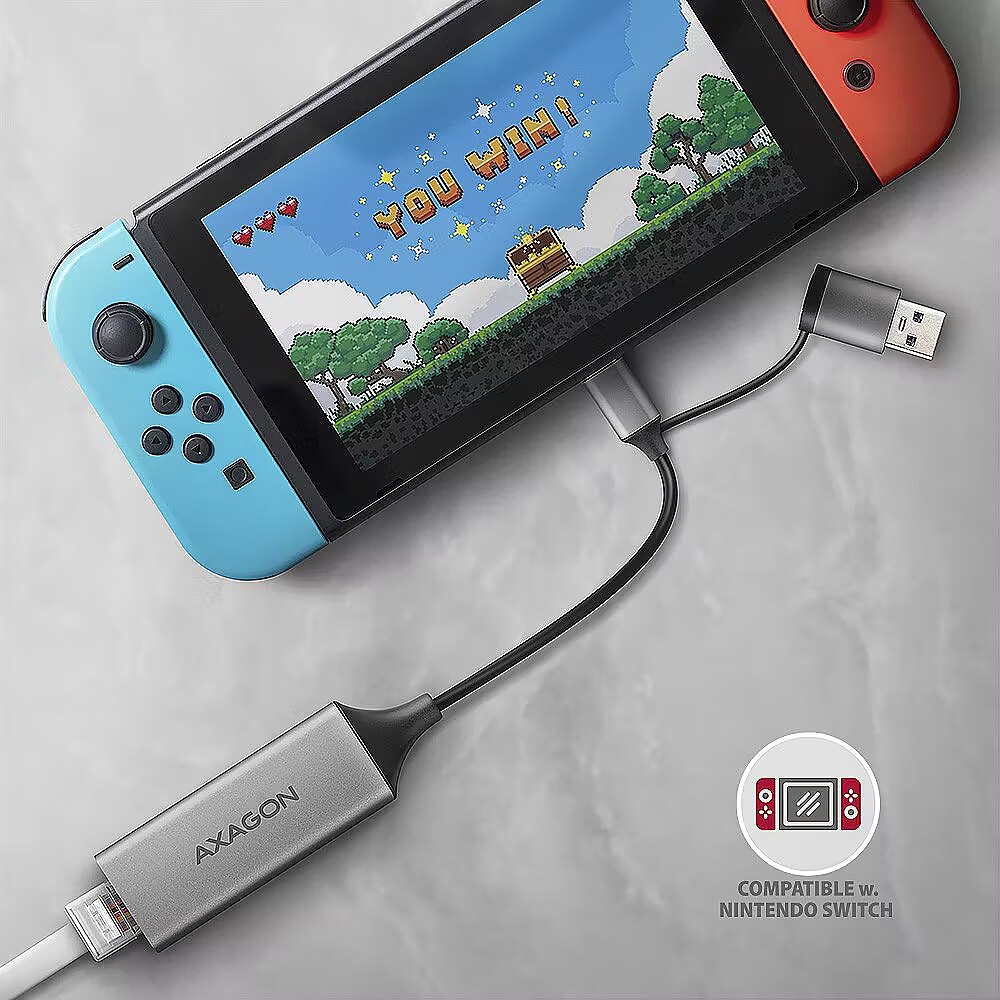

Windows, macOS, iPadOS, iOS, Linux, Chrome OS, Nintendo Switch system software and Android (WARNING - check with the Android device manufacturer if the Ethernet connection is supported). Package contains:

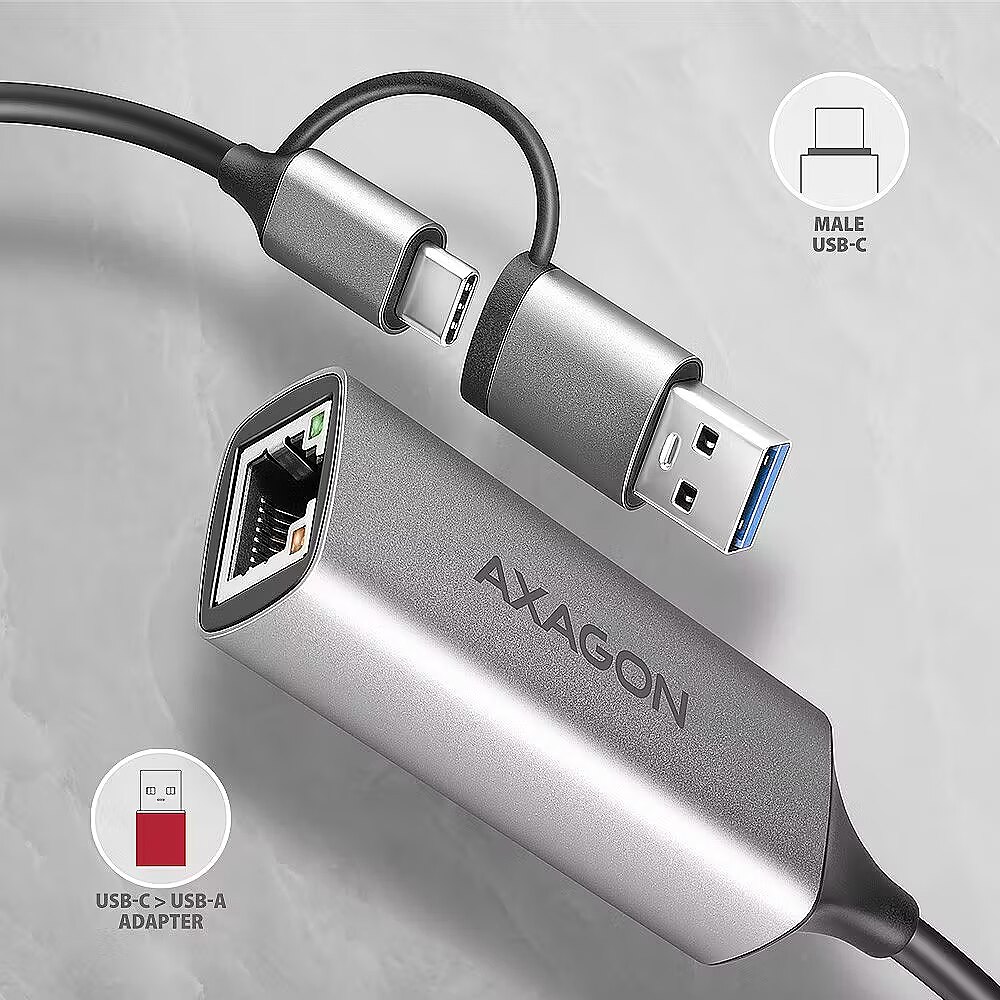

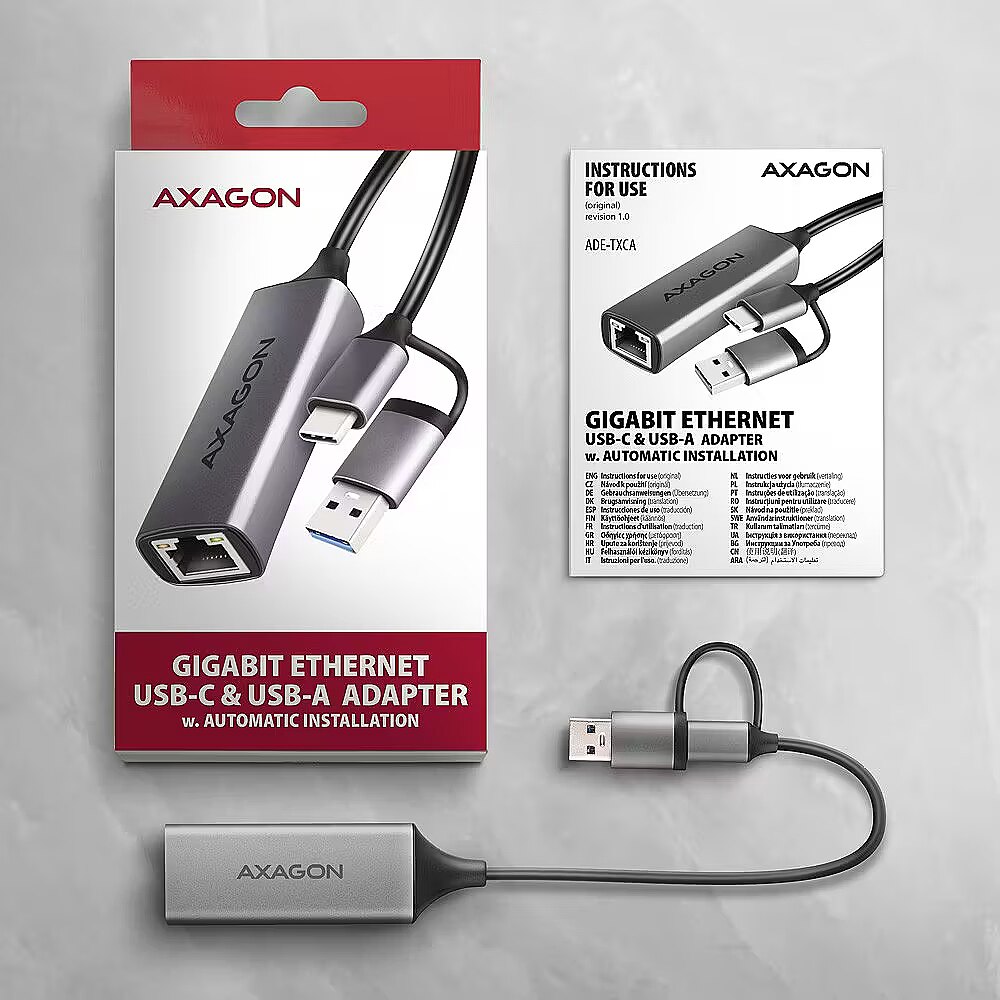

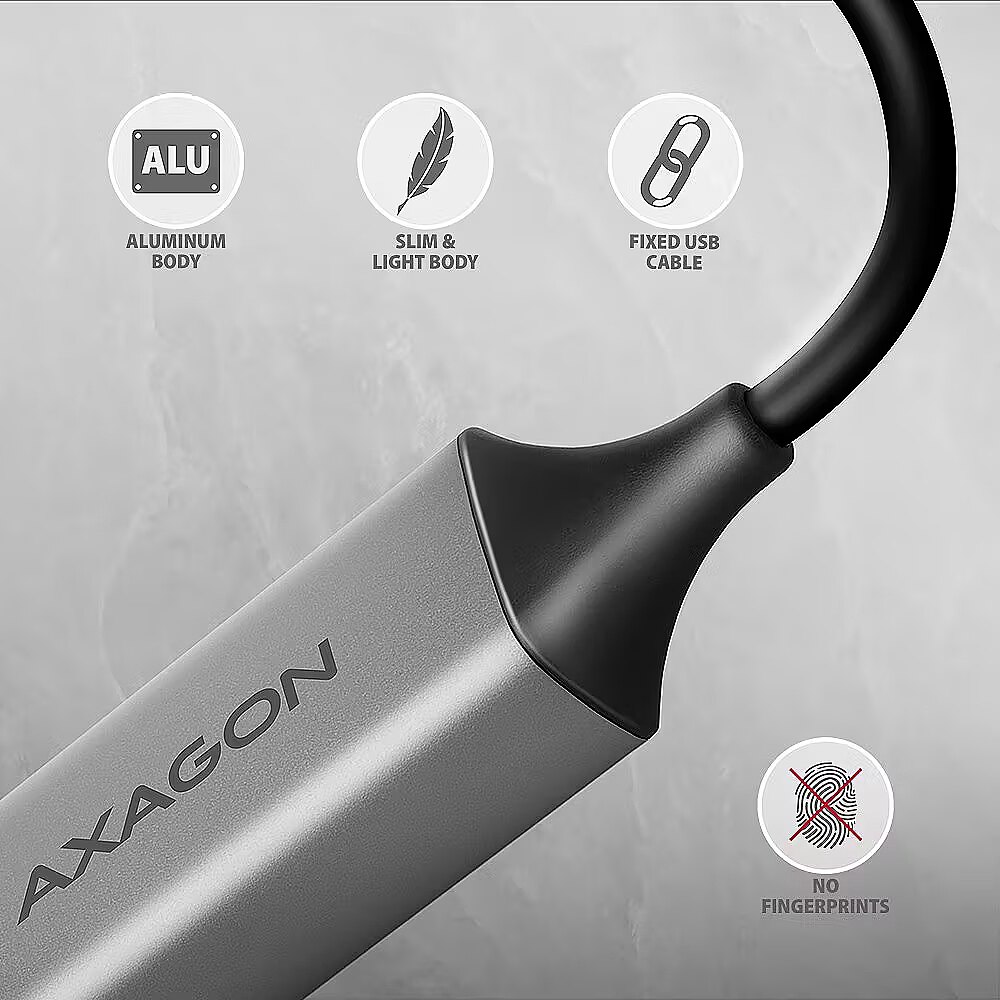

USB - Gigabit Ethernet adapter with fixed 15 cm long USB-C cable and USB-C / USB-A reduction,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,

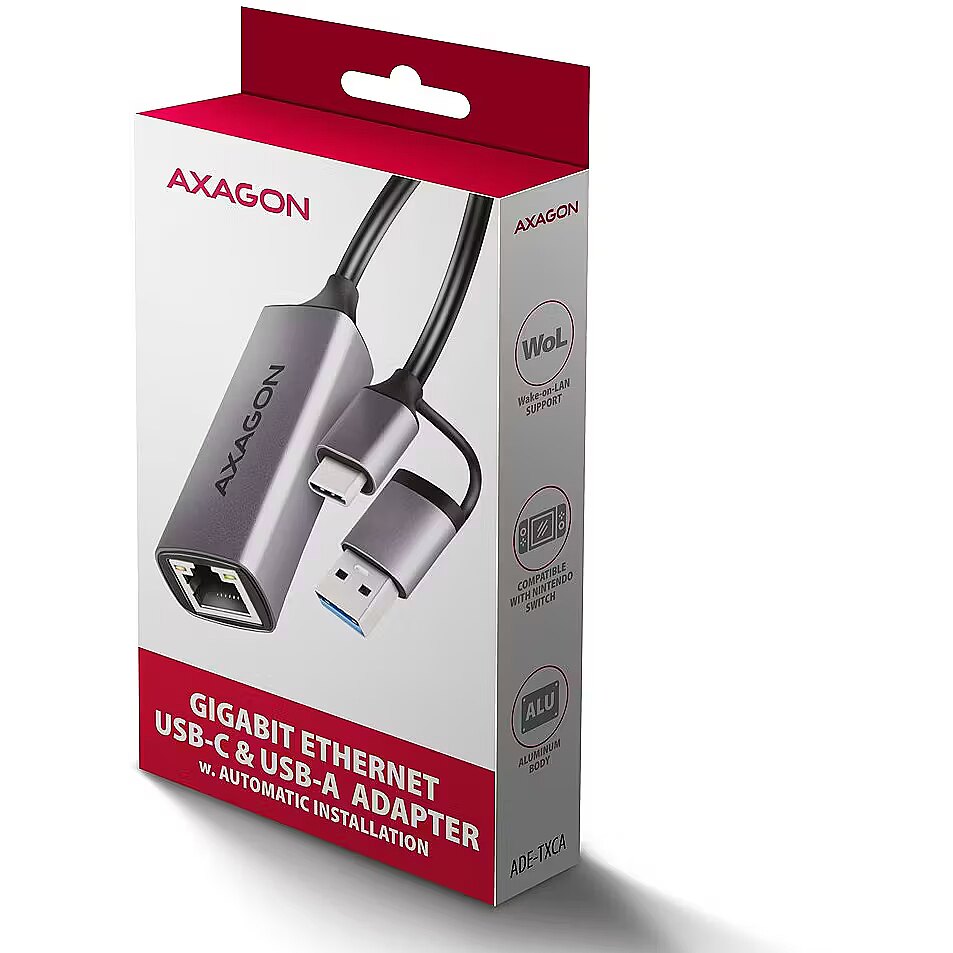

packed in a cardboard box with a hanging hole.
Description - The external network card AXAGON ADE-TXCA easily converts USB-C or USB-A 3.2 Gen 1 port to Gigabit Ethernet port. Thanks to the cable with USB-C connector, on which the USB-C -> USB-A reduction is attached, you can connect the Ethernet adapter to any computer, tablet or phone. USB network adapter compatible with 10/100/1000 Mbit/s expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection. In addition to gigabit throughput, the LAN adapter offers a wide range of features such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with VLAN and advanced Power Management features. The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Due to its minimal dimensions and weight, it is an ideal accessory for laptops and other mobile devices. The support for current versions of Windows, macOS, and Linux, Chrome or Android operating systems allows it to be used for any desktop, laptop or ultrabook equipped with a modern double-sided USB Type C connector or a classic USB-A connector. In Windows from version 8.1 and above, the adapter enables easy automatic installation without the need for an Internet connection. The Ethernet adapter will also be used by users of tablets or mobile phones supporting the possibility of a wired Ethernet connection. In addition, thanks to the chip used, the adapter is also supported by the operating system of Nintendo Switch game consoles. Input:
• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).
• Backward compatible with USB 480Mbps (USB 2.0) and USB 1.1.
• Compatible with Thunderbolt 3 and 4.
• Connection to a computer, mobile phone or tablet via a USB-C male connector or with a connected adapter via a USB-A male connector. Output:
• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
• 10/100/1000 Mb/s auto-detection.
• Supports IPv4 / IPv6 packet Checksum Offload Engine (COE) to reduce processor load, including IPv4 IP/TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 checksum control and generation.
• Supports TCP Large Send Offload V1 and V2.
• Supports IEEE 802.1P Layer 2 priority encoding & decoding.
• Supports IEEE 802.1Q VLAN tagging.
• Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest.
• Supports Jumbo frame.
• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminates the need for crossover cables. Other features:
• Full Plug and Play and Hot Plug support.
• Supports CDC-ECM – for automatic installation of drivers across different OSs.
• CDC-NCM support - for native support without driver installation in iOS/iPadOS/macOS/Linux.
• Adapter power supply via USB (bus power) - no auxiliary power supply required.
• Two LEDs to indicate network activity and the adapter's connection to the network.
• Dimensions 76 x 24 x 16 mm.
• Weight 34 g (incl. cable and reduction).
• USB cable length 15 cm.
• ASIX AX88179A chipset is used. Wake-on-LAN feature support in different modes:
• Supports sleep mode and remote Wake Up via Magic Packet, Microsoft Wakeup Frame and Link Change Wake-up.
• Supports Bonjour wake-on-demand.
• Supports Wakeup Packet Indication.
• Supports Microsoft Modern Standby.
• Advanced Power Management features:
• The adapter supports advanced power management to reduce losses during standby or light traffic on the network. It further supports advanced power saving when the Ethernet cable has been disconnected.
• Supports Power Management offload (ARP & NS).
• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers. Supported operating systems:
• Windows, macOS, iPadOS, iOS, Linux, Chrome OS, Nintendo Switch system software and Android (WARNING - check with the Android device manufacturer if the Ethernet connection is supported). Package contains:
• USB - Gigabit Ethernet adapter with fixed 15 cm long USB-C cable and USB-C / USB-A reduction, • multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
• packed in a cardboard box with a hanging hole.
Design - Certification - CE, RoHS
Design - Chipset - ASIX AX88179
Design - Component for - PC/Laptop
Design - Country of origin - China
Design - Internal - No
Design - LED indicators - Yes
Design - Plug and Play - Yes
Design - Product colour - Grey
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 205 mm
Dimensions - 76 x 24 x 16 mm
dimension weight - 77 g
dimension width - 100 mm
EAN - 8595247907943
ean - 8595247907943
Ethernet interface type Network - Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet LAN Network - Yes
External Color - Titan Gray
Full duplex Network - Yes
GTIN - 8595247907943
guarantee - 24
guarantee_type - normal
Height (mm) - 76 mm
Height Weight & dimensions - 16 mm
Host interface Ports & interfaces - USB Type-A/USB Type-C
I/O ports - 1 x 10/100/1000 Mbit/s
Interface - USB
Interface - USB-C
Interface Ports & interfaces - Ethernet
Internal Design - No
Jumbo frames support Network - Yes
LAN controller Network - ASIX AX88179
LED indicators Design - Yes
Left Connector - USB Type A (Male)USB Type C (Male)
Link - https://www.axagon.eu/en/produkty/ade-txca
Linux operating systems supported System requirements - Yes
LongDesc - The external network card AXAGON ADE-TXCA easily converts USB-C or USB-A 3.2 Gen 1 port to Gigabit Ethernet port. Thanks to the cable with USB-C connector, on which the USB-C -> USB-A reduction is attached, you can connect the Ethernet adapter to any computer, tablet or phone. USB network adapter compatible with 10/100/1000 Mbit/s expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector, adds another network card, or replaces the original non-functional network connection.In addition to gigabit throughput, the LAN adapter offers a wide range of features such as IPv4/IPv6 checksum to reduce CPU load by checksums, the crossover detection and auto-correction, TCP large send offload, support for various modes of the Wake-on-LAN feature, the work with VLAN and advanced Power Management features.The metal adapter cover is made of aluminum and provides perfect mechanical protection and excellent heat dissipation. Due to its minimal dimensions and weight, it is an ideal accessory for laptops and other mobile devices. The support for current versions of Windows, macOS, and Linux, Chrome or Android operating systems allows it to be used for any desktop, laptop or ultrabook equipped with a modern double-sided USB Type C connector or a classic USB-A connector. In Windows from version 8.1 and above, the adapter enables easy automatic installation without the need for an Internet connection. The Ethernet adapter will also be used by users of tablets or mobile phones supporting the possibility of a wired Ethernet connection. In addition, thanks to the chip used, the adapter is also supported by the operating system of Nintendo Switch game consoles.Input:• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).• Backward compatible with USB 480Mbps (USB 2.0) and USB 1.1.• Compatible with Thunderbolt 3 and 4.• Connection to a computer, mobile phone or tablet via a USB-C male connector or with a connected adapter via a USB-A male connector.Output:• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.• 10/100/1000 Mb/s auto-detection.• Supports IPv4 / IPv6 packet Checksum Offload Engine (COE) to reduce processor load, including IPv4 IP/TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 checksum control and generation.• Supports TCP Large Send Offload V1 and V2.• Supports IEEE 802.1P Layer 2 priority encoding & decoding.• Supports IEEE 802.1Q VLAN tagging.• Supports IEEE 802.3az EEE (Energy Efficient Ethernet) - reduce power consumption at rest.• Supports Jumbo frame.• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminates the need for crossover cables.Other features:• Full Plug and Play and Hot Plug support.• Supports CDC-ECM – for automatic installation of drivers across different OSs.• CDC-NCM support - for native support without driver installation in iOS/iPadOS/macOS/Linux.• Adapter power supply via USB (bus power) - no auxiliary power supply required.• Two LEDs to indicate network activity and the adapter's connection to the network.• Dimensions 76 x 24 x 16 mm.• Weight 34 g (incl. cable and reduction).• USB cable length 15 cm.• ASIX AX88179A chipset is used.Wake-on-LAN feature support in different modes:• Supports sleep mode and remote Wake Up via Magic Packet, Microsoft Wakeup Frame and Link Change Wake-up.• Supports Bonjour wake-on-demand.• Supports Wakeup Packet Indication.• Supports Microsoft Modern Standby.• Advanced Power Management features:• The adapter supports advanced power management to reduce losses during standby or light traffic on the network. It further supports advanced power saving when the Ethernet cable has been disconnected.• Supports Power Management offload (ARP & NS).• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.Supported operating systems:• Windows, macOS, iPadOS, iOS, Linux, Chrome OS, Nintendo Switch system software and Android (WARNING - check with the Android device manufacturer if the Ethernet connection is supported).Package contains:• USB - Gigabit Ethernet adapter with fixed 15 cm long USB-C cable and USB-C / USB-A reduction, • multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,• packed in a cardboard box with a hanging hole.
LongProductName - ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179
LongSummaryDescription - Axagon ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179. Connectivity technology: Wired, Host interface: USB Type-A/USB Type-C, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Grey
Mac operating systems supported System requirements - Yes
Manual Packaging content - Yes
Maximum data transfer rate Network - 1000 Mbit/s
Model - ADE-TXCA
Model name - ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179
name - ADE-TXCA USB-A/C 3.2 Ge n 1 LAN adapter 1Gbit
Name - AXAGON ADE-TXCA Compact aluminum USB 3.2 Gen 1 Gigabit Ethernet 10/100/1000Mbit adapter with automatic installation, Nintendo Switch support and USB C-A reduction
name - AXAGON ADE-TXCA Gigabit Ethernet Adapter, USB-C + USB-A - titangrau
Network - Cabling technology - 10/100/1000BaseT(X)
Network - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames support - Yes
Network - LAN controller - ASIX AX88179
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Network - Wake-on-LAN ready - Yes
Networking standards Network - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Nominal Weight - 34 g
Number of antennas - None
Operating frequency - Not applicable
Other features -
Package depth Packaging data - 99 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 28.00 mm
Package features > Gross height (mm) - 203.00 mm
Package features > Gross width (mm) - 99.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 3071 pc(s)
Package features > Paper/Pasteboard - 35.20 g
Package features > Plastic (No PET) - 8.80 g
Package features > Tare weight (kg) - 0.04 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 28 mm
Package Type - Retail
Package weight Packaging data - 78 g
Package width Packaging data - 203 mm
Packaging content - Cables included - USB, USB Type-A to USB Type-C
Packaging content - Manual - Yes
Packaging data - Package depth - 99 mm
Packaging data - Package height - 28 mm
Packaging data - Package weight - 78 g
Packaging data - Package width - 203 mm
Packs in Box - 100
Pack Weight Brutto (kg) - 0.78 kg
Pack Weight Netto (kg) - 0.78 kg
Pieces in pack - 1
Platform Compability - Linux iOS Android Mac OS Windows iPad Nintendo Switch
Plug and Play Design - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Host interface - USB Type-A/USB Type-C
Ports & interfaces - Interface - Ethernet
Ports & interfaces - USB version - 2.0/3.2 Gen 1 (3.1 Gen 1)
Power - USB powered - Yes
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=231129071756249040&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - ADE-TXCA
Product colour Design - Grey
ProductDescription - AXAGON ADE-TXCA USB-C USB3.2 Gen 1 + USB-A reduction- Gigabit Ethernet 10/100/1000 Adapter, metal, titan grey
ProductName - ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179
ProductType - Adaptors
Retail Packaging Net Weight Carton - 7.8 kg
Retail Packaging Net Weight Plastic - 0.86 kg
Right Connector - RJ-45 (Female)
Security -
Server operating systems supported System requirements - Yes
ShortSummaryDescription - Axagon ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179, Wired, USB Type-A/USB Type-C, Ethernet, 1000 Mbit/s, Grey
Standards - 802.3
Standards - 802.3ab
Standards - 802.3az
Standards - 802.3u
Summary - Axagon ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179. Connectivity technology: Wired, Host interface: USB Type-A/USB Type-C, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Grey
Supported operating systems - Android
Supported operating systems - Chrome OS
Supported operating systems - iOS
Supported operating systems - iPadOS
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Home
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Home
Supported operating systems - Windows 11 Pro
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS, CE
Technical details - Warranty period - 2 year(s)
Technical details > Gross weight - 0.08 kg
Technical details > Net weight - 0.03 kg
Technical details > Producer - AXAGON
Technical details > Producer product name - ADE-TXCA Compact aluminum USB 3.2 Gen 1 Gigabit Ethernet 10/100/1000Mbit adapter with automatic installation, Nintendo Switch support and USB C-A reduction
Title - Axagon ADE-TXCA USB-C + USB-A 3.2 Gen 1 - Gigabit Ethernet adapter, Asix AX88179
Type - LAN
Unit Box Height - 0.2
Unit Box Length - 0.03
Unit Box Width - 0.1
Unit Calculated Volume - 0.00056/0.0006 cubm
Unit Calculated Weight - 0.08 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/ade-txca
USB powered Power - Yes
USB version Ports & interfaces - 2.0/3.2 Gen 1 (3.1 Gen 1)
Vendor - AXAGON
Vendor Homepage - https://www.axagon.eu/en/produkty/ade-txca
vendpn - ADE-TXCA
Wake-on-LAN ready Network - Yes
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty period Technical details - 2 year(s)
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 34 g
Weight & dimensions - Depth - 24 mm
Weight & dimensions - Height - 16 mm
Weight & dimensions - Weight - 34 g
Weight & dimensions - Width - 76 mm
Weight Weight & dimensions - 34 g
Width (mm) - 24 mm
Width Weight & dimensions - 76 mm
Windows operating systems supported System requirements - Yes
