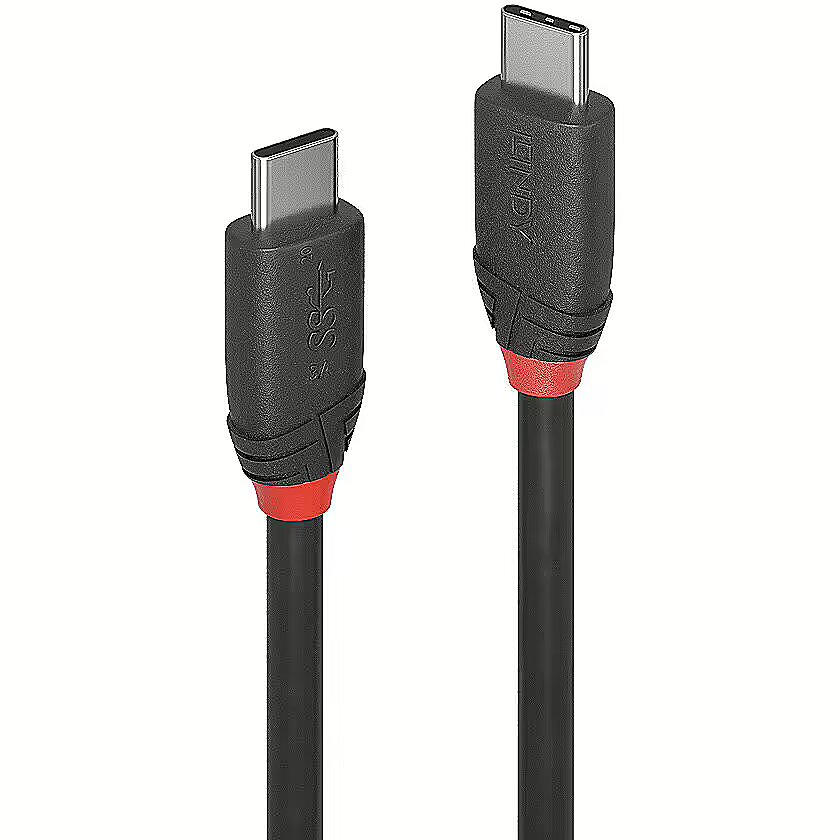

ARTIKEL1 - 1M USB 3.2 TYP C KABEL
ARTIKEL2 - 2GBIT/S 3A BLACK LINE
AWG wire size Features - 26/32
Brand - Lindy
BrandPartCode - 36906
Breite - 0.12
Cable colour Features - Black
Cable jacket material Features - Polyvinyl chloride (PVC)
Cable length Weight & dimensions - 1 m
Category - USB Cables
Category1 - Cable
Category Code - UCB
Certificates - Certification - REACH, UL
Certificates - Compliance certificates - REACH, RoHS, UL
Certification Certificates - REACH, UL
Compliance certificates Certificates - RoHS
Conductor material Features - Copper
Connector 1 Features - USB C
Connector 1 form factor Features - Straight
Connector 1 gender Features - Male
Connector 2 Features - USB C
Connector 2 form factor Features - Straight
Connector 2 gender Features - Male
Connector contacts plating Features - Nickel/Gold
Description - The Black Line USB 3.2 Type C to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use. Black Line USB 3.2 Type C to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability. USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes.It supportsDisplayPort Alternate Mode at max. 4K 60Hz. USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation. Black Line USB 3.2 Type C to C cables are available in the following lengths: 0.5m, 1m and 1.5m. Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.Entry level USB 3.2 Gen 2x2 Type C to C, 3A (60W), cable for home and small office applicationsSuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps and DisplayPort Alternate ModeRobust PVC housing, nickel connectors, gold plated contactsTriple shielded cable, corrosion resistant tinned copper conductors10 year warranty
Description1 - Lindy 1m USB 3.2 Type C to C Cable, 20Gbps, Black Line
Description2 - The Black Line USB 3.2 Type C to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.Black Line USB 3.2 Type C to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes.It supportsDisplayPort Alternate Mode at max. 4K 60Hz.USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.Black Line USB 3.2 Type C to C cables are available in the following lengths: 0.5m, 1m and 1.5m.Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 GbpsUSB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
EAN - 4002888369060
EANCode - 4002888369060
Features - AWG wire size - 26/32
Features - Cable colour - Black
Features - Cable jacket material - Polyvinyl chloride (PVC)
Features - Conductor material - Tinned copper
Features - Connector 1 - USB C
Features - Connector 1 form factor - Straight
Features - Connector 1 gender - Male
Features - Connector 2 - USB C
Features - Connector 2 form factor - Straight
Features - Connector 2 gender - Male
Features - Connector contacts plating - Nickel/Gold
Features - Connector shield material - Copper
Features - E-Marker сhip - No
Features - Maximum data transfer rate - 20 Gbit/s
Features - Maximum data transfer rate - 10000 Mbit/s
Features - Nominal attenuation - 0.5Mhz – 15Ghz < 40dB
Features - Plug and Play - Yes
Features - Product colour - Black
Features - USB Power Delivery (USB PD) - Yes
Features - USB Power Delivery revision - 3.0
Features - USB Power Delivery up to - 60 W
Features - USB version - USB 3.2 Gen 2x2
Gewicht - 0.04
GRUPPE1 - Cables
GRUPPE2 - Usb Cable
GTIN - 4002888369060
Harmonized System (HS) code Logistics data - 84733080
HERSTELLER - LINDY
Hoehe - 0.03
HSTNUMMER - 36906
Laenge - 0.12
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Products per master (outer) case - 150 pc(s)
LongDesc -
LongProductName - 1m USB 3.2 Type C Cable, 20Gbps, 60W PD, Black Line
LongSummaryDescription - Lindy 1m USB 3.2 Type C Cable, 20Gbps, 60W PD, Black Line. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2x2, Maximum data transfer rate: 20 Gbit/s, Connector contacts plating: Nickel/Gold, Product colour: Black
Manufacturer - Lindy
ManufacturerID - 36906
Maximum data transfer rate Features - 10 Gbit/s
Maximum data transfer rate Features - 10000 Mbit/s
Model name - 1m USB 3.2 Type C to C Cable, 20Gbps, Black Line
Name - CABLE USB3.2 C-C 1M/BLACK 36906 LINDY
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - 0 - 70 °C
Other features - Connector(s) - USB 3.2 C Male to C Male
PackageHeight - 10
PackageLength - 100
Package type Packaging data - Polybag
PackageWeight - 40
PackageWidth - 90
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 133 mm
Packaging data - Package height - 11 mm
Packaging data - Package type - Polybag
Packaging data - Package width - 144 mm
Plug and Play Features - Yes
Power - Output current (max) - 3 A
Power - Output voltage - 20 V
Product colour Features - Black
ProductName - 1m USB 3.2 Type C Cable, 20Gbps, 60W PD, Black Line
Product Net Weight ELKO Verified Logistics Data - 0.03 kg
Quantity per pack Packaging content - 1 pc(s)
Shipping Box Depth ELKO Internal Logistics Data - 12 cm
Shipping Box Height ELKO Internal Logistics Data - 1 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.04 kg
Shipping Box Width ELKO Internal Logistics Data - 11 cm
ShortSummaryDescription - Lindy 1m USB 3.2 Type C Cable, 20Gbps, 60W PD, Black Line, 1 m, USB C, USB C, USB 3.2 Gen 2x2, 20 Gbit/s, Black
Stck_Kart - 200
Stck_Pal - 0
Storno - Y
Summary - Lindy 1m USB 3.2 Type C to C Cable, 20Gbps, Black Line. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Nickel/Gold, Product colour: Black
Technical details - Housing material - Polyvinyl chloride (PVC)
Technical details - Proposition 65 - Yes
Technical details - Replacement item number - 41906
Title - Lindy 1m USB 3.2 Type C Cable, 20Gbps, 60W PD, Black Line
Unit Box Height - 0.01
Unit Box Length - 0.12
Unit Box Width - 0.11
Unit Calculated Volume ELKO Internal Logistics Data - 0.000132 cubm
Unit Calculated Weight ELKO Verified Logistics Data - 0.04 kg
Unit Depth ELKO Verified Logistics Data - 12 cm
Unit Height ELKO Verified Logistics Data - 1 cm
Units per Shipping Box ELKO Verified Logistics Data - 1
Unit Width ELKO Verified Logistics Data - 11 cm
URL - https://lindy.com/en/
USB version Features - USB 3.2 Gen 1 (3.1 Gen 1)
Vendor Homepage - https://www.lindy.co.uk/cables-adapters-c1/usb-c449/1m-usb-3-2-type-c-to-c-cable-20gbps-black-line-p11444
Warranty - 24 months
WarrantyInfo - 10 years
WEEE - DE64817326
Weight & dimensions - Bend radius (min) - 4.5 cm
Weight & dimensions - Cable diameter - 4.5 mm
Weight & dimensions - Cable length - 1 m
Weight & dimensions - Depth - 25.5 mm
Weight & dimensions - Height - 7.3 mm
Weight & dimensions - Width - 11 mm
