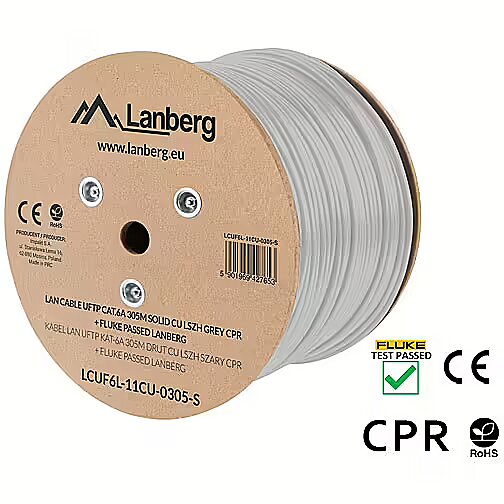

Lanberg CAT 6A Cable, U/FTP, 305m

Cable length - 305 m
Category - CAT 6a
Code - LCUF6L-11CU-0305-S
Color - Gray
Conductor material - Copper - Cu
Connectors #1 - None
Connectors #2 - None
Data Act - Information available in the product card on the website: Link
Description - Kabel LAN UFTP Kat-6A 305M drut CU LSZH CPR+ fluke passed, szary Kabel LAN kategorii 6a U/FTP (ekranowany) Żyły kabla wykonane z czystej miedzi (CU 100% miedzi) AWG 23 (4*2*0.55mm) Budowa żyły: pojedynczy drut Kolor: szary COOL GRAY 5C Nadruk licznika długości co każdy metr kabla Izolacja zewnętrzna PVC: 7.6mm Izolacja HDPE żyły: 1.32mm Praca do 500Mhz Zalecana średnica wtyku / prowadnicy dla przewodników w oplocie: 1.45 mm Opakowanie: bęben Parametry elektryczne (20 stopni): Pojemność para-a-uziemienie: < 160PF / 100m Charakterystyka impedancji: 100?15 (4~250MHz) 100?22(250~500MHz) Temperatura przechowywania i transportowania: 0 - 60 stopni Temperatura pracy: -20 - 75 stopni Odległość działania: 100m
Designation - CE+WEEE
dimensionalWeight - 7220
dimension depth - 240 mm
dimension height - 380 mm
dimension weight - 17500 g
dimension width - 380 mm
EAN - 5901969427653
ean - 5901969427653
Features - AWG wire size - 23
Features - Cable colour - Grey
Features - Cable length - 305 m
Features - Cable shielding - U/FTP
Features - Cable standard - Cat 6a
Features - Certification - CE, Fluke, CPR
Features - Conductor material - Copper
Features - Connector 1 - N
Features - Connector 2 - N
Features - Frequency - 500 MHz
Features - Jacket material - High-Density Polyethylene (HDPE)
Features - Jacket material - Polyvinyl chloride (PVC)
Features - RoHS compliance - Y
Features > Cable length - 305 m
guarantee - 24
guarantee_type - normal
Link - https://lanberg.eu/product/cable-lan-uftp-kat-6a-305m-wire-cu-lszh-grey-cpr-fluke-passed-lanberg
name - Cable LAN UFTP Cat-6A 305M wire CU LSZH CPR+ fluke passed, grey
Name - Lanberg | LAN Cable CAT.6A UFTP 305M Solid CU LSZH Grey CPR + Fluke Passed | LCUF6L-11CU-0305-S
Operational conditions - Operating temperature (T-T) - -20 - 75 °C
Operational conditions - Storage temperature (T-T) - 0 - 60 °C
Other features - Wymiary opakowania: 50 x 50 x 52 cm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 380.00 mm
Package features > Gross height (mm) - 240.00 mm
Package features > Gross width (mm) - 380.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 25 pc(s)
Package features > Paper/Pasteboard - 50.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.09 kg
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package type - Reel
Packaging data - Quantity per pack - 1 pc(s)
producer - Lanberg
producerCode - LCUF6L-11CU-0305-S
productName - LANBERG CABLE UFTP CAT. 6A 305M WIRE CU LSZH GRAY
productSize - Normal
Safety warning - Warnings - Avoid mechanical damage.
Safety warning - Warnings - Follow the manufacturer's instructions.
Safety warning - Warnings - Protect from children.
sizeX - 250
sizeY - 380
sizeZ - 380
Technical details > Gross weight - 17.965 kg
Technical details > Net weight - 17.875 kg
Technical details > Producer - Lanberg
Technical details > Producer product family - LAN Cable CAT.6A UFTP 305M Solid CU LSZH Grey CPR + Fluke Passed
Technical details > Producer product name - LCUF6L-11CU-0305-S
Twisted-pair cable - U/FTP
Type - Cable
Usage - LAN
vendpn - LCUF6L-11CU-0305-S
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
weight - 25500
