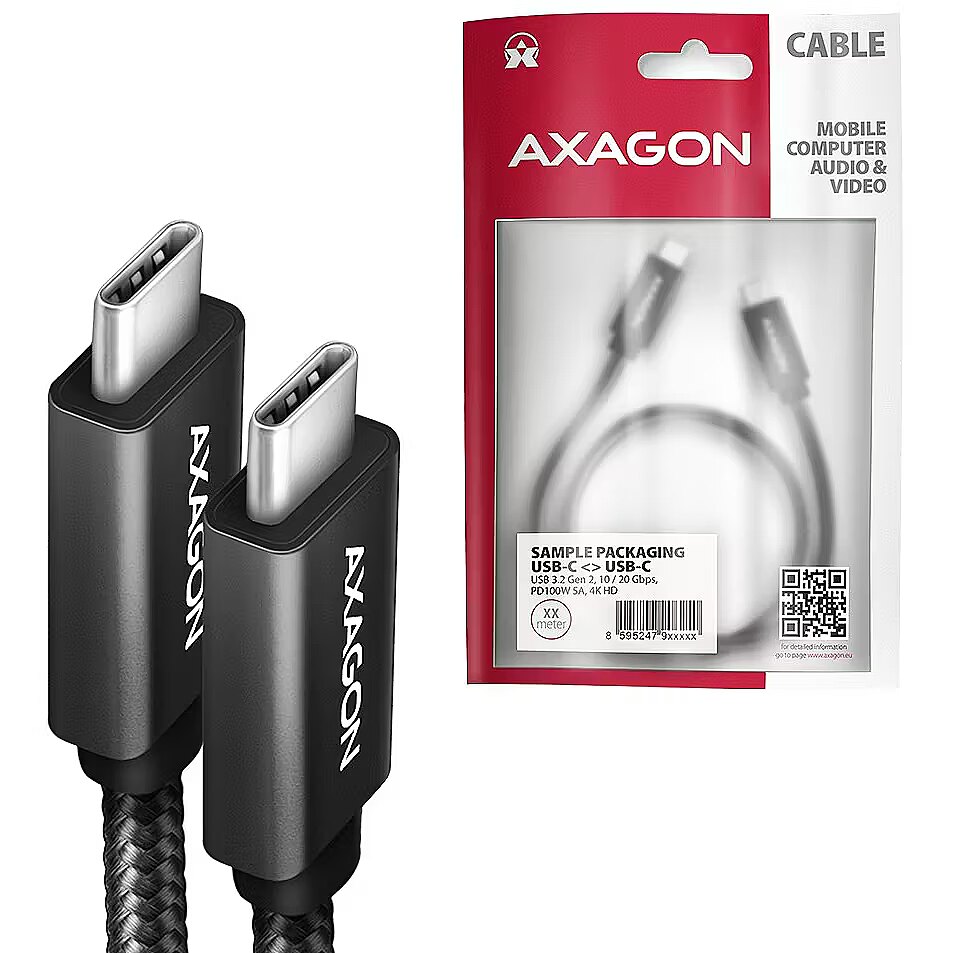

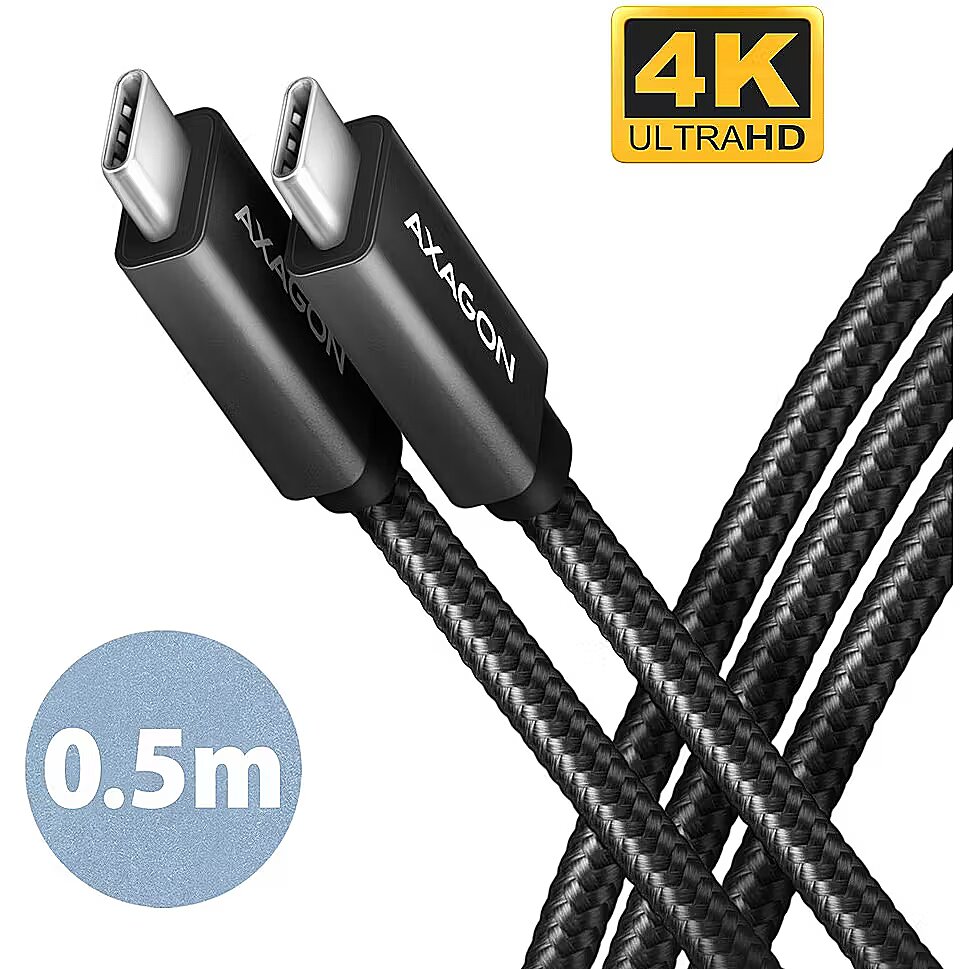

Axagon USB-C Cable, 100W, 0.5m

Accessories included - USB-C M USB-C M black cable, tightening strip, packed in a printed and sealed foil package with hanging hole.
AWG wire size Features - 22/32
Brand - Axagon
BrandPartCode - BUCM32-CM05AB
Cable diameter Weight & dimensions - 5 mm
Cable Functionality - USB-C Cable
Cable jacket material Features - Thermoplastic elastomer (TPE)
Cable length - 0.5 m
Cable length Weight & dimensions - 0.5 m
Cable type Features - Round cable
category - PC Components|Cables & Adapters|External Cables|USB|Extension Cables
Category - USB Cables
Category Code - UCB
Certificates - Certification - CE, RoHS
Certificates - Compliance certificates - CE, RoHS
Certification Certificates - CE, RoHS
code - BUCM32-CM05AB
Code - BUCM32-CM05AB
Color - Black
Compatible products Features - laptops, phones, tablets and other mobile devices
Compliance certificates Certificates - CE, RoHS
Conductor material Features - Oxygen-Free Copper (OFC)
Connector 1 Features - USB C
Connector 1 form factor Features - Straight
Connector 1 gender Features - Male
Connector 2 Features - USB C
Connector 2 form factor Features - Straight
Connector 2 gender Features - Male
Connector contacts plating Features - Gold
Connectors #1 - USB Type C Male
Connectors #2 - USB Type C Male
Country of origin Logistics data - China
Description - Premium connection USB-C USB-C data and charging AXAGON BUCM32-CM05AB SPEED+ USB 20Gbps (3.2 Gen 2x2) cable with USB-C male connectors at both ends. The cable is designed for very fast data transfers, video transfer and charging laptops, phones, tablets and other mobile devices with up to 100W of power. It also allows you to connect monitors, docking stations and external SSDs. The cable is designed to transfer data at a maximum speed of up to 20 Gb/s and can easily handle 10 Gb/s (USB 3.2 Gen 2). It also supports up to 4K/60Hz Ultra HD video and audio transmission. This makes the cable an ideal accessory for the iPhone 15 Pro and Pro Max (or later), which allow data transfer speeds of up to 10 Gb/s. Its compatibility with MacBooks and other storage devices, such as NVMe M.2 external drives, ensures your data transfer will be 10x faster than with a standard cable or AirDrop wireless connection. Thanks to the integrated E-Mark chip, the cable can charge connected devices with a current of 5A up to 100W. It is compatible with Power Delivery 3.0, Quick Charge 4+ or Quick Charge 3.0 charging technologies for very fast charging not only smartphones and tablets, but also laptops. Compatibility is also ensured with other fast phone charging standards such as Apple iPhone, iPad, Samsung. The main advantage of the power cable is the Power Delivery 3.0 standard for charging Apple MacBook, Lenovo, Asus, HP, Dell and other laptops. You can charge your laptop directly from a USB-C charger or with the increasingly popular docking stations and port replicators. Cable conductors are made of Tin-plated oxygen free copper. Power cables 22AWG (lower number = larger cross-section and lower wire resistance) and 32AWG data wires guarantee fast charging and reliable data transfer of connected devices. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. Triple shielding protects transmitted signals from adverse interference. The cable is equipped with aluminum end caps, connectors with nickel-plated surface and gold-plated contacts. The final strength of the cable is provided by the nylon braid. The braid in combination with a cable gland significantly reduces dangerous cable bending. The cable life is extended to more than 8000 standard bends. The bonus is the included practical strip for easy packing of the cable. Connectors:
• 2x USB-C (M) male. Data transmission:
• USB 20Gbps (USB 3.2 Gen 2x2), also compatible with USB 10Gbps (USB 3.2 Gen 2).
• Support for second-generation data rates of 20.000 / 10.000 Mb/s.
• Backward compatible with USB 5Gbps (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) / USB 2.0 (USB 480Mbps).
• Supported transmission rates 5.000 / 480 Mb/s. Video transmission:
• 4K resolution 4096 x 2160 at up to 60Hz, 2K/WQHD resolution 2560 x 1440 at up to 120Hz, FHD resolution 1920 x 1080 at up to 240Hz.
• HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.
• Audio transmission support - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver. Supported charging technologies (up to 100W):
• SMART / Apple 2.4A (iPad).
• AFC / SFC / SFC 2.0: Samsung Charging.
• QC 2.0 / QC 3.0 / QC4+: Qualcomm Quick Charge.
• PPS (part of USB PD 3.0 and QC4+).
• PD 2.0 / PD 3.0: USB Power Delivery - 100W (20V/5A).
• Support for fast charging with a current of up to 5A.
• Integrated E-MARK Chip. Other features: • Cable includes power wires 22AWG, data wires 32AWG. • Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.
• Double shielding with plated foil and tinned copper braid minimizes interference and prevents signal loss.
• Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection. • Cable length 0.5 m.
• outer diameter of the cable 5.0 mm. Package contains:
• USB-C M USB-C M black cable,
• tightening strip,
• packed in a printed and sealed foil package with hanging hole.
Description - Premium connection USB-C USB-C data and charging AXAGON BUCM32-CM05AB SPEED+ USB 20Gbps (3.2 Gen 2x2) cable with USB-C male connectors at both ends. The cable is designed for very fast data transfers, video transfer and charging laptops, phones, tablets and other mobile devices with up to 100W of power. It also allows you to connect monitors, docking stations and external SSDs. The cable is designed to transfer data at a maximum speed of up to 20 Gb/s and can easily handle 10 Gb/s (USB 3.2 Gen 2). It also supports up to 4K/60Hz Ultra HD video and audio transmission. This makes the cable an ideal accessory for the iPhone 15 Pro and Pro Max (or later), which allow data transfer speeds of up to 10 Gb/s. Its compatibility with MacBooks and other storage devices, such as NVMe M.2 external drives, ensures your data transfer will be 10x faster than with a standard cable or AirDrop wireless connection.  Thanks to the integrated E-Mark chip, the cable can charge connected devices with a current of 5A up to 100W. It is compatible with Power Delivery 3.0, Quick Charge 4+ or Quick Charge 3.0 charging technologies for very fast charging not only smartphones and tablets, but also laptops. Compatibility is also ensured with other fast phone charging standards such as Apple iPhone, iPad, Samsung. The main advantage of the power cable is the Power Delivery 3.0 standard for charging Apple MacBook, Lenovo, Asus, HP, Dell and other laptops. You can charge your laptop directly from a USB-C charger or with the increasingly popular docking stations and port replicators.  Cable conductors are made of Tin-plated oxygen free copper. Power cables 22AWG (lower number = larger cross-section and lower wire resistance) and 32AWG data wires guarantee fast charging and reliable data transfer of connected devices. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. Triple shielding protects transmitted signals from adverse interference.  The cable is equipped with aluminum end caps, connectors with nickel-plated surface and gold-plated contacts. The final strength of the cable is provided by the nylon braid. The braid in combination with a cable gland significantly reduces dangerous cable bending. The cable life is extended to more than 8000 standard bends. The bonus is the included practical strip for easy packing of the cable. Connectors:
2x USB-C (M) male. Data transmission:
USB 20Gbps (USB 3.2 Gen 2x2), also compatible with USB 10Gbps (USB 3.2 Gen 2).
Support for second-generation data rates of 20.000 / 10.000 Mb/s.
Backward compatible with USB 5Gbps (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) / USB 2.0 (USB 480Mbps).
Supported transmission rates 5.000 / 480 Mb/s. Video transmission:
4K resolution 4096 x 2160 at up to 60Hz, 2K/WQHD resolution 2560 x 1440 at up to 120Hz, FHD resolution 1920 x 1080 at up to 240Hz.
HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.
Audio transmission support - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver. Supported charging technologies (up to 100W):
SMART / Apple 2.4A (iPad).
AFC / SFC / SFC 2.0: Samsung Charging.
QC 2.0 / QC 3.0 / QC4+: Qualcomm Quick Charge.
PPS (part of USB PD 3.0 and QC4+).
PD 2.0 / PD 3.0: USB Power Delivery - 100W (20V/5A).
Support for fast charging with a current of up to 5A.
Integrated E-MARK Chip. Other features:
Cable includes power wires 22AWG, data wires 32AWG.
Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.
Double shielding with plated foil and tinned copper braid minimizes interference and prevents signal loss.
Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection.
Cable length 0.5 m.
outer diameter of the cable 5.0 mm. Package contains:
USB-C M USB-C M black cable,
tightening strip,
packed in a printed and sealed foil package with hanging hole.
Designation - CE+WEEE
dimension depth - 10 mm
dimension height - 200 mm
Dimensions -
dimension weight - 27 g
dimension width - 130 mm
EAN - 8595247908865
ean - 8595247908865
EAN kods - 8595247908865
Fast charging Features - Yes
Features - AWG wire size - 22/32
Features - Cable jacket material - Thermoplastic elastomer (TPE)
Features - Cable type - Round cable
Features - Compatible products - laptops, phones, tablets and other mobile devices
Features - Conductor material - Oxygen-Free Copper (OFC)
Features - Connector 1 - USB C
Features - Connector 1 form factor - Straight
Features - Connector 1 gender - Male
Features - Connector 2 - USB C
Features - Connector 2 form factor - Straight
Features - Connector 2 gender - Male
Features - Connector contacts plating - Gold
Features - Fast charging - Yes
Features - Maximum data transfer rate - 20 Gbit/s
Features - Plug and Play - Yes
Features - Product colour - Black
Features - USB Power Delivery (USB PD) - Yes
Features - USB Power Delivery up to - 100 W
Features - USB version - USB 3.2 Gen 2x2
Features > Cable length - 0.5 m
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 24 mēnesis(-i)
GTIN - 8595247908865
guarantee - 24
guarantee_type - normal
Iepakojuma augstums (mm) - 1 milimetrs
Iepakojuma garums (mm) - 20 milimetrs
Iepakojuma platums (mm) - 13 milimetrs
Iepakojuma svars Brutto (kg) - 0.02 kilograms
Iepakojums kastē - 1
Input current (max) Power - 5 A
Input voltage Power - 20 V
Kabeļa garums - 0.5 metrs
Kastes svars Brutto (kg) - 9.45 kilograms
Link - https://www.axagon.eu/en/produkty/bucm32-cm05ab
Logistics data - Country of origin - China
LongDesc - Premium connection USB-C USB-C data and charging AXAGON BUCM32-CM05AB SPEED+ USB 20Gbps (3.2 Gen 2x2) cable with USB-C male connectors at both ends. The cable is designed for very fast data transfers, video transfer and charging laptops, phones, tablets and other mobile devices with up to 100W of power. It also allows you to connect monitors, docking stations and external SSDs.The cable is designed to transfer data at a maximum speed of up to 20 Gb/s and can easily handle 10 Gb/s (USB 3.2 Gen 2). It also supports up to 4K/60Hz Ultra HD video and audio transmission. This makes the cable an ideal accessory for the iPhone 15 Pro and Pro Max (or later), which allow data transfer speeds of up to 10 Gb/s. Its compatibility with MacBooks and other storage devices, such as NVMe M.2 external drives, ensures your data transfer will be 10x faster than with a standard cable or AirDrop wireless connection. Thanks to the integrated E-Mark chip, the cable can charge connected devices with a current of 5A up to 100W. It is compatible with Power Delivery 3.0, Quick Charge 4+ or Quick Charge 3.0 charging technologies for very fast charging not only smartphones and tablets, but also laptops. Compatibility is also ensured with other fast phone charging standards such as Apple iPhone, iPad, Samsung. The main advantage of the power cable is the Power Delivery 3.0 standard for charging Apple MacBook, Lenovo, Asus, HP, Dell and other laptops. You can charge your laptop directly from a USB-C charger or with the increasingly popular docking stations and port replicators. Cable conductors are made of Tin-plated oxygen free copper. Power cables 22AWG (lower number = larger cross-section and lower wire resistance) and 32AWG data wires guarantee fast charging and reliable data transfer of connected devices. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. Triple shielding protects transmitted signals from adverse interference. The cable is equipped with aluminum end caps, connectors with nickel-plated surface and gold-plated contacts. The final strength of the cable is provided by the nylon braid. The braid in combination with a cable gland significantly reduces dangerous cable bending. The cable life is extended to more than 8000 standard bends. The bonus is the included practical strip for easy packing of the cable.Connectors:• 2x USB-C (M) male.Data transmission:• USB 20Gbps (USB 3.2 Gen 2x2), also compatible with USB 10Gbps (USB 3.2 Gen 2).• Support for second-generation data rates of 20.000 / 10.000 Mb/s.• Backward compatible with USB 5Gbps (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0) / USB 2.0 (USB 480Mbps).• Supported transmission rates 5.000 / 480 Mb/s.Video transmission:• 4K resolution 4096 x 2160 at up to 60Hz, 2K/WQHD resolution 2560 x 1440 at up to 120Hz, FHD resolution 1920 x 1080 at up to 240Hz.• HDR support (High dynamic range, 10-bit support) - realistic reproduction of light and dark details.• Audio transmission support - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver.Supported charging technologies (up to 100W):• SMART / Apple 2.4A (iPad).• AFC / SFC / SFC 2.0: Samsung Charging.• QC 2.0 / QC 3.0 / QC4+: Qualcomm Quick Charge.• PPS (part of USB PD 3.0 and QC4+).• PD 2.0 / PD 3.0: USB Power Delivery - 100W (20V/5A).• Support for fast charging with a current of up to 5A.• Integrated E-MARK Chip.Other features: • Cable includes power wires 22AWG, data wires 32AWG. • Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.• Double shielding with plated foil and tinned copper braid minimizes interference and prevents signal loss.• Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection. • Cable length 0.5 m.• outer diameter of the cable 5.0 mm.Package contains:• USB-C M USB-C M black cable,• tightening strip,• packed in a printed and sealed foil package with hanging hole.
LongProductName - BUCM32-CM05AB SPEED+ USB-C USB 20Gbps cable 0.5 m
LongSummaryDescription - Axagon BUCM32-CM05AB SPEED+ USB-C USB 20Gbps/100W cable 0.5 m. Cable length: 0.5 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2x2, Maximum data transfer rate: 20 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Maximum data transfer rate Features - 20 Gbit/s
Model - BUCM2-CM30AB
Model name - BUCM32-CM05AB SPEED+ USB-C USB 20Gbps/100W cable 0.5 m
name - AXAGON BUCM32-CM05AB USB-C-Verlängerungskabel, USB 3.2, 240 W PD - 50 cm, schwarz
Name - AXAGON | SPEED + USB-C, USB 20Gbps Cable, 0.5 m | BUCM32-CM05AB | USB Type-C to USB Type-C
name - BUCM32-CM05AB cable USB -C USB-C USB3.2 Gen2 0.
Other features -
Package depth Packaging data - 130 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 110.00 mm
Package features > Gross height (mm) - 205.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 22.40 g
Package features > Plastic (No PET) - 5.60 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 11 mm
Package type Packaging data - Bag
Package weight Packaging data - 28 g
Package width Packaging data - 205 mm
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 130 mm
Packaging data - Package height - 11 mm
Packaging data - Package type - Bag
Packaging data - Package weight - 28 g
Packaging data - Package width - 205 mm
Plug and Play Features - Yes
Power - Input current (max) - 5 A
Power - Input voltage - 20 V
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=250709093210143473&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - BUCM32-CM05AB
Product colour Features - Black
ProductDescription - BUCM32-CM05AB SPEED+ USB-C - USB 20Gbps cable 0.5 m
ProductName - BUCM32-CM05AB SPEED+ USB-C USB 20Gbps/100W cable 0.5 m
ProductType - Cable
Quantity per pack Packaging content - 1 pc(s)
ShortSummaryDescription - Axagon BUCM32-CM05AB SPEED+ USB-C USB 20Gbps/100W cable 0.5 m, 0.5 m, USB C, USB C, USB 3.2 Gen 2x2, 20 Gbit/s, Black
Standard - HDMI Ultra HD 4K
Standard - USB 1.1
Standard - USB 2.0
Standard - USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1
Standard - USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2
Summary - Axagon BUCM32-CM05AB SPEED+ USB-C USB 20Gbps/100W cable 0.5 m. Cable length: 0.5 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 3.2 Gen 2x2, Maximum data transfer rate: 20 Gbit/s, Connector contacts plating: Gold, Product colour: Black
System Requirements -
Technical details > Gross weight - 0.08 kg
Technical details > Net weight - 0.05 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - SPEED + USB-C, USB 20Gbps Cable, 0.5 m
Technical details > Producer product name - BUCM32-CM05AB
Technical details > Type - USB Type-C to USB Type-C
Title - Axagon BUCM32-CM05AB SPEED+ USB-C USB 20Gbps/100W cable 0.5 m
Type - Cable
Unit Box Height - 0.2
Unit Box Length - 0.01
Unit Box Width - 0.13
Unit Calculated Volume - 0.00026 cubm
Unit Calculated Weight - 0.03 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/bucm32-cm05ab
Usage - Computer
Usage - For smartphone
Usage - Power cable
Usage - Video
USB Power Delivery (USB PD) Features - Yes
USB Power Delivery up to Features - 100 W
USB version Features - USB 3.2 Gen 2x2
Vendor - AXAGON
Vendor Homepage - https://www.axagon.eu/en/produkty/bucm32-cm05ab
vendpn - BUCM32-CM05AB
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Weight - 23 g
Weight & dimensions - Cable diameter - 5 mm
Weight & dimensions - Cable length - 0.5 m
Weight & dimensions - Weight - 23 g
Weight Weight & dimensions - 23 g
