Digitus HDMI EXTENDER SET 4K/120HZ 40 M HDMI EXTENDER SET 40 M 4K/120HZ

Accessories included - 1 x Transmitter Module 1 x Receiver Module 1 x IR Transmitter 1 x Infrared (IR) Receiver 2 x Power Supply (12V/1A, 1.2m) 1 x Quick Start Guide
ARTIKEL1 - HDMI EXTENDER SET 4K/120HZ 40 M
ARTIKEL2 - HDMI EXTENDER SET 40 M 4K/120HZ
Breite - 0
Category 1 - Kabel & Adapter
Category 2 - Display
Category 3 - HDMI
Code - DS-55342
Color - Black
Connectors #1 - HDMI Type A Female
Connectors #1 - RJ45 Female
Connectors #2 - HDMI Type A Female
Connectors #2 - RJ45 Female

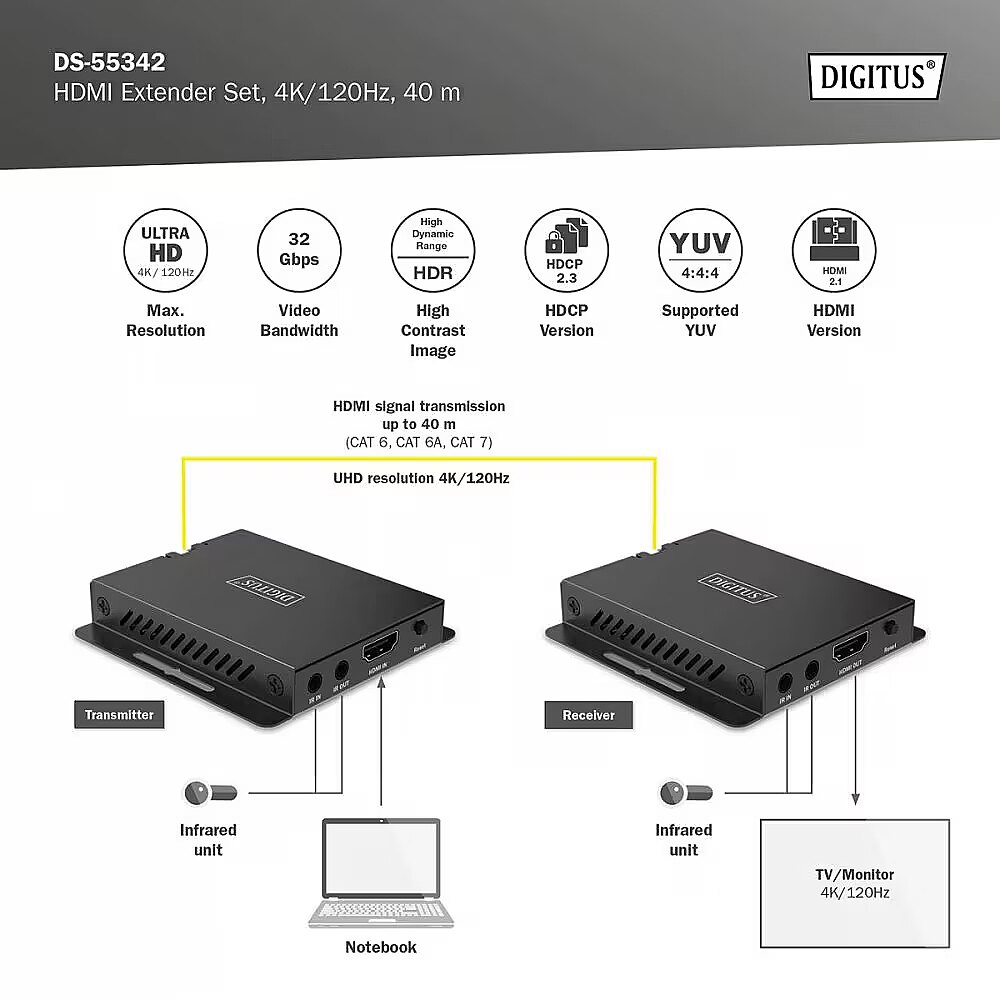

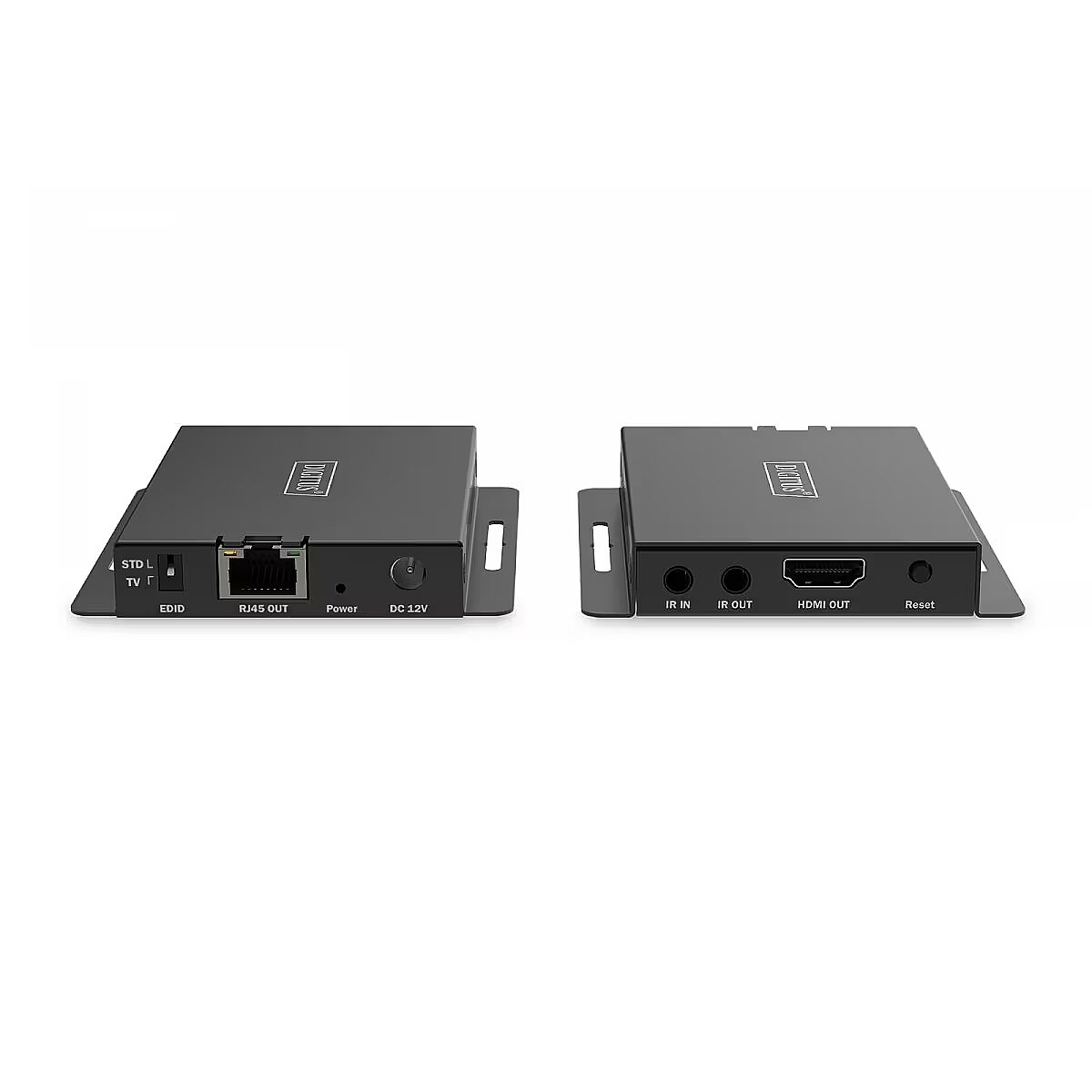

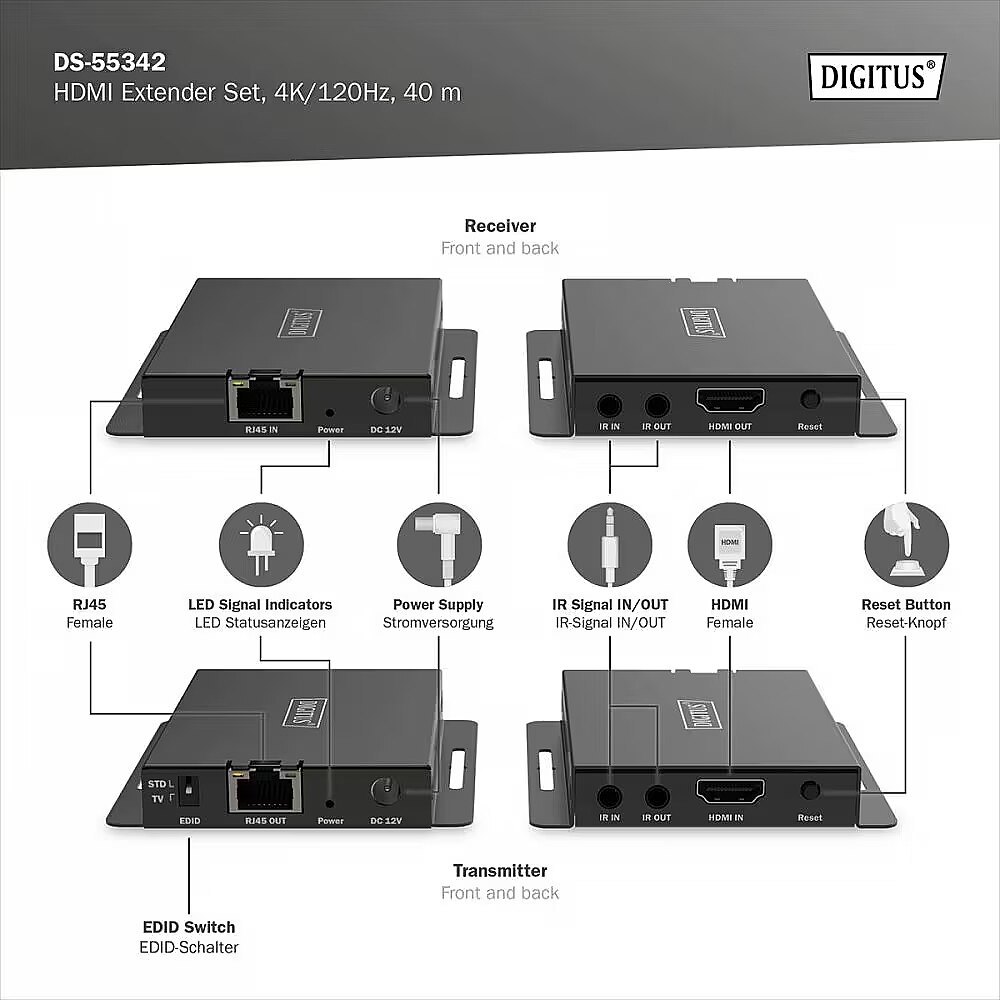

Description - The DIGITUS HDMI Extender Kit enables HDMI signal transmission up to 40m (4K/120 Hz, 4:4:4) using CAT 6 or higher cables. Its functionality also includes bi-directional infrared (IR) signal transmission, allowing flexible control of the signal source. It is also suitable for wall mounting, offering flexible installation options. HDMI signal transmission (point-to-point) up to 40 m in UHD resolution (4K/120 Hz, 4:4:4) Bidirectional infrared signal transmission Supports CAT 6, CAT 6A, and CAT 7 network cables Max. resolution: 4K/120 Hz (4:4:4) Video bandwidth: 32 Gbps Suitable for wall mounting Transmitter module connectors: 1 x HDMI input (4K/120 Hz) - for connecting a signal source 1 x RJ45 output for connecting a CAT cable for transmission 1 x IR output for connecting an IR transmitter 1 x IR input - for connecting an IR receiver 1 x power supply input (DC 12 V/1 A) - for connecting an external power supply 1 x resolution switch (4K/120 Hz, EDID pass-through) 1 x reset button 1 x status LED Receiver module connectors: 1 x HDMI output (4K/120Hz) - for connecting a display 1 x RJ45 input - for connecting a CAT cable 1 x infrared output - for connecting an infrared transmitter 1 x infrared input - for connecting an infrared receiver 1 x power supply input (DC 12V/1A) - for connecting an external power supply 1 x reset button 1 x status LED
Design > Cable length - 40 m
Design > Colour of product - Black
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 245 mm
Dimensions - Dimensions (1 module): L 8.4 cm x W 8.2 cm x H 1.5 cm Weight (1 module): 125 g
dimension weight - 690 g
dimension width - 195 mm
EAN - 4016032495635
ean - 4016032495635
EANCode - 4016032495635
Gewicht - 0
GRUPPE1 - Cables
GRUPPE2 - Monitor Cable
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55342
Laenge - 0
Link - https://de.assmann.shop/en/Video-and-Audio/Video-Extenders/CAT/HDMI-Extender-Set-4K-120Hz-40-m.html
Manufacturer - Digitus
MPN - DS-55342
Name - DIGITUS HDMI Extender Set (CAT6,CAT6A,CAT7) 4K/120Hz, 40m
Name - Digitus HDMI Extender Set, 4K/120Hz, 40 m | DS-55342 | Black
name - HDMI Extender Set DS-55342
Other features - High Dynamic Range (HDR) support HDCP 2.3 support HDMI 2.1 Operating temperature: 0-50°C Power consumption: TX (transmitter): approx. 4 W, RX (receiver): approx. 3.5 W Housing: Metal HDTV standard: Ultra HD 4K Cable category: Cat. 6
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 243.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 196.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 605 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Technical details > Gross weight - 0.9 kg
Technical details > Net weight - 0.70 kg
Technical details > Producer - Digitus
Technical details > Producer product family - HDMI Extender Set, 4K/120Hz, 40 m
Technical details > Producer product name - DS-55342
Type - Extension cord
Usage - Audio
Usage - Video
vendpn - DS-55342
Warranty - 24
Warranty - 24 month(s)
