ARTIKEL1 - OTF1616MC-B1 16IN PCAP
ARTIKEL2 - 156IN PCAP BEZEL FREE 10P TOUCH
Brand - iiyama
BrandPartCode - OTF1616MC-B1
Breite - 0
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Design - Front bezel colour - Black
Design - Glass thickness - 3.15 mm
Design - Market positioning - Office
Design - Product colour - Black
Display - Contrast ratio (typical) - 800:1
Display - Digital horizontal frequency - 31.5 - 67.5 kHz
Display - Display brightness - 1100 cd/m²
Display - Display brightness (peak) - 1100 cd/m²
Display - Display brightness (typical) - 1100 cd/m²
Display - Display diagonal - 39.6 cm (15.6")
Display - Display diagonal (metric) - 39.5 cm
Display - Display number of colours - 16.2 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - Horizontal scan range - 31.5 - 67.5 kHz
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - VA
Display - Pixel pitch - 0.179 x 0.179 mm
Display - Response time - 25 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touch technology - Multi-touch
Display - Viewable size, horizontal - 34.5 cm
Display - Viewable size, vertical - 19.5 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 4948570123742
EANCode - 4948570123742
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570123742
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - OTF1616MC-B1
Laenge - 0
LongDesc - Built into a rugged, edge-to-edge glass bezel the ProLite OTF1616MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It offers a brightness of up to 935 cd/m², the content displayed will be visible even in very bright environments. The anti-glare display is UV resistant and IP65 protected, ensuring durability against sunlight, dust and water resistance from the front, additionally it can operate in temperatures ranging from -20˚C up to +60˚C. The anti-fingerprint coating ensures a smoother touch. A reliable solution for pick-up points and kiosks. A proximity sensor turns off the screen when no one is present, an ambient light sensor adjusts screen brightness, and a temperature sensor controls fan speed for cooling, resulting in energy savings and extended product durability. For ease of integration, the ProLite OTF1616MC-B1 can be equipped with optional external mounting brackets ( OMK5-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media.
LongProductName - 15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications
LongSummaryDescription - iiyama OTF1616MC-B1. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Manufacturer - iiyama
MPN - OTF1616MC-B1
Name - IIYAMA 39.5cm (15.6") OTF1616MC-B1 16:9 M-Touch HDMI+DP+USB
Network - Ethernet LAN - Yes
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Other features - Active display area (W x H) - 345.2 x 194.6 mm
Other features - Certification - CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Other features - Ethernet LAN (RJ-45) ports - 1
Other features - International Protection (IP) code - IP65
Other features - Mean time between failures (MTBF) - 60000 h
Other features - Placement supported - Indoor
Packaging content - Cables included - AC, DisplayPort, HDMI, USB
Packaging content - Quick start guide - Yes

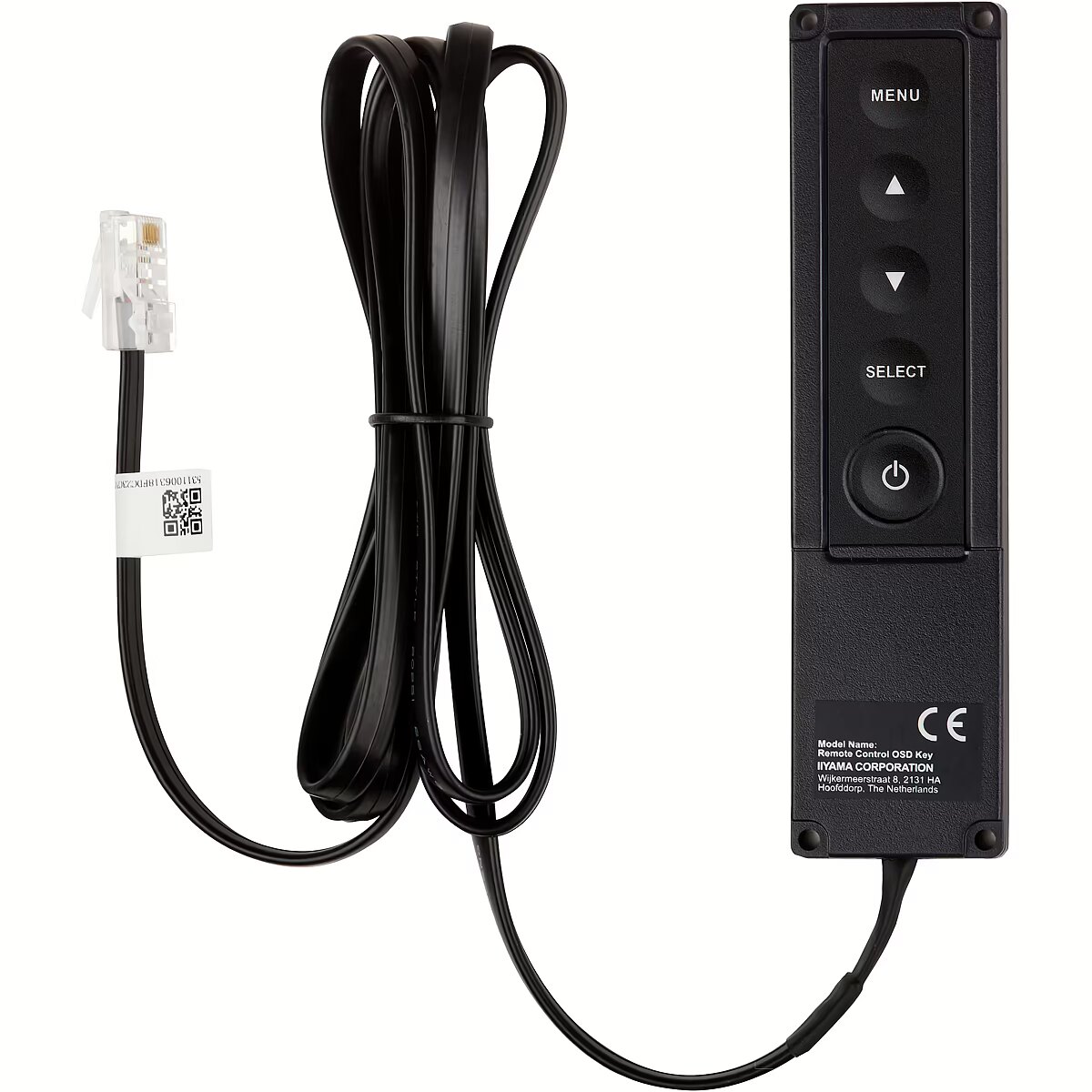

Packaging content - Remote control included - Yes
Packaging data - Package depth - 485 mm
Packaging data - Package height - 370 mm
Packaging data - Package weight - 4.62 kg
Packaging data - Package width - 485 mm
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone out - Yes
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 11 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 1.5 W
Power - Power consumption (typical) - 24 W
Power - Power supply type - External
ProductName - OTF1616MC-B1
ShortSummaryDescription - iiyama OTF1616MC-B1, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LCD, 25 ms, Black
Stck_Kart - 1
Stck_Pal - 0
Storno - N
Title - iiyama OTF1616MC-B1 computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LCD Touchscreen Black
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 42 mm
Weight & dimensions - Depth (with stand) - 42 mm
Weight & dimensions - Height (without stand) - 246 mm
Weight & dimensions - Height (with stand) - 246 mm
Weight & dimensions - Weight (without stand) - 3 kg
Weight & dimensions - Weight (with stand) - 3 kg
Weight & dimensions - Width (without stand) - 398.5 mm
Weight & dimensions - Width (with stand) - 398.5 mm
