Seasonic Prime TX ATX 3.0, 1300W, 80PLUS Titanium

80 PLUS certification Performance - 80 PLUS Platinum
AC input frequency Power - 50 - 60 Hz
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB

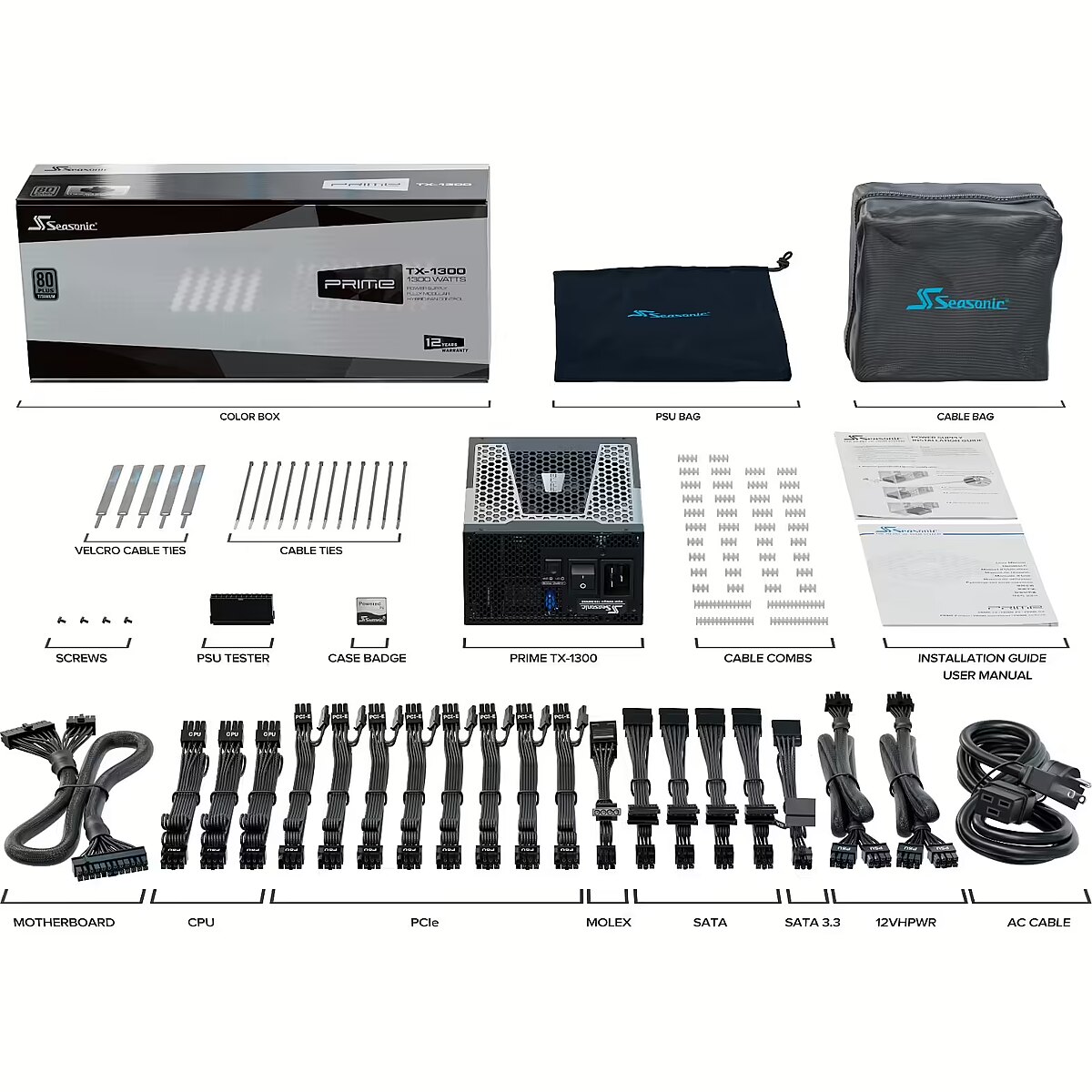

Cables included Packaging content - AC,PCIe,Peripheral (Molex),Peripheral (Molex) to SATA 3.3,SATA
Cable tie(s) included Packaging content - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PCIe 5.0
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - cTUVus, TUV, CB, CCC, BSMI, EAC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
code - PRIME-TX-1300-ATX30
Combined power (+3.3V) Power - 125 W
Combined power (+5V) Power - 125 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 1296 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - RoHS
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 210 mm
Description - Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series. The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process. 80 PLUS PLATINUM
The PRIME Platinum Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load. MICRO TOLERANCE LOAD REGULATION
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems. PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level. FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage. CABLE-FREE CONNECTION DESIGN
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.ATX 12 VFully Modular80 PLUS Platinum Certified
ean - 4711173878025
EAN - 4711173878025
EAN_code - 4711173878025
Fan diameter Design - 135 mm
Height Weight & dimensions - 86 mm
Input current Power - 15 - 7.5 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - PRIME-TX-1300-ATX30
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 108 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 150000 h
Model name - PRIME TX ATX 3.0
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - PRIME-TX-1300-ATX30
Name - 1300W Seasonic Prime TX 1300 80+ Titanium
name - Seasonic Prime TX-1300, 80 PLUS Titanium Netzteil, modular, ATX 3.1, PCIe 5.1 - 1300 Watt
Name - Seasonic PRIME TX-1300, PC power supply (black, 1x 12VHPWR, 6x PCIe, cable management, 1300 watts)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 14
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C
Package type Packaging data - Box
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 5
Power protection features Power - Over current/Over voltage/Short circuit
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Summary - Seasonic Prime -TX-1300. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Total power Power - 1300 W
Unit Box Height - 0.195
Unit Box Length - 0.45
Unit Box Width - 0.125
Unit Calculated Volume - 0.01516 cubm
Unit Calculated Weight - 5.95 kg
Units per Shipping Box - 4
Vendor Homepage - https://seasonic.com/prime-px
Warranty - 144 months
Weight - 5,70
Weight - 5.7
Width Weight & dimensions - 150 mm
