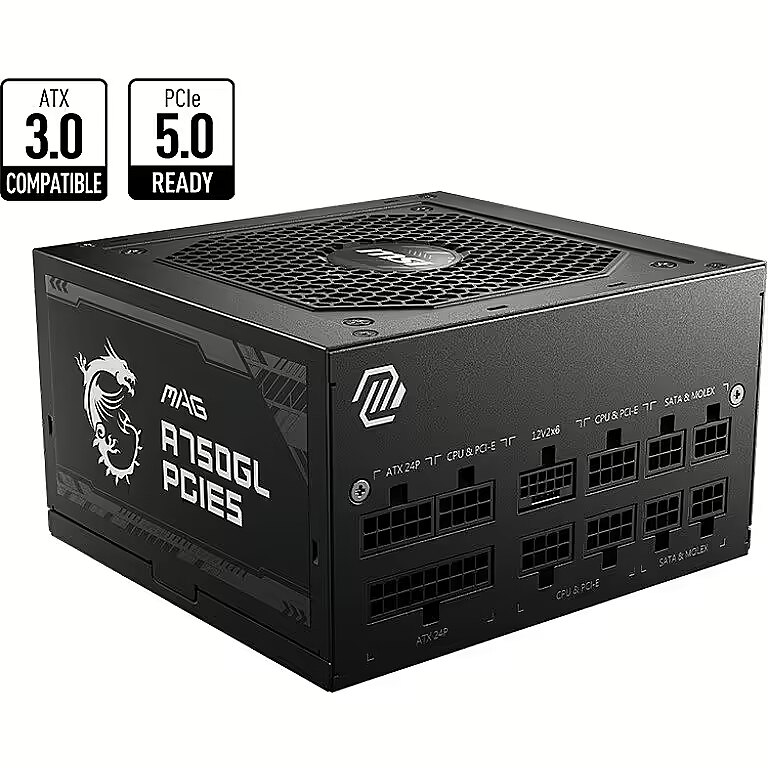

MSI MAG A750GL PCIE5, 750W, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
Brand - MSI
BrandPartCode - MAG A750GL PCIE5
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates 80+ - 80 PLUS Gold
code - 306-7ZP8B11-CE0
Code - MAGA750GLPCIE5
Colour - Black

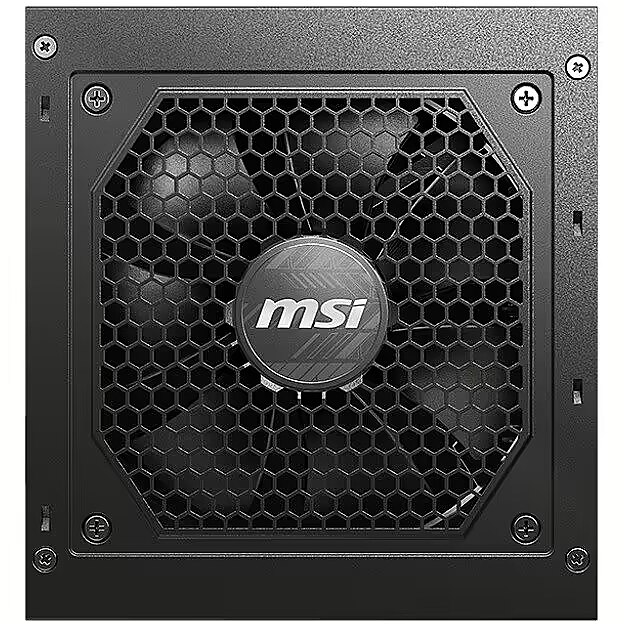

Cooling System - 12cm fan
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 7 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 750 W
Dane techniczne: Model - MSI MAG AxxxGL
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 2.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 62 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - MSI
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.0

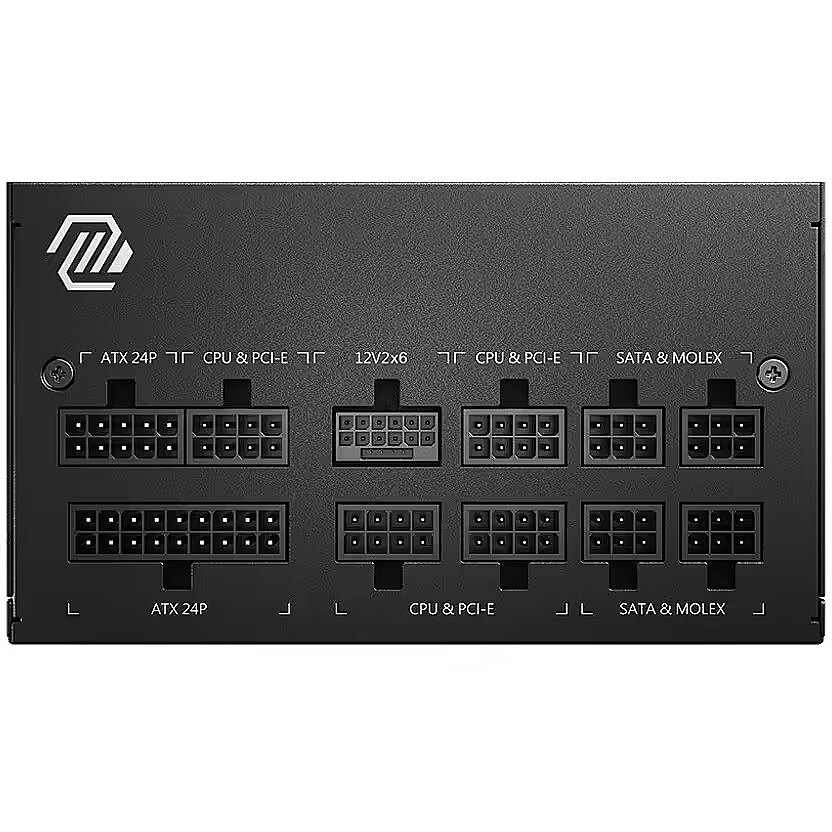

Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 4 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Desc - Jauda: 750W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 3 x 6 + 2 PIN, Garantija: 2 gadi
Description - ATX 3.0 compatible, native PCIe 5.0 connector Supports NVIDIA® GeForce RTX™ 40 Series graphics cards Full modular design,Flat cables 80 Plus Gold certified for high efficiency Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP 120mm Fluid Dynamic Bearing Fan LLC Full Bridge Topology with DC-DC module design
Description - MAG A750GL PCIE5 power supply ATX 3.0 compliant, native PCIe 5.0 connector Supports NVIDIA GeForce RTXTM 40 series graphics cards Full modular design, flat cables 80 Plus Gold certificate confirming high efficiency Active PFC design, industrial level protection with OVP,OCP,OPP,OTP,SCP,UVP Fan with 120 mm fluid dynamic bearing LLC Full Bridge Topology with DC-DC module design
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1687
dimension depth - 125 mm
dimension height - 220 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2799 g
dimension width - 305 mm
EAN - 4711377084284
ean - 4711377084284
Eans - 4711377084284
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
GTIN - 0824142319239
GTIN - 824142319239
GTIN - 4711377084284
GTIN - 4711377087261
guarantee - 84
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_108127_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.ATX 3.0 COMPATIBLEIt has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.COMPACT SIZINGSmaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.ONLY WHAT YOU NEEDThe connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.ALL THE MORE ORGANIZEDOrganizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.FLUID DYNAMIC BEARINGThe power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.DC TO DC & FULL BRIDGEDC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.THE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
LongProductName - 750W, 47-63Hz, 600W, 2.5A, 0.3A, 120 mm, 80 PLUS Gold, ATX 3.0
LongSummaryDescription - MSI MAG A750GL PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
MB power connector - 20 + 4 pin
Model name - MAG A750GL PCIE5
Modular power supply - Yes
MOLEX power connectors - 4
Name - Barošanas bloks MSI MAG A750GL PCIE5 750W
name - MAG A750GL PCIE5 750W 80PLUS GOLD F.MODULAR
Name - MSI MAG A750GL PCIE5
name - MSI MAG A750GL PCIe5 Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 750 Watt
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - No
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Maximum input current (@110V) - 8 A
Power - Maximum input current (@220V) - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 750 W
Power supply - 750 W
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
producerCode - 306-7ZP8B11-CE0
ProducerCode - MAG A750GL PCIE5
ProductName - A750GL PCIE5
productName - MSI MAG A750GL PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black
Product Net Weight - 2 kg
productSize - Normal
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 750 Watts
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
SATA power connectors - 8
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin |300mm x 220mm x 125mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MAG A750GL PCIE5, 750 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active
sizeX - 300
sizeY - 125
sizeZ - 225
Title - MSI MAG A750GL PCIE5 power supply unit 750 W 20+4 pin ATX ATX Black
Unit Box Height - 0.13
Unit Box Length - 0.3
Unit Box Width - 0.225
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 3 kg
Units per Shipping Box - 1
URL - https://www.msi.com/Power-Supply/MAG-A750GL-PCIE5
Vendor Homepage - www.msi.com/Power-Supply/MAG-A750GL-PCIE5/Overview
vendpn - MAG A750GL PCIE5
Warranty - 24 months
WarrantyInfo -
warrantyLength - 84
warrantyType - G
weight - 2800
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
