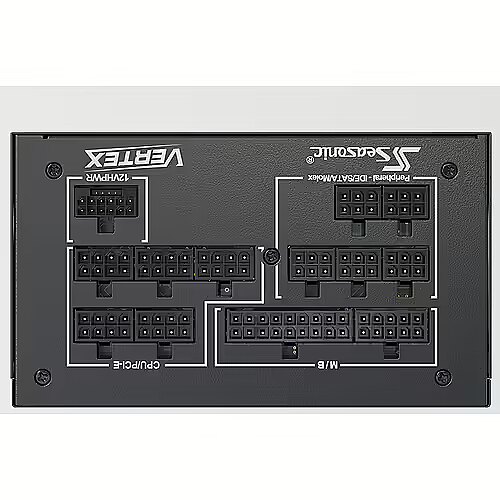

Seasonic Vertex GX, 1200W, 80PLUS Gold, ATX 3.0, PCIe 5.0

category - PC Components|Power Supplies|PCIe 5.0
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
code - VERTEX GX-1200
Colour - Black
Cooling System - 13.5cm fan
Description - VERTEX GX The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in Gold level of efficiency, with all the best features you can expect from a Seasonic power supply: Fully compatible with ATX 3.1 and PCIe 5.1 standards. Full modularity for the best cable management options. Added 12V-2×6 cable to comply with the new graphic cards. 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation. Seasonic Hybrid Silent Fan Control for optimal cooling. Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP. 12 years warranty – our commitment to high quality. Update July 2024: The Seasonic VERTEX Series power supplies were initially shipped with 12VHPWR cables. Following the update to the ATX standard, we began replacing these with the new 12V-2×6 connectors. During this transition period, customers may receive either 12VHPWR or 12V-2×6 cables in the box. Please note that availability may vary by region. We apologize for any inconvenience this may cause.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1688
Dimensions - 160 × 150 × 86 мм
ean - 4711173877721
EAN - 4711173877721
EAN_code - 4711173877721
Efficiency - 80 PLUS GOLD
Logistics data - Warranty period - 10 year(s)
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - VERTEX GX-1200
Model - VERTEX GX-1200
Model name - VERTEX GX
MPN - VERTEX GX-1200
MTBF - 100000 hours
Name - 1200W Seasonic VERTEX GX 1200
Name - Seasonic VERTEX GX-1200 1200W, PC power supply (black, cable management, 1200 watts)
name - Seasonic Vertex GX 80 PLUS Gold Netzteil, modular, ATX 3.0, PCIe 5.0 - 1200 Watt
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Packaging content - Cable tie(s) included - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 2
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - Peripheral (Molex) power cable length - 690 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 950 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 15 - 7.5 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - VERTEX GX-1200
productName - Seasonic VERTEX GX 1200 - stromforsyni
Product Net Weight - 2 kg
productSize - Normal
PSU - ATX 3.0
PSU features - Braided cables/Detachable cables/For gaming
PSU Output Power - 1200 Watts
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
sizeX - 196
sizeY - 356
sizeZ - 121
Unit Box Height - 0.19
Unit Box Length - 0.35
Unit Box Width - 0.115
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 4 kg
Units per Shipping Box - 1
Vendor Homepage - seasonic.com/vertex-gx/
Warranty - 144 months
warrantyLength - 24
warrantyType - G
Weight - 3,77
Weight - 3.88
weight - 3868
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
