Brand - Chieftec
BrandPartCode - GDP-650C-RGB
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1108
EAN_code - 0753263075895
GTIN - 753263075895
GTIN - 0753263075895
Logistics data - Harmonized System (HS) code - 84733020

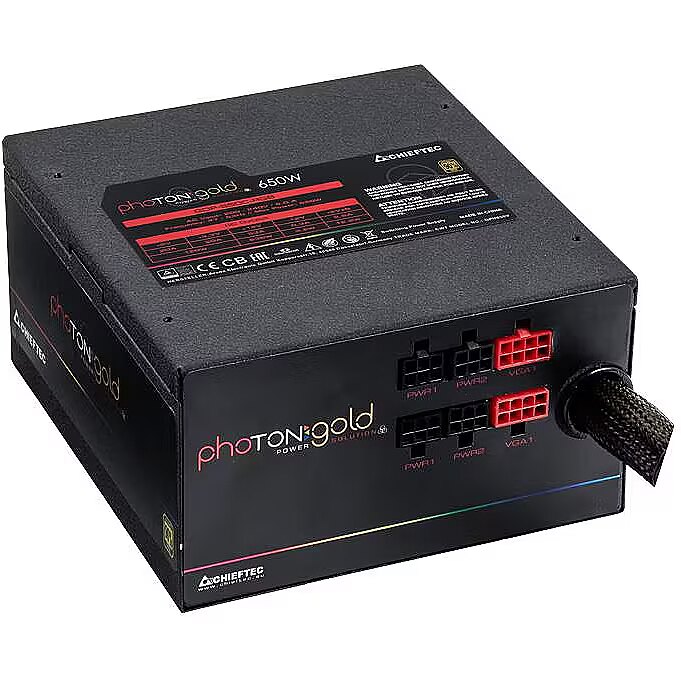

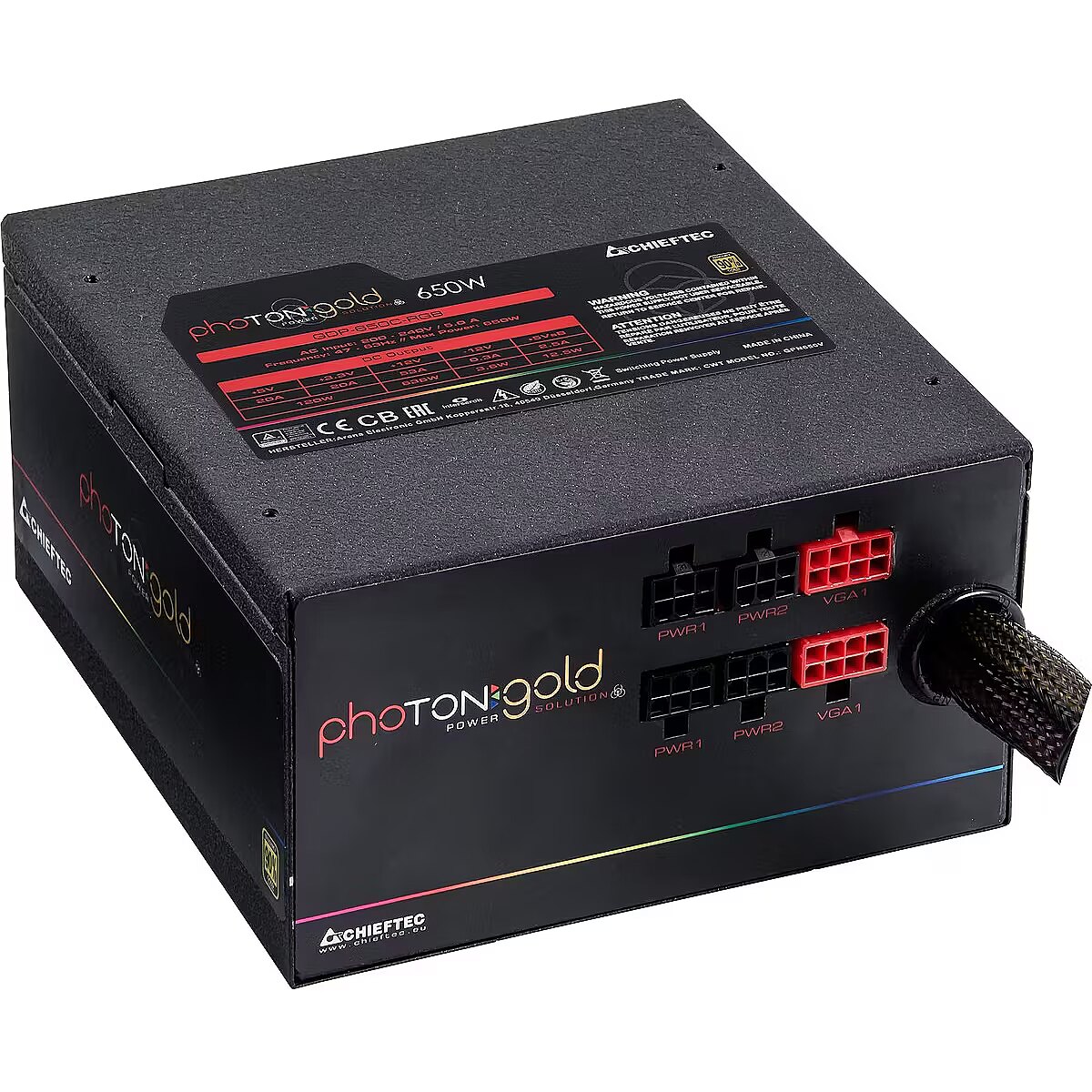

LongDesc - The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION.Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
LongProductName - 650W, 200-240V, 5A, 47-63 Hz, ATX, PS II, 20+4-pin, 4+4-pin, 4x 6+2-pin, 6x SATA, 3x Molex, Floppy, RGB
LongSummaryDescription - Chieftec Photon GOLD. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - GDP-650C-RGB
Name - Chieftec Photon GDP-650C-RGB 650W ATX23 - Photon gold
Other features - Illumination colour - Blue
Other features - Illumination colour - Blue, Green, Red
Other features - Illumination colour - Green
Other features - Illumination colour - Red
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX

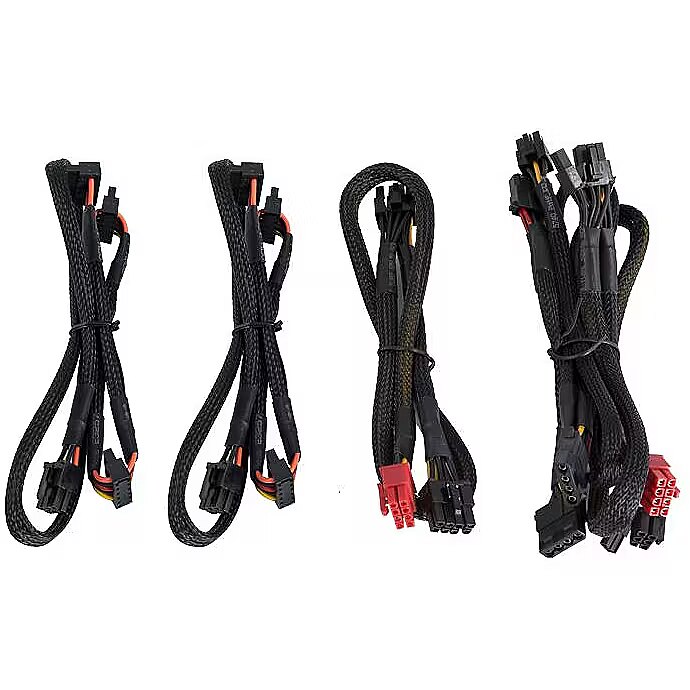

Ports & interfaces - Cabling type - Semi-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,550 mm
Ports & interfaces - Peripheral (Molex) power cable length - 550
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,550 mm
Ports & interfaces - SATA power cable length - 550
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Efficiency - 90%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 53 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
producerCode - GDP-650C-RGB
productName - Chieftec Photon GOLD power supply unit 650 W 20+4 pin ATX PS/2 Black
ProductName - Photon GOLD
productSize - Normal
ShortSummaryDescription - Chieftec Photon GOLD, 650 W, 200 - 240 V, 47 - 63 Hz, 5 A, 120 W, 120 W
sizeX - 240
sizeY - 220
sizeZ - 105
Title - Chieftec Photon GOLD power supply unit 650 W 20+4 pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/photon-gold-series/gdp-650c-rgb.html
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
Weight - 2,55
weight - 2490
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 2.12 kg
Weight & dimensions - Width - 150 mm
