ID: 162796
Tootekood: ELP-600S
Laos 30 üksused
Garantii: 2 aastat

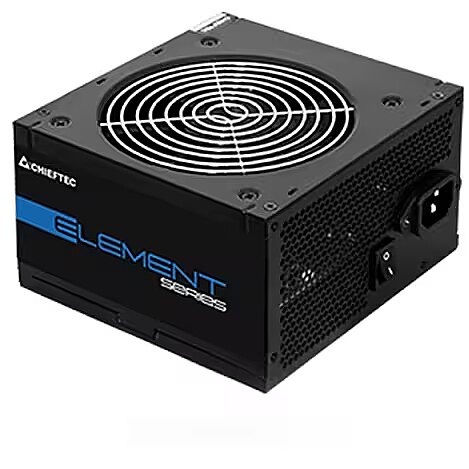

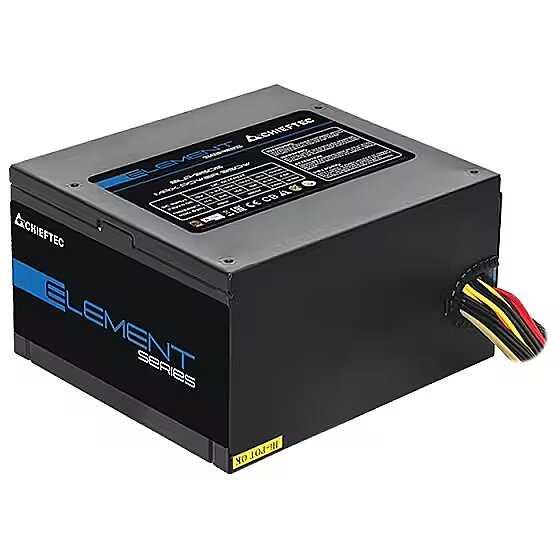

Chieftec Element series, 600W
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Chieftec
- Võimsus: 600W
- 80 PLUS certification: Ei ole
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Kirjeldus
600W võimsus on piisav veebis surfamiseks, Microsoft Office'i kasutamiseks ja lihtsate arvutimängude mängimiseks. Toiteplokk suudab tööle panna arvuti, millel on üks või kaks kõvaketast, kesktaseme graafikakaart (näiteks GTX 1650) ja kesktaseme protsessor. Kui olete tõsine arvutimängude entusiast, ostke võimsam toiteplokk.
Selle toiteploki ventilaatori läbimõõt on 120 mm, mis tagab vaikse töö keskmise võimsusega arvutites. Eriti vaikse toiteploki töö jaoks soovitame valida ventilaatori, mille läbimõõt on 135 mm või 140 mm.
Selle toiteploki värv on Melna. Kaabli värv on Raiba ja need on lapikud.
Selle toiteploki on määratud ATX 2.0 standardile. See tähendab, et seade on varustatud ainult 6-pinni ning 8-pinni ühendustega, mis vastavalt annavad 75W ja 150W võimsuse. On oluline märkida, et see plokk on kokkusobiv RTX 4070 ja võimsamate kaartidega, kuid peate kasutama 2x8-pin 16-pinnise 12VHPWR adapterit, mis on kaasas graafikakaardil. ATX 2.0 toiteühendusi ei ole mõeldud käsitlema kaasaegsete graafikakaartide suuri võimsuse kõikumisi; seetõttu, kui te ehitate süsteemi võimsa GPU-ga, nagu RTX 4070, soovitame valida toiteploki ATX 3.* standardi ja 12VHPWR (PCIe 5.0) ühendusega.
Võimsusüksusel pole modulaarseid kaableid; kõik kaablid on võimsusüksuse külge kinnitatud ja neid ei saa eemaldada. Sellest hoolimata töötab see sama hästi kui võimsusüksus, millel on modulaarsed kaablid.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
600W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: Ei ole
Kogu voolutugevus (+12V)
: 46A
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Kirju
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Ei ole
Sadamad ja seadmed
PCI-E 5.0/5.1
: Nav
Protsessori pistikprogramm
: 1 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA pistikud
: 4
Molex PATA lisamoodulid
: 2
Arvutikorpus
Täpsem spetsifikatsioon
80 PLUS certification Desktop Computer PSU | Performance - 80 PLUS Bronze
AC input frequency Desktop Computer PSU | Power - 47 - 63 Hz
AC input voltage Desktop Computer PSU | Power - 200 - 240 V
ATX power connector (20+4 pin) Desktop Computer PSU | Ports & interfaces - Y
ATX version Desktop Computer PSU | Performance - 2.3
Brand - Chieftec
BrandPartCode - ELP-600S
Cabling type Desktop Computer PSU | Ports & interfaces - Non-Modular
Category - Power Supply Units
Category Code - PSU
Combined power (+3.3V) Desktop Computer PSU | Power - 120 W
Combined power (+5V) Desktop Computer PSU | Power - 120 W
Combined power (+5Vsb) Desktop Computer PSU | Power - 12.5 W
Combined power (+12V) Desktop Computer PSU | Power - 552 W
Combined power (-12V) Desktop Computer PSU | Power - 3.6 W
Depth Desktop Computer PSU | Weight & dimensions - 150 mm
Description - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Efficiency Desktop Computer PSU | Power - 85 %
Fan diameter Desktop Computer PSU | Design - 120 mm
Floppy disk drive connector Desktop Computer PSU | Ports & interfaces - Y
Floppy drive power connector Desktop Computer PSU | Ports & interfaces - 1
GTIN - 4710713231061
Height Desktop Computer PSU | Weight & dimensions - 87 mm
Input current Desktop Computer PSU | Power - 4.5 A
LongDesc - The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
LongProductName - 600W, ATX 12V 2.3, PS II, 120mm fan
LongSummaryDescription - Chieftec ELP-600S. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Max output current (+3.3V) Desktop Computer PSU | Power - 20 A
Max output current (+5V) Desktop Computer PSU | Power - 20 A
Max output current (+5Vsb) Desktop Computer PSU | Power - 2.5 A
Max output current (+12V) Desktop Computer PSU | Power - 46 A
Max output current (-12V) Desktop Computer PSU | Power - 0.3 A
Motherboard power connector Desktop Computer PSU | Ports & interfaces - 20+4 pin ATX
Number of fans Desktop Computer PSU | Design - 1 fan(s)
Number of PATA power connectors Desktop Computer PSU | Ports & interfaces - 1
Number of SATA power connectors Desktop Computer PSU | Ports & interfaces - 4
PCI Express power connectors (6+2 pin) Desktop Computer PSU | Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC/Server
Peripheral (Molex) power connectors (4-pin) Desktop Computer PSU | Ports & interfaces - 2
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 1
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 552 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 4.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 46 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 600 W
Power Factor Correction (PFC) type Desktop Computer PSU | Power - Active
Power factor Desktop Computer PSU | Power - 0.9
Power protection features Desktop Computer PSU | Power - Over voltage/Overload/Short circuit/Under voltage
Power supply unit (PSU) form factor Desktop Computer PSU | Performance - PS/2
Product colour Desktop Computer PSU | Design - Black
ProductName - ELP-600S
Product Net Weight - 1.4 kg
Purpose Desktop Computer PSU | Performance - PC/server
ShortSummaryDescription - Chieftec ELP-600S, 600 W, 200 - 240 V, 47 - 63 Hz, 4.5 A, Active, 120 W
Summary - Chieftec ELP-600S. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
Title - Chieftec ELP-600S power supply unit 600 W 20+4 pin ATX PS/2 Black
Total power Desktop Computer PSU | Power - 600 W
Unit Box Height - 0.095
Unit Box Length - 0.235
Unit Box Width - 0.17
Unit Calculated Volume - 0.003795 cubm
Unit Calculated Weight - 1.82 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/en/psus/ps-2/element-series/elp-600s.html
Vendor Homepage - https://www.chieftec.eu/en/psus/ps-2/element-series/elp-600s.html
Warranty - 24 months
WarrantyInfo - 2 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
Width Desktop Computer PSU | Weight & dimensions - 140 mm
