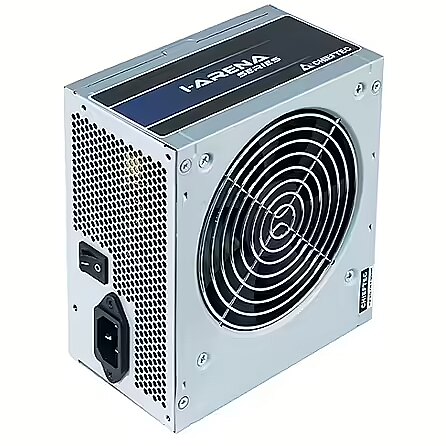

Chieftec iArena GPB Series, 500W

Brand - Chieftec
BrandPartCode - GPB-500S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates - Compliance certificates - RoHS
CnCode - 85044095
Cooling System - 12cm fan
Dane techniczne: Certyfikat sprawności - 80 Plus
Dane techniczne: Filtry - dodatkowa stabilizacja napięcia
Dane techniczne: Filtry - przeciwprzeciążeniowy
Dane techniczne: Filtry - przeciwprzepięciowy
Dane techniczne: Filtry - przeciwzwarciowy
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Grupa produktowa - Zasilacze do komputera Chieftec
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 500 W
Dane techniczne: Model - Chieftec GPB
Dane techniczne: Natężenie przy napięciu +3.3V - 17 A
Dane techniczne: Natężenie przy napięciu +5V - 18 A
Dane techniczne: Natężenie przy napięciu +5VSB - 2.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 38 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Producent - Chieftec
Dane techniczne: Regulacja obrotów wentylatorów - automatyczna
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Typ PFC - aktywne
Dane techniczne: Wersja standardu ATX - ATX 2.3x
Dane techniczne: Wtyczka zasilania [pin] - 1 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 3 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 20pin
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Złącze dla płyt pod P4 - tak
Dane techniczne: Średnica wentylatorów - 120 mm
Description - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Silver
dimensionalWeight - 567
Eans - 4710713233645
GTIN - 4710713233645
GTIN - 5704174261032
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
LongProductName - 500W, 200-240V, 47-63Hz, ATX 12V 2.3, PS II, 120mm, Active PFC
LongSummaryDescription - Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Name - Chieftec GPB-500S
Other features - Manual - Yes
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Performance - RoHS compliance - Y
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 38 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Producent: Nazwa producenta / importera - ChieftecArena Electronic GmbHKoppersstr. 1840549 DuesseldorfNiemcyEmail: info@chieftec.eu
Producer - Chieftec
producerCode - GPB-500S
ProducerCode - GPB-500S
productName - Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
ProductName - GPB-500S
Product Net Weight - 1.1 kg
productSize - Normal
PSU - ATX 2.3
PSU Output Power - 500 Watts
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS | standard | bulk |
ShortSummaryDescription - Chieftec GPB-500S, 500 W, 200 - 240 V, 47 - 63 Hz, 4 A, Active, 110 W
sizeX - 150
sizeY - 90
sizeZ - 210
Title - Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver
Unit Box Height - 0.155
Unit Box Length - 0.2
Unit Box Width - 0.09
Unit Calculated Volume - 0.00279 cubm
Unit Calculated Weight - 1.22 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
Vendor Homepage - www.chieftec.eu/en/psus/ps-2/iarena-series/gpb-500s.html
Warranty - 24 months
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - G
weight - 1300
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 140 mm
