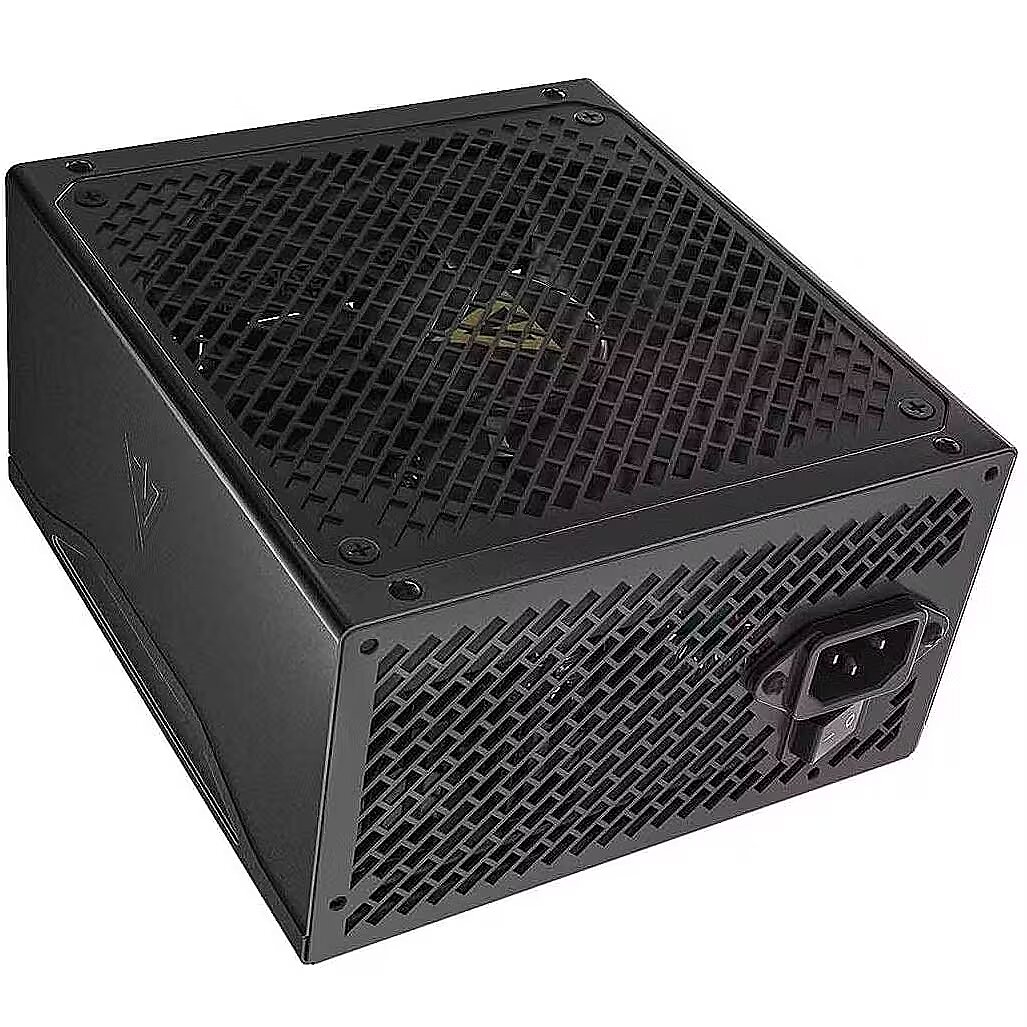

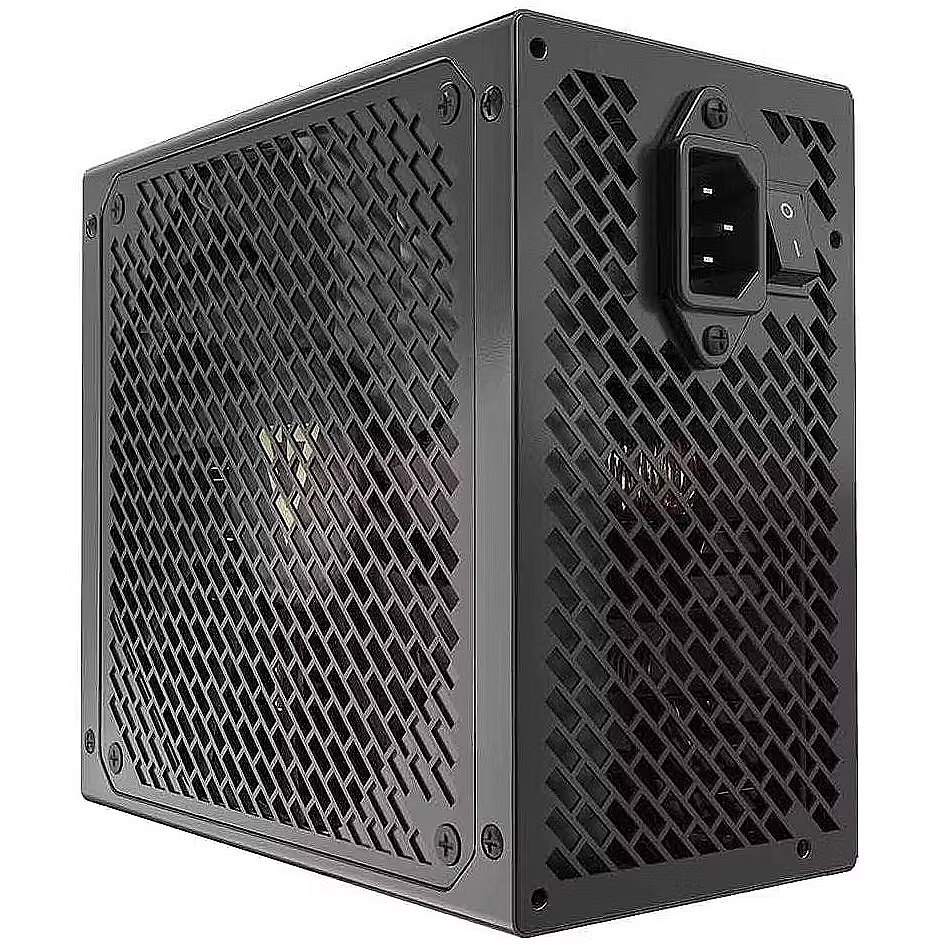

Modecom Volcano HEX, 850W, Cybenetics Platinum, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 0
ATX version - 3.1
Design - Product colour - Black
Design - Fan diameter - 14 cm
Eans - 5903560982692
Filters / protection - Protection against surges and surges
Filters / protection - Voltage drop
Filters / protection - Circuit
Filters / protection - Thermal
Filters / protection - Surge
Filters / protection - Current too high
Filters / protection - Overload
Floppy power connectors - 1
Fan - 14 cm
guarantee - 120
guarantee_type - external
warrantyLength - 120
warrantyType - F
Performance - Purpose - PC
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Supported motherboard form factors - ATX
Weight - 1.4 kg
weight - 3230
Category - Root/Electronics/PC parts/PC power supply units
ean - 5903560982692
Description - HEX 850W PLATINUM ATX3.1 Computer Power Supply
The MODECOM Volcano Hex series of Volcano power supplies is designed based on the ATX 3.1 and PCI Express 5.1 standards, ensuring support for advanced and demanding hardware solutions on the market. The ATX 3.1/PCIe 5.1 standards meet the requirements of the best graphics cards and pose significant challenges for computer power supplies, as they require, for example, support for peak loads up to twice the rated power of the power supply. The Volcano Hex is a power supply platform built using the Half-bridge LLC Resonant Converter topology, with a DC-DC circuit for the 3.3V and 5V rails, ensuring stable voltages regardless of the power supply's load.
H- Harmony (or Harmony)
This power supply ensures stable, quiet, and balanced computer operation regardless of the load. Everything runs smoothly without interference or noise.
E- Efficiency
Thanks to its high energy efficiency (Cybenetics Platinum) and refined design, the power supply consumes less electricity while delivering full power where needed.
X- Xtreme Compatibility
Ready for the latest components and the most demanding graphics cards no adapters, no compromises, with full compliance with ATX 3.1 standards.
vendpn - ZAS-MC-HEX-0850-PLAT
Accessories included -
Form Factor - ATX
ShortDescription - 850 | ATX | 140 mm | 20 + 4 pin | 150mm x 85mm x 160mm | 80 PLUS Platinum |
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
Other features -
Designation - CE+WEEE
dimension height - 340 mm
dimension width - 220 mm
dimension depth - 130 mm
Dimensions - 160 x 150 x 85 mm
dimensionalWeight - 1989
dimension weight - 3250 g
Name - Modecom Volcano Hex 850 Platinum
name - Power supply HEX 850W PLATINUM ATX3.1
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Number of connectors PATA - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
PMBus 5 Pin - 0

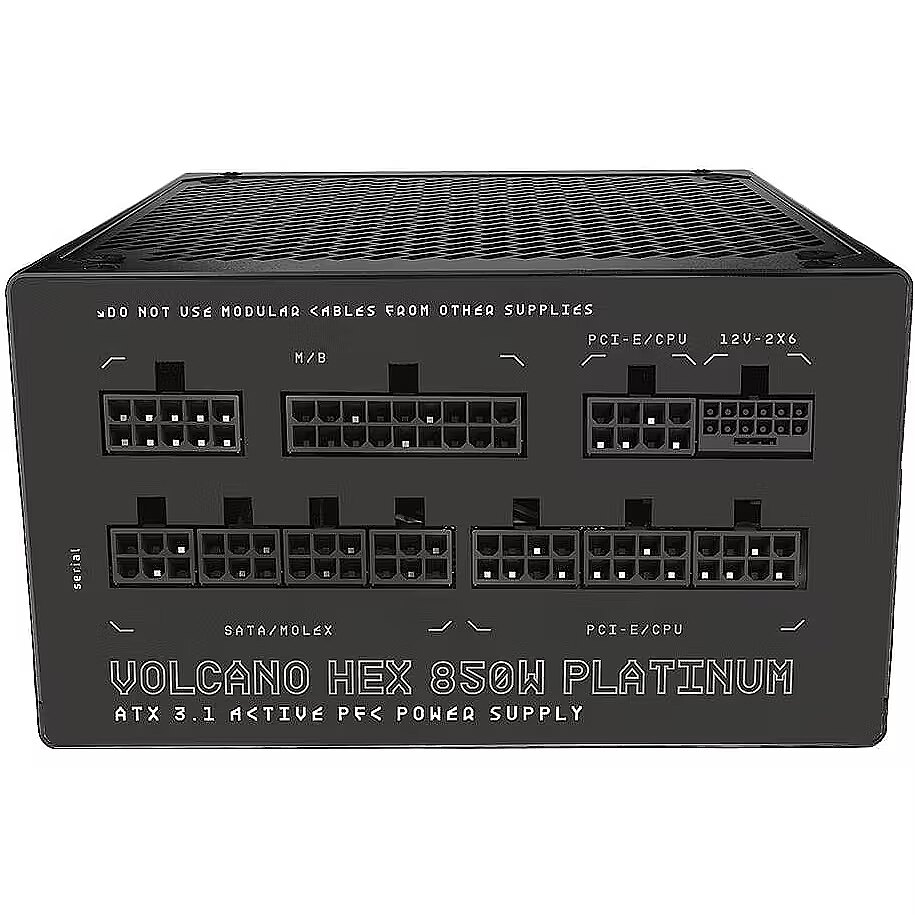

Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Cabling type - Modular
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - 12V power connector - Yes
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - PCI Express power connectors (12+4 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
SATA power connectors - 6
sizeZ - 135
sizeX - 335
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Wysokość - 85 mm
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Model - Modecom Volcano Hex
Dane techniczne: Standard - ATX
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Głębokość - 160 mm
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Producent - Modecom
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Średnica wentylatorów - 140 mm
Dane techniczne: Moc - 850 W
sizeY - 220
Power supply - 850 W
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power connectors 12VHPWR - 1
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of power connectors PCI-E 16-pin Gen 5 - 0
productName - MODECOM Power Supply VOLCANO HEX PLATINUM 850W ATX3.1
productSize - Normal
producer - MODECOM
Producer - Modecom
Producent: Nazwa producenta / importera - Modecom
MODECOM POLSKA
Puławska 145
02-715 Warszawa
<
producerCode - ZAS-MC-HEX-0850-PLAT
ProducerCode - ZAS-MC-HEX-0850-PLAT
Number of USB 10p connectors - 0
Power - Total power - 850 W
Power - AC input voltage - 100 - 240 V
Power - Power Factor Correction (PFC) type - Active
