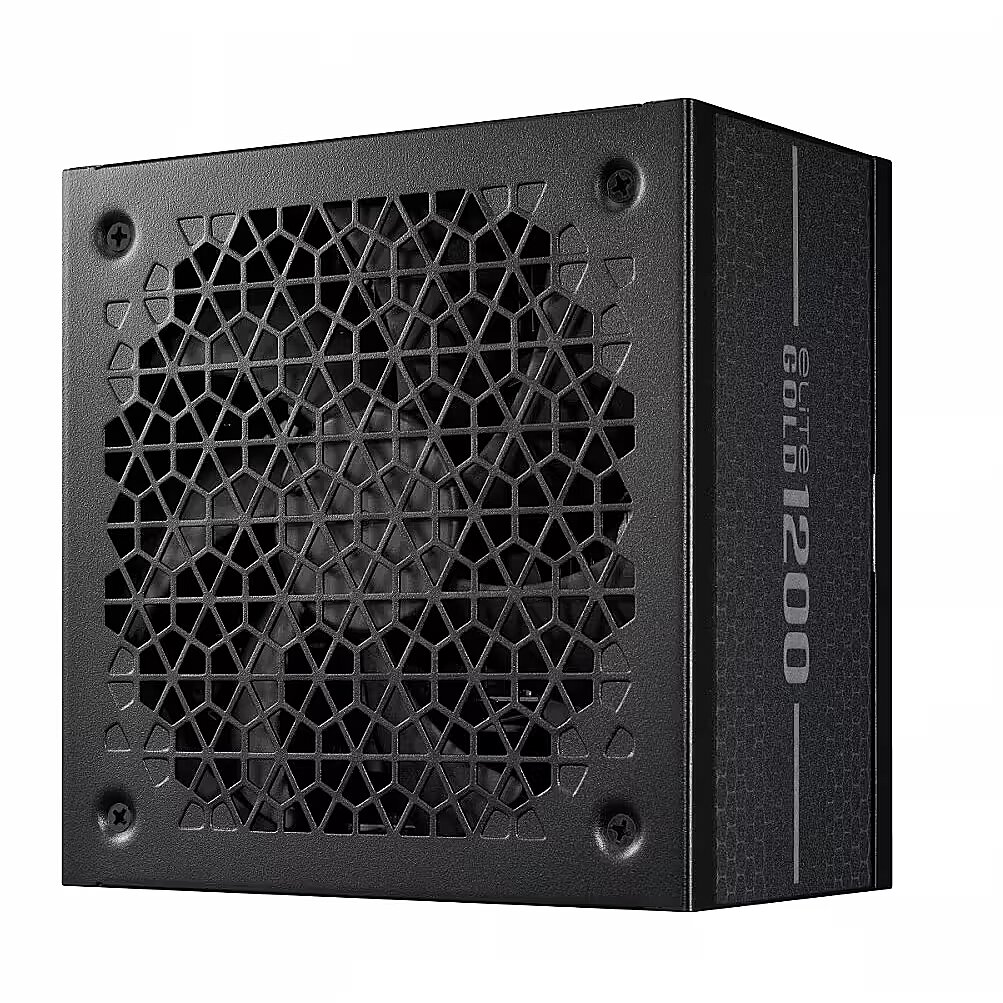

Cooler Master Elite Gold, 1200W, 80PLUS Gold, ATX 3.1, PCIe 5.1

ATX version - 3.1
Certificates 80+ - 80 PLUS Gold
Description - ELITE GOLD 1200 Introducing the ELITE GOLD 1200 ATX 3.1 PSU. The Elite Gold 1200 combines 80 Plus Gold efficiency with quiet FDB fan cooling, delivering powerful and dependable performance across multiple dimensions. Refined design enhancements elevate the overall user experience, resulting in a PSU that is both highly efficient and reliable. With embossed cables, excellent thermal durability, and a 5-year warranty, the Elite Gold 1200 ensures a premium and long-lasting power solution. FDB fan
Ultra-quiet operation, long lifespan, and stable cooling performance. 80 Plus Gold efficiency certification
This unit is certified to achieve more than 90%  efficiency at typical loads in a 115V test. High temperature resilience
A 40 °C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications . Embossed cable
An embossed cable texture provides a softer and overall improved grip with  a pleasing aesthetic. ATX 3.1 support
Built to ATX 3.1 standards, this PSU handles peak power up to 200% of its rated output, ensuring full compatibility with 50-series and upcoming GPUs. Single +12V rail
All power comes from a single+12V source, ensuring consistent output through all connected cables. Compact Form Factor
Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold's compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds. 5-year warranty
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
Designation - CE+WEEE
dimension depth - 135 mm
dimension height - 210 mm
Dimensions - 150 x 150 x 86 mm
dimension weight - 3000 g
dimension width - 330 mm
ean - 4719512160404
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Form Factor - ATX
guarantee - 60
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 3
name - Power supply ELITE Gold 1200 FM A/EU cord
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 6
PFC - Active
PFC - Yes
Power supply - 1200 W
producer - Cooler Master
SATA power connectors - 9
vendpn - MPW-C001-AFAG-BEU
Weight - 2.7 kg
