ID: 1291580
Tootekood: FAL651FSP12
Laos 50 üksused
Garantii: 2 aastat

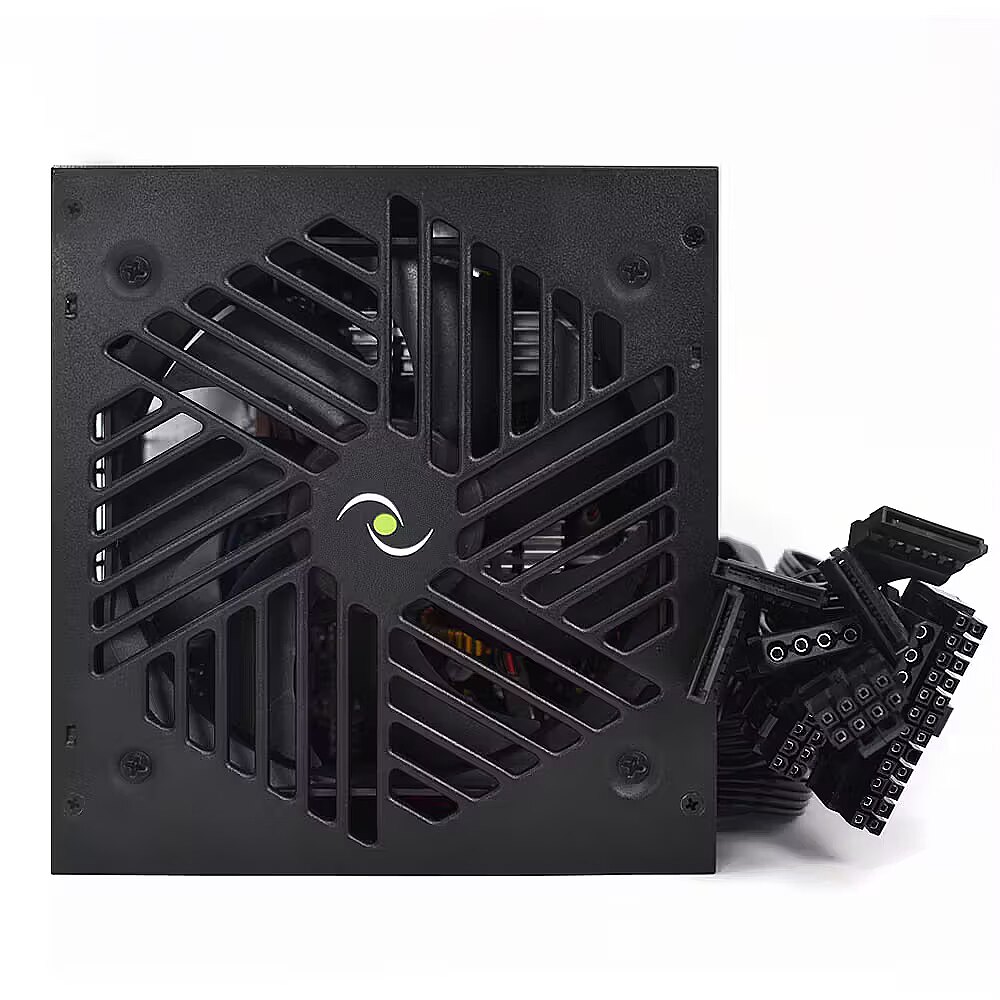

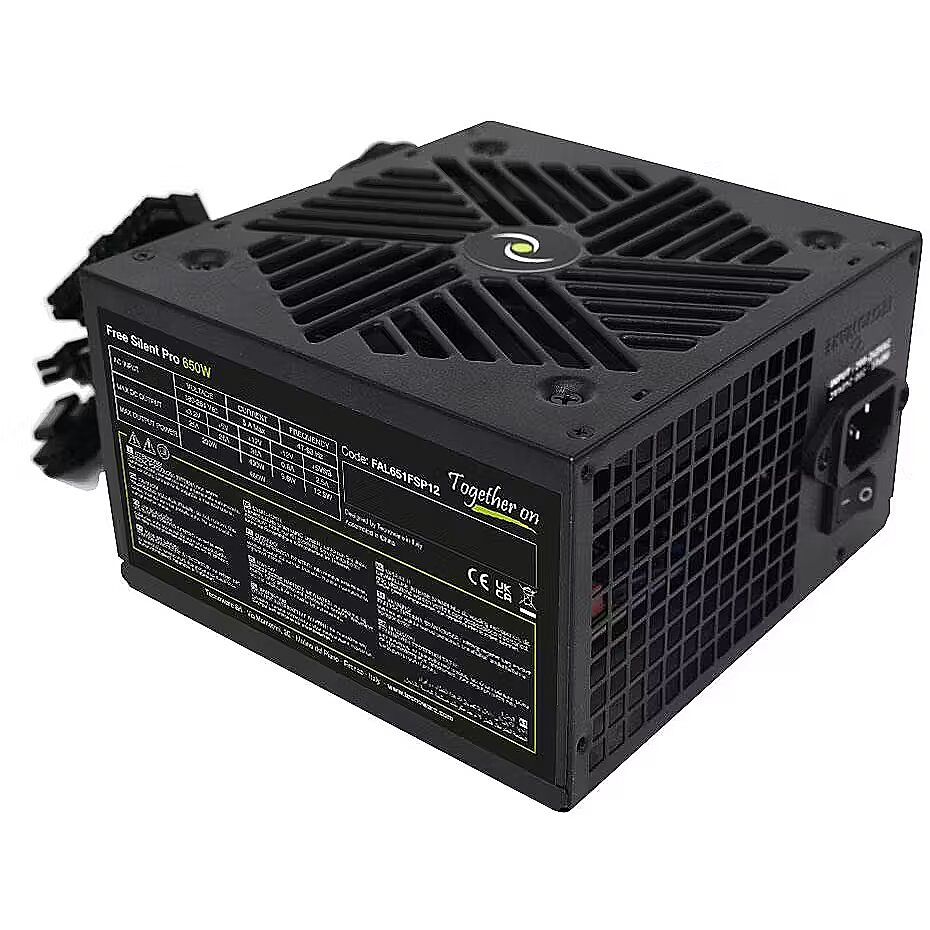

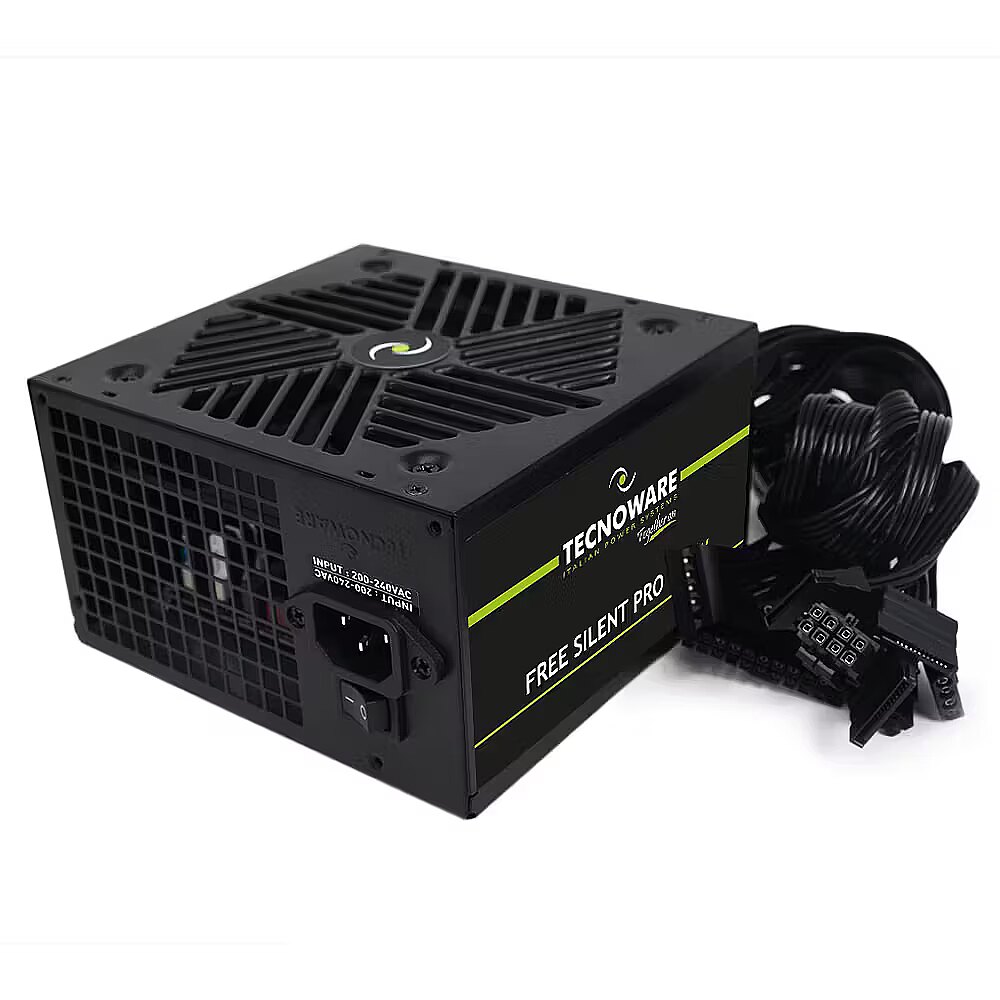

Tecnoware Free Silent PRO, 550W
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Tecnoware
- Võimsus: 550W
- 80 PLUS certification: Ei ole
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Ei ole
- Protsessori pistikprogramm: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
550W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: Ei ole
Kogu voolutugevus (+12V)
: 30A
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Must
Valgustus
: Ei ole
Värv
: Must
Modulaarkaablid
: Ei ole
Sadamad ja seadmed
PCI-E 5.0/5.1
: Nav
Protsessori pistikprogramm
: 1 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA pistikud
: 2
Molex PATA lisamoodulid
: 2
Arvutikorpus
Täpsem spetsifikatsioon
80 PLUS certification Performance - No
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 180 - 264 V
ATX version Performance - 2.31
Category Code - PSU
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm

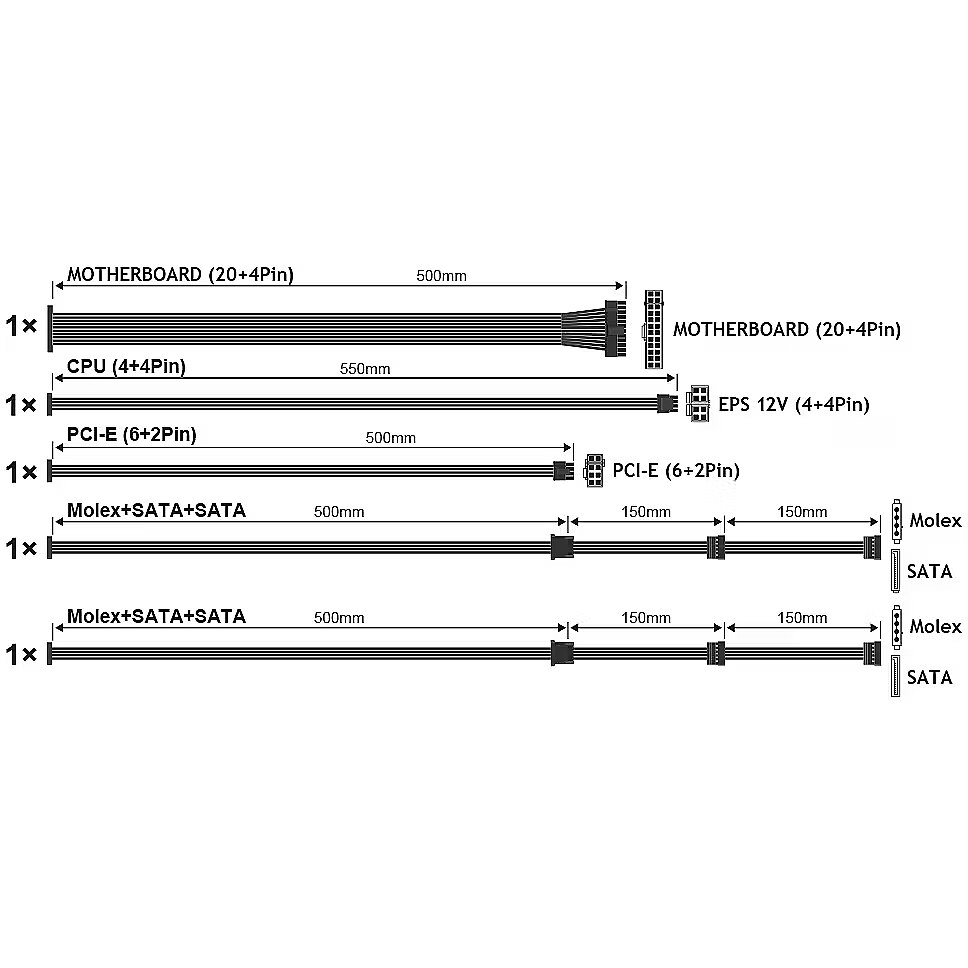

Description - Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS. Internal Power Supply for Computers High Efficiency (>85%) and High Operation Noise Active PFC >0.9 Dimensions: 140x86x150 mm (WxHxD) Input voltage 230 Vac 50Hz Temperature control of the fan speed Flat connection cables from 500mm to 800mm Surge protection Overload protection Short circuit protection
Efficiency Power - 85 %
Fan diameter Design - 120 mm
Height Weight & dimensions - 86 mm
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 26 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 26 A
Max output current (-12V) Power - 0.8 A
Motherboard power connector Ports & interfaces - 24-pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 4
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 40 °C
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Overload/Short circuit/Surge protection
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Storage temperature (T-T) Operational conditions - -15 - 40 °C
Summary - Tecnoware FAL651FSP12. Total power: 650 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Total power Power - 650 W
Unit Calculated Volume - 0.004 cubm
Unit Calculated Weight - 2 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/849
Warranty - 24 months
Weight Weight & dimensions - 1000 g
Width Weight & dimensions - 150 mm
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 180 - 264 V
ATX version Performance - 2.31
Category Code - PSU
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS. Internal Power Supply for Computers High Efficiency (>85%) and High Operation Noise Active PFC >0.9 Dimensions: 140x86x150 mm (WxHxD) Input voltage 230 Vac 50Hz Temperature control of the fan speed Flat connection cables from 500mm to 800mm Surge protection Overload protection Short circuit protection
Efficiency Power - 85 %
Fan diameter Design - 120 mm
Height Weight & dimensions - 86 mm
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 26 A
Max output current (+5Vsb) Power - 2.5 A
Max output current (+12V) Power - 26 A
Max output current (-12V) Power - 0.8 A
Motherboard power connector Ports & interfaces - 24-pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 4
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 40 °C
PCI Express power connectors (6+2 pin) Ports & interfaces - 1
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 2
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Overload/Short circuit/Surge protection
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Storage temperature (T-T) Operational conditions - -15 - 40 °C
Summary - Tecnoware FAL651FSP12. Total power: 650 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Total power Power - 650 W
Unit Calculated Volume - 0.004 cubm
Unit Calculated Weight - 2 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/849
Warranty - 24 months
Weight Weight & dimensions - 1000 g
Width Weight & dimensions - 150 mm
