ID: 1287466
Tootekood: GP-UD850GM PG5 ICE
Laos 50 üksused
Garantii: 3 aastat

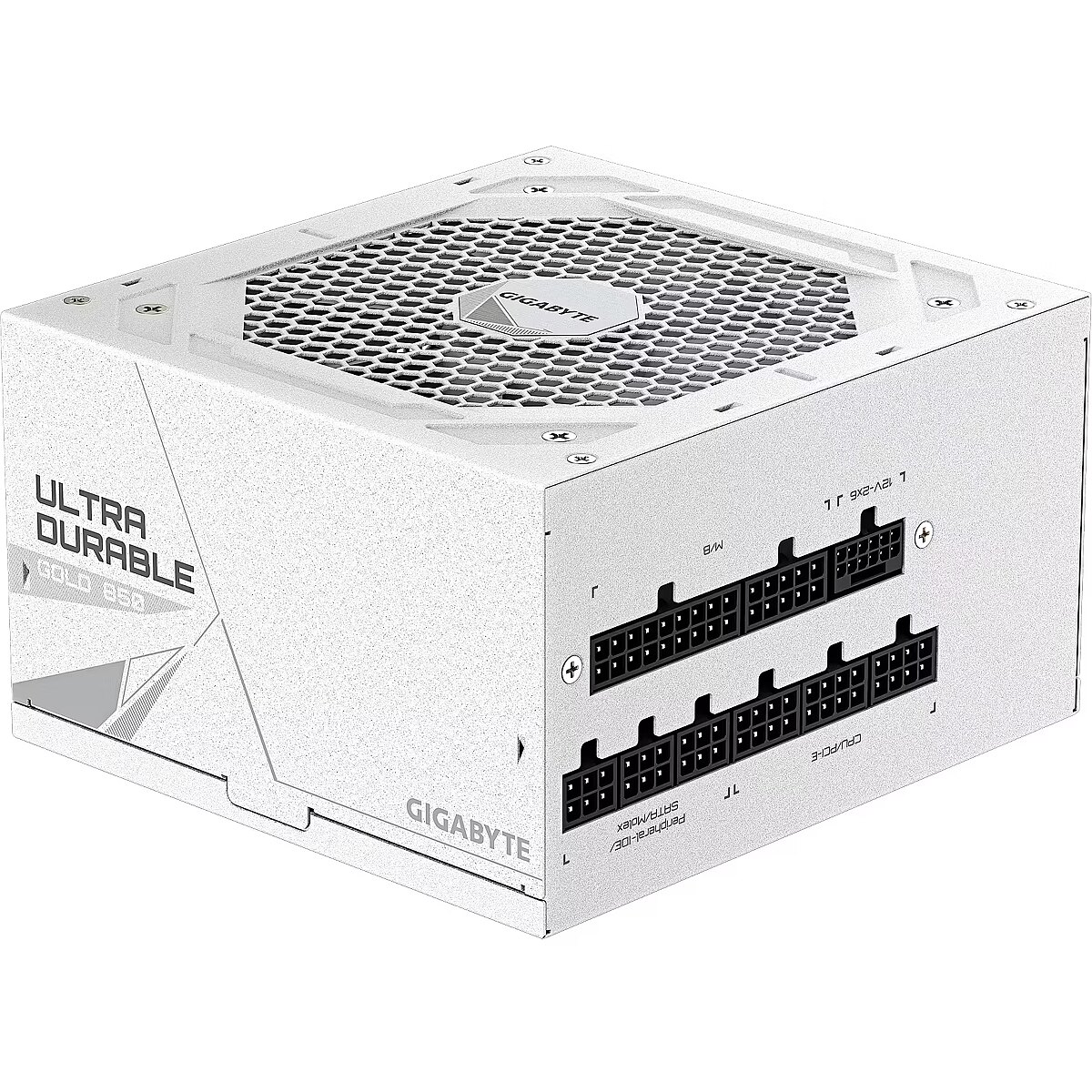

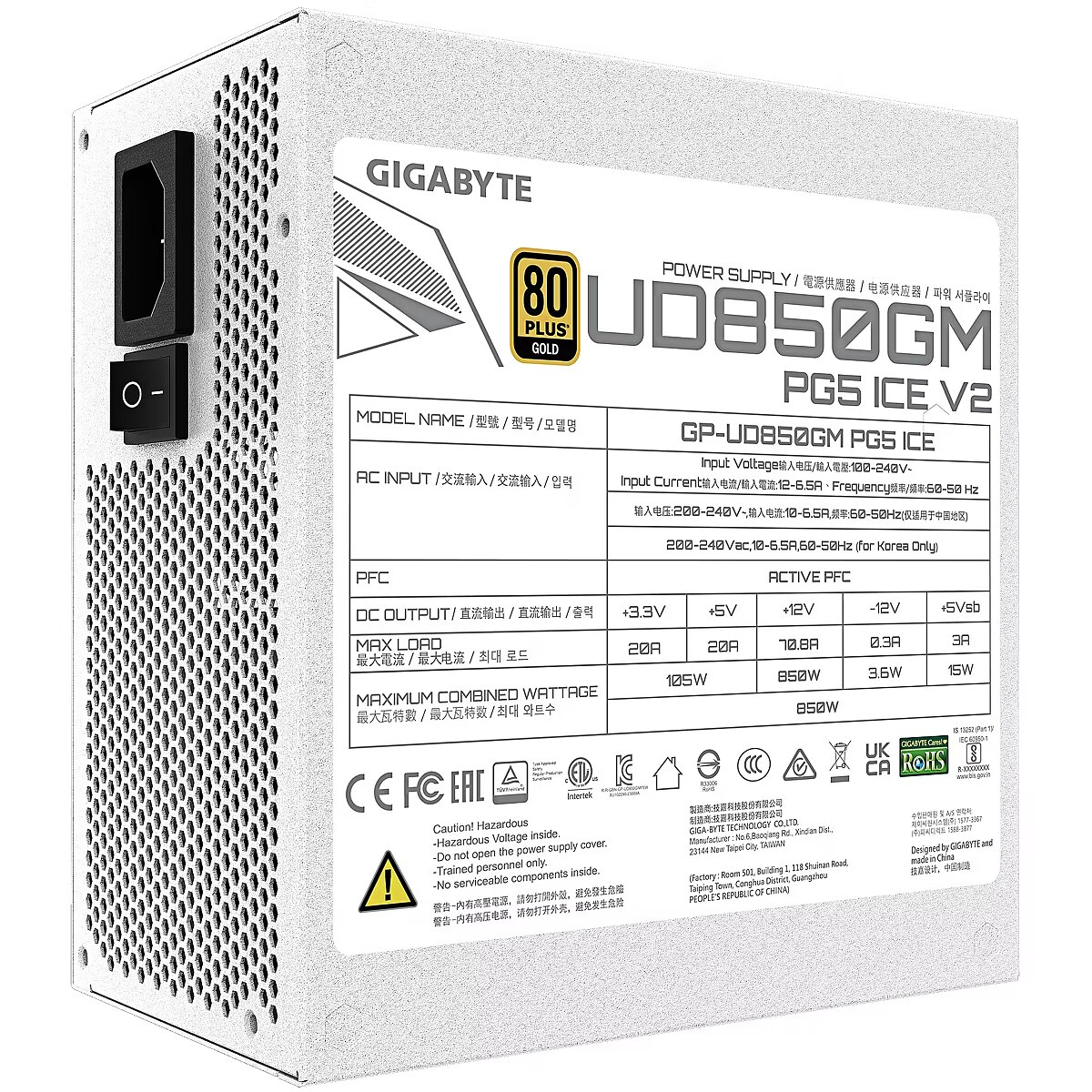

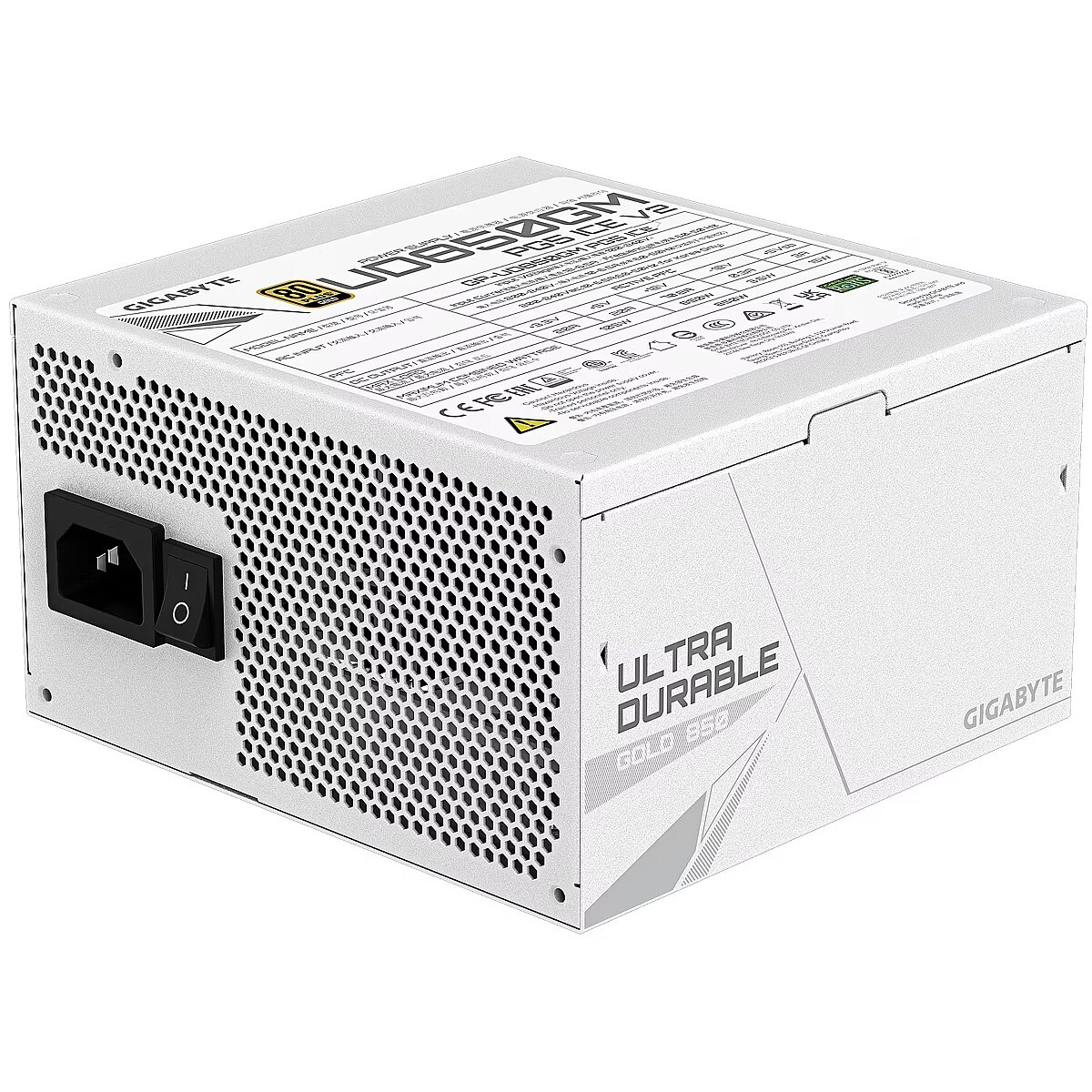

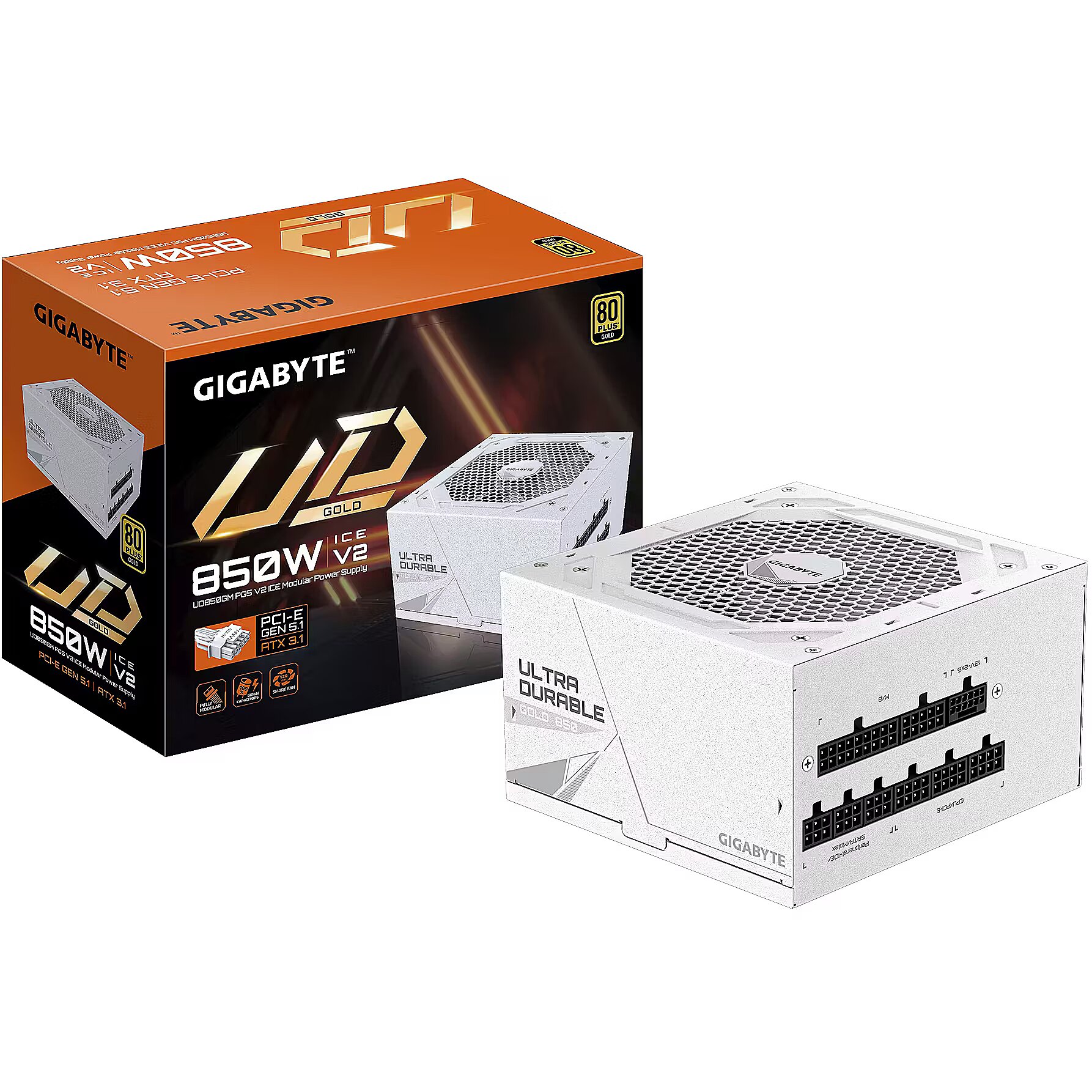

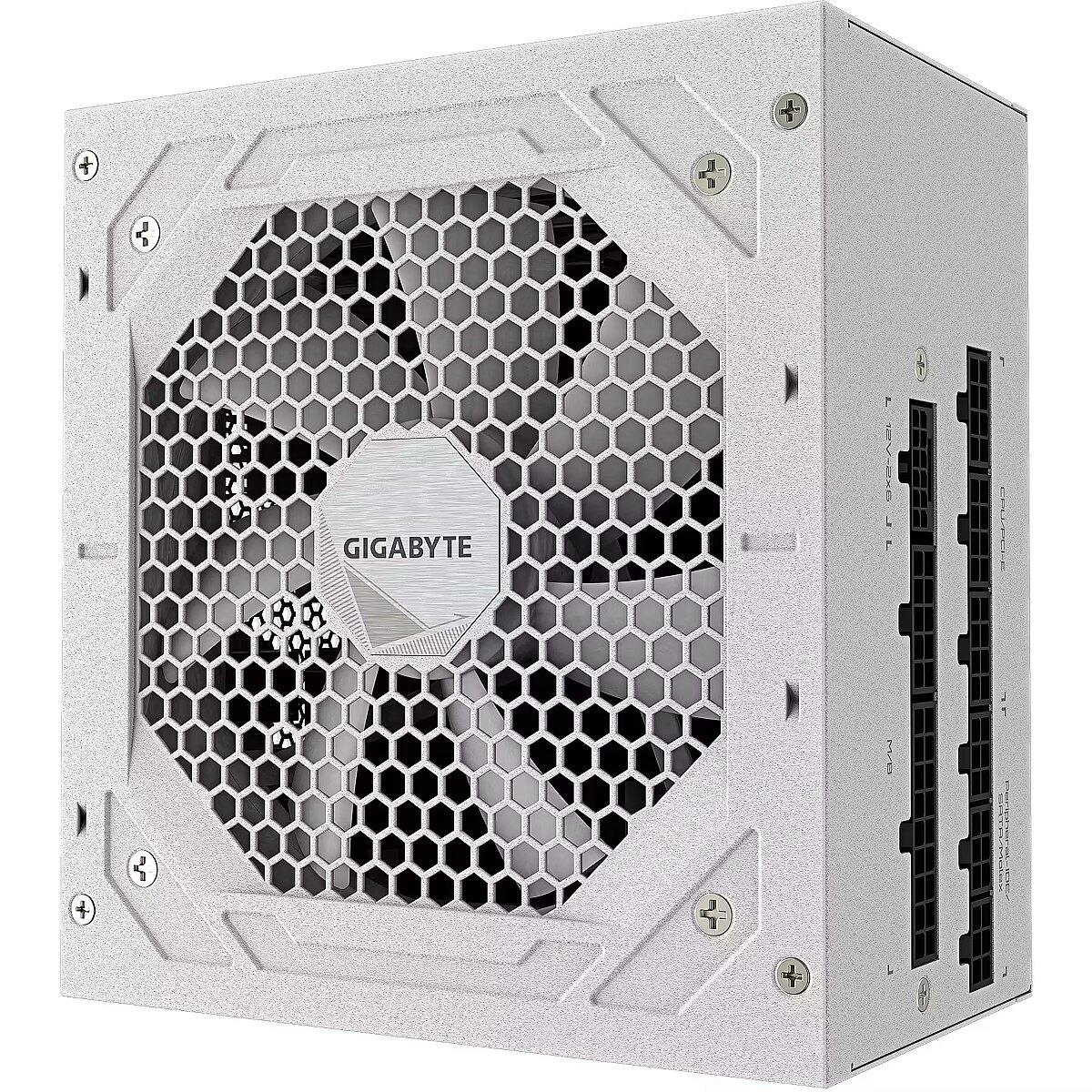

Gigabyte UD850GM PG5 V2 ICE, 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Tootja: Gigabyte
- Võimsus: 850W
- 80 PLUS certification: Ei ole
- Ventilaatori Läbimõõt: 120 mm
- Modulaarkaablid: Fully-Modular
- Protsessori pistikprogramm: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Kirjeldus
850W toiteplokk sobib suurepäraselt võimsa tööjaama või mänguarvuti jaoks. See varustab energiaga kõrgekvaliteedilise videokaardi (näiteks RTX 4070 Ti SUPER), mitu kõvaketast (SSD/HDD), veekülgeõli ja tipptasemel protsessori (võimalik, et ületaktitud).
Selle toiteploki värv on Balta. Kaabli värv on Balta ja need on lapikud.
Sellel toiteplokil on modulaarsed kaablid, mis võimaldavad vajadusel lisada videokaardi kaableid, kõvaketta kaableid jne. ell tarnitud valikust. Sel viisil väheneb arvutis juhtmestiku segadus, parandades ventilatsiooni ja esteetilist tegurit (eriti oluline neile, kes ostavad osaliselt läbipaistva korpuse).
Võimsusüksuse tootja on Gigabyte. Kõiki Gigabyte'i toodetud toiteplokke saab vaadata siit.
Põhiteave
Cybenetics Mürataseme sertifitseerimine
: Nav
Cybenetics tõhususe sertifitseerimine
: Nav
Toiteallika tüüp
: ATX
Võimsus
850W
Toiteploki võimsus vatides. Suurem võimsus tähendab suuremat arvuti töötamise stabiilsust. Tänapäevase keskmise arvuti soovitatav toiteploki võimsus on 500W, või enam. Juhul, kui kasutate mitut kõvaketasst, võimsat videokaarti ja protsessorit, on soovitav soetada toiteplokk 600W, või suurema võimsusega.
80 PLUS certification
: Ei ole
Kogu voolutugevus (+12V)
: 70.8A
Ventilaatori Läbimõõt
: 120 mm
Funktsionaalsus
Kaabli värvus
: Valge
Valgustus
: Ei ole
Värv
: Valge
Modulaarkaablid
: Fully-Modular
Sadamad ja seadmed
PCI-E 5.0/5.1
: 1 x 450W 12V-2X6 (5.1)
Protsessori pistikprogramm
: 2 x 8-pin(4+4) EPS
Emaplaadi pistik
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA pistikud
: 8
Molex PATA lisamoodulid
: 3
Arvutikorpus
Täpsem spetsifikatsioon
80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Bearing technology Performance - HYB
Brand - GIGABYTE
BrandPartCode - GP-UD850GM PG5 ICE EU
Cabling type Ports & interfaces - Fully-Modular
Category - Power Supply Units
Category Code - PSU
Combined power (+3.3V) Power - 105 W
Combined power (+5V) Power - 105 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 850 W
Combined power (-12V) Power - 3.6 W
Cooling type Design - Active
CPU power cable length Ports & interfaces - 650 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences. Intel ATX 3.1 and PCIe Gen 5.1 ready 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact size 100% Japanese capacitors 120mm smart hydraulic bearing (HYB) fan Optimized thermal solution OVP/OPP/SCP/UVP/OCP/OTP protection
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
Efficiency Power - 90 %
Fan diameter Design - 120 mm
Floppy drive power connector Ports & interfaces - 1
GTIN - 4719331556457
Height Weight & dimensions - 86 mm
Hold time Power - 16 ms
Input current Power - 12 - 6.5 A
Logistics data - Warranty period - 10 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 70.8 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - UD850GM PG5 ICE
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Number of EPS connectors Ports & interfaces - 2
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 8
On/off switch Design - Yes
Package depth Packaging data - 269 mm
Package height Packaging data - 211 mm
Package type Packaging data - Box
Package weight Packaging data - 2560 g
Package width Packaging data - 618 mm
Packaging data - Package depth - 269 mm
Packaging data - Package height - 211 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.56 kg
Packaging data - Package width - 618 mm
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 600 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 4
PCI Express power connectors (12+4 pin) cable length Ports & interfaces - 700 mm
PCI Express power connectors (12+4 pin) Ports & interfaces - 1
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,600 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
Power Factor Correction (PFC) type Power - Active
Power factor Power - 0.9
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - White
ProductName - UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
Purpose Performance - PC
ShortSummaryDescription - GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 - 6.5 A, Active, 105 W
Summary - GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Title - GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
Total power Power - 850 W
Unit Box Height - 0.118
Unit Box Length - 0.254
Unit Box Width - 0.212
Unit Calculated Volume - 0.007865 cubm
Unit Calculated Weight - 2.62 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-ICE#kf
Vendor Homepage - https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-ICE#kf
Warranty - 36 months
WarrantyInfo - 10 years
Warranty period Logistics data - 10 year(s)
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.4 kg
Weight & dimensions - Width - 150 mm
Weight Weight & dimensions - 2400 g
Width Weight & dimensions - 150 mm
