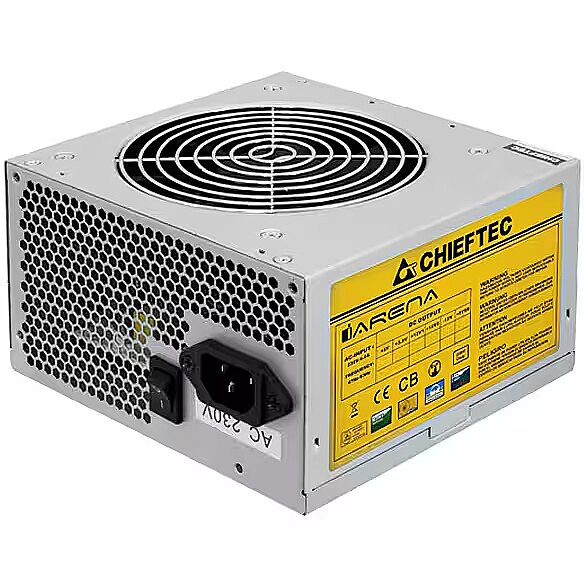

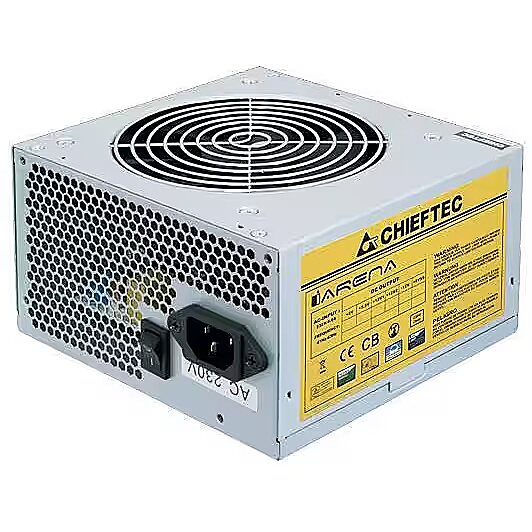

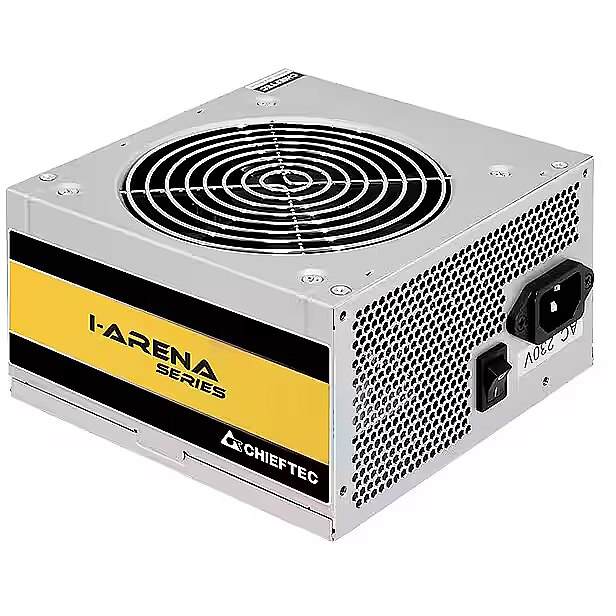

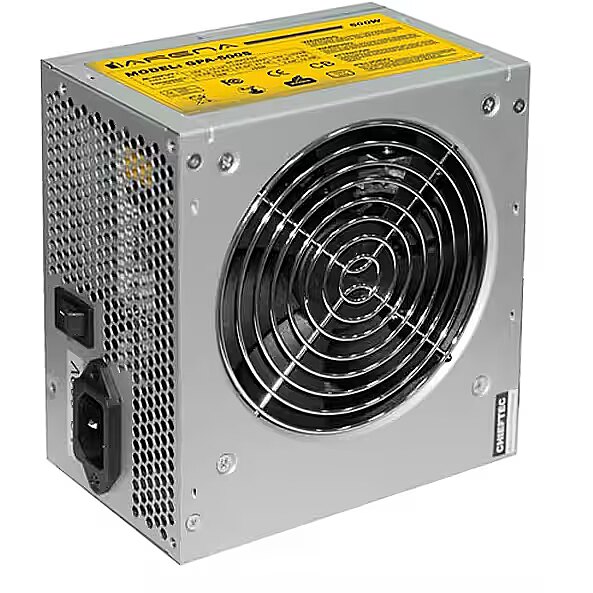

Chieftec iArena GPA Series, 700W

Brand - Chieftec
BrandPartCode - GPA-700S
Category - Power Supply Units
Category Code - PSU
Certificates - Compliance certificates - CB, CE, EAC
CnCode CnCode - 85044095
Cooling System - 12cm fan
Description - ATX-12V V.2.3 PSU with 12 cm fan, Active PFC, 230V only
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Silver
Full Description Line - ATX 2.3|700 Watts|Cooling System 12cm fan|PFC Active
GTIN - 4710713233225
LongDesc - The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.
LongProductName - 700 W, ATX 12 V 2.3, PS II, 120 mm, 200 - 240 V, 47 - 63 Hz
LongSummaryDescription - Chieftec iArena GPA-700s. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC
Packaging data - Package type - Box
Packaging data - Package weight - 1.57 kg
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC/Server
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 500,650,800 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 80%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Total power - 700 W
ProductName - GPA-700s
Product Net Weight - 0.9 kg
PSU - ATX 2.3
PSU Output Power - 700 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 22 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.434 kg
Shipping Box Width Shipping/Package Box Dimensions - 15.5 cm
ShortSummaryDescription - Chieftec iArena GPA-700s, 700 W, 200 - 240 V, 47 - 63 Hz, 5 A, Active, 130 W
Title - Chieftec iArena GPA-700s power supply unit 700 W 20+4 pin ATX PS/2 Silver
Unit Calculated Volume - 0.003069 cubm
Unit Calculated Weight - 1.43 kg
Units per Shipping Box - 1
URL - https://www.chieftec.eu/products-detail/140/IARENA_SERIES/146/GPA-700S
Vendor Homepage - www.chieftec.eu
Warranty - 24 months
WarrantyInfo - 2 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.44 kg
Weight & dimensions - Width - 140 mm
