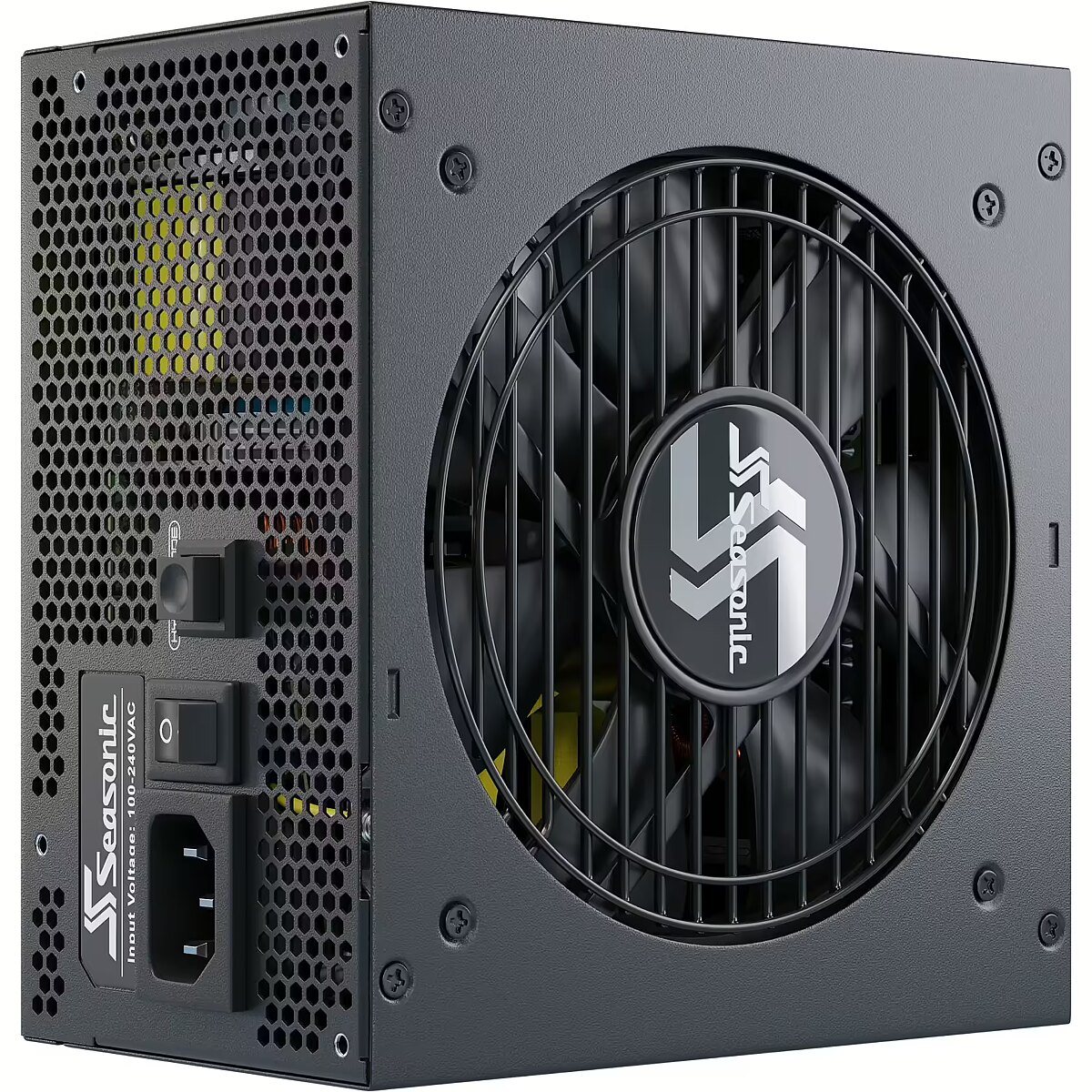

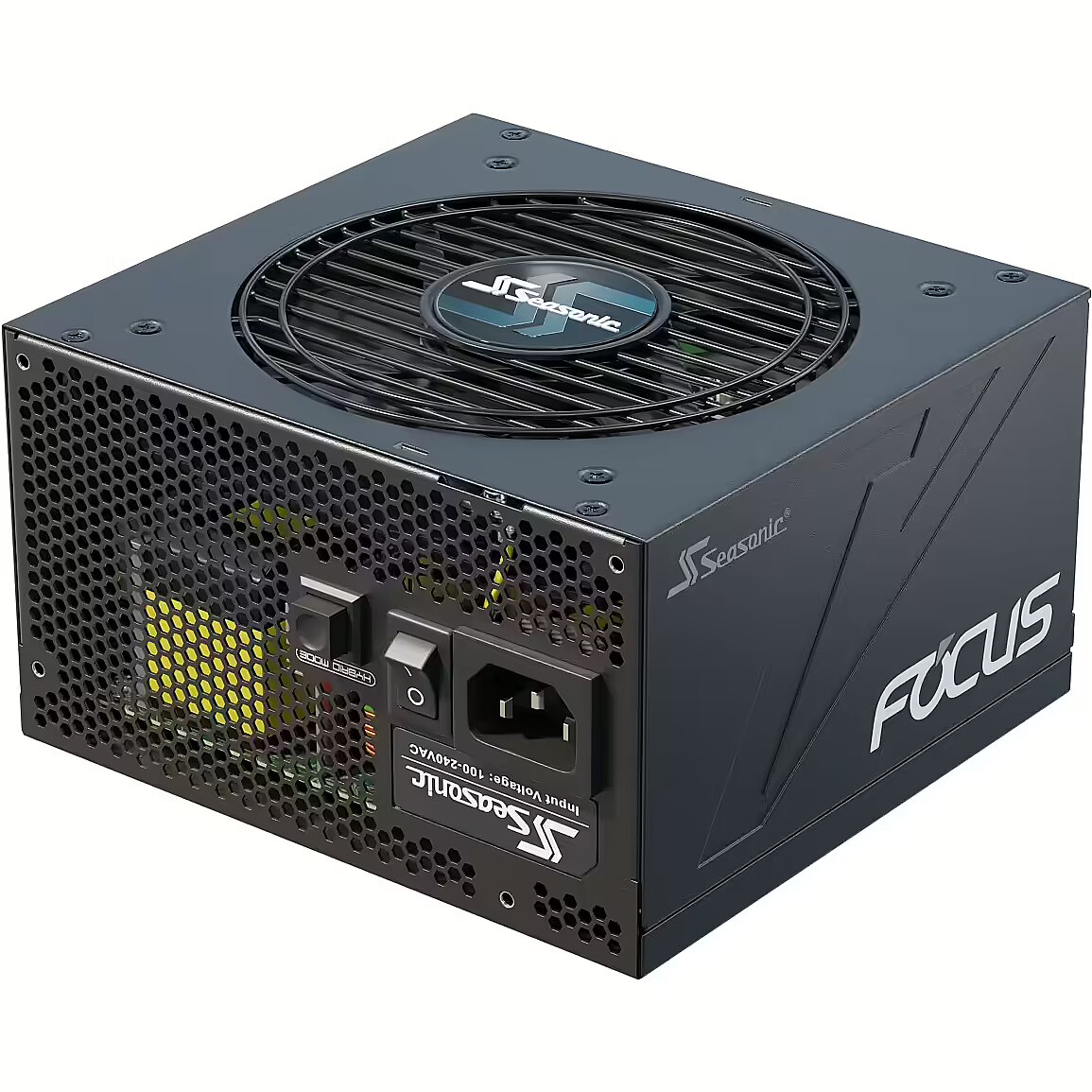

Seasonic Focus GX (2024), 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1

80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.0
Bearing technology Performance - FDB
Cables included Packaging content - AC,CPU,PCIe,Peripheral (Molex),Peripheral (Molex) to SATA 3.3,SATA
Cable tie(s) included Packaging content - Yes
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certification Certificates - cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
code - FOCUS-GX-750-V4
Combined power (+3.3V) Power - 100 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 744 W
Combined power (-12V) Power - 3.6 W
Compliance certificates Certificates - BSMI/CB/CCC/CE/cTUVus/EAC/REACH/RoHS/WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 650 mm
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative. S3FC - Fanless until 30 % load
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan. When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
80 PLUS Gold CertifiedFully Modular CablingATX 12V
ean - 4711173878445
EAN - 4711173878445
EAN_code - 4711173878445
Fan diameter Design - 120 mm
Height Weight & dimensions - 86 mm
Input current Power - 10 - 5 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - FOCUS-GX-750-V4
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - FOCUS GX ATX 3.0
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 20+4 pin ATX
MPN - FOCUS-GX-750-V4
Name - 750W Seasonic FOCUS GX-750 ATX 3.1 80+ Gold
Name - Seasonic FOCUS GX-750-V4 750W ATX3.1, PC power supply (black, 1x 12-pin high power GPU, 2x PCIe, cable management, 750 watts)
name - Seasonic Focus GX 80 PLUS Gold Netzteil, modular - 750 Watt, schwarz
Number of fans Design - 1 fan(s)
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C
PCI Express connector Ports & interfaces - Yes
PCI Express power cable length Ports & interfaces - 750 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Peripheral (Molex) power cable length Ports & interfaces - 470/690 mm
Power protection features Power - Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
SATA power cable length Ports & interfaces - 450/810/860 mm
Silent mode Performance - Yes
Summary - Seasonic Focus GX. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,810,860 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Sustainability certificates Technical details - ENERGY STAR/ErP
Sustainability compliance Technical details - Yes
Total power Power - 750 W
Unit Box Height - 0.19
Unit Box Length - 0.31
Unit Box Width - 0.12
Unit Calculated Volume - 0.007068 cubm
Unit Calculated Weight - 3.26 kg
Units per Shipping Box - 1
Vendor Homepage - https://seasonic.com/focus-gx/
Warranty - 120 months
Warranty period Logistics data - 10 year(s)
Weight - 3,30
Weight - 3.25
Width Weight & dimensions - 150 mm
