Brand - ASUS
BrandPartCode - 90YE00N0-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates - Compliance certificates - RoHS
code - 90YE00N0-B0NA00
Dane techniczne: Certyfikat sprawności - 80 Plus Titanium
Dane techniczne: Dodatkowe informacje - podświetlenie ARGB
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 125 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1200 W
Dane techniczne: Model - ASUS ROG LOKI
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 2.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 100 A
Dane techniczne: Natężenie przy napięciu -12V - 0.8 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Asus
Dane techniczne: Regulacja obrotów wentylatorów - tak
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - SFX-L
Dane techniczne: Szerokość - 125 mm
Dane techniczne: Waga - 1.815 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 4 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 63.5 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm

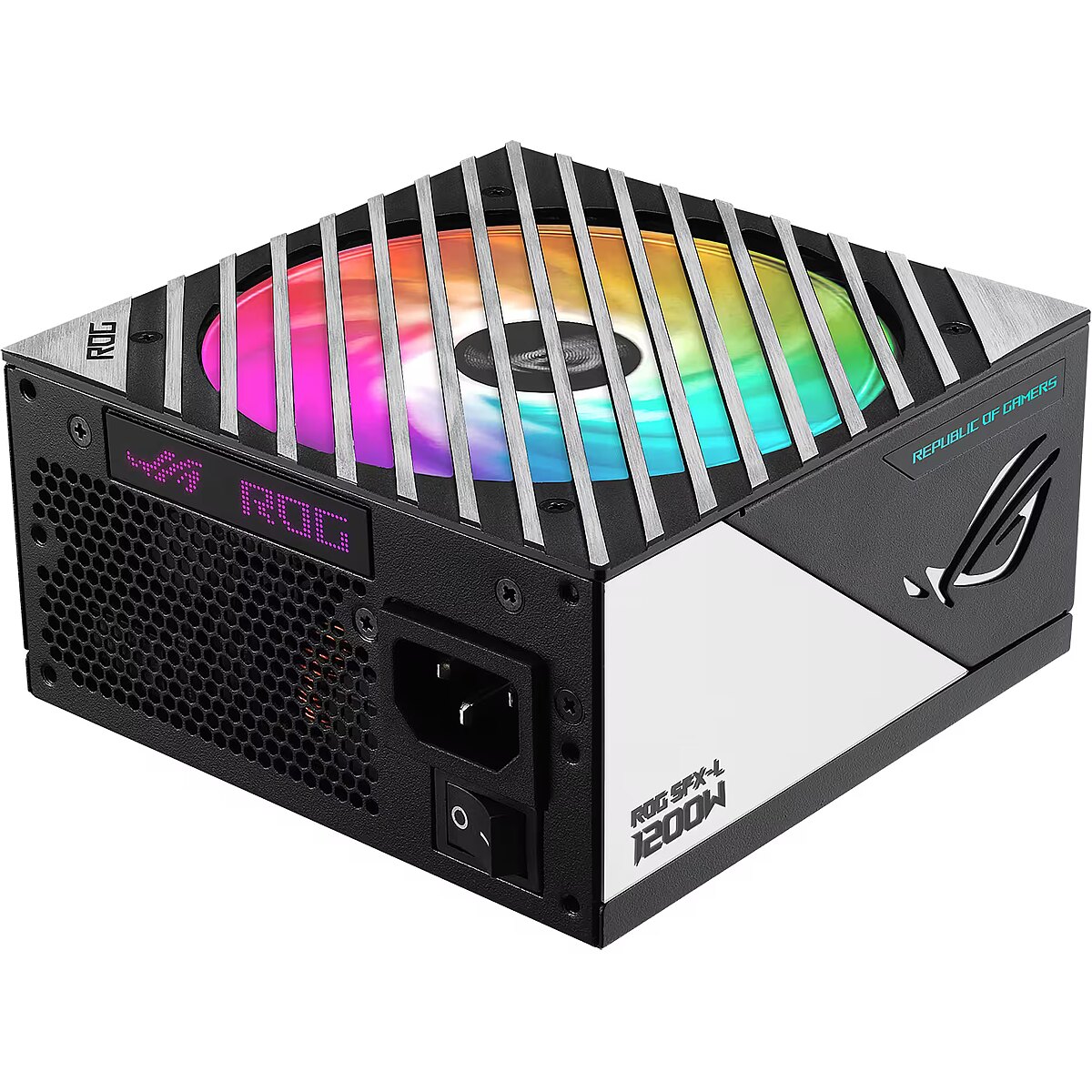

Design - Cooling type - Active

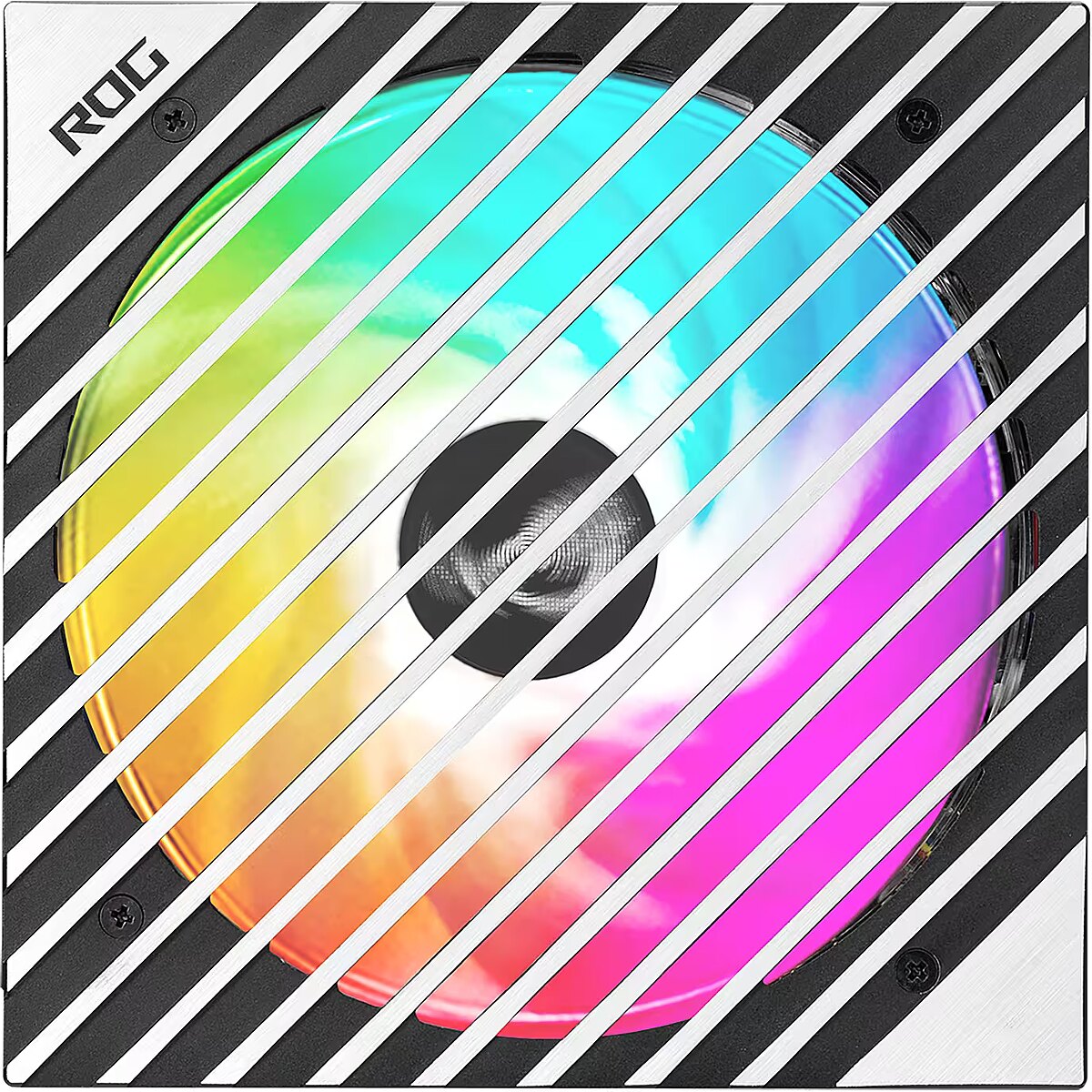

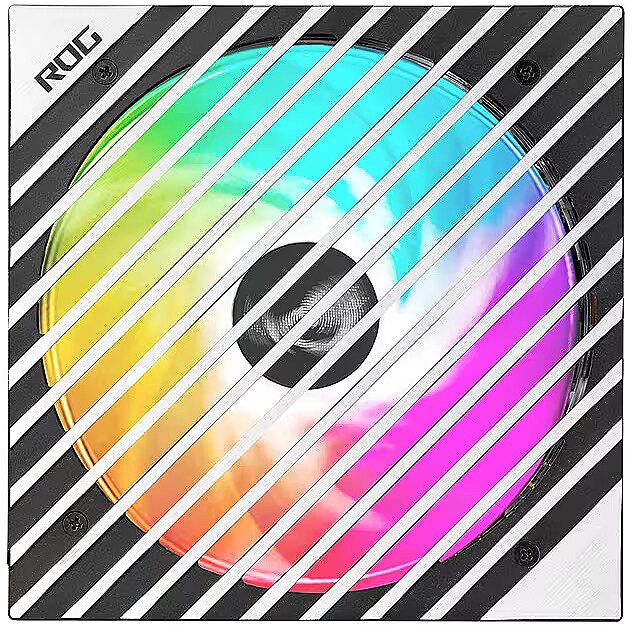

Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)

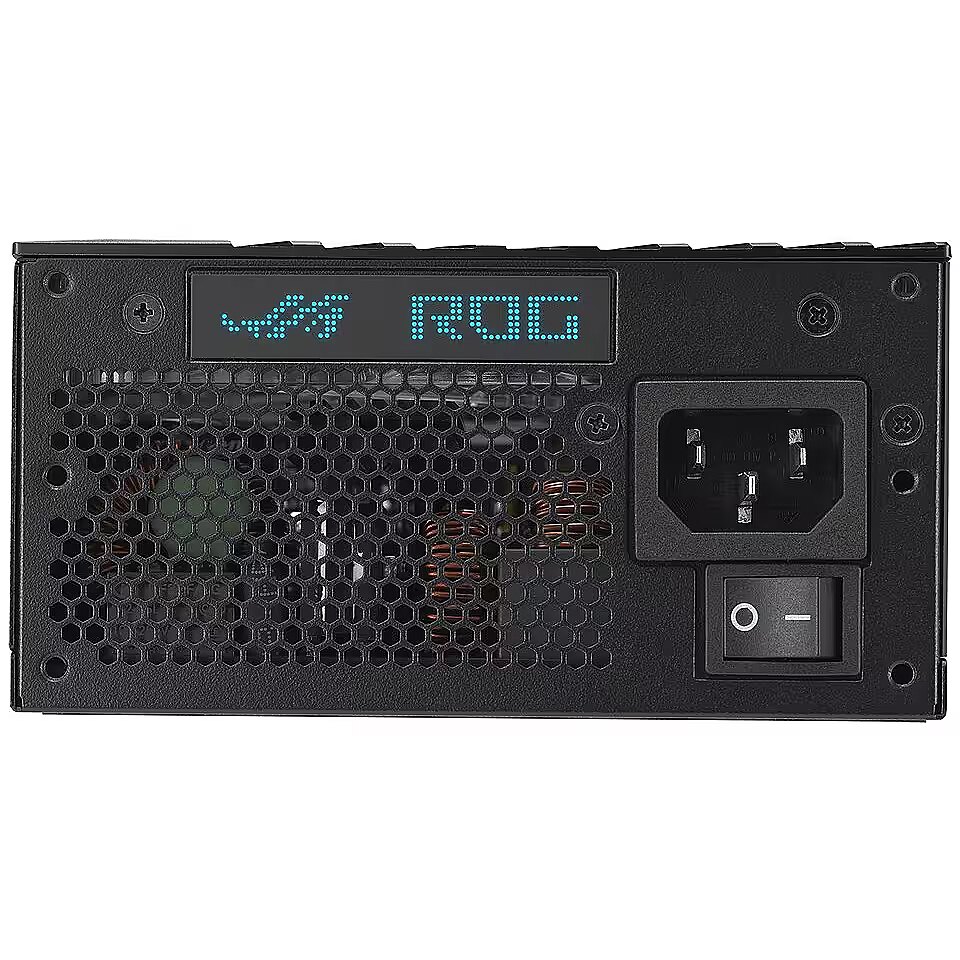

Design - On/off switch - Yes
Design - Product colour - Black, Silver
ean - 4711081721574
Eans - 4711081721574
GTIN - 4711081721574
Logistics data - Warranty period - 10 year(s)

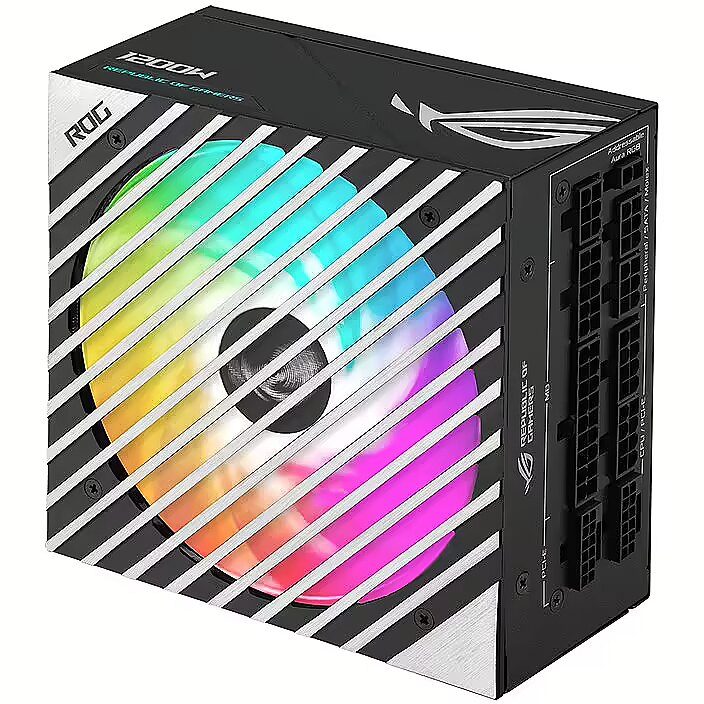

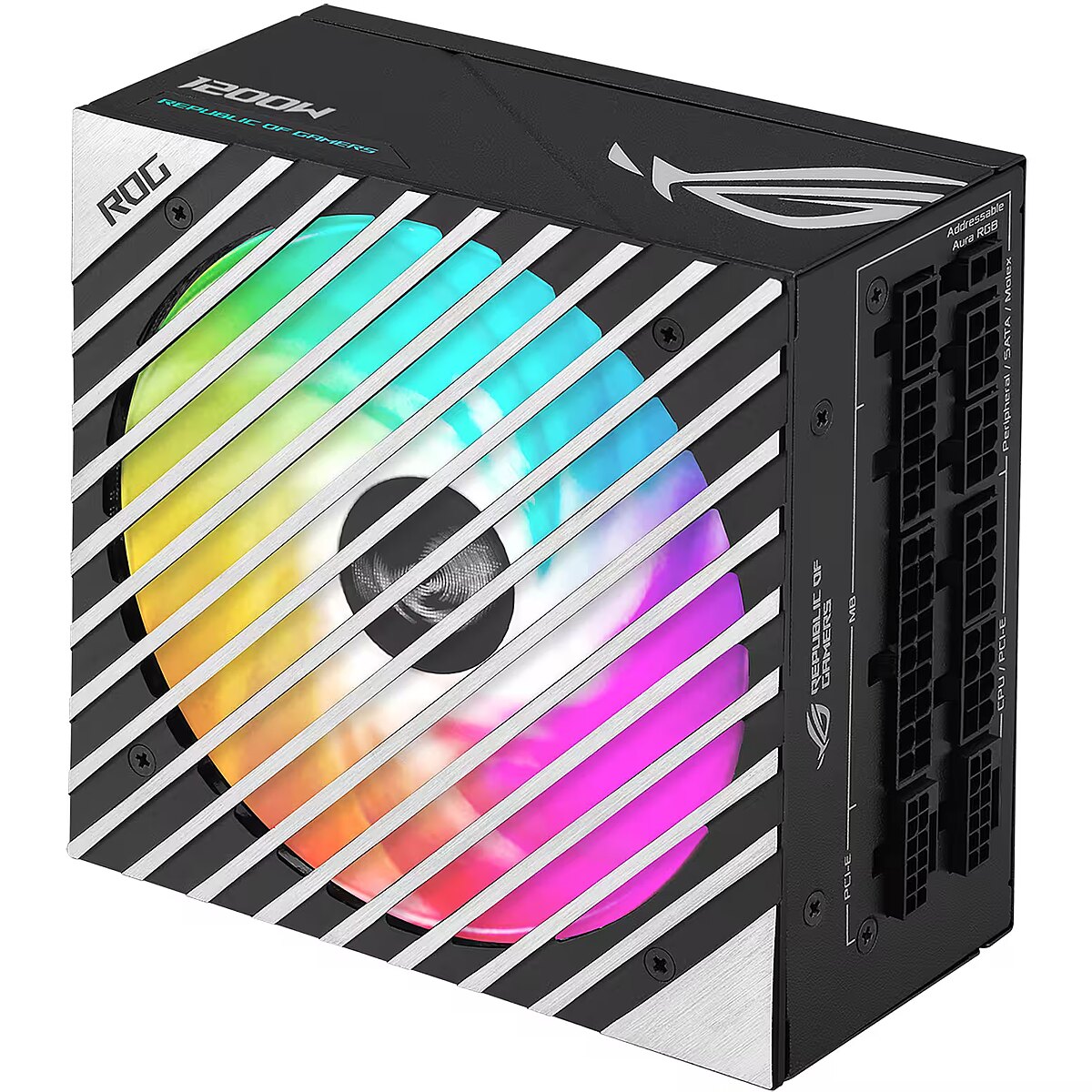

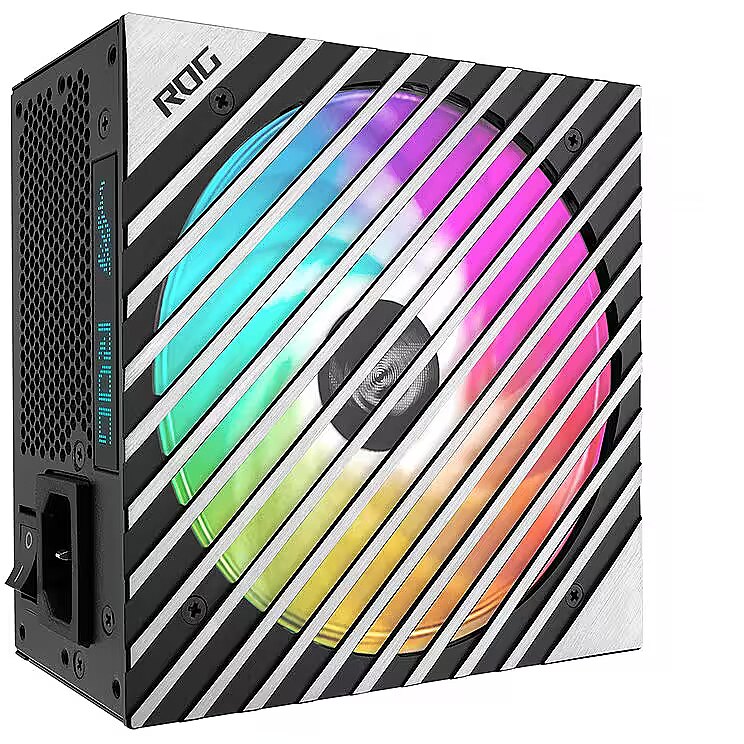

LongDesc - The World's Quietest and Most Powerful SFX-L PSUTaking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.COOLINGROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.Dual Ball Fan Bearings2x longer lifespanThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.Lambda Standard ++ CertificationQuietly deviantOn average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.ENGINEERING80 PLUS Titanium CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.1 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.EXPERIENCEARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.10-Year WarrantyA decade of powerWe're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

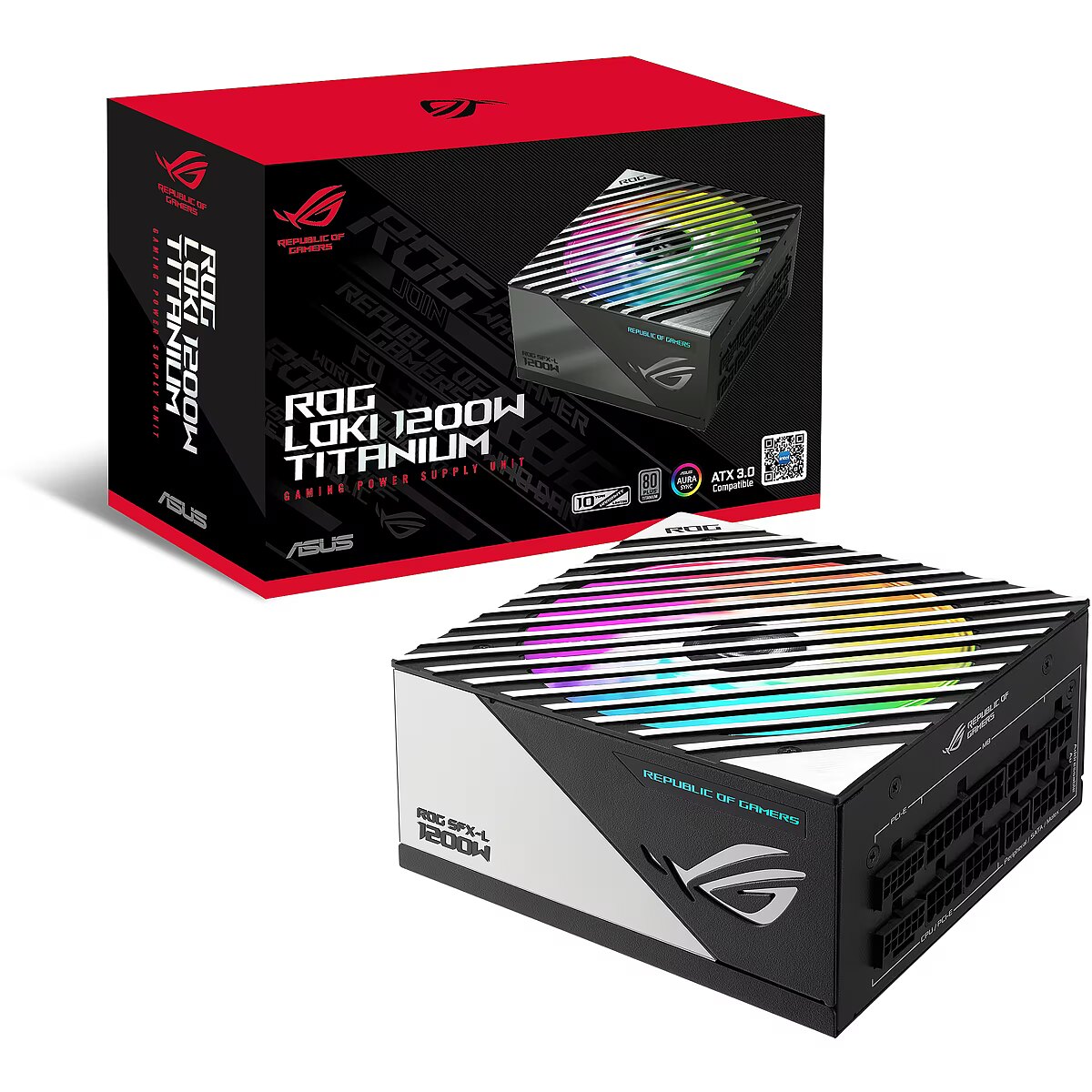

LongProductName - ROG Loki SFX-L 1200W Titanium fully modular gaming power supply (120mm PWM ARGB fan, Aura Sync ARGB lighting, ATX 3.1 compatible, PCIe 5.0 Ready, incl. 16-pin cable, 80+ Titanium certification, Lambda Standard ++ certification)
LongSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1200 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 100,200,300 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX-L, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Name - ASUS ROG-LOKI-1200P-SFX-L-GAMING
name - ASUS ROG Loki SFX-L 1200W, 80 PLUS Titanium Netzteil, modular, PCIe 5.0 - 1200 Watt, weiß

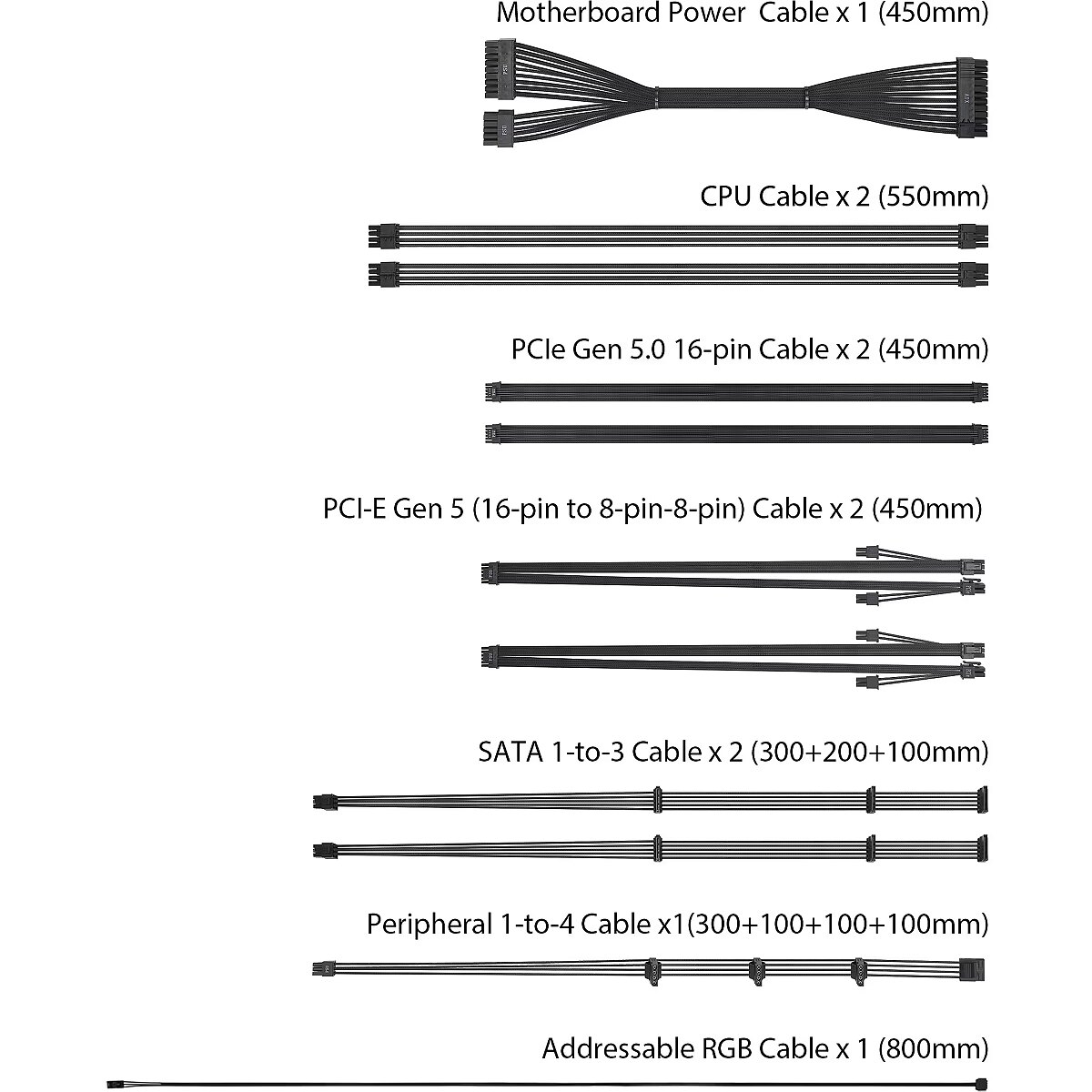

Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Manual - Yes
Packaging data - Package depth - 190 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.84 kg
Packaging data - Package width - 285 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - SFX-L
Performance - Purpose - PC

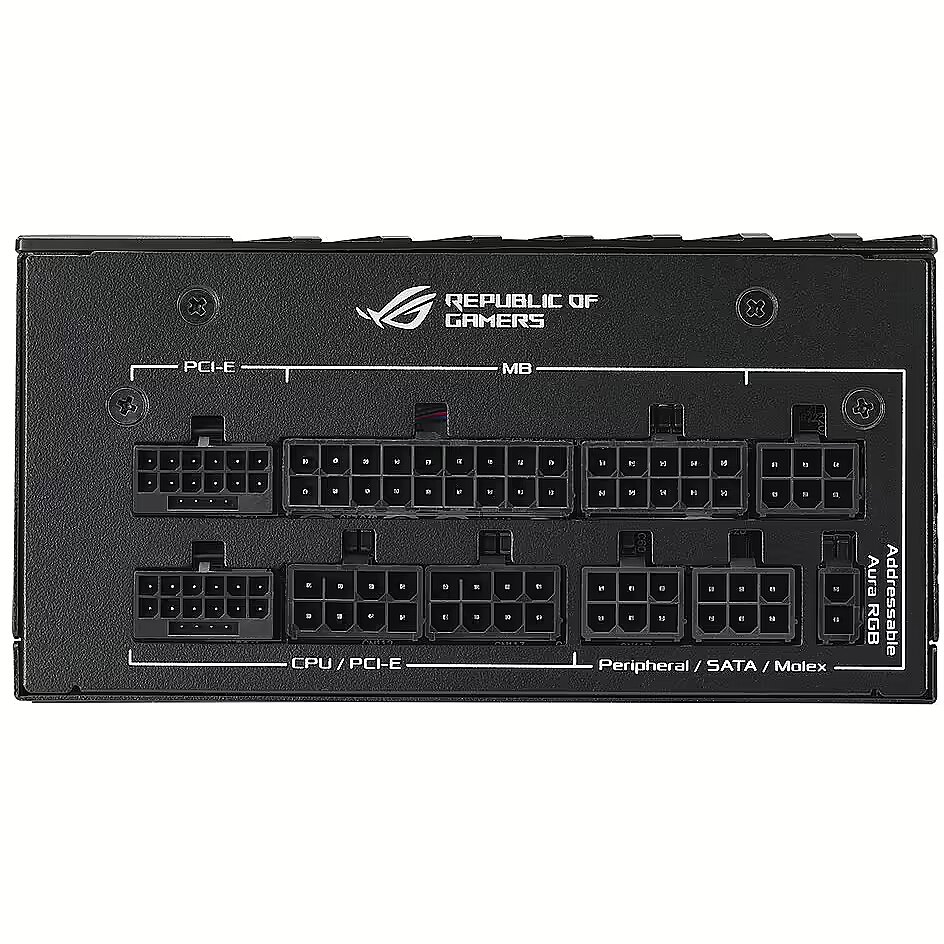

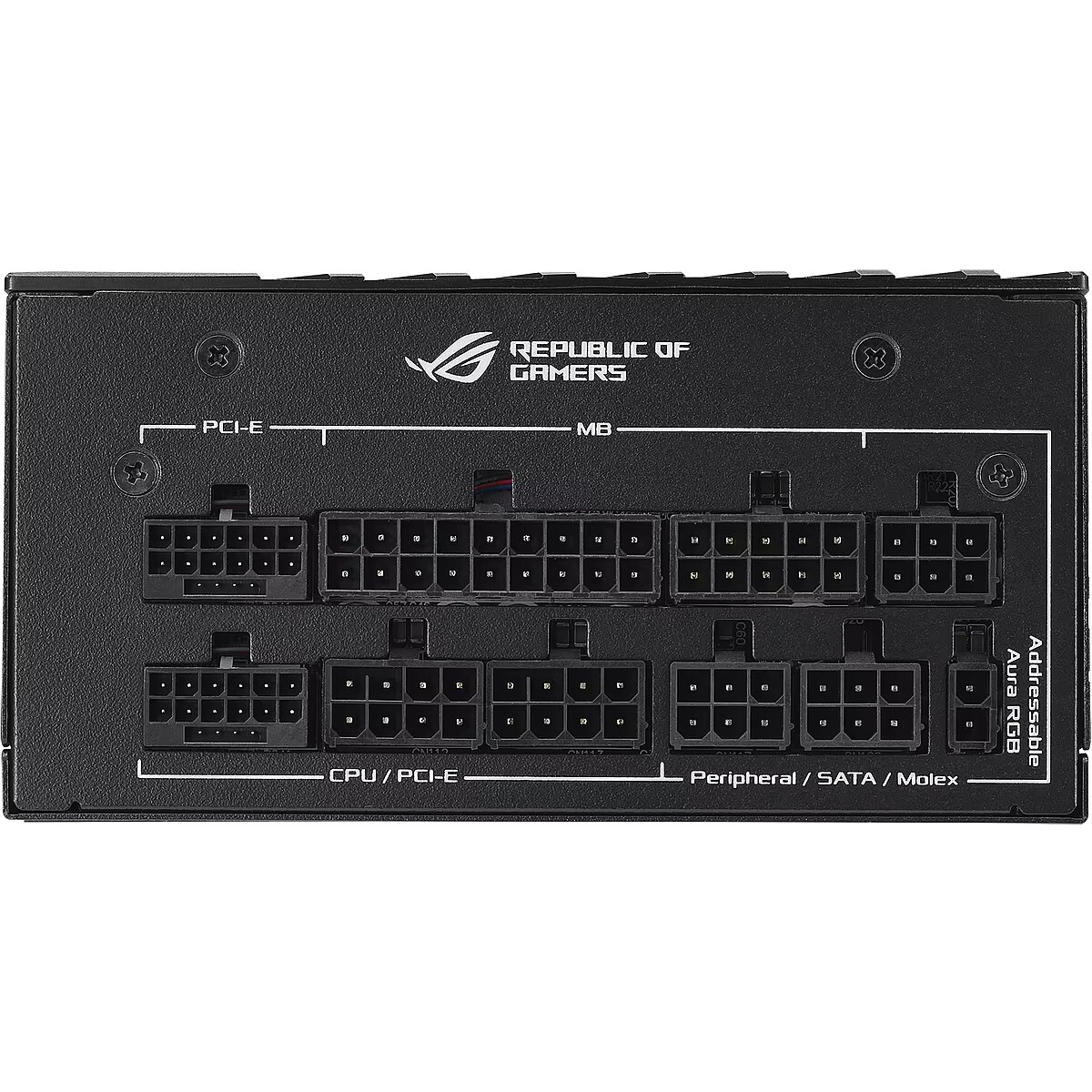

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 100,300 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 100,200,300 mm

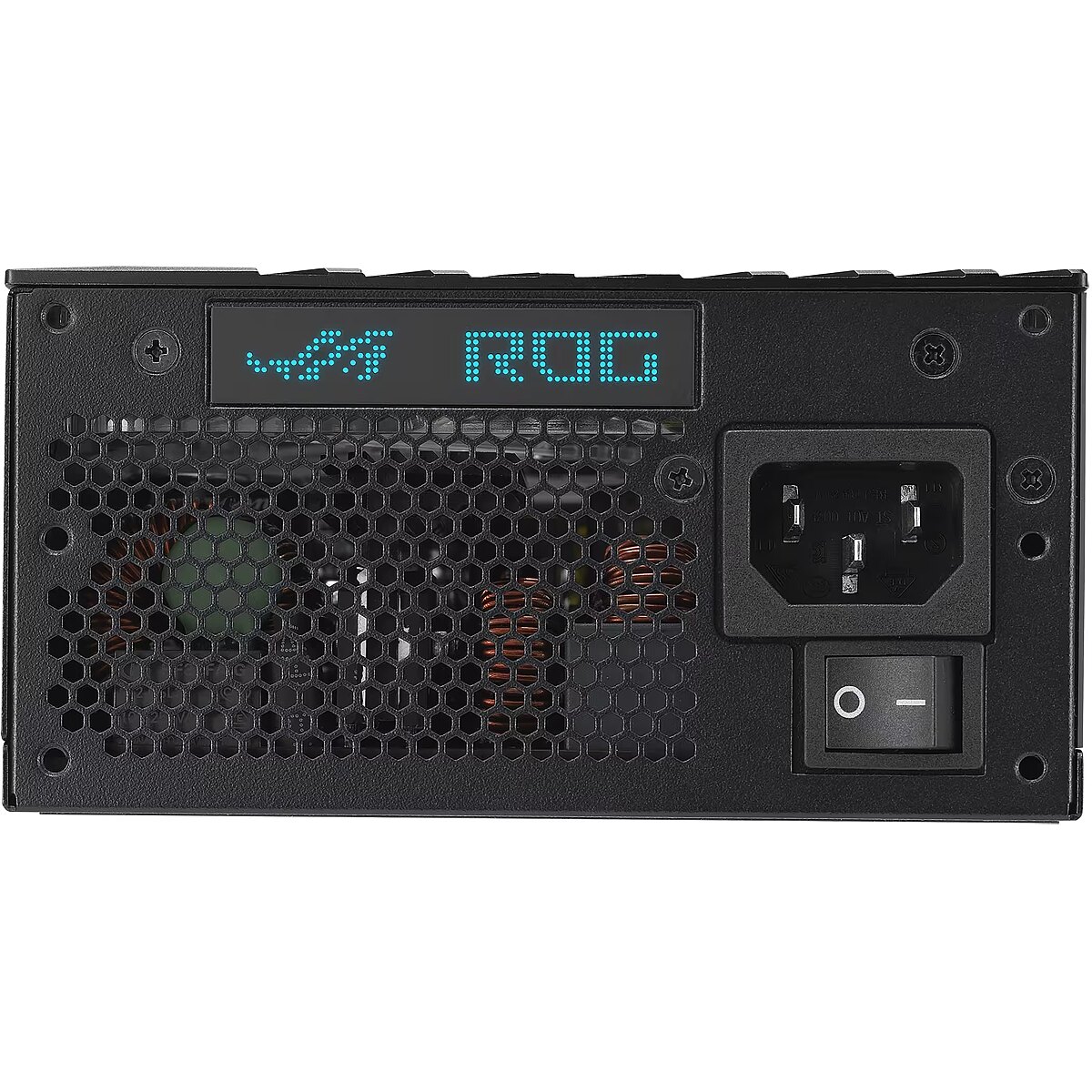

Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 9.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.8 A
Power - Peak power - 1200 W
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Total power - 1200 W
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
Producer - Asus
ProducerCode - 90YE00N0-B0NA00
ProductName - ROG-LOKI-1200T-SFX-L-GAMING
ShortDescription - 1200 | ATX | 135mm | 20 + 4 pin | 80 Plus Platinum| 125 x 125 x 63.5 mm |
ShortSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING, 1200 W, 100 - 240 V, 1200 W, Active, 110 W, 1200 W
Technical details - Sustainability compliance - Yes

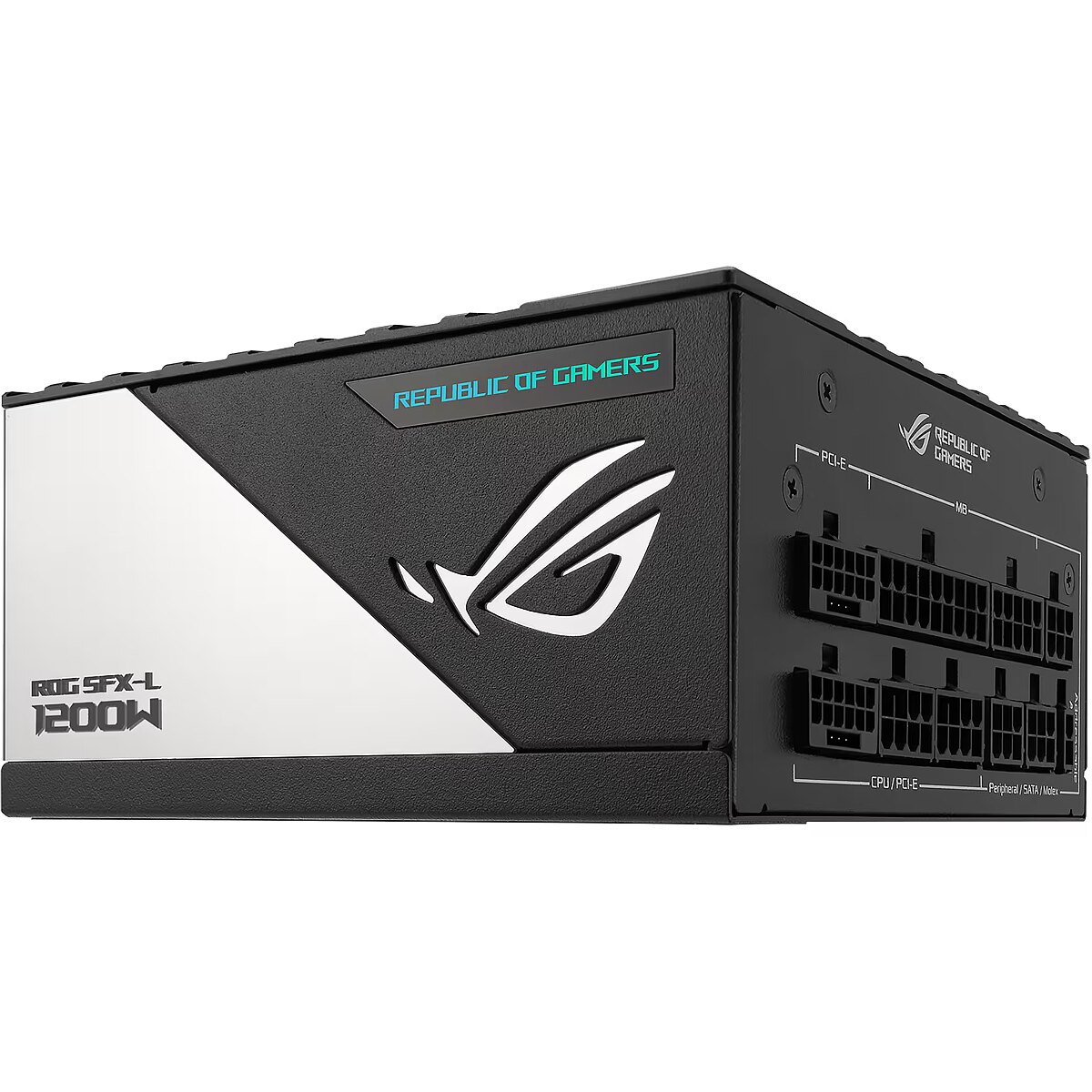

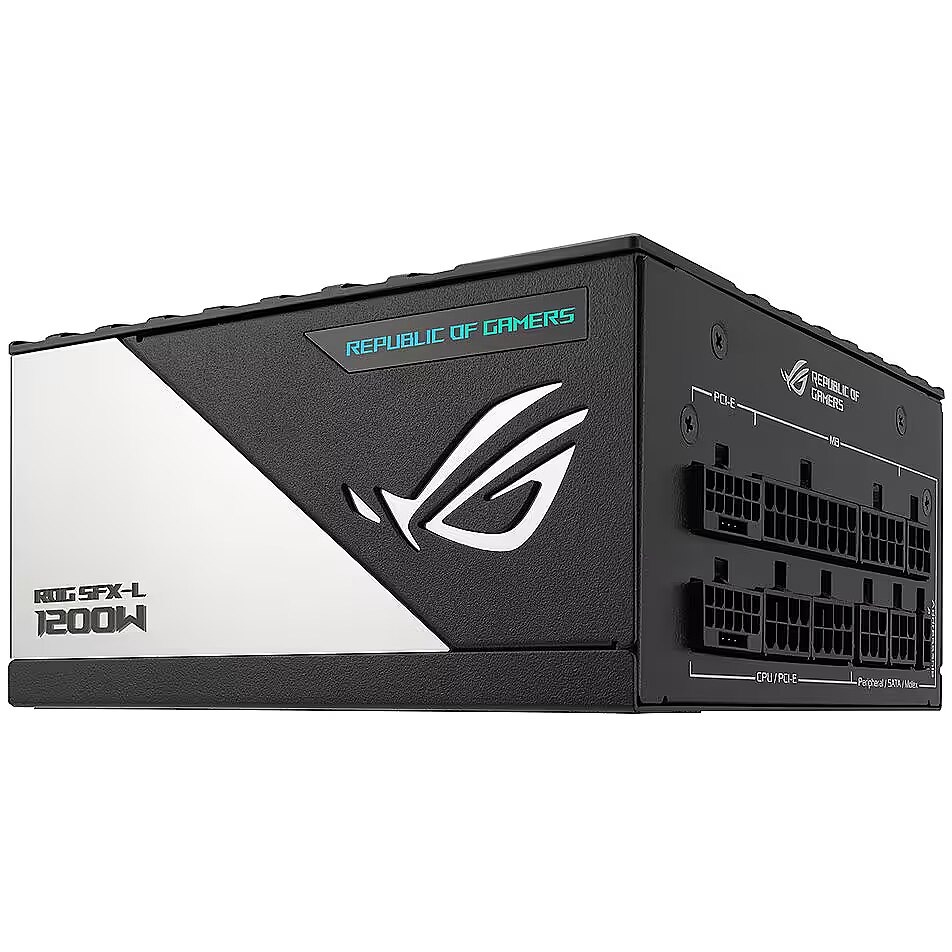

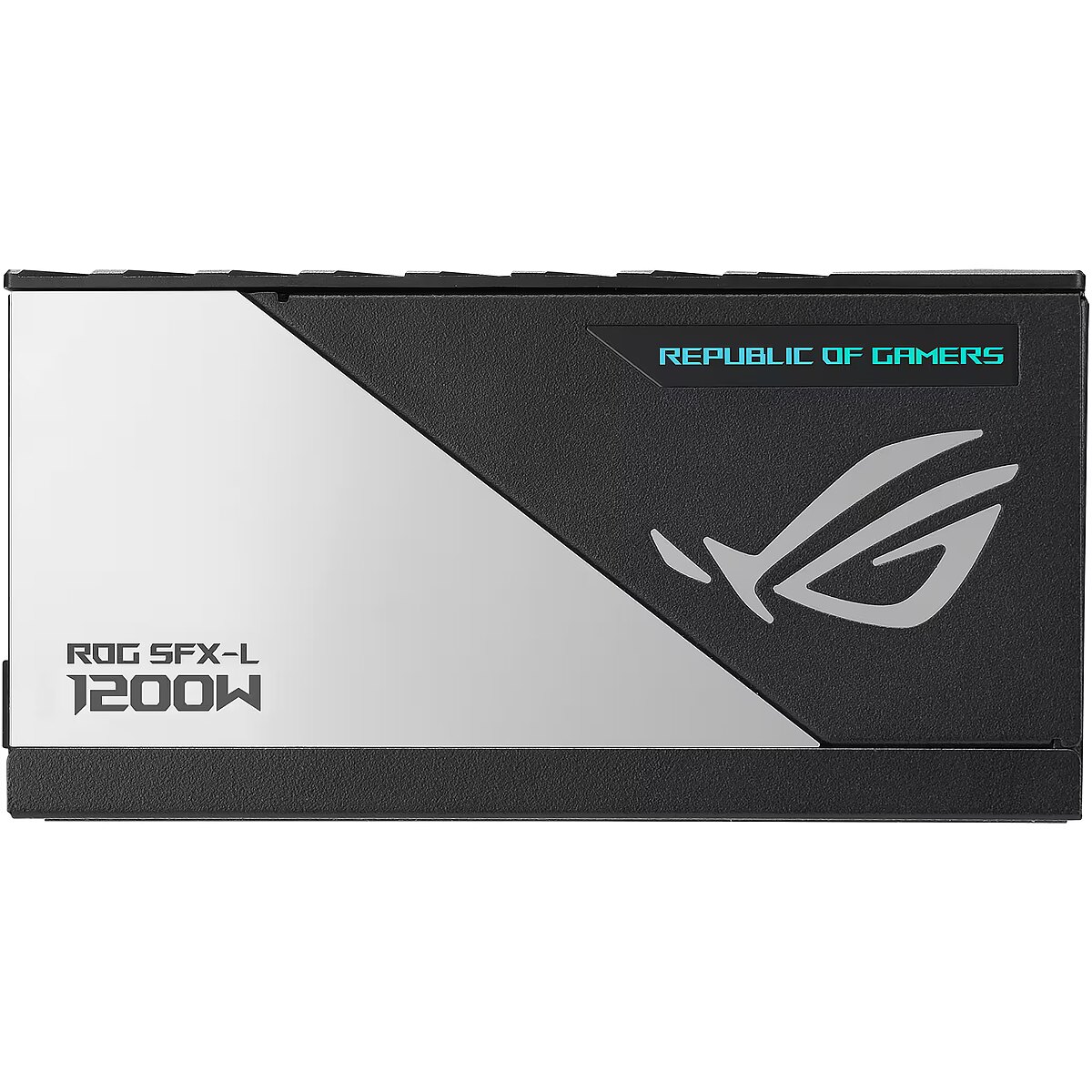

Title - ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
URL - https://rog.asus.com/power-supply-units/rog-loki/rog-loki-1200t-sfx-l-gaming-model/
WarrantyInfo - 10 years
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Weight - 2.15 kg
Weight & dimensions - Width - 125 mm
