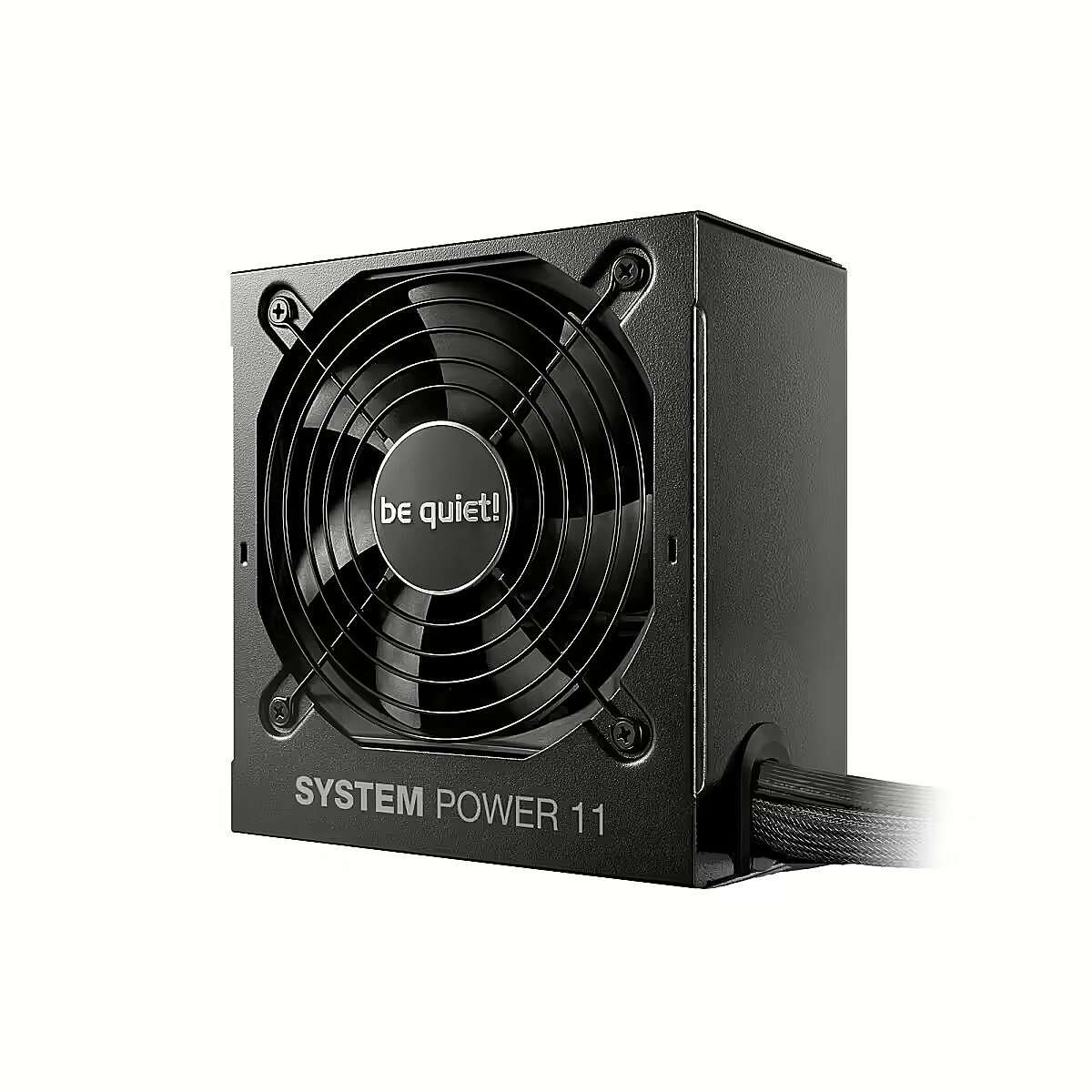

Be Quiet System Power 11, 750W, 80PLUS Bronze, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 1
Accessories included -
Brand - be quiet!
BrandPartCode - BP012EU
Category - Power Supply Units
Certificates - Compliance certificates - CB, CE, RoHS, TÜV mark, UKCA, WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Certificates 80+ - 80 PLUS Bronze
Description - Zasilacz System Power 11 750W 80+ Bronze System Power 11 750W został stworzony z myślą o użytkownikach zorientowanych na cenę, którzy nie chcą rezygnować z niezawodności i ciszy. Dopracowane funkcje, takie jak zgodność z ATX 3.1 i wentylator sterowany temperaturą, podkreślają wartość, jaką oferuje System Power 11 750W nawet na poziomie podstawowym. Zasilacz ATX 3.1 ze wsparciem GPU PCIe 5.1 i ze złączami 6+2-pin 120-milimetrowy wentylator z termokontrolą redukuje hałas systemu Niezrównana stabilność dzięki mocnej linii 12 V Ścisła regulacja napięcia przy użyciu technologii DC-DC Jedno złącze PCIe 5.1 12 V-2x6 600 W i 3 złącza PCIe 6-2 dla GPU wysokiej klasy Pobór mocy w trybie czuwania mniejszy niż 0,15 W Sprawność 80 PLUS Bronze (do 90,0%)
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 2100 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 200 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2599 g
dimension width - 280 mm
ean - 4260052191880
Fan - 12 cm
Fan speed (max) - 2100 rpm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4260052191880
guarantee - 60
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 15.6 kg
Logistics data - Shipping (inner) case height - 21.8 cm
Logistics data - Shipping (inner) case length - 55.6 cm
Logistics data - Shipping (inner) case width - 31.1 cm
LongDesc - Proven reliability, quiet operationSystem Power 11 750W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 750W offers even at entry-level.
LongProductName - 750W, 80 PLUS Bronze, ATX 3.1, EPS 12V 2.92, 86 x 150 x 140mm
LongSummaryDescription - be quiet! System Power 11 750W. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, RoHS, TÜV mark, UKCA, WEEE
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 1
name - Power supply System Power 11 750W 80+ Bronze
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
Other features -
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 97 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.4 kg
Packaging data - Package width - 195 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 33.4 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Power - AC input frequency - 50 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 17.34 ms
Power - Input current - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Power factor - 0.98
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Be quiet!
ProductName - System Power 11 750W
SATA power connectors - 6
ShortSummaryDescription - be quiet! System Power 11 750W, 750 W, 200 - 240 V, 50 Hz, 4 A, 120 W, 750 W
Technical details - Sustainability certificates - ENERGY STAR, ErP
Title - be quiet! System Power 11 750W power supply unit 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/download/products
vendpn - BP012EU
WarrantyInfo - 5-year manufacturer’s warranty
Weight - 2.04 kg
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Weight - 2.04 kg
Weight & dimensions - Width - 150 mm
