Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 4.5 dBi
Antenna - Antennas quantity - 5
Antenna - Detachable antenna(s) - Yes
Brand - TP-Link
BrandPartCode - DR3650V-4G
Category - Wireless Routers
Design - Indication light - Yes
Design - LED indicators - DSL, LAN, USB, WLAN
Design - Product colour - Black
Design - Product type - Tabletop router

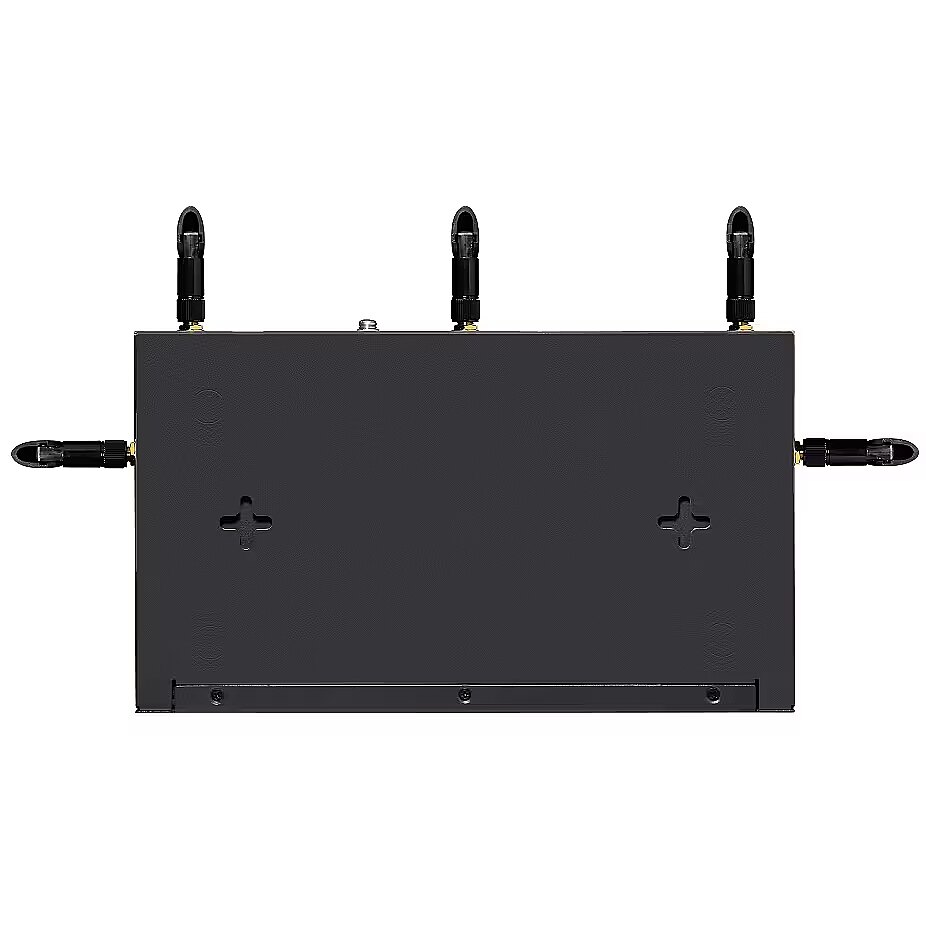

Design - Wall mountable - Yes
DSL features - ADSL - Yes
DSL features - ADSL2 - Yes
DSL features - ADSL2+ - Yes
DSL features - VDSL2 - Yes
EAN - 8885020626773
Features - Internal memory - 512 MB
Features - Internal memory type - DDR4
Features - Mean time between failures (MTBF) - 671034 h
Gross Weight Kg - 1,65
GTIN - 1210002608404
GTIN - 8885020626773
LongDesc - Get the Higher DSL Speeds Cost-EffectivelyThe integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.Versatile ConnectivityDR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.Software Defined Networking (SDN) with Cloud AccessCentralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.High-Security and High-Performance VPNSSL/IPSec /GRE/WireGuard / PPTP/L2TP VPN &OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
LongProductName - $g, RJ-45, USB, DDR4, 2.4/5GHz
LongSummaryDescription - TP-Link Omada DR3650V-4G. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), WLAN data transfer rate (max): 2402 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, NAT functionality: One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG.... Voice codecs: G.711a, G.711ulaw, G.722, G.726, G.729ab
Management features - MU-MIMO technology - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Manufacturer Code - DR3650V-4G
Manufacturer Name - TP-LINK
Network - Built-in FTP server - Yes
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Load balancing system - Yes
Network - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - Policy-based routing - Yes
Network - Port triggering - Yes
Network - Static route - Yes
Network - VPN support - IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - AC adapter included - Yes
Packaging content - Antenna included - Yes
Packaging content - Cables included - LAN (RJ-45), Phone
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - RJ-11 ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - Output current - 3.3 A
Power - Output voltage - 12 V
Power - Power source type - AC
ProductName - DR3650V-4G
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Protocols - Voice codecs - G.711a, G.711ulaw, G.722, G.726, G.729ab
Security - Access Control List (ACL) - Yes
Security - DMZ support - Yes
Security - Guest access - Yes
Security - NAT functionality - One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering1
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Security - Network address translation (NAT) - Yes
Security - Security algorithms - WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Security - System event log - Yes
Security - URL filtering - Yes
Short description - TP-LINK Omada Desktop DSL Gateway AX3000 DR3650v-4G 4G+ Cat6 Gigabit WAN/8xLAN
ShortSummaryDescription - TP-Link Omada DR3650V-4G, Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL, ADSL2, Black, Tabletop router
Title - TP-Link Omada DR3650V-4G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
URL - https://www.omadanetworks.com/it/business-networking/omada-router-dsl-router/dr3650v-4g/?app=vigi.
WAN connection - 3G/4G USB modem compatibility - Yes
WAN connection - DSL WAN - Yes
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
WarrantyInfo -
Weight & dimensions - Depth - 131.2 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 2402 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2402 Mbit/s
