Accessories included -
Aero2 support - No
Antenna - Detachable external
Antennas quantity - 5
Auto MDI/MDI-X - Yes
Card reader - None
Certificates - CE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE
Color - Black
Data transmission - LTE

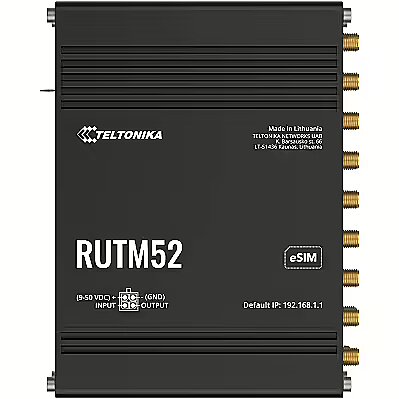

Description - TELTONIKA IOT ROUTER RUTM52 DUAL MODEM 5G+ETH+WIFI
Description - The RUTM52 is a future-proof 5G router designed for mission-critical applications, featuring dual 5G modems, multi-WAN capability, and failover to 4G LTE Cat 20. With dual SIM card slots, eSIM support, and compatibility with 5G SA and NSA architectures, it ensures fast and uninterrupted connections today and in the future. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports enhance performance, while RutOS, with its industrial protocols and a variety of VPNs, makes it versatile for complex configurations. Compatible with RMS, the RUTM52 is ideal for secure and efficient remote management.
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 320 mm
Dimensions - 132 x 44.2 x 95.1 mm
Dimensions W x D x H, mm - 132 x 95.1 x 44.2
dimension weight - 1937 g
dimension width - 380 mm
ean - 4779051842339
Environment requirements - Operating temperature: -40°C to 75°C Operating humidity: 10% to 90%, non-condensing Protection class: IP30
Ethernet LAN (RJ-45) ports quantity - 5
Ethernet LAN data transfer rates, Mbit/s - 10/100/1000
GLONASS - Yes
GPS - Yes
guarantee - 24
guarantee_type - normal
Height - 62.000000
I/O ports - 2 x SIM card slot
I/O ports - 5 x 10/100/1000 Mbit/s
Internal memory - 256 MB
Internal memory type - DDR3
LED indicators - 6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Length - 314.000000
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1500 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
LTE network - 3400 MHz
LTE network - 3600 MHz
Management, monitoring, configuration - WEB UI Access: HTTP/HTTPS Features: Device Status, Configuration, Firmware (FW) Update, CLI Access, Diagnostic Tools, Multiple Event Log Server Support, Software Update Notifications, Event Log, System Log, Internet Connection Status
FOTA (Firmware Over-The-Air) Firmware Update from Server Automatic Notifications SSH SSH Protocol Support (v1, v2) SMS SMS Status SMS Configuration Sending/Receiving SMS Messages via HTTP POST/GET Voice Calls (Call) Features: Device Restart, Status, Mobile Data On/Off, Output On/Off, Answer/Disconnect Calls Using a Timer, Wi-Fi On/Off Email Service Status Notifications via Email TR-069 Supports the following systems: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem MQTT Support: MQTT Broker, MQTT Publisher
SNMP (Simple Network Management Protocol)
SNMP Support (v1, v2, v3) SNMP Trap Brute force attack protection JSON-RPC API management via HTTP/HTTPS RMS (Remote Management System) Remote management via Teltonika RMS
Manufacturer - Teltonika
ManufacturerPartNumber - RUTM52100000
Memory standard - Not applicable
Mobile broadband - Yes
Model - RUTM52
name - RUTM52 Dual 5G Router
Number of antennas - 8-connectors
Operating frequency - 6 GHz
Operating frequency - Not applicable
Operating system provided - RutOS (OpenWrt based Linux OS)
Operating temperature range (T-T), °C - -40 - 75
Other features -
PeriodofWarranty - 2 Y
Power supply - Connector
4-pin industrial DC power jack
Input voltage range 9-50 VDC Reverse polarity protection Surge protection >51 VDC, max. 10 s PoE (Power over Ethernet - passive) Power supply via LAN port Not compatible with IEEE802.3af, 802.3at, and 802.3bt Mode B Voltage range: 9-50 VDC Power consumption Idle:
producer - TELTONIKA
Security - Authentication Pre-shared key Digital certificates X.509 certificates TACACS+ User authentication for internal and external RADIUS servers IP blocking and login attempts Time-based login blocking Built-in random password generator
Firewall Pre-built firewall rules that can be activated via the WebUI Unlimited firewall configuration via CLI DMZ (demilitarized zone) NAT (network address translation) NAT-T Attack prevention DDOS attack protection (SYN flood prevention) SSH attack prevention HTTP/HTTPS attack protection Port scan protection (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port-based and tag-based VLAN separation Control Mobile data quotas Mobile data limits Customizable period and start time Warning thresholds Phone number management Web filter Blacklist to block unwanted websites Whitelist to specify only allowed websites Access control Flexible access control to SSH, web interface, CLI, and Telnet SSL certificate generation Let's Encrypt support
SIM card - Mini
SIM card support - Yes
SIM card type - mini-SIM
Software - RutOS (OpenWrt-based Linux operating system)
Special functions -
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11k
Standards - 802.11n
Standards - 802.11r
Standards - 802.11s
Standards - 802.11v
Standards - IPv4
Standards - IPv6
System Requirements -
Total storage capacity - 16 + 256 MB
Type - v
vendpn - RUTM52100000
Video -
VPN support - Yes
WAN port - 1
Weight - 1.920000
Weight - 560 g
Weight, g - 560
Width - 380.000000
Wireless standard - 802.11 ac
Wireless standard - 802.11 b
Wireless standard - 802.11 g
Wireless standard - 802.11 n
