2.5GbE Ports - 1
Accessories included -
Antenna - Built-in
Antenna - Antenna type - Internal
Antenna gain - 3 dBi
ARTIKEL1 - OMADA BE9300 WI-FI 7 AP
ARTIKEL2 - CEILING MOUNT TRI-BAND
Brand - TP-Link
BrandPartCode - EAP772
Breite - 0
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Certificates - CE, FCC, RoHS, IC
Certificates - Certification - CE, FCC, RoHS, IC
Color - White
Colour - White
Data transmission speed - 11000 Mbps
Description - 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be an issue. Unlock the full potential of Wi-Fi 7. Provides cleaner and wider bandwidth resources for your Wi-Fi. Up to 320 MHz of bandwidth enables much more simultaneous transmissions at maximum speeds. Multi-Link operation and Multi-RUs ensure high performance for your network. Supports centralized management, mesh network and extended spreading.
Description - BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 4320 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).† A clear 6 GHz band brings cleaner and wider band resources.‡ 1× 2.5G Port unlocks the full potential of Wi-Fi 7. 320 MHz bandwidth enables many more simultaneous transmissions.‡ Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡ Advanced Functions: Centralized management, mesh, and AI roaming.
Design - LED indicators - Yes
Design - Placement - Ceiling, Wall
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 260 mm
Dimensions - 220 × 220 × 32.5 mm
dimension weight - 1404 g
dimension width - 280 mm
ean - 8885020623055
EAN - 8885020623055
EANCode - 8885020623055
Environment requirements - Operating Temperature: 0°C-40°C; Storage Temperature: -40°C-70°C; Operating Humidity: 10%-90%, non-condensing; Storage Humidity: 5%-90%, non-condensing;
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - Yes
Features - Airtime Fairness (ATF) - Yes
Features - BeamForming - Yes
Features - Bluetooth - Yes
Features - Bluetooth version - 5.2
Features - Ethernet LAN data rates - 2500 Mbit/s
Features - Maximum data transfer rate - 9300 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 2880 Mbit/s
Features - Maximum data transfer rate (6 GHz) - 5760 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Features - Number of users - 380 user(s)
Features - Quality of Service (QoS) support - Yes
Features - VLAN support - Yes
Full Description Line - EAP772|Type Wireless Access Point|Data transmission speed 11000 Mbps|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|Wireless Frequency Range 6 GHz, 5 GHz, and 2.4 GHz|Colour White|Dimensions 220 × 220 × 32.5 mm
Gewicht - 1.34
Gross Weight Kg - 1,34
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0810142821728
GTIN - 810142821728
GTIN - 8885020623055
GTIN - 8885020623062
GTIN - 8885020623093
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - EAP772

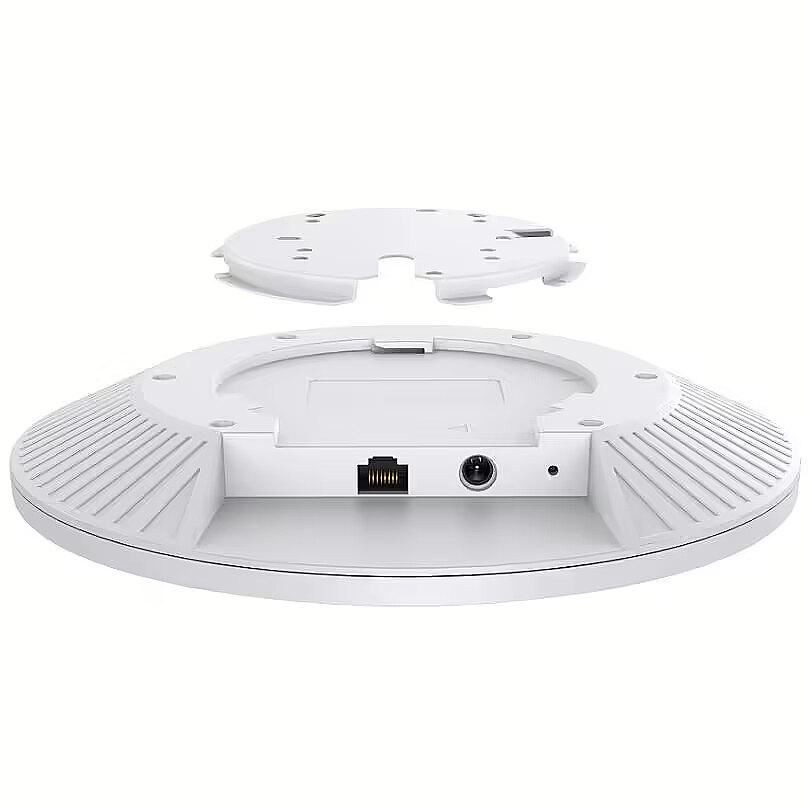

I/O ports - 1 x 10/100/1000/2500 RJ-45 port
IEEE 802.11a/b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Laenge - 0

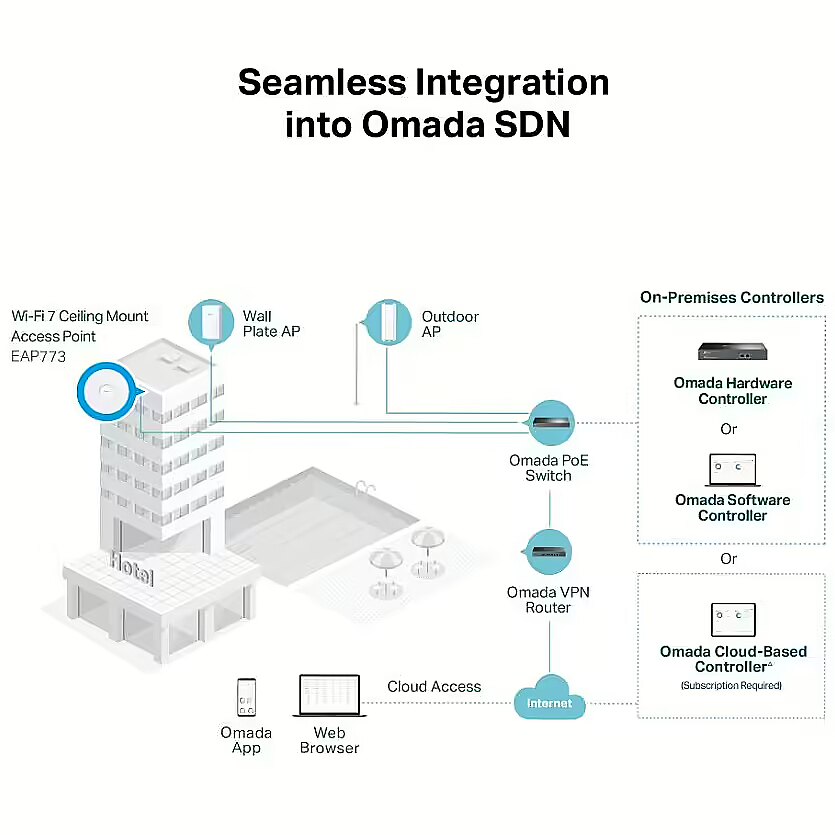

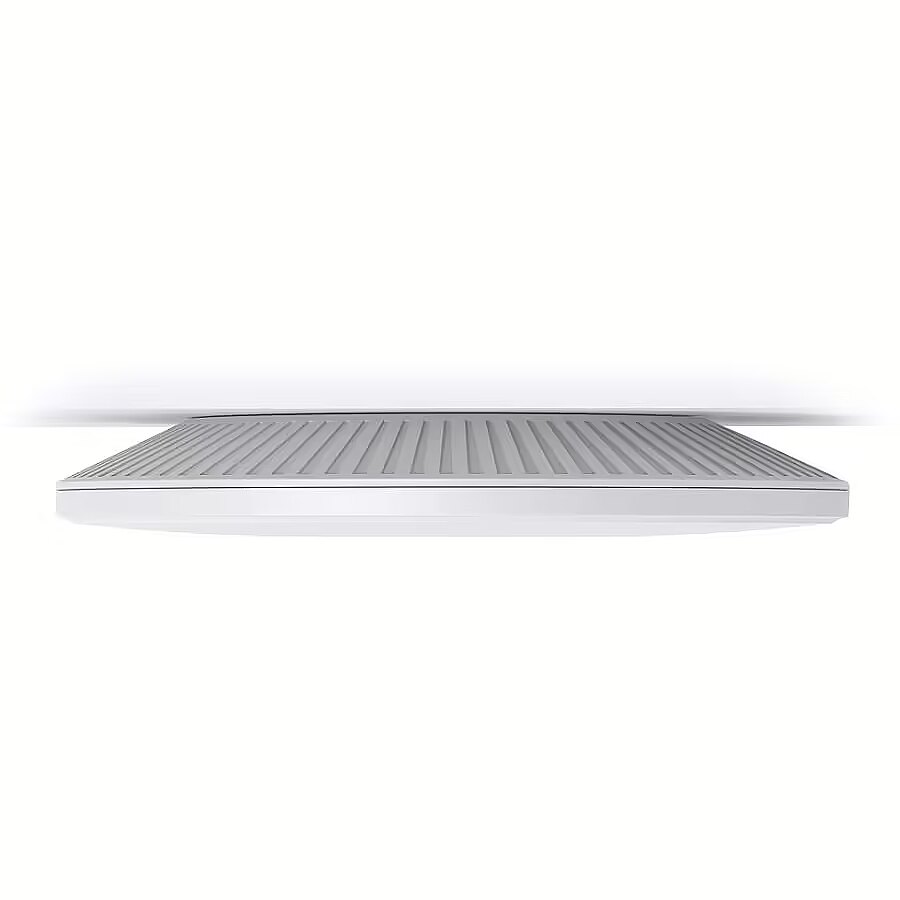

LongDesc - Ultra-Thin Enterprise WiFi 7 Access Point- Next-Gen WiFi 7- Wi-Fi Speeds up to 9214 Mbps- Multi-Link Operation (MLO)- 1× 2.5G RJ45 Port- PoE Power- Ultra-Thin Design- Centralized Cloud Management- Omada Mesh TechnologyUltra-Thin Design for Flexible DeploymentThe overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.Boosted Network Security- Secure Guest Network with up to 24 SSIDs- Boost Your Business with SMS Login- WPA3 for Worry-Free Open Public Networks- Rogue AP Detection
LongProductName - 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz), 802.11 a/b/g/n/ac/ax/be, 1× 2.5G Ethernet, 220 × 220 × 32.5 mm
LongSummaryDescription - TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 9300 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,.... Ethernet LAN data rates: 2500 Mbit/s. Product colour: White
Management, monitoring, configuration -
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP772
Manufacturer Name - TP-LINK
Model name - EAP772
MPN - EAP772(EU)
name - Access Point EAP772 BE9300
Name - TP-Link Omada WL-AP Access Point EAP772
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating frequency - 6 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - AC adapter included - No
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 1 pc(s)
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power supply - 802.3at PoE or 12V/2.5A DC
producer - TP-LINK
ProductName - BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Product Net Weight - 1.1 kg
Security - Captive Portal Authentication Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 24
Security - Remote Authentication Dial-In User Service (RADIUS) - Yes
Security - Security algorithms - SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Security - Service Set Identifier (SSID) features - Multiple SSIDs
Shipping Box Depth Shipping/Package Box Dimensions - 28.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.2 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.41 kg
Shipping Box Width Shipping/Package Box Dimensions - 26 cm
Short description - TP-LINK WLAN Access Point Tri-Band BE9300 EAP772 PoE+, w/o AC
ShortSummaryDescription - TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.4 GHz, 5 GHz, 6 GHz, 9300 Mbit/s, SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,..., 2500 Mbit/s
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11be
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 6
Stck_Pal - 6
Storno - Y
System Requirements -
Title - TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Unit Box Height - 0.092
Unit Box Length - 0.285
Unit Box Width - 0.26
Unit Calculated Volume - 0.006817 cubm
Unit Calculated Weight - 1.41 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/nl/business-networking/omada-wifi-wifi7/eap772/
Vendor Homepage - www.tp-link.com/us/business-networking/omada-wifi-wifi7/eap772/
vendpn - EAP772
Warranty - 60 months
WarrantyInfo - 3 Years
Weight - 1.308
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 32.5 mm
Weight & dimensions - Width - 220 mm
Wireless Frequency Range - 6 GHz, 5 GHz, and 2.4 GHz
