ID: 931865
Tootekood: B760 PRO RS
Laos 3 üksused / Ametis 1 üksused
Garantii: 3 aastat

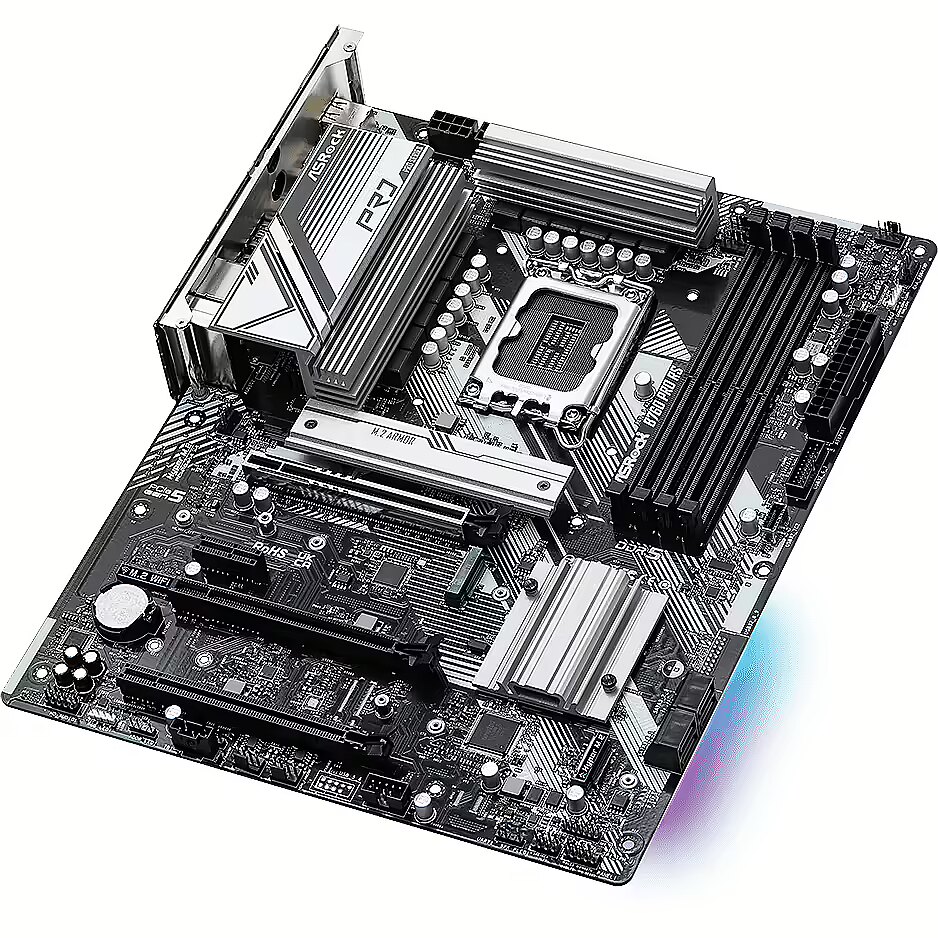

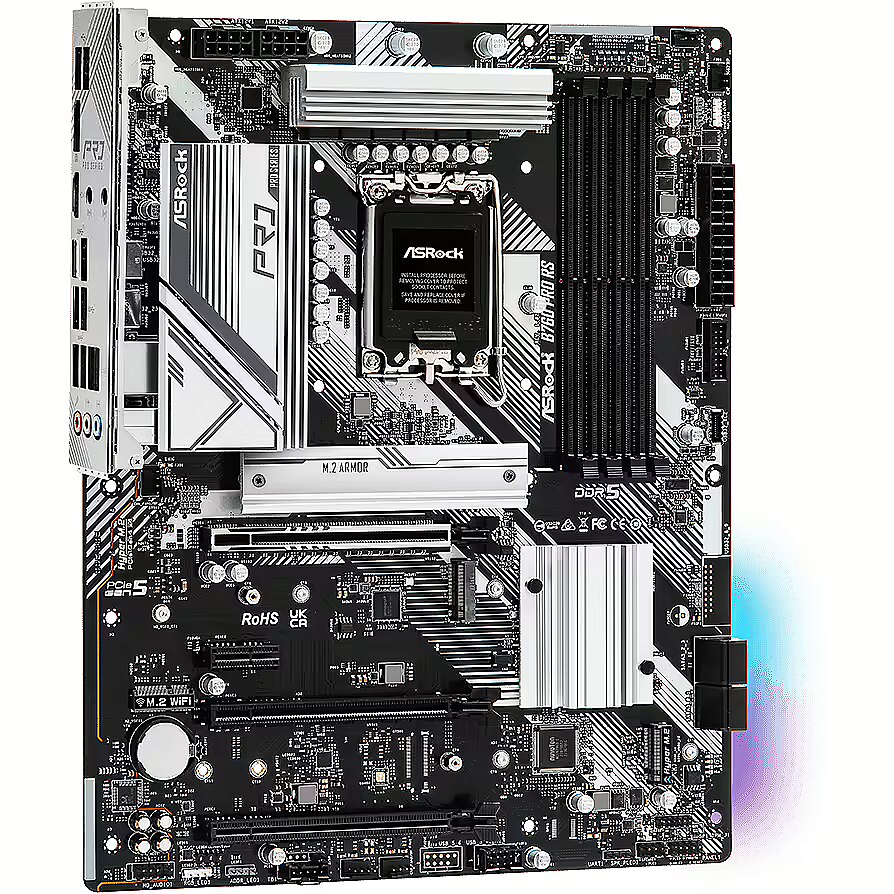

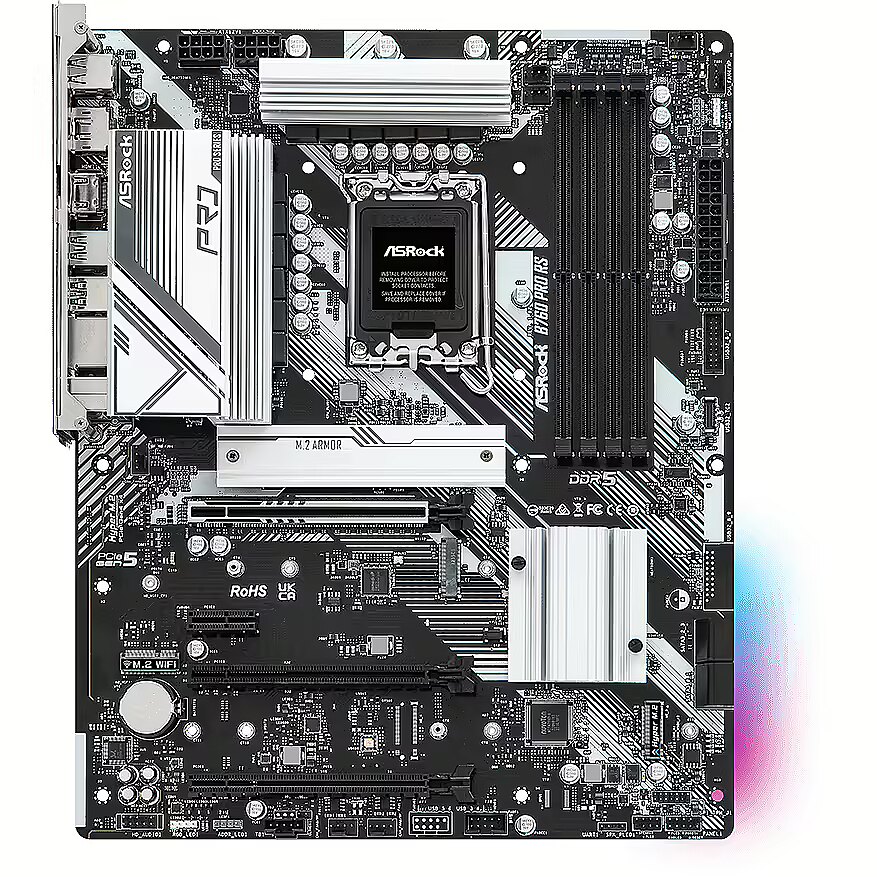

ASRock B760 Pro RS
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Seeria: ASRock Pro
- Pesa (Socket): LGA 1700
- Mikroskeemide siin (chipset): Intel B760
- Plaadi mõõtmed: ATX
- Mälutüüp: DDR5
- Mäluslott: 4
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: ASRock Pro
Pesa (Socket)
LGA 1700
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel B760
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR5
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR5 5600 (OC 7200)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integreeritud helikaart
: Realtek ALC897
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: Ei ole

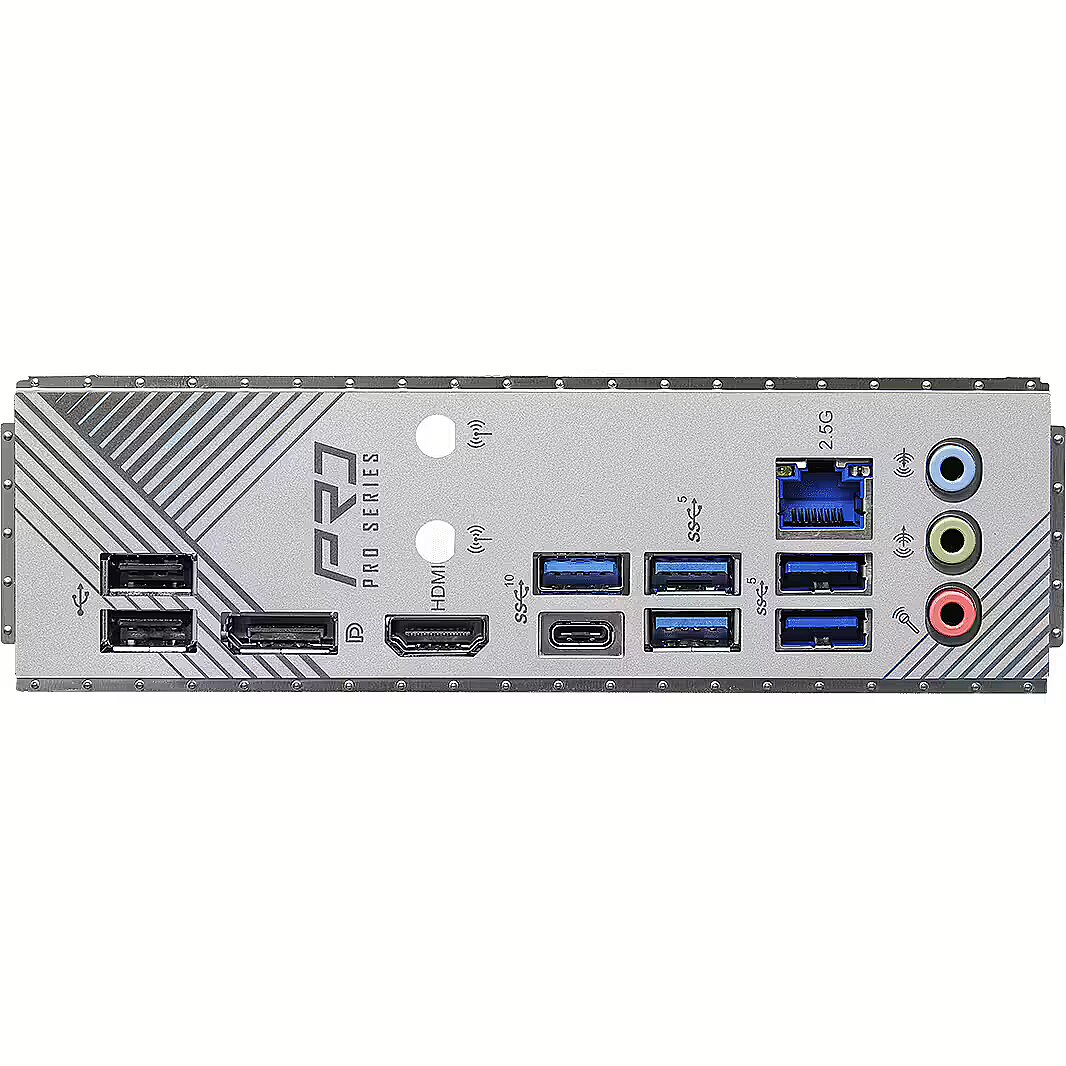

Välised sadamad
Väline USB Type-C
: 1
Väline USB 2.0
: 2
Väline USB 3.0 (USB 3.2 Gen1)
: 4
Väline USB 3.1 (USB 3.2 Gen2)
: 2
Siseportid
Sisemine A-RGB 5V (3-pin)
: 2
Sisemine RGB 12V (4-pin)
: 2
Sisemine USB 2.0
: 1
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 1
M.2 Sadam
: 3
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
12V power connector Internal I/O - Yes
Accessories included - User manual 2 x SATA data cable 4 x Screws for M.2 slots Spacer for M.2 slot
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - 128MB AMI UEFI Legal BIOS with GUI support
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Category - Datortehnika :: Datoru komponentes :: Pamatplates
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel B760
Code - 90-MXBKS0-A0UAYZ
code - 90-MXBKS0-A0UAYZ
COM connector / port - No
Compatible processor series Processor - Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
Compliance certificates Technical details - CE/Federal Communications Commission (FCC)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Dane techniczne: Chipset płyty głównej - Intel B760
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Desc - Mikroshēmu tips | chipset: Intel B760, Plates formfaktors: ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR5, Atmiņas sloti: 4, Max atmiņas apjoms: 192GB, Integrēta audio karte: Realtek ALC897 Audio Codec, LAN: Realtek RTL8125BG 2.5Gbps LAN controller, WiFi: Nav, M.2 Pieslēgumi: 3, Garantija: 2 gadi
Description - B760 Pro RS motherboard Supports 13th and 12th generation Intel Core processors (LGA1700) 10+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort, eDP Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2) 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer
Description - Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed! Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed. Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer ●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. ●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment. EZ Setting
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done! ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process. Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)10+1+1 Power Phase, Dr.MOS for VCore+GTSupports DDR5 7200MHz (OC)1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x161 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, DisplayPort, eDPRealtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)1 M.2 (PCIe Gen4x2)2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)1 USB 3.2 Gen2 Type-A (Rear)6 USB 3.2 Gen1 (4 Rear, 2 Front)4 USB 2.0 (2 Rear, 2 Front)Dragon 2.5G LANSupports ASRock Auto Driver Installer
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) chipset: 1 x M.2 Socket (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x2 (32Gbps) 1 x Hyper M.2 Socket (M2_3, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) 4 x SATA3 6.0Gb/s connector
dimension depth - 75 mm
dimension height - 300 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1500 g
dimension width - 360 mm
Discrete graphics support Graphics - Yes
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4710483942044
ean - 4710483942044
Eans - 4710483942044
EAN_code - 4710483942044
ECC ?ompatibility Memory - Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Intel Xe Graphics Architecture (12th Gen) eDP 1.4, supports max. resolution up to Full HD 60Hz HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz *Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPU
Graphics card family Graphics - Intel
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Integrated CPU - No
Komunikacja: Zintegrowana karta sieciowa - tak (Dragon RTL8125BG
LAN controller Network - Realtek RTL8125-BG
LargeDescHTML -
Line-in Rear panel I/O ports - Yes
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBKS0-A0UAYZ
Max. number of SATA devices - 4
Maximum internal memory Memory - 128 GB
Max memory size - 128 GB
Memory bus frequency - 7200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - B760 Pro RS
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B760
Motherboard form factor Features - ATX
MPN - 90-MXBKS0-A0UAYZ
Name - 1700 ASRock B760 PRO RS
Name - ASRock B760 Pro RS
name - ASRock B760 Pro RS, Intel B760 Mainboard - Sockel 1700, DDR5
Name - Asrock B760 Pro RS, motherboard - 1700
name - Motherboard B760 Pro RS s1700 4DDR5 DP/HDMI/eDP M.2 ATX
Name - Pamatplate Asrock B760 Pro RS
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 4
Number of displays supported Graphics - 1
Number of HDDs supported Storage controllers - 1
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
On-board graphics card Graphics - Yes
On-board graphics card model Graphics - Intel Iris Xe Graphics
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x eDP
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin case fan liquid cooling
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 192 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4000 (PC5-32000)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Power fan connector Internal I/O - Yes
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
producer - ASRock
Producer - ASRock
ProducerCode - B760 Pro RS
Product Net Weight - 1.2 kg
Rack-Friendly board Features - Y
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
RGB LED pin header Internal I/O - Yes
S/PDIF out connector Internal I/O - Yes
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Superb Productivity: PCIe Gen5 (Graphics) Dual Channel DDR5 Rock Solid Durability: 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Summary - Asrock B760 PRO RS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: SSD, RAID levels: 0, 1, 5, 10. Graphics card family: Intel, On-board graphics card model: Intel Iris Xe Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG
Supported memory clock speed (max) Memory - 7200 MHz
Supported memory clock speeds Memory - 3600/4000/4400/4800/5600/6000/7200 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,PCI Express 4.0,SATA III
Supported storage drive types Storage controllers - SSD
Sustainability certificates Technical details - ErP
Thunderbolt headers Internal I/O - 1
Unit Box Height - 0.075
Unit Box Length - 0.36
Unit Box Width - 0.305
Unit Calculated Volume - 0.008235 cubm
Unit Calculated Weight - 1.58 kg
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 4
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 6
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 2
USB ports at back panel - 8
USB ports on motherboard - 5
Vendor Homepage - https://www.asrock.com/mb/Intel/B760%20Pro%20RS/#Specification
vendpn - B760 PRO RS
Warranty - 36 months
Weight - 1,58
Weight - 1.571
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0,1,5,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
Accessories included - User manual 2 x SATA data cable 4 x Screws for M.2 slots Spacer for M.2 slot
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - 128MB AMI UEFI Legal BIOS with GUI support
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Category - Datortehnika :: Datoru komponentes :: Pamatplates
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel B760
Code - 90-MXBKS0-A0UAYZ
code - 90-MXBKS0-A0UAYZ
COM connector / port - No
Compatible processor series Processor - Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
Compliance certificates Technical details - CE/Federal Communications Commission (FCC)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Dane techniczne: Chipset płyty głównej - Intel B760
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Desc - Mikroshēmu tips | chipset: Intel B760, Plates formfaktors: ATX, Procesora ražotājs: Intel, Ligzda: LGA 1700, DDR tips: DDR5, Atmiņas sloti: 4, Max atmiņas apjoms: 192GB, Integrēta audio karte: Realtek ALC897 Audio Codec, LAN: Realtek RTL8125BG 2.5Gbps LAN controller, WiFi: Nav, M.2 Pieslēgumi: 3, Garantija: 2 gadi
Description - B760 Pro RS motherboard Supports 13th and 12th generation Intel Core processors (LGA1700) 10+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics outputs: HDMI, DisplayPort, eDP Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2) 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (4 Rear, 2 Front), 4 USB 2.0 (2 Rear, 2 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer
Description - Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed! Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed. Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer ●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. ●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously - power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3" Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs - doubles productivity or entertainment. EZ Setting
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done! ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process. Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)10+1+1 Power Phase, Dr.MOS for VCore+GTSupports DDR5 7200MHz (OC)1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x161 PCIe 3.0 x1, 1 M.2 Key E for WiFiGraphics Output Options: HDMI, DisplayPort, eDPRealtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)1 M.2 (PCIe Gen4x2)2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)1 USB 3.2 Gen2 Type-A (Rear)6 USB 3.2 Gen1 (4 Rear, 2 Front)4 USB 2.0 (2 Rear, 2 Front)Dragon 2.5G LANSupports ASRock Auto Driver Installer
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) chipset: 1 x M.2 Socket (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x2 (32Gbps) 1 x Hyper M.2 Socket (M2_3, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps) 4 x SATA3 6.0Gb/s connector
dimension depth - 75 mm
dimension height - 300 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1500 g
dimension width - 360 mm
Discrete graphics support Graphics - Yes
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4710483942044
ean - 4710483942044
Eans - 4710483942044
EAN_code - 4710483942044
ECC ?ompatibility Memory - Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Intel Xe Graphics Architecture (12th Gen) eDP 1.4, supports max. resolution up to Full HD 60Hz HDMI 2.1 compatible with TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max resolution up to 8K 60Hz / 5K 120Hz *Onboard Intel UHD graphics and VGA output can only be supported on processors with integrated GPU
Graphics card family Graphics - Intel
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Integrated CPU - No
Komunikacja: Zintegrowana karta sieciowa - tak (Dragon RTL8125BG
LAN controller Network - Realtek RTL8125-BG
LargeDescHTML -
Line-in Rear panel I/O ports - Yes
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBKS0-A0UAYZ
Max. number of SATA devices - 4
Maximum internal memory Memory - 128 GB
Max memory size - 128 GB
Memory bus frequency - 7200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - B760 Pro RS
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel B760
Motherboard form factor Features - ATX
MPN - 90-MXBKS0-A0UAYZ
Name - 1700 ASRock B760 PRO RS
Name - ASRock B760 Pro RS
name - ASRock B760 Pro RS, Intel B760 Mainboard - Sockel 1700, DDR5
Name - Asrock B760 Pro RS, motherboard - 1700
name - Motherboard B760 Pro RS s1700 4DDR5 DP/HDMI/eDP M.2 ATX
Name - Pamatplate Asrock B760 Pro RS
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Number of DDR5 slots - 4
Number of displays supported Graphics - 1
Number of HDDs supported Storage controllers - 1
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
On-board graphics card Graphics - Yes
On-board graphics card model Graphics - Intel Iris Xe Graphics
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x eDP
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin case fan liquid cooling
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 192 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4000 (PC5-32000)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Power fan connector Internal I/O - Yes
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
producer - ASRock
Producer - ASRock
ProducerCode - B760 Pro RS
Product Net Weight - 1.2 kg
Rack-Friendly board Features - Y
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
RGB LED pin header Internal I/O - Yes
S/PDIF out connector Internal I/O - Yes
ShortDescription - Socket 1700 | Chipset Intel B760 | DDR5 |
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI: ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions - Superb Productivity: PCIe Gen5 (Graphics) Dual Channel DDR5 Rock Solid Durability: 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
Summary - Asrock B760 PRO RS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: SSD, RAID levels: 0, 1, 5, 10. Graphics card family: Intel, On-board graphics card model: Intel Iris Xe Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG
Supported memory clock speed (max) Memory - 7200 MHz
Supported memory clock speeds Memory - 3600/4000/4400/4800/5600/6000/7200 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,PCI Express 4.0,SATA III
Supported storage drive types Storage controllers - SSD
Sustainability certificates Technical details - ErP
Thunderbolt headers Internal I/O - 1
Unit Box Height - 0.075
Unit Box Length - 0.36
Unit Box Width - 0.305
Unit Calculated Volume - 0.008235 cubm
Unit Calculated Weight - 1.58 kg
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 4
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 6
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 2
USB ports at back panel - 8
USB ports on motherboard - 5
Vendor Homepage - https://www.asrock.com/mb/Intel/B760%20Pro%20RS/#Specification
vendpn - B760 PRO RS
Warranty - 36 months
Weight - 1,58
Weight - 1.571
Wi-Fi Network - No
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0,1,5,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
