ID: 693473
Tootekood: PRIME H510M-A
Saab tellida 89 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 3 aastat
Asus PRIME H510M-A
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Seeria: ASUS Prime
- Pesa (Socket): LGA 1200
- Mikroskeemide siin (chipset): Intel H510
- Plaadi mõõtmed: Micro ATX
- Mälutüüp: DDR4
- Mäluslott: 2
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: ASUS Prime
Pesa (Socket)
LGA 1200
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel H510
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
Micro ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR4
Mäluslott
2
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR4 2933
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 1
Integreeritud helikaart
: Realtek ALC897
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: Ei ole
Välised sadamad
Väline USB Type-C
: 0
Väline USB 2.0
: 4
Väline USB 3.0 (USB 3.2 Gen1)
: 2
Väline USB 3.1 (USB 3.2 Gen2)
: 0
Siseportid
Sisemine A-RGB 5V (3-pin)
: 2
Sisemine RGB 12V (4-pin)
: 2
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 0
M.2 Sadam
: 1
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
12V power connector Internal I/O - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC887 / Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB17C0-M0EAY0
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1200
Clear CMOS jumper BIOS - Yes
CnCode - 84733020
Compatible processor series Processor - Intel Celeron/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 211 mm
Description - Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headersIntel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® ProcessorsComprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Drivers included Packaging content - Yes
EAN - 4711081128465
EAN_code - 4711081128465
ECC ?ompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H510
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Number of mounting holes - 6
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Front panel audio connector Internal I/O - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Number of displays supported - 3
Gross Weight Kg - 1
GTIN - 4711081128465
Harmonized System (HS) code Logistics data - 84733020
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.0
Headphone outputs Rear panel I/O ports - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LAN controller Network - Intel I219-V
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers
LongProductName - Intel® H510, LGA1200, 2 x DDR4, 64GB max, M.2, 4 x SATA, Ethernet, 2 x USB 3.2 Gen 1, 4 x USB 2.0, DisplayPort, D-Sub, HDMI, 3 x Audio jacks, 2 x PS/2, 128 Mb Flash ROM, UEFI AMI BIOS, microATX, 22.6 x 21.1cm
LongSummaryDescription - ASUS PRIME H510M-A. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB17C0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB17C0-M0EAY0
Maximum internal memory Memory - 64 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 4096 x 2304 pixels
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H510
Motherboard form factor Features - micro ATX
MPN - 90MB17C0-M0EAY0
Name - 1200 ASUS PRIME H510M-A
Name - Asus PRIME H510M-A H510 - Socket 1200 - Mainboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 1
Number of displays supported Graphics - 3
Number of EATX power connectors Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of mounting holes Features - 6
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Peripheral (Molex) power connectors (4-pin) Internal I/O - 3
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1200 (Socket H5)
ProductName - PRIME H510M-A
Product Net Weight - 0.55 kg
PS/2 ports quantity Rear panel I/O ports - 2

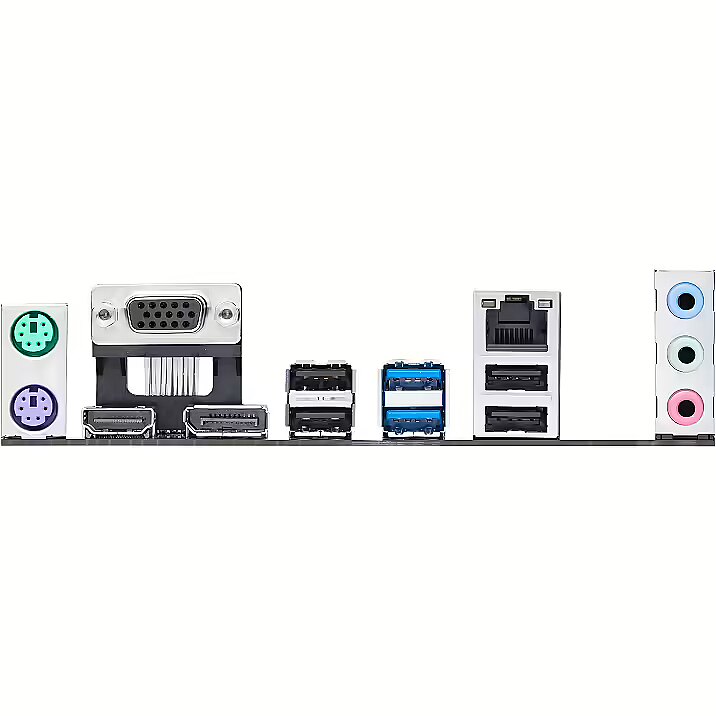

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
S/PDIF out connector Internal I/O - Yes
Short description - ASUS PRIME H510M-A S1200/DDR4/DP-HDMI-VGA/1xM.2/µATX
ShortSummaryDescription - ASUS PRIME H510M-A, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, 64 GB, DIMM
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS PRIME H510M-A. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
Supported memory clock speeds Memory - 2133/2400/2666/2800/2933 MHz
Supported memory types Memory - DDR4-SDRAM
Supported storage drive interfaces Storage controllers - M.2,SATA
Supported storage drive types Storage controllers - HDD & SSD
Title - ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
Unbuffered memory Memory - Yes
Unit Box Height - 0.05
Unit Box Length - 0.27
Unit Box Width - 0.26
Unit Calculated Volume - 0.00351 cubm
Unit Calculated Weight - 0.91 kg
Units per Shipping Box - 1
URL - https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-A/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-A/
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
WarrantyInfo -
Weight - 0,90
Weight - 0.925
Weight & dimensions - Depth - 211 mm
Weight & dimensions - Width - 226 mm
Wi-Fi Network - No
Width Weight & dimensions - 226 mm
Windows operating systems supported Features - Windows 10 x64
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC887 / Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB17C0-M0EAY0
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1200
Clear CMOS jumper BIOS - Yes
CnCode - 84733020
Compatible processor series Processor - Intel Celeron/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium
Component for Features - PC
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 211 mm
Description - Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headersIntel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® ProcessorsComprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink and Fan Xpert 2+Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Drivers included Packaging content - Yes
EAN - 4711081128465
EAN_code - 4711081128465
ECC ?ompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC887 / Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel H510
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Number of mounting holes - 6
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Front panel audio connector Internal I/O - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Number of displays supported - 3
Gross Weight Kg - 1
GTIN - 4711081128465
Harmonized System (HS) code Logistics data - 84733020
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.0
Headphone outputs Rear panel I/O ports - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 3
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LAN controller Network - Intel I219-V
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers
LongProductName - Intel® H510, LGA1200, 2 x DDR4, 64GB max, M.2, 4 x SATA, Ethernet, 2 x USB 3.2 Gen 1, 4 x USB 2.0, DisplayPort, D-Sub, HDMI, 3 x Audio jacks, 2 x PS/2, 128 Mb Flash ROM, UEFI AMI BIOS, microATX, 22.6 x 21.1cm
LongSummaryDescription - ASUS PRIME H510M-A. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB17C0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB17C0-M0EAY0
Maximum internal memory Memory - 64 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 4096 x 2304 pixels
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H510
Motherboard form factor Features - micro ATX
MPN - 90MB17C0-M0EAY0
Name - 1200 ASUS PRIME H510M-A
Name - Asus PRIME H510M-A H510 - Socket 1200 - Mainboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 1
Number of displays supported Graphics - 3
Number of EATX power connectors Internal I/O - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of mounting holes Features - 6
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Peripheral (Molex) power connectors (4-pin) Internal I/O - 3
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1200 (Socket H5)
ProductName - PRIME H510M-A
Product Net Weight - 0.55 kg
PS/2 ports quantity Rear panel I/O ports - 2
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.0
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
S/PDIF out connector Internal I/O - Yes
Short description - ASUS PRIME H510M-A S1200/DDR4/DP-HDMI-VGA/1xM.2/µATX
ShortSummaryDescription - ASUS PRIME H510M-A, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR4-SDRAM, 64 GB, DIMM
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Summary - ASUS PRIME H510M-A. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
Supported memory clock speeds Memory - 2133/2400/2666/2800/2933 MHz
Supported memory types Memory - DDR4-SDRAM
Supported storage drive interfaces Storage controllers - M.2,SATA
Supported storage drive types Storage controllers - HDD & SSD
Title - ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
Unbuffered memory Memory - Yes
Unit Box Height - 0.05
Unit Box Length - 0.27
Unit Box Width - 0.26
Unit Calculated Volume - 0.00351 cubm
Unit Calculated Weight - 0.91 kg
Units per Shipping Box - 1
URL - https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-A/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
Vendor Homepage - https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-H510M-A/
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
WarrantyInfo -
Weight - 0,90
Weight - 0.925
Weight & dimensions - Depth - 211 mm
Weight & dimensions - Width - 226 mm
Wi-Fi Network - No
Width Weight & dimensions - 226 mm
Windows operating systems supported Features - Windows 10 x64
