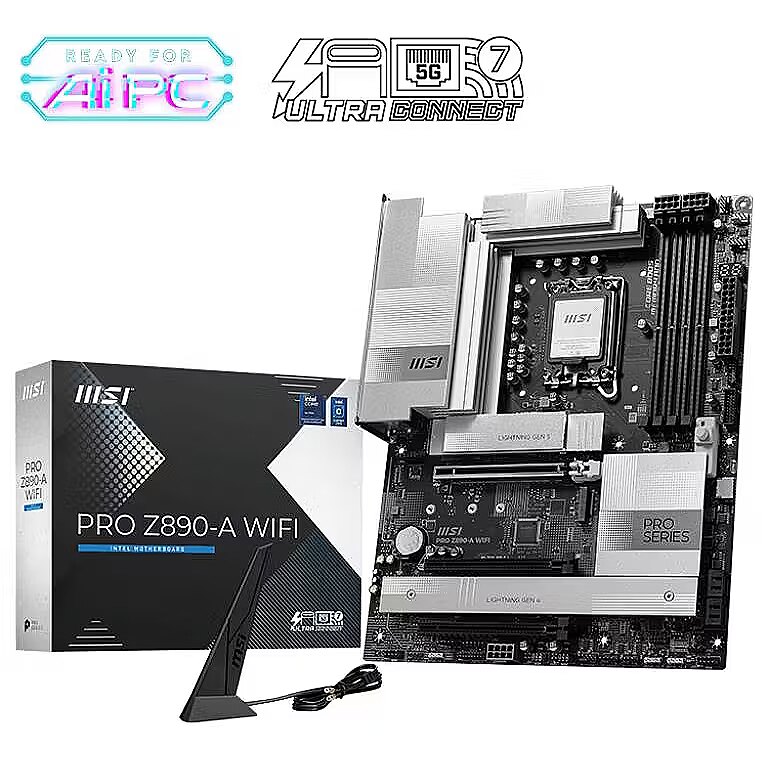

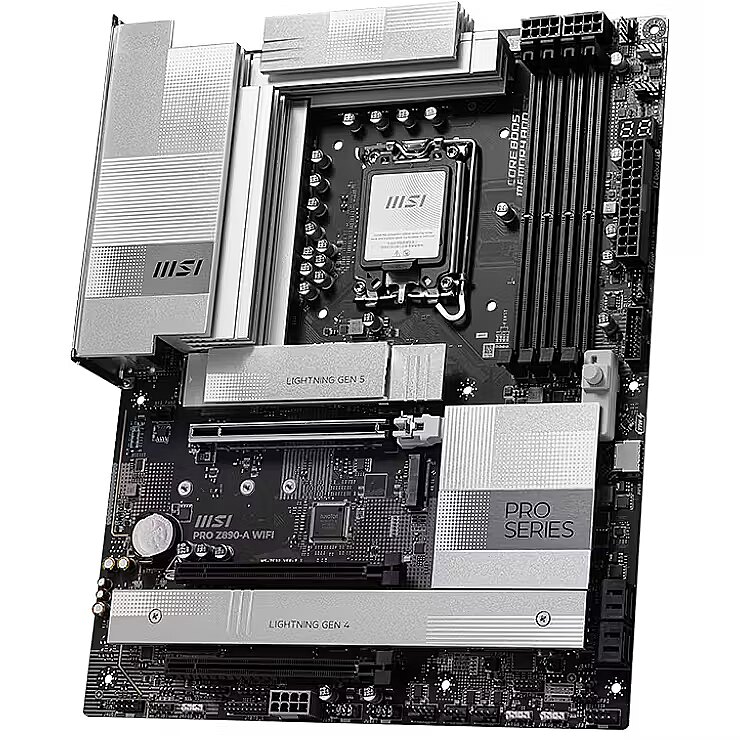

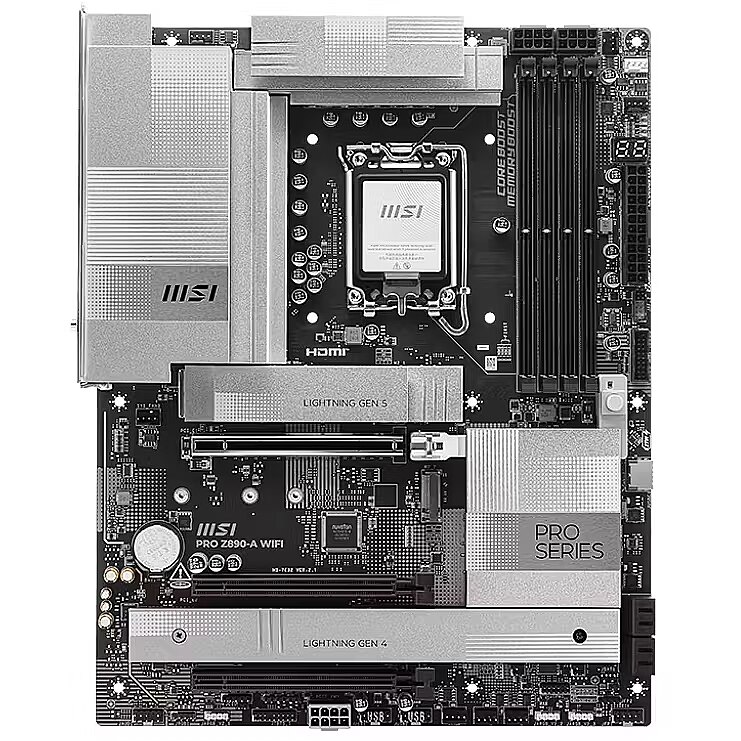

MSI PRO Z890-A WIFI

ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Bluetooth Network - Yes
Bluetooth version Network - 5.4
Brand - MSI
BrandPartCode - PRO Z890-A WIFI
CPU fan connector Internal I/O - Yes
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Eans - 4711377259729
ECC сompatibility Memory - Non-ECC
Motherboard chipset Features - Intel Z890
Motherboard chipset family Features - Intel
Motherboard form factor Features - ATX
Number of EPS power connectors (8-pin) Internal I/O - 1
EPS power connector (8-pin) Internal I/O - Yes
Ethernet LAN Network - Yes
Ethernet interface type Network - 5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
EAN - 4711377259729
Features - Windows operating systems supported - Windows 11 x64
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
GTIN - 4711377259729
Graphics - On-board graphics card - No
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220P 7.1)
weight - 2010
Weight & dimensions - Width - 243.8 mm
Weight & dimensions - Depth - 304.8 mm
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Description - PRO Z890-A WIFI
PRO Z890-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors. BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. 16+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 digital power phases. Combining dual power connectors and 90A Smart Power Stage, PRO Z890-A WIFI is ready for the challenge of high-end processors. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users. Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socketSupports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2Ultra Connect: dual Thunderbolt™ 4 ports, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
Summary - MSI PRO Z890-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Component for Features - PC
Code - PRO Z890-A WIFI
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x4 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Width Weight & dimensions - 243.84 mm
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB 3.1 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Wtyczka zasilania - ATX 24pin
Link - https://www.msi.com/Motherboard/PRO-Z890-A-WIFI
ShortDescription - Socket 1851| Chipset Intel Z890 | DDR5 |
ShortSummaryDescription - MSI PRO Z890-A WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
Number of M.2 (M) slots Expansion slots - 4
Maximum internal memory Memory - 256 GB
Model - PRO Z890-A WIFI
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Number of memory slots - 4
Memory - Memory slots type - DIMM
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6400,9200 MHz
Memory - Supported memory clock speeds - 9200
Memory - Supported memory types - DDR5-SDRAM
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Memory > Supported memory types - DDR5 UDIMM
Memory channels Memory - Dual-channel
Number of memory slots Memory - 4
Memory slots type Memory - DIMM
Wymiary: Wysokość - 305 mm
Wymiary: Szerokość - 244 mm
dimensionalWeight - 1304
Vendor Homepage - https://www.msi.com/Motherboard/PRO-Z890-A-WIFI
Name - MSI PRO Z890-A WIFI
Name - MSI PRO Z890-A WIFI | Processor family Intel | Processor socket LGA1851 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Safety warning - Warnings - In case of installation problems, contact a qualified service technician.
Safety warning - Warnings - When disposing of the product, follow local regulations for the recycling of electronics.
Safety warning - Warnings - Do not open or modify the motherboard to prevent damage.
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Audio chip - Realtek ALC897
Features - Component for - PC
Features - Product colour - Black
Package features > Gross width (mm) - 120.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross depth (mm) - 150.00 mm
Package features > Volume (m3) - 0.00 m³
Package features > Paper/Pasteboard - 800.00 g
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 500 pc(s)
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.90 kg
Package features > TI weight (kg) - 0.10 kg
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Type of battery - Accumulator
Package features > Embeeded battery - Yes
Package features > WEEE tax - Yes
Package features > WEE classification - CL109:6:2017-04-01
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
PCI Express x4 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Title - MSI PRO Z890-A WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
LongDesc - PRO Z890-A WIFIPRO Z890-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.16+1+1+1 DRPS POWER DESIGNUnleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 digital power phases. Combining dual power connectors and 90A Smart Power Stage, PRO Z890-A WIFI is ready for the challenge of high-end processors.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
LongSummaryDescription - MSI PRO Z890-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LongProductName - LGA 1851, 4x DDR5 9200 (OC) MT/s, 1x HDMI, 4x M.2, 4x SATA 6G, 2x Thunderbolt4, 5Gbps LAN, Wi-Fi 7, 243.84 x 304.8mm
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Processor manufacturer - Intel
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor > Processor socket - LGA1851
Processor > Processor family - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Maximum internal memory supported by processor Processor - 256 GB
Processor manufacturer Processor - Intel
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Supported processor sockets - LGA 1851
Processor - Compatible processor series - Intel Core Ultra (Series 2)
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Storage controllers - Number of HDDs supported - 8
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Number of storage drives supported - 4
Total number of SATA connectors Internal I/O - 4
Number of SATA III connectors Internal I/O - 4
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek® 8125 2.5Gbps LAN)
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 7 | Bluetooth 5.4
Internal I/O > Number of SATA connectors - 4
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
On-board graphics card Graphics - No
sizeZ - 70
sizeX - 270
Depth Weight & dimensions - 304.8 mm

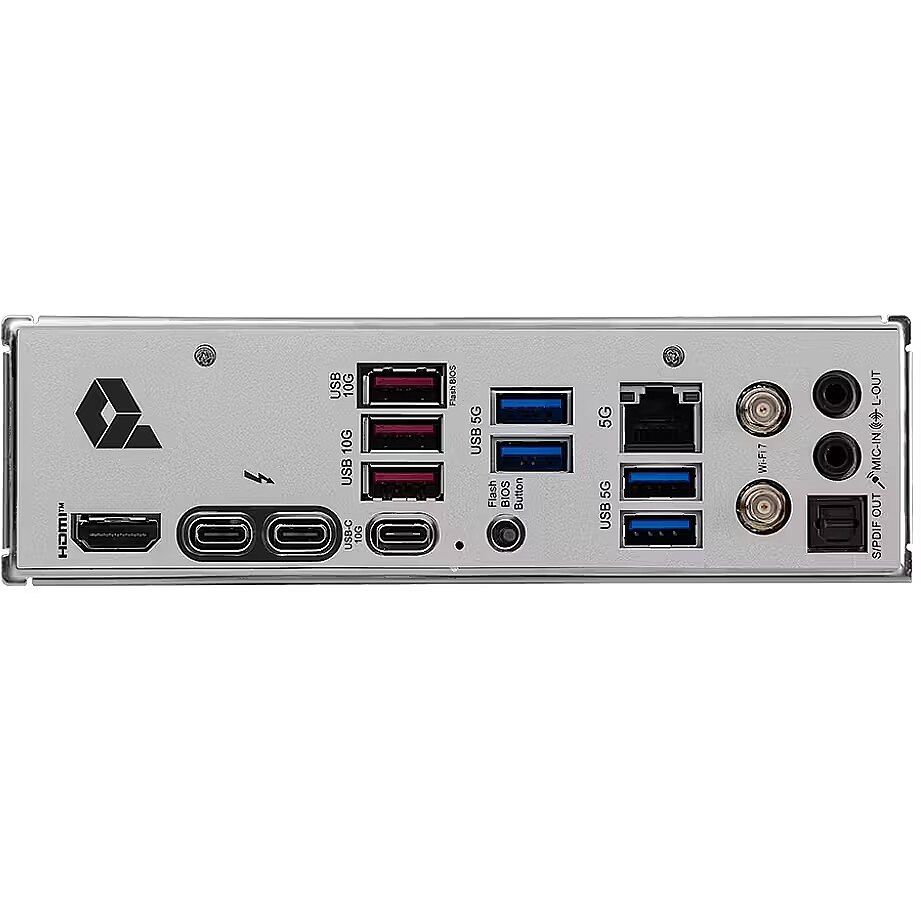

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Producent - MSI
Technical details > Gross weight - 2.00 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO Z890-A WIFI
sizeY - 345
Thunderbolt ports quantity Rear panel I/O ports - 1
Number of HDDs supported Storage controllers - 8
Supported memory clock speed (max) Memory - 9200 MHz
Supported memory clock speeds Memory - 6400/9200 MHz
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - LGA 1851
Number of storage drives supported Storage controllers - 4
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Windows operating systems supported Features - Windows 11 x64
productName - MSI PRO Z890-A WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
ProductName - PRO Z890-A WIFI
productSize - Normal
Product colour Features - Black
Producer - MSI
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV
EScience Park Eindhoven 5706
5692 ER Son Eindhoven producerCode - 7E32-002R
ProducerCode - PRO Z890-A WIFI
TPM connector Internal I/O - Yes
USB 2.0 connectors Internal I/O - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Internal I/O - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 3
URL - https://www.msi.com/Motherboard/PRO-Z890-A-WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet LAN - Yes
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Wi-Fi Network - Yes
Unit Calculated Volume - 0.008122 cubm
Unit Calculated Weight - 2.2 kg
Units per Pallet - 0
Compatible processor series Processor - Intel Core Ultra (Series 2)
Units per Shipping Box - 5
Unit Box Height - 0.27
Unit Box Width - 0.07
Unit Box Length - 0.345
