ID: 1154088
Tootekood: Z890 EAGLE
Laos 20 üksused
Garantii: 3 aastat

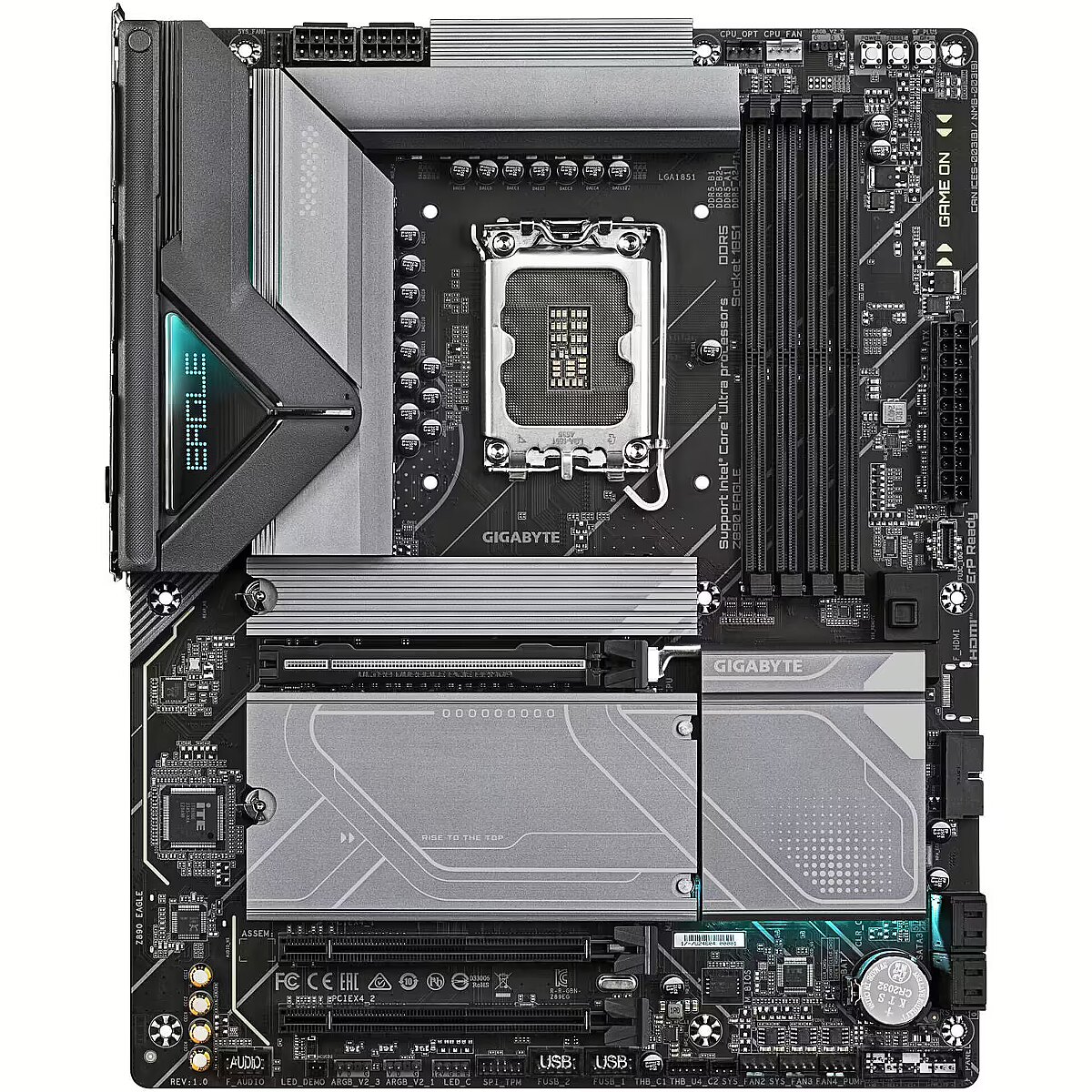

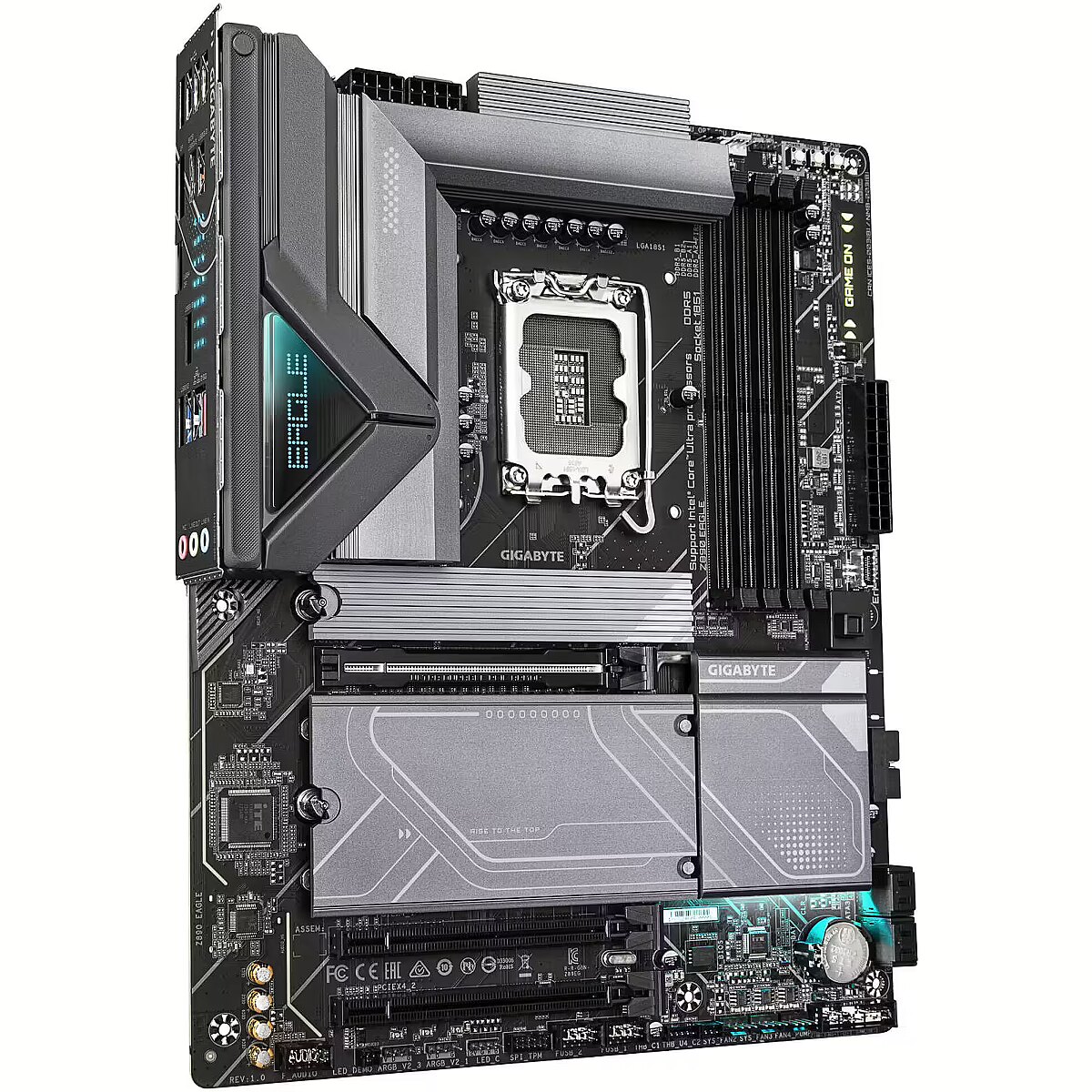

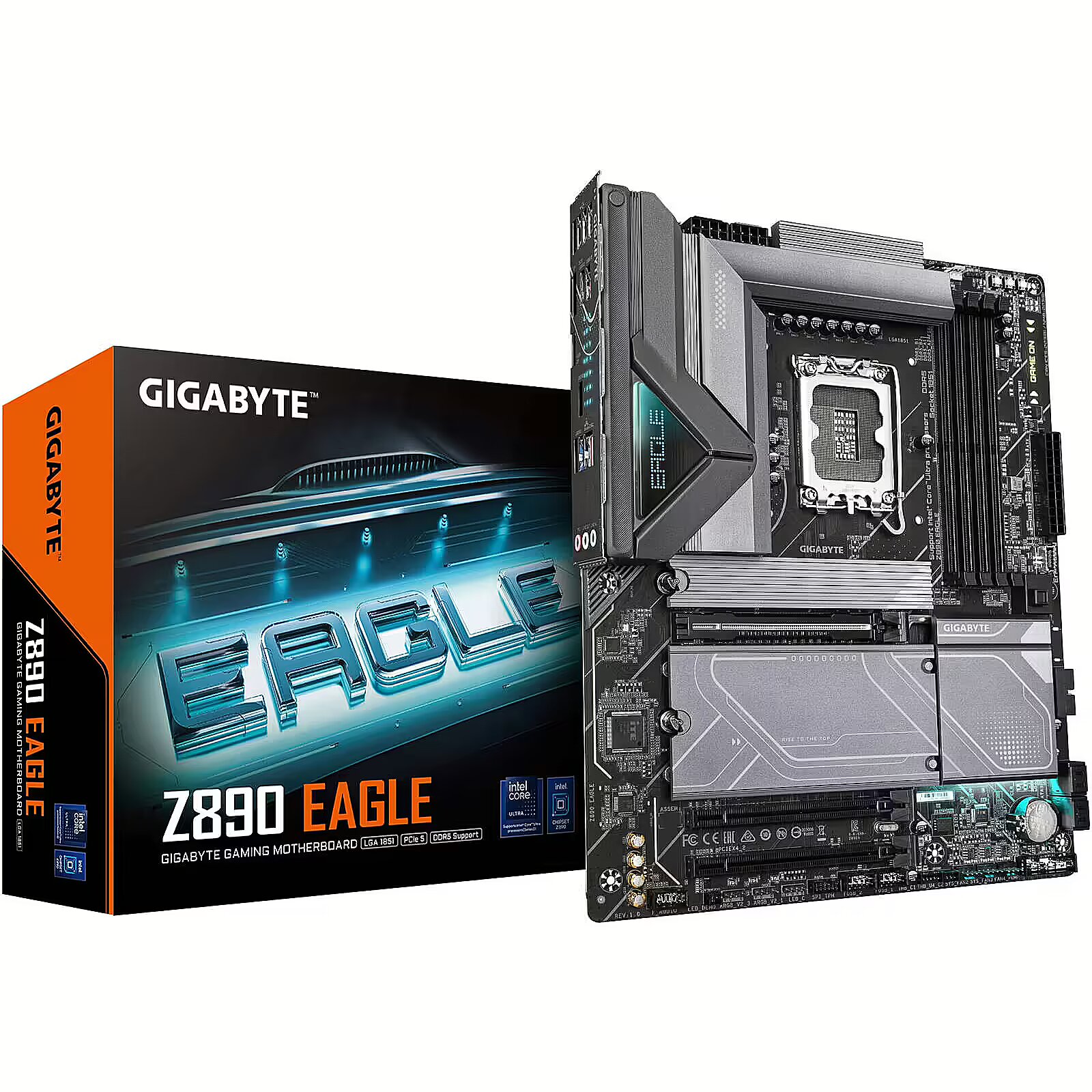

Gigabyte Z890 EAGLE
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Seeria: Gigabyte Eagle
- Pesa (Socket): LGA 1851
- Mikroskeemide siin (chipset): Intel Z890
- Plaadi mõõtmed: ATX
- Mälutüüp: DDR5
- Mäluslott: 4
- Sisseehitatud Wi-Fi: Ei ole
Põhiteave
Seeria
: Gigabyte Eagle
Pesa (Socket)
LGA 1851
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel Z890
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR5
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR5 6400 (OC 9200)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 0
DisplayPort
: 1
Integreeritud helikaart
: Realtek Audio CODEC
Traadita ühendused
Sisseehitatud Bluetooth
: Nav
Sisseehitatud Wi-Fi
: Ei ole
Välised sadamad
Väline USB Type-C
: 1
Väline USB 2.0
: 4
Väline USB 3.0 (USB 3.2 Gen1)
: 3
Väline USB 3.1 (USB 3.2 Gen2)
: 2
Siseportid
Sisemine A-RGB 5V (3-pin)
: 3
Sisemine RGB 12V (4-pin)
: 1
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 1
M.2 Sadam
: 4
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - Z890 EAGLE
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express
code - Z890 EAGLE
COM connector / port - No
CPU socket - LGA1851
Description - Z890 EAGLE Supports Intel Core Ultra (2-series) processors 14+1+2 Phase Digital Dual VRM Solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive: Provides users with an optimal and customized BIOS profile Premium Compatibility: 4*DDR5 with XMP memory module support EZ-Latch Plus: PCIe and M.2 slots with quick-release and screwless design EZ-Latch Click: M.2 heatsinks with screwless design User-friendly Interface: Supports multiple themes, AIO fan control and auto Q-Flash scanning in BIOS and software New power monitor in HWinfo for real-time monitoring of CPU power phases Ultra-fast storage: 4 M.2 slots, including 1 PCIe 5.0 x4 PCIe UD X slot: PCIe 5.0 x16 slot 10X Durability for Graphics Card Efficient Cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard Fast Networking: 2.5GbE LAN Expanded Connectivity: USB4 Type-C with DP-Alt, DisplayPort
Description - Z890 EAGLE Supports Intel® Core™ Ultra processors (Series 2) Digital twin 14+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking : 2.5GbE LAN Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
1 x M.2 connector (Socket 3, M key, supports 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, supports 22110/2280 PCIe 4.0 x4/x2 SSD) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, supports 22110/2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, supports 22110/2280 SATA and PCIe 4.0 x4/x2 SSD) (M2M_SB) 4 x SATA 6Gb/s connector
RAID support 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1945 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
ean - 4719331865214
EAN - 4719331865214
EAN_code - 4719331865214
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

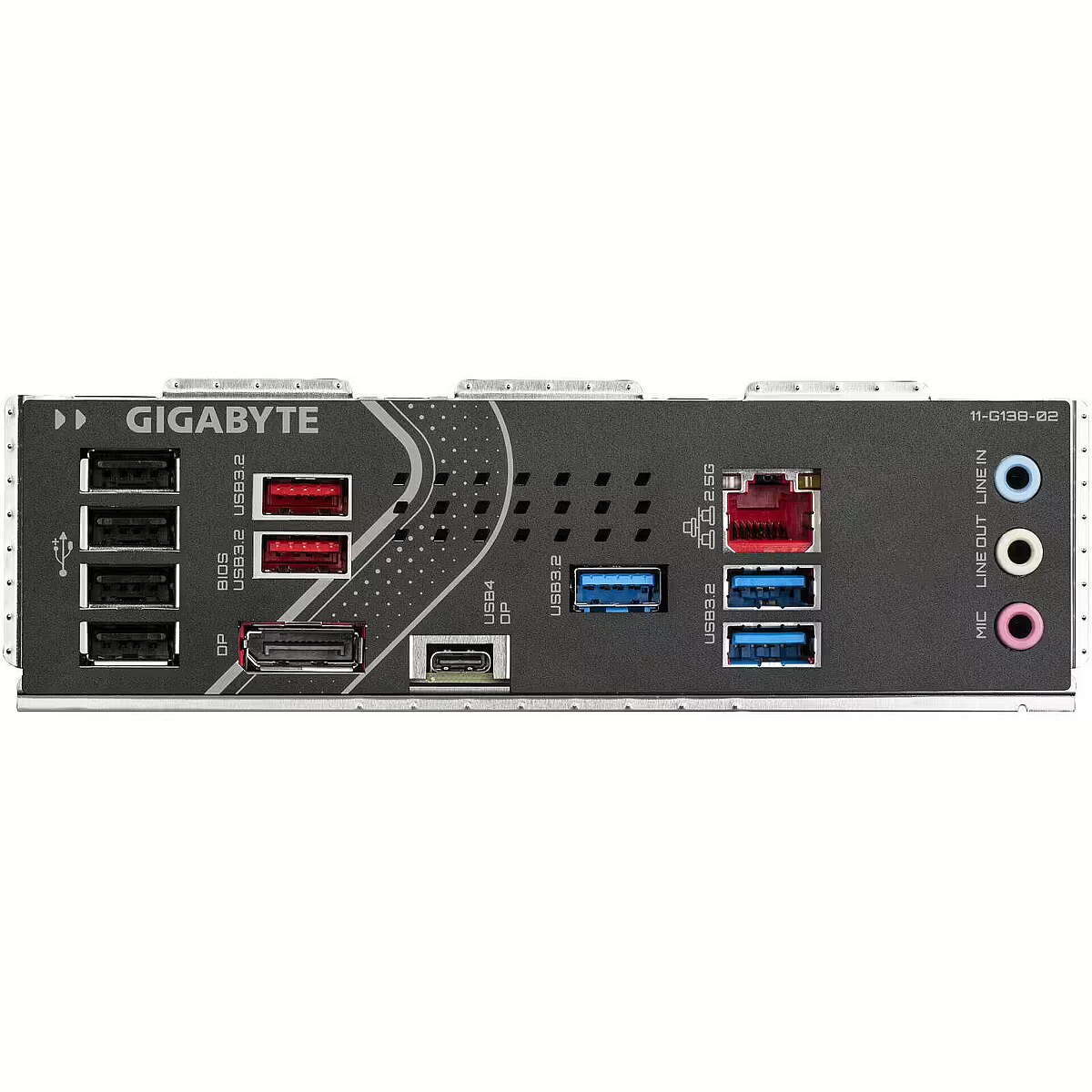

External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version.
(Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331865214
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4
LongSummaryDescription - GIGABYTE Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - Z890 EAGLE
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 EAGLE
MPN - Z890 EAGLE
Name - GIGABYTE Z890 EAGLE - Socekt 1851 - motherboard
name - GIGABYTE Z890 EAGLE Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 EAGLE s1851 4DDR5 DP/TB4 ATX
Name - Z890 EAGLE (Z890.S1851.ATX.DDR5)
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other features - Weight - 1.78 kg
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.02 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
ProductName - Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4
Product Net Weight - 2 kg
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 17.46 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
ShortSummaryDescription - GIGABYTE Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
Socket - LGA1851
Software - Norton Internet Security (OEM version) LAN Bandwidth Management Software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - GIGABYTE Control Center (GCC) Support Q-Flash Support Q-Flash Plus Support Smart Backup Support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4
TPM - Header
Unit Calculated Volume - 0.009838 cubm
Unit Calculated Weight - 2.18 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-EAGLE#kf
vendpn - Z890 EAGLE
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 1,93
Weight - 1.932
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - Z890 EAGLE
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express
code - Z890 EAGLE
COM connector / port - No
CPU socket - LGA1851
Description - Z890 EAGLE Supports Intel Core Ultra (2-series) processors 14+1+2 Phase Digital Dual VRM Solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive: Provides users with an optimal and customized BIOS profile Premium Compatibility: 4*DDR5 with XMP memory module support EZ-Latch Plus: PCIe and M.2 slots with quick-release and screwless design EZ-Latch Click: M.2 heatsinks with screwless design User-friendly Interface: Supports multiple themes, AIO fan control and auto Q-Flash scanning in BIOS and software New power monitor in HWinfo for real-time monitoring of CPU power phases Ultra-fast storage: 4 M.2 slots, including 1 PCIe 5.0 x4 PCIe UD X slot: PCIe 5.0 x16 slot 10X Durability for Graphics Card Efficient Cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard Fast Networking: 2.5GbE LAN Expanded Connectivity: USB4 Type-C with DP-Alt, DisplayPort
Description - Z890 EAGLE Supports Intel® Core™ Ultra processors (Series 2) Digital twin 14+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking : 2.5GbE LAN Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
1 x M.2 connector (Socket 3, M key, supports 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, supports 22110/2280 PCIe 4.0 x4/x2 SSD) (M2B_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, supports 22110/2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, supports 22110/2280 SATA and PCIe 4.0 x4/x2 SSD) (M2M_SB) 4 x SATA 6Gb/s connector
RAID support 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices
Support for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
dimension depth - 80 mm
dimension height - 340 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1945 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
ean - 4719331865214
EAN - 4719331865214
EAN_code - 4719331865214
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800 MHz
Full Description Line - Intel Z890|LGA1851|ATX|DDR5|8800/8600/8400/8266/8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600 MHz|Memory slots 4|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xDisplayPort|4xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|USB-C|USB 2.0|USB 3.2|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Graphics - Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version.
(Graphics specifications may vary depending on processor support.)
Graphics - DirectX version - 12.0
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331865214
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4
LongSummaryDescription - GIGABYTE Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - Z890 EAGLE
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - Z890 EAGLE
MPN - Z890 EAGLE
Name - GIGABYTE Z890 EAGLE - Socekt 1851 - motherboard
name - GIGABYTE Z890 EAGLE Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
name - Motherboard Z890 EAGLE s1851 4DDR5 DP/TB4 ATX
Name - Z890 EAGLE (Z890.S1851.ATX.DDR5)
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other features - Weight - 1.78 kg
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.02 kg
Packaging data - Package width - 335 mm
PCI-Express 4.0 4x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
ProductName - Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4
Product Net Weight - 2 kg
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 17.46 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
ShortSummaryDescription - GIGABYTE Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
Socket - LGA1851
Software - Norton Internet Security (OEM version) LAN Bandwidth Management Software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions - GIGABYTE Control Center (GCC) Support Q-Flash Support Q-Flash Plus Support Smart Backup Support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE Z890 EAGLE Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 14+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB4
TPM - Header
Unit Calculated Volume - 0.009838 cubm
Unit Calculated Weight - 2.18 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/Z890-EAGLE#kf
vendpn - Z890 EAGLE
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 1,93
Weight - 1.932
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
