ID: 1153770
Tootekood: 7E19-001R
Saab tellida 15 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 3 aastat

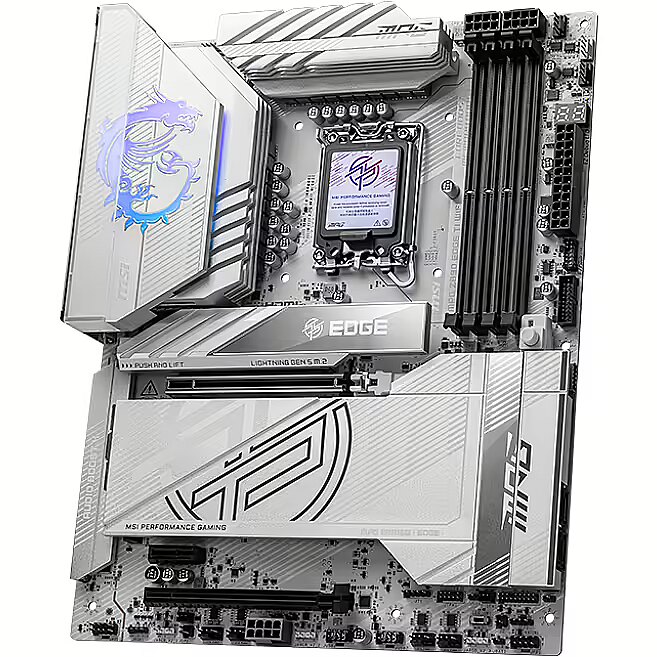

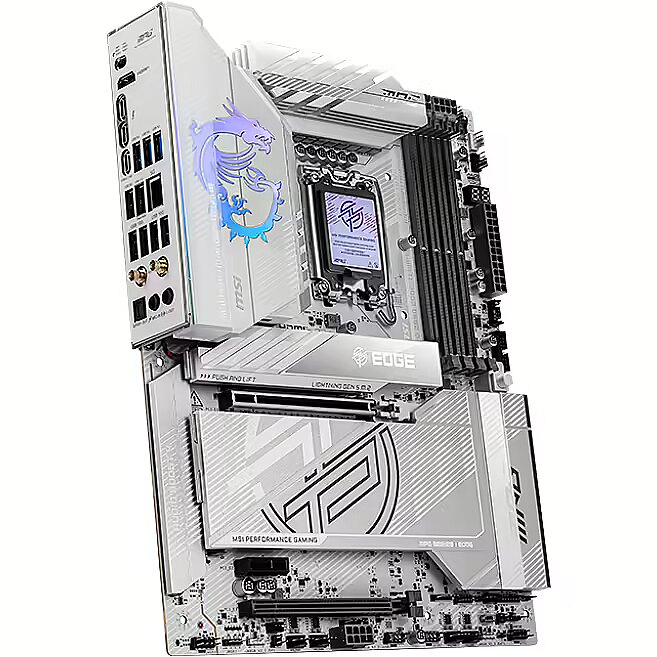

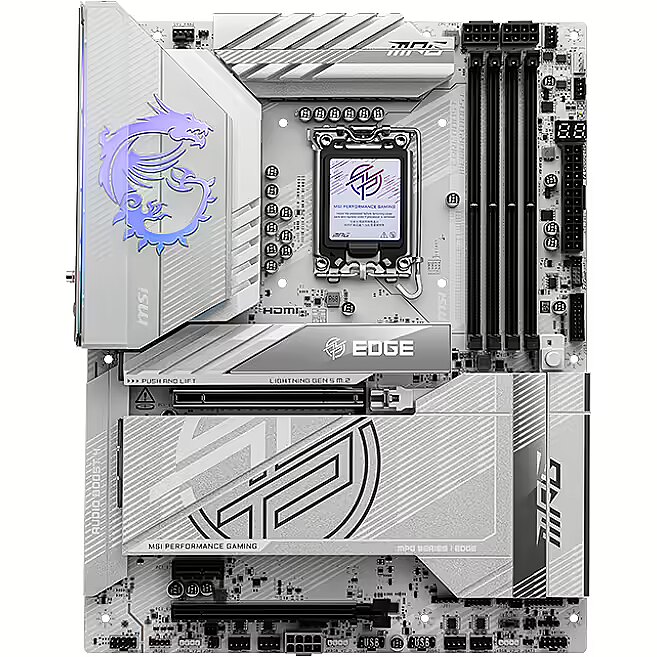

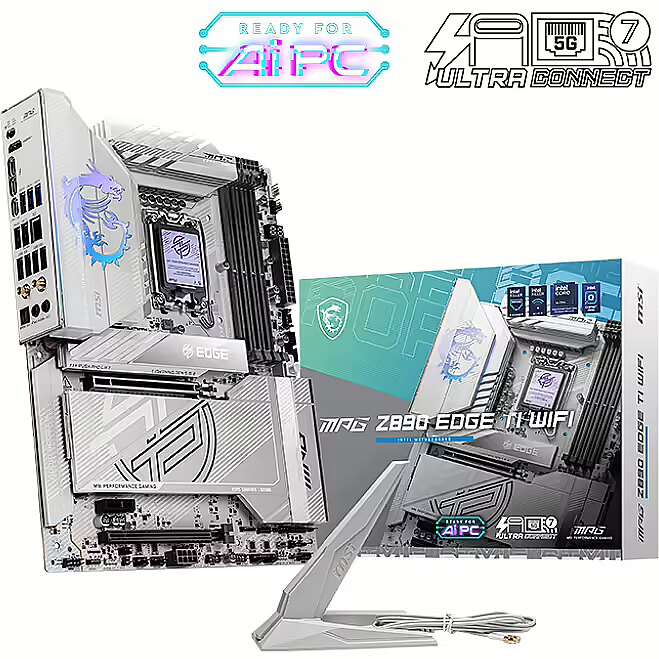

MSI MPG Z890 EDGE TI WIFI
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Seeria: MSI MPG
- Pesa (Socket): LGA 1851
- Mikroskeemide siin (chipset): Intel Z890
- Plaadi mõõtmed: ATX
- Mälutüüp: DDR5
- Mäluslott: 4
- Sisseehitatud Wi-Fi: On
Põhiteave
Seeria
: MSI MPG
Pesa (Socket)
LGA 1851
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Mikroskeemide siin (chipset)
Intel Z890
Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.
Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.
Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Plaadi mõõtmed
ATX
Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.
Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.
Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.
Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp
: DDR5
Mäluslott
4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin
DDR5 6400 (OC 9200)
Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.
Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.
Graafikakaart
VGA port
PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart
Only with iGPU-ready CPU
Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.
Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.
Sadamad ja seadmed
PCI portid
0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integreeritud helikaart
: Realtek ALC1220P
Traadita ühendused
Sisseehitatud Bluetooth
: Ir
Sisseehitatud Wi-Fi
: On
Välised sadamad
Väline USB Type-C
: 3
Väline USB 2.0
: 1
Väline USB 3.0 (USB 3.2 Gen1)
: 4
Väline USB 3.1 (USB 3.2 Gen2)
: 4
Siseportid
Sisemine A-RGB 5V (3-pin)
: 3
Sisemine RGB 12V (4-pin)
: 1
Sisemine USB 2.0
: 2
Sisemine USB 3.0
: 1
Sisemine USB Type-C
: 1
M.2 Sadam
: 5
SATA 3 Portid
: 4
Täpsem spetsifikatsioon
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MPG Z890 EDGE TI WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - INTEL Z890
code - 7E19-001R
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Description - MPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.
Description - MPG Z890 EDGE TI WIFI
MPG Z890 EDGE TI WIFI is covered in silver and white color scheme for white PC lovers to show a different identity. It is also powerful with Killer Wi-Fi 7 and 5G LAN solution, Thunderbolt 4 and the latest PCIe 5.0 compatibility, PCIe extra power, and it is the best Z890 ATX motherboard with white theme for Intel Core Ultra processors. Intel Core Ultra (Series 2) processor support for LGA 1851 socket DDR5 memory support, up to 9200+ MT/s (OC) Ultra performance: 16+1+1+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made of 2oz thick copper and server-grade material Frozr Guard: Oversized heat pipe heatsink, 7W/mk MOSFET thermal pads, additional choke thermal pads and M.2 Shield Frozr are built for high system performance and uninterrupted gaming EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna Lightning fast gaming experience: PCIe 5.0 slot, Lightning Gen 5 M.2 Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN with Wi-Fi 7 solution - The latest professional and multimedia solution, providing secure, stable and fast networking and data transmission Audio Boost 4: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Slot 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (from CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (from chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (from chipset) PCI_E1 supports manual BIOS adjustment up to X8+X8 / X8+X4+X4 Storage 5x M.2 Source M.2_1 (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices Source M.2_2 (from CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices Source M.2_3 (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices Source M.2_4 (from chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices Source M.2_5 (from chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
dimension depth - 75 mm
dimension height - 350 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 2240 g
dimension width - 275 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220P 7.1)
ean - 4711377260800
EAN - 4711377260800
Eans - 4711377260800
EAN_code - 4711377260800
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 2 x PCIe x 16
Expansion slots - 5 x M.2
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 2

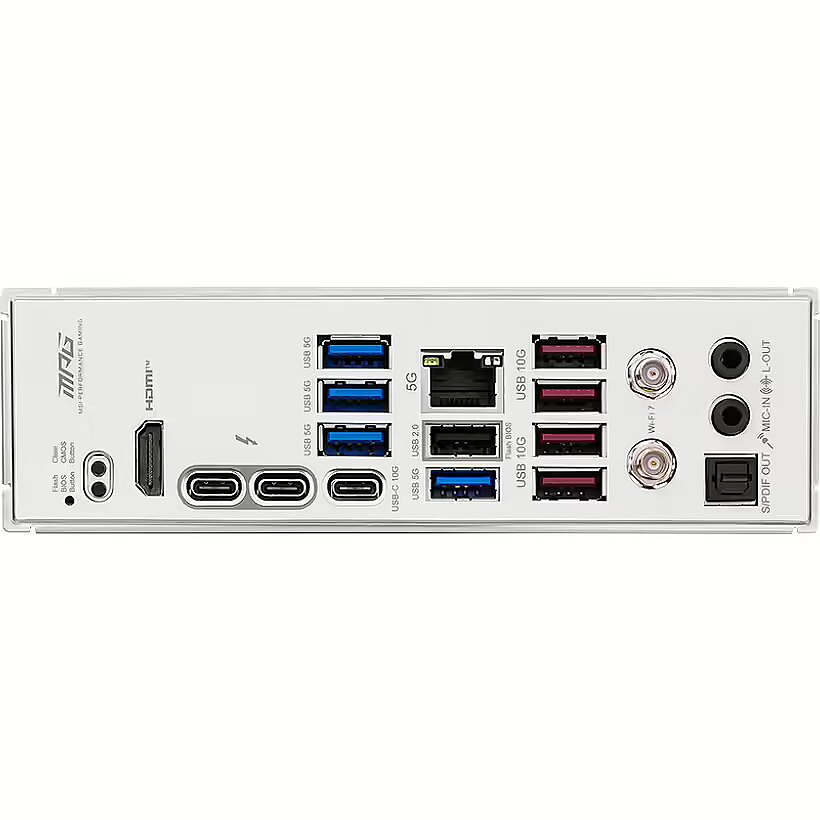

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 2.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x Thunderbolt 4
External connectors - 4 x USB 3.0
External connectors - 4 x USB 3.1
Features - Audio chip - Realtek ALC1220P
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/6400/9200 MHz
Graphics - 1x HDMI Supports HDMITM 2.1 with FRL port, max resolution 8K 60Hz* 2x Type-C DisplayPort ThunderboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 via USB Type-C, max resolution 4K@120Hz / 8K@60Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
GTIN - 4711377260800
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220P
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Intel Killer E5000B 5G LAN)
LongDesc - MPG Z890 EDGE TI WIFIMPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.16+1+1+1 DRPS POWER DESIGNUnleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z890 EDGE TI WIFI is ready for the challenge of high-end processors.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
LongProductName - Intel Z890, LGA 1851, 2x DDR5 9200 (OC) MT/s, 1x HDMI, 5x M.2, 4x SATA 6G, 2x Thunderbolt4, 5G LAN, Wi-Fi 7, ATX
LongSummaryDescription - MSI MPG Z890 EDGE TI WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - MSI
Manufacturer_code - 7E19-001R
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 4800,6400,9200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4800 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - MPG Z890 EDGE TI WIFI
MPN - 7E19-001R
Name - 1851 MSI MPG Z890 Edge TI WIFI
name - Motherboard MPG Z890 EDGE TI WIFI s 1851 4DDR5 HDMI/DP ATX
Name - MSI MPG Z890 EDGE TI WIFI
name - MSI MPG Z890 Edge TI WIFI, Intel Z890 Mainboard - Sockel 1851 - DDR5
Name - MSI MPG Z890 EDGE TI WIFI - Socekt 1851 - motherboard
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Killer Wi-Fi 7 BE1750
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 1x Intel Killer E5000B 5G LAN Wireless LAN and Bluetooth Intel Killer BE1750x Wi-Fi 7 Wireless module is pre-installed in M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x EZ Conn-header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 6 x 4pin wentylator obudowy
Optical S/PDIF Input/Output connectors - 1
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 2
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - Intel LGA1851
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
ProducerCode - MPG Z890 EDGE TI WIFI
ProductName - MPG Z890 EDGE TI WIFI
Product Net Weight - 2 kg
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
ShortDescription - Socket 1851| Chipset Intel Z890 | DDR5 |
ShortSummaryDescription - MSI MPG Z890 EDGE TI WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, 256 GB, DDR5-SDRAM
Socket - LGA1851
Software -
Sound card - Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Special functions -
Storage controllers - Number of HDDs supported - 9
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Thunderbolt Input/Output connectors - 2
Title - MSI MPG Z890 EDGE TI WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.346
Unit Box Width - 0.273
Unit Calculated Volume - 0.008339 cubm
Unit Calculated Weight - 2.52 kg
Units per Shipping Box - 5
URL - https://www.msi.com/Motherboard/MPG-Z890-EDGE-TI-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 4
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 4
USB ports at back panel - 12
USB ports on motherboard - 8
Vendor Homepage - www.msi.com/Motherboard/MPG-Z890-EDGE-TI-WIFI
vendpn - MPG Z890 EDGE TI WIFI
Warranty - 36 months
WarrantyInfo -
Weight - 2,35
Weight - 2.319
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 4 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MPG Z890 EDGE TI WIFI
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset - Intel Z890
Chipset manufacturer - Intel
Chipset type - INTEL Z890
code - 7E19-001R
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Description - MPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.
Description - MPG Z890 EDGE TI WIFI
MPG Z890 EDGE TI WIFI is covered in silver and white color scheme for white PC lovers to show a different identity. It is also powerful with Killer Wi-Fi 7 and 5G LAN solution, Thunderbolt 4 and the latest PCIe 5.0 compatibility, PCIe extra power, and it is the best Z890 ATX motherboard with white theme for Intel Core Ultra processors. Intel Core Ultra (Series 2) processor support for LGA 1851 socket DDR5 memory support, up to 9200+ MT/s (OC) Ultra performance: 16+1+1+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made of 2oz thick copper and server-grade material Frozr Guard: Oversized heat pipe heatsink, 7W/mk MOSFET thermal pads, additional choke thermal pads and M.2 Shield Frozr are built for high system performance and uninterrupted gaming EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna Lightning fast gaming experience: PCIe 5.0 slot, Lightning Gen 5 M.2 Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN with Wi-Fi 7 solution - The latest professional and multimedia solution, providing secure, stable and fast networking and data transmission Audio Boost 4: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Slot 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (from CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (from chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (from chipset) PCI_E1 supports manual BIOS adjustment up to X8+X8 / X8+X4+X4 Storage 5x M.2 Source M.2_1 (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices Source M.2_2 (from CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices Source M.2_3 (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices Source M.2_4 (from chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices Source M.2_5 (from chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
dimension depth - 75 mm
dimension height - 350 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 2240 g
dimension width - 275 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220P 7.1)
ean - 4711377260800
EAN - 4711377260800
Eans - 4711377260800
EAN_code - 4711377260800
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 2 x PCIe x 16
Expansion slots - 5 x M.2
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 2
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 2.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x Thunderbolt 4
External connectors - 4 x USB 3.0
External connectors - 4 x USB 3.1
Features - Audio chip - Realtek ALC1220P
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/6400/9200 MHz
Graphics - 1x HDMI Supports HDMITM 2.1 with FRL port, max resolution 8K 60Hz* 2x Type-C DisplayPort ThunderboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 via USB Type-C, max resolution 4K@120Hz / 8K@60Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
GTIN - 4711377260800
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220P
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Intel Killer E5000B 5G LAN)
LongDesc - MPG Z890 EDGE TI WIFIMPG Z890 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power and this is the best white theme Z890 ATX motherboard for Intel Core Ultra processors.MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.16+1+1+1 DRPS POWER DESIGNUnleash and sustain the maximum performance with a flagship VRM design built with a total of 16+1+1+1 Duet Rail Power System. Combining dual power connectors and 90A Smart Power Stage, MPG Z890 EDGE TI WIFI is ready for the challenge of high-end processors.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
LongProductName - Intel Z890, LGA 1851, 2x DDR5 9200 (OC) MT/s, 1x HDMI, 5x M.2, 4x SATA 6G, 2x Thunderbolt4, 5G LAN, Wi-Fi 7, ATX
LongSummaryDescription - MSI MPG Z890 EDGE TI WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - MSI
Manufacturer_code - 7E19-001R
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9200 MHz
Memory - Supported memory clock speeds - 4800,6400,9200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4800 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 9200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - MPG Z890 EDGE TI WIFI
MPN - 7E19-001R
Name - 1851 MSI MPG Z890 Edge TI WIFI
name - Motherboard MPG Z890 EDGE TI WIFI s 1851 4DDR5 HDMI/DP ATX
Name - MSI MPG Z890 EDGE TI WIFI
name - MSI MPG Z890 Edge TI WIFI, Intel Z890 Mainboard - Sockel 1851 - DDR5
Name - MSI MPG Z890 EDGE TI WIFI - Socekt 1851 - motherboard
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - WLAN controller model - Killer Wi-Fi 7 BE1750
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 1x Intel Killer E5000B 5G LAN Wireless LAN and Bluetooth Intel Killer BE1750x Wi-Fi 7 Wireless module is pre-installed in M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x EZ Conn-header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 6 x 4pin wentylator obudowy
Optical S/PDIF Input/Output connectors - 1
Other information -
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 2
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - Intel LGA1851
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
ProducerCode - MPG Z890 EDGE TI WIFI
ProductName - MPG Z890 EDGE TI WIFI
Product Net Weight - 2 kg
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Thunderbolt ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
ShortDescription - Socket 1851| Chipset Intel Z890 | DDR5 |
ShortSummaryDescription - MSI MPG Z890 EDGE TI WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), Intel LGA1851, 256 GB, DDR5-SDRAM
Socket - LGA1851
Software -
Sound card - Realtek ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Special functions -
Storage controllers - Number of HDDs supported - 9
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Thunderbolt Input/Output connectors - 2
Title - MSI MPG Z890 EDGE TI WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.346
Unit Box Width - 0.273
Unit Calculated Volume - 0.008339 cubm
Unit Calculated Weight - 2.52 kg
Units per Shipping Box - 5
URL - https://www.msi.com/Motherboard/MPG-Z890-EDGE-TI-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.0 Input/Output connectors - 4
USB 3.0 Interface - Yes
USB 3.1 Input/Output connectors - 4
USB ports at back panel - 12
USB ports on motherboard - 8
Vendor Homepage - www.msi.com/Motherboard/MPG-Z890-EDGE-TI-WIFI
vendpn - MPG Z890 EDGE TI WIFI
Warranty - 36 months
WarrantyInfo -
Weight - 2,35
Weight - 2.319
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 4 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
