Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
BIOS - BIOS memory size - 192 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1GU0-M0EAY0
EAN_code - 4711387468159
Eans - 4711387468159
Category_1 - Motherboards
EAN - 4711387468159
Features - Windows operating systems supported - Windows 10 x64, Windows 11
WarrantyInfo -
GTIN - 4711387468159
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Weight - 2,18
Weight & dimensions - Width - 305 mm
Weight & dimensions - Depth - 244 mm
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category_2 - Motherboards - Intel 1700
ean - 4711387468159
code - 90MB1GU0-M0EAY0
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 | seria BTF - złącza z tyłu płyty
ShortSummaryDescription - ASUS TUF GAMING Z790-BTF WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
MPN - TUF GAMING Z790-BTF WIFI
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Number of memory slots - 4
Memory - Memory slots type - DIMM
Memory - Unbuffered memory - Yes
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM

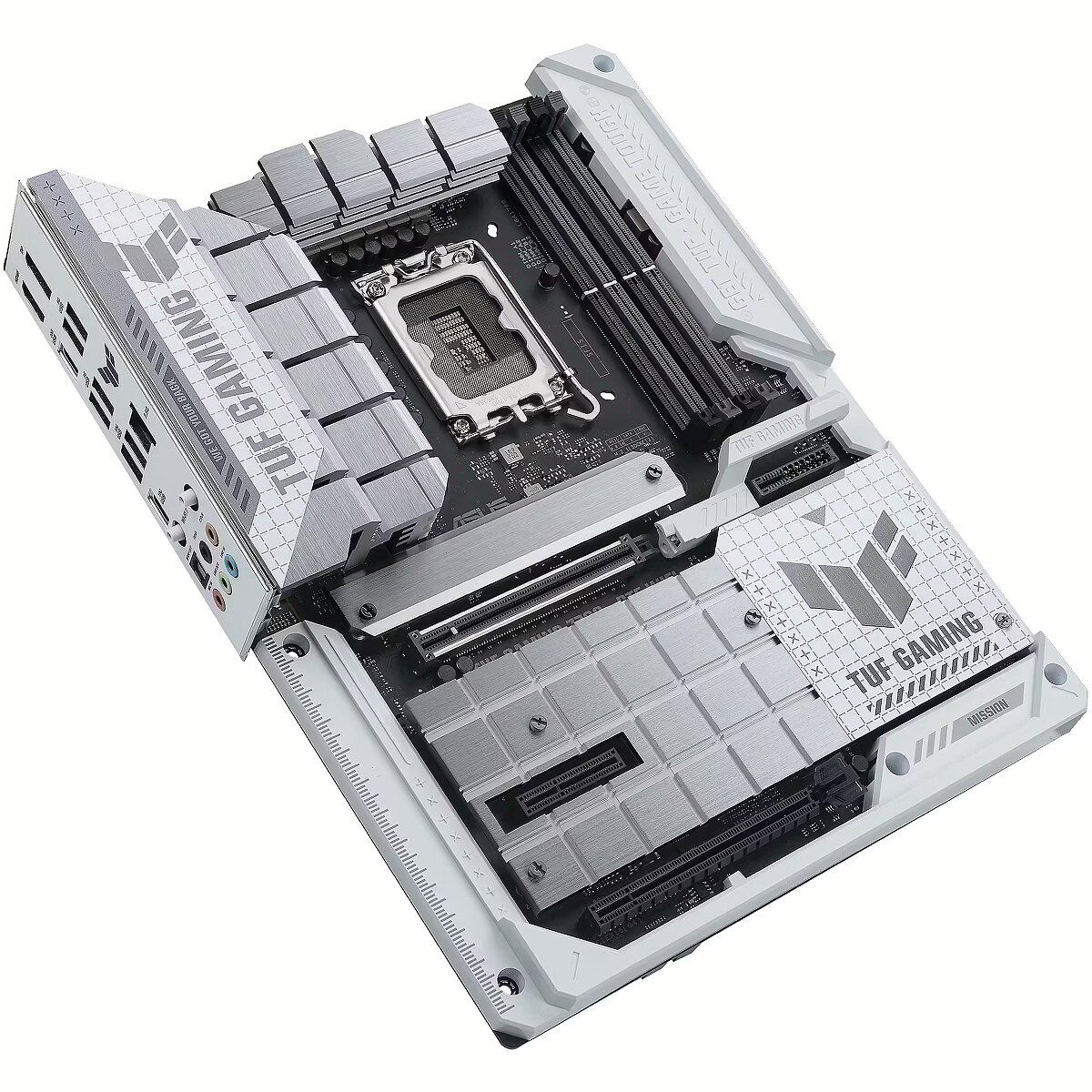

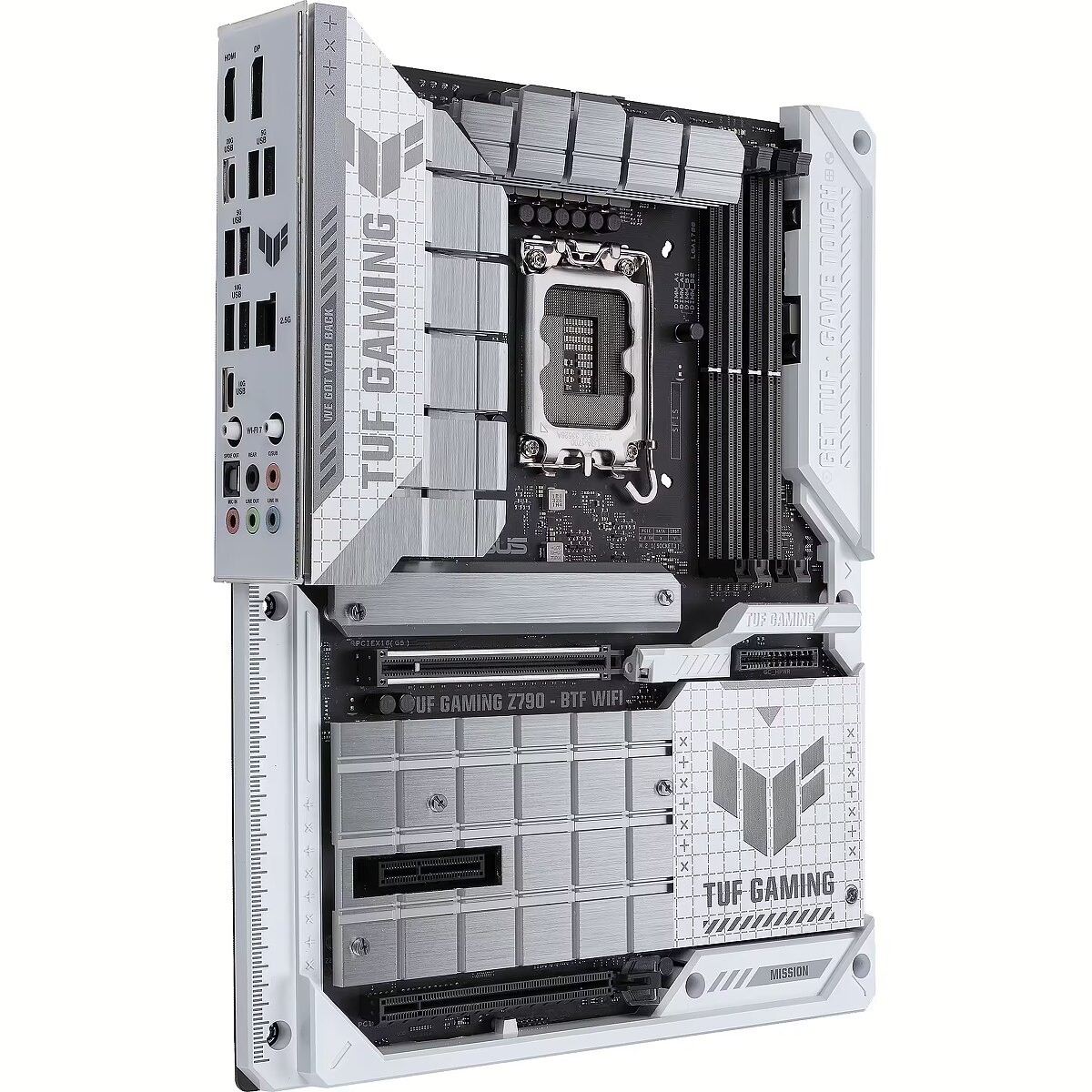

Name - ASUS TUF GAMING Z790-BTF WIFI
Name - ASUS TUF GAMING Z790-BTF WIFI (Intel.1700.DDR5.ATX)
name - ASUS TUF Gaming Z790-BTF WiFi, Intel Z790 Mainboard - Sockel 1700, DDR5, Hidden-Connector-Design
Name - ASUS TUF GAMING Z790-BTF WIFI - Socket 1700 - motherboard
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Component for - PC
Features - Product colour - Aluminium, Black
Packaging data - Package weight - 3.95 kg
Packaging data - Package height - 108 mm
Packaging data - Package width - 370 mm
Packaging data - Package depth - 312 mm

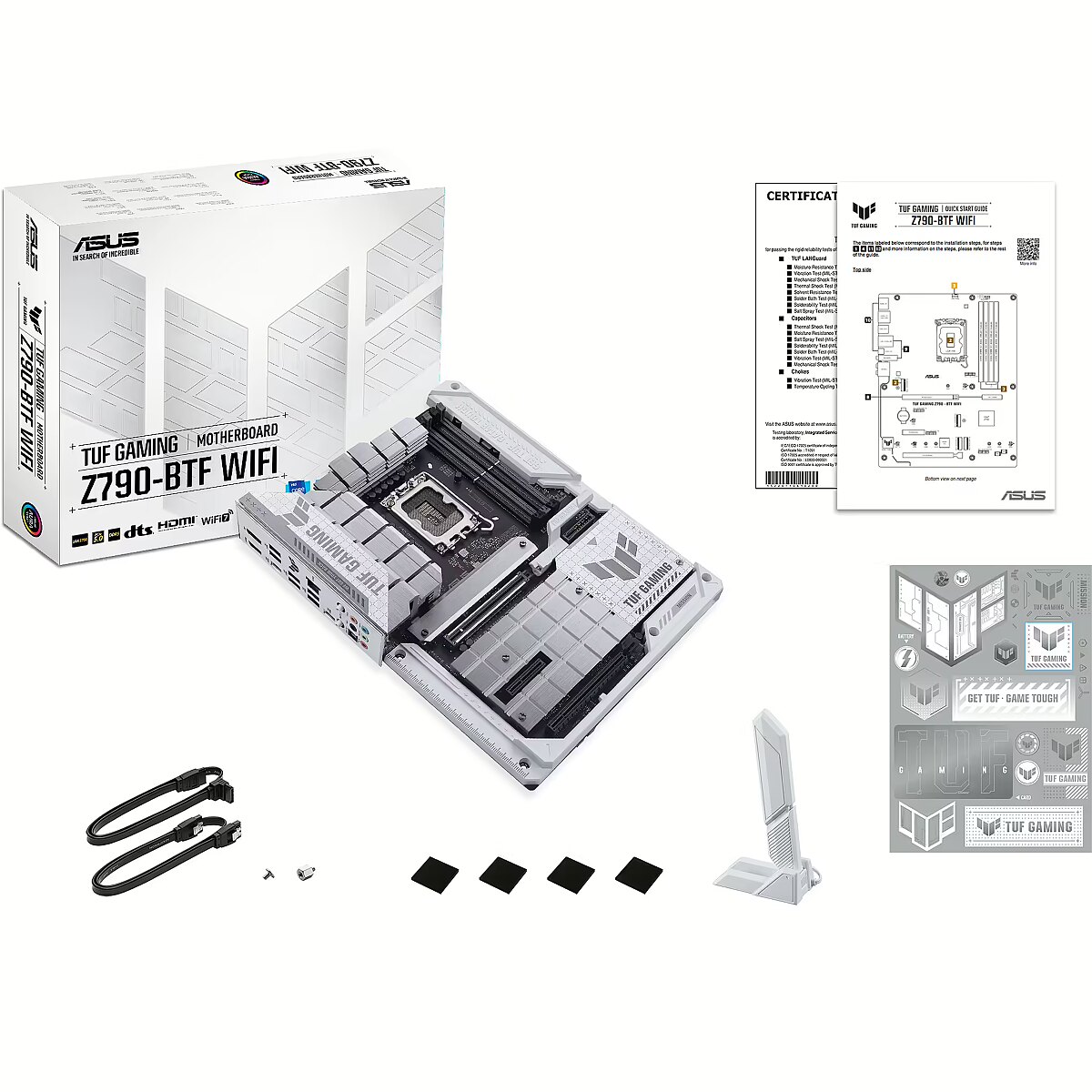

Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Title - ASUS TUF GAMING Z790-BTF WIFI Intel Z790 LGA 1700 ATX

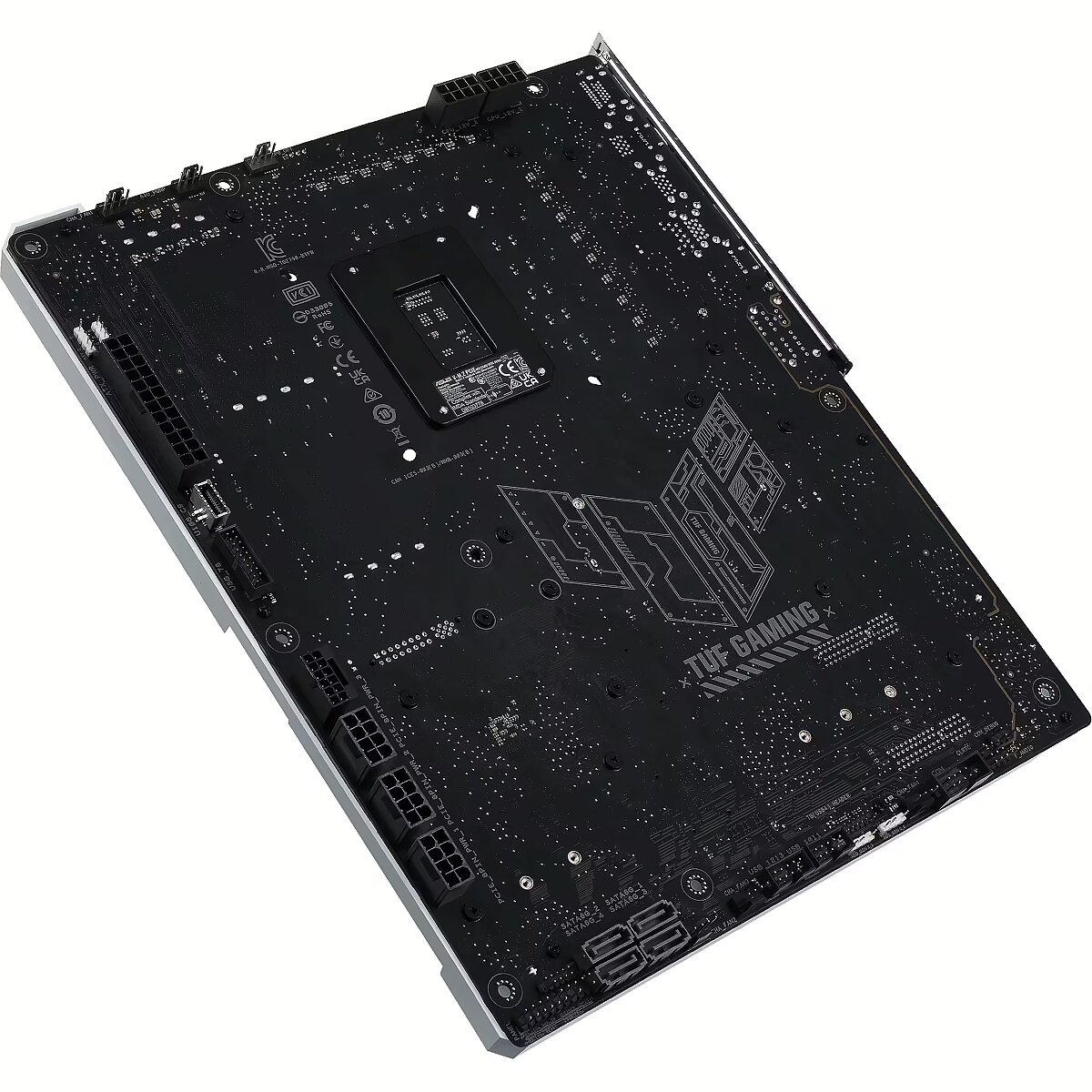

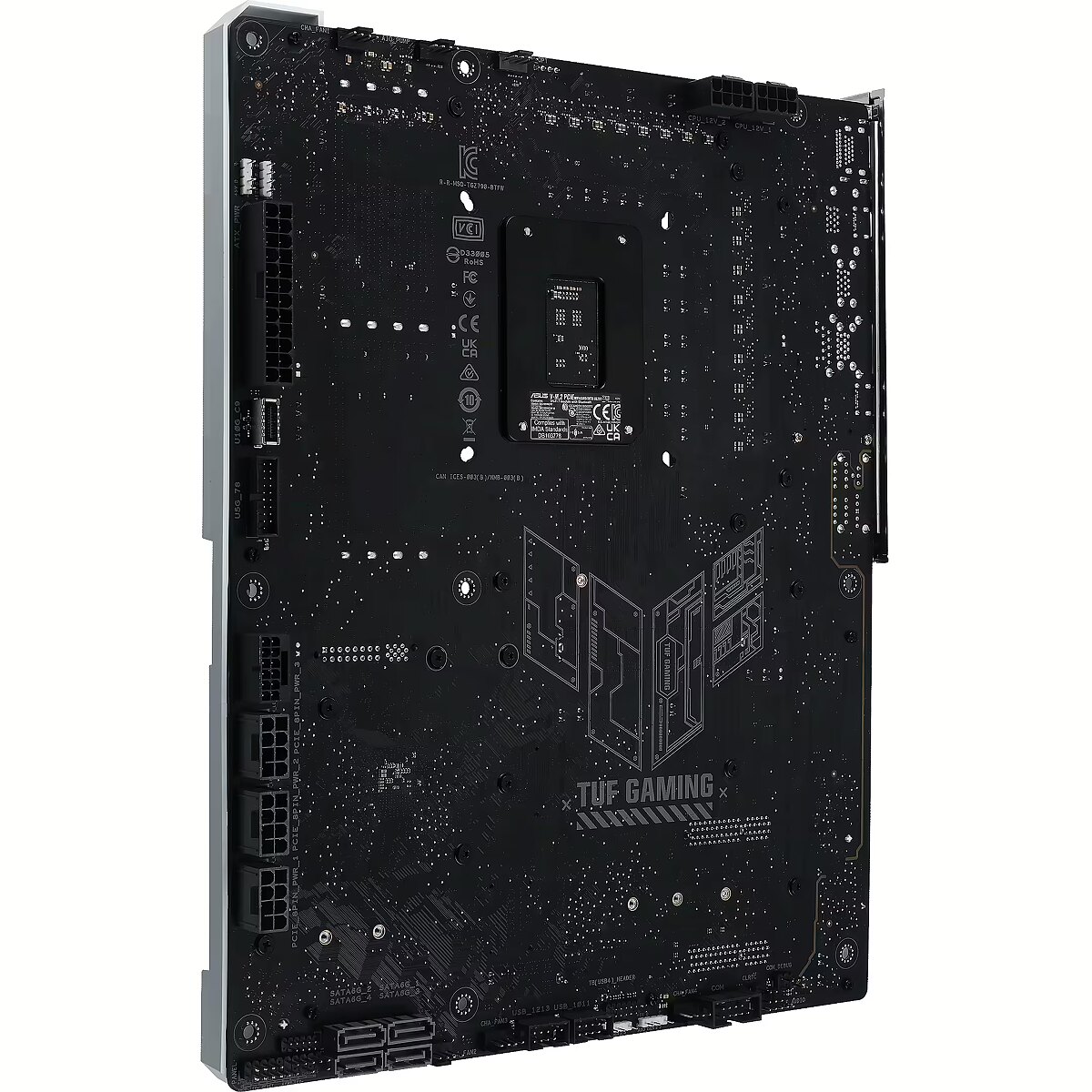

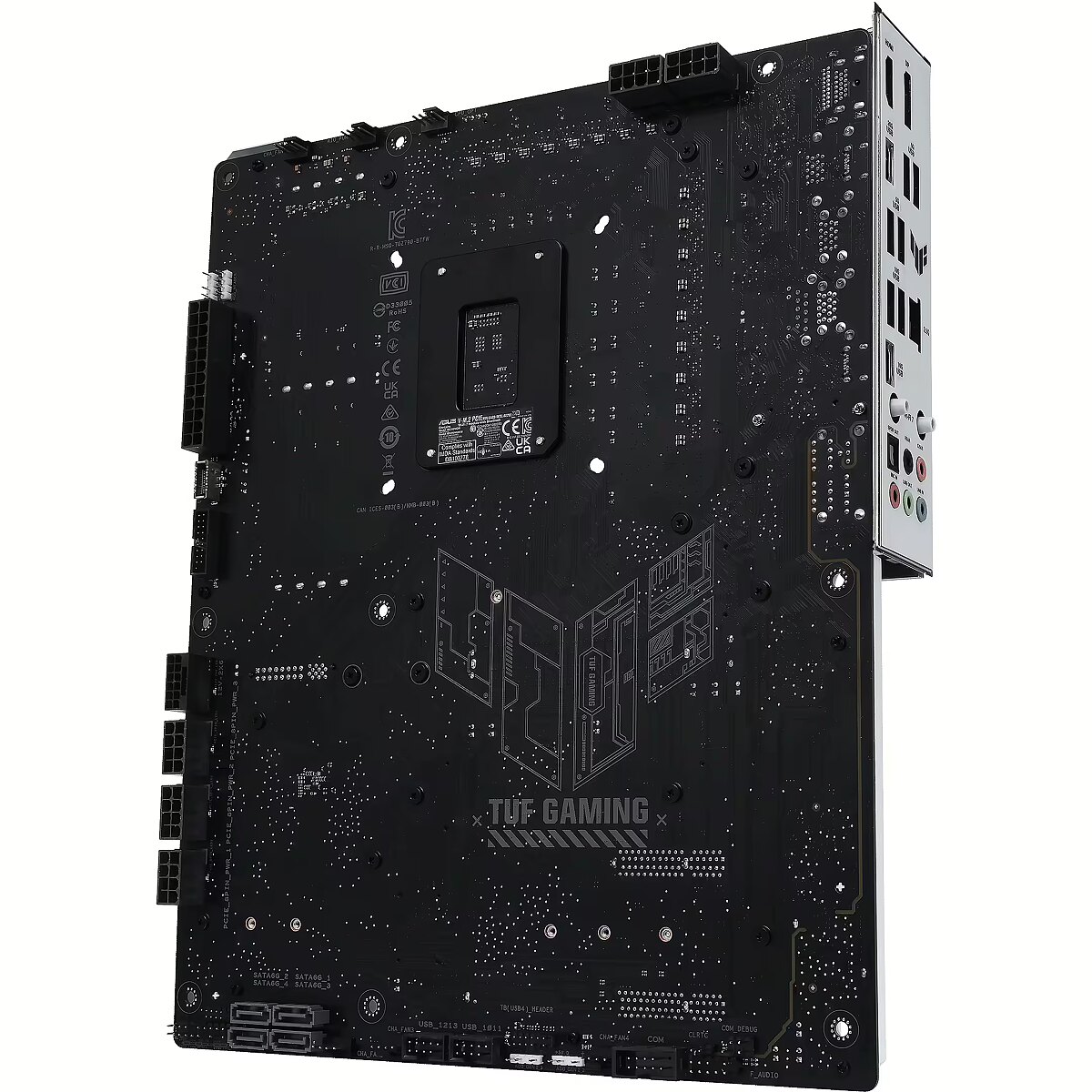

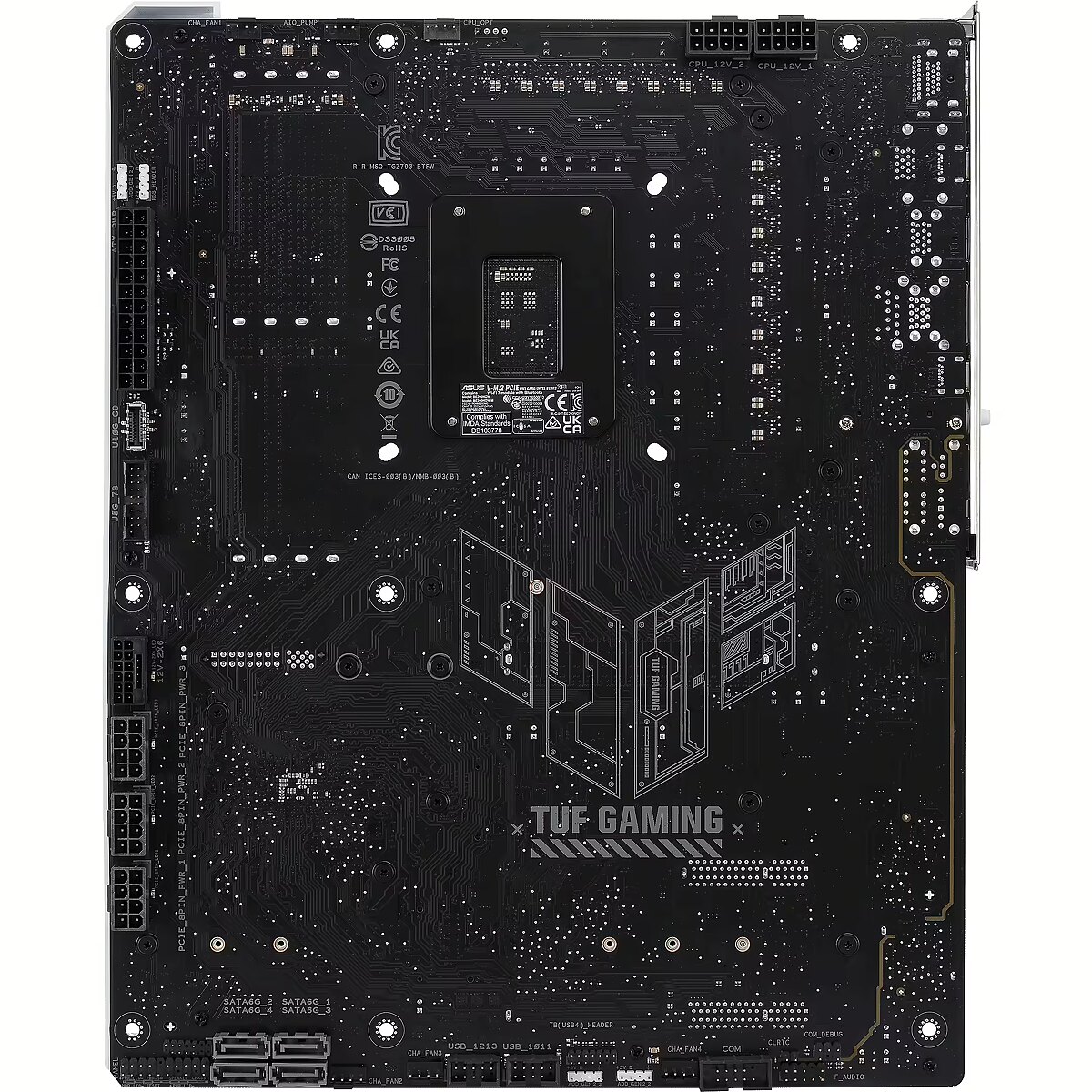

LongDesc - TUF GAMING Z790-BTF WIFITUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.EASY PC DIYThe TUF GAMING BTF lineup allows easy cable management and setup for builders of all levels. The ASUS BTF Alliance ecosystem confirms compatibility, while Armoury Crate displays hardware information and makes it easy to adjust Fan Xpert 4, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Optimized Cable ManagementThe hidden-connector design can be ideal for a first-time builder, because it allows easier cable management and also enhances a build’s appearance by presenting neat and clean internals.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING Z790-BTF WIFI is the perfect foundation for your next Intel battle rig.
LongSummaryDescription - ASUS TUF GAMING Z790-BTF WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LongProductName - Intel Socket LGA1700, Z790 Chipset, 4 x DIMM slots, Max. 192GB, DDR5 7200
Processor - Processor socket - LGA 1700
Processor - Processor manufacturer - Intel
Processor - Supported processor sockets - LGA 1700
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Number of storage drives supported - 8
Internal I/O - Number of COM connectors - 1
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1

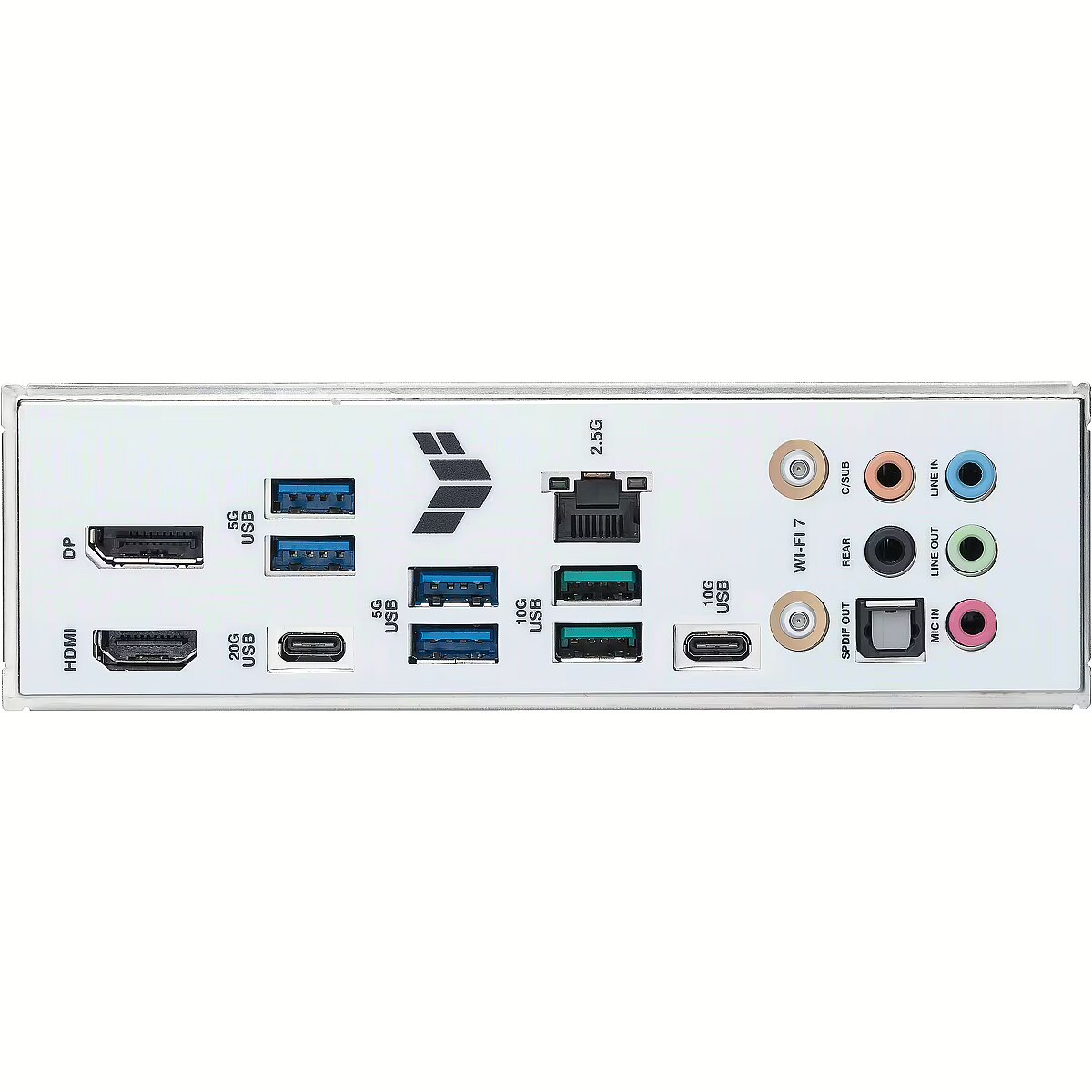

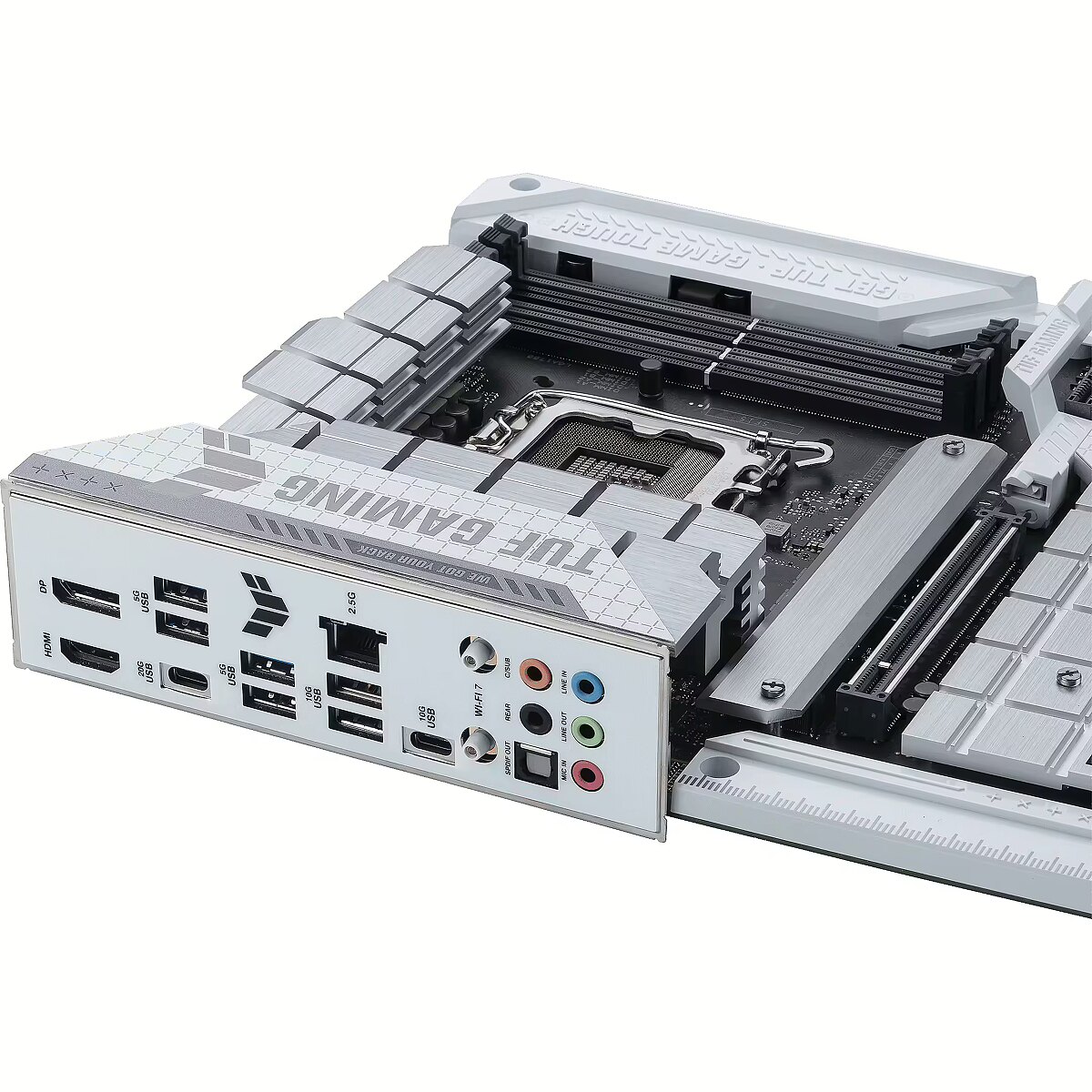

Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
ProductName - TUF GAMING Z790-BTF WIFI
Producer - Asus
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer_code - 90MB1GU0-M0EAY0
ProducerCode - TUF GAMING Z790-BTF WIFI
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-btf-wifi/techspec/
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet LAN - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
