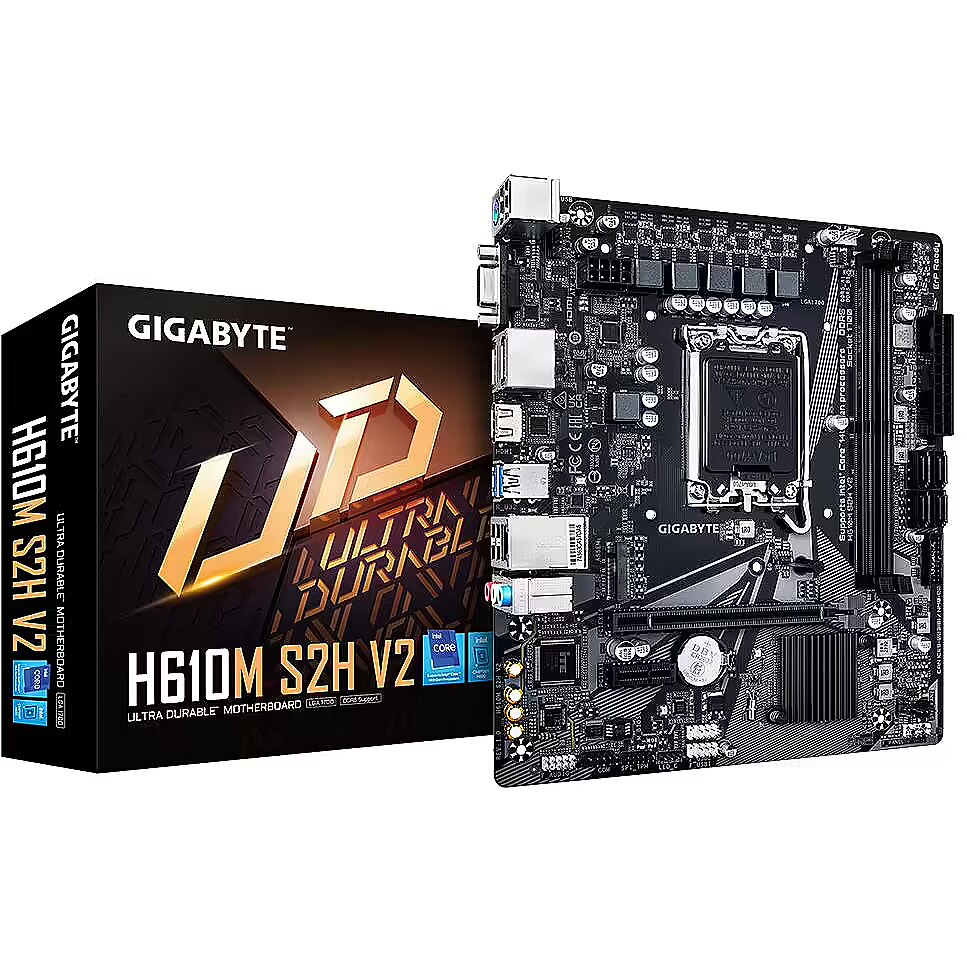

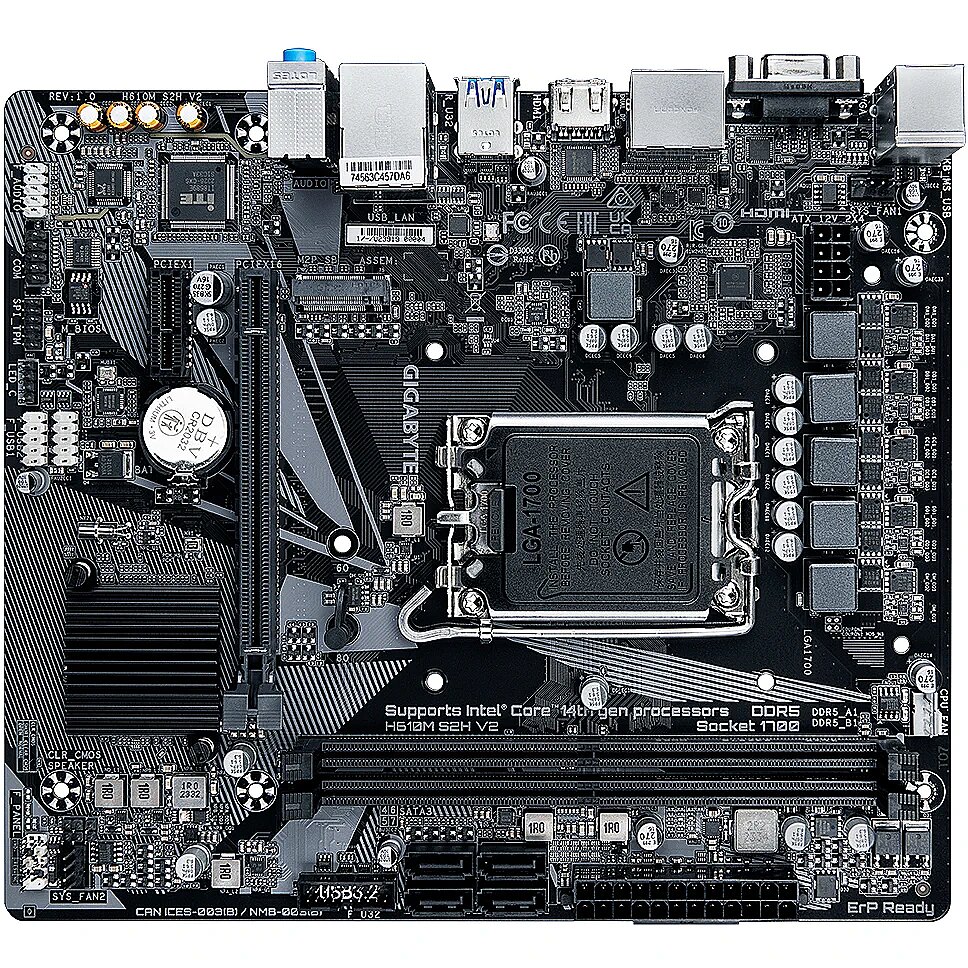

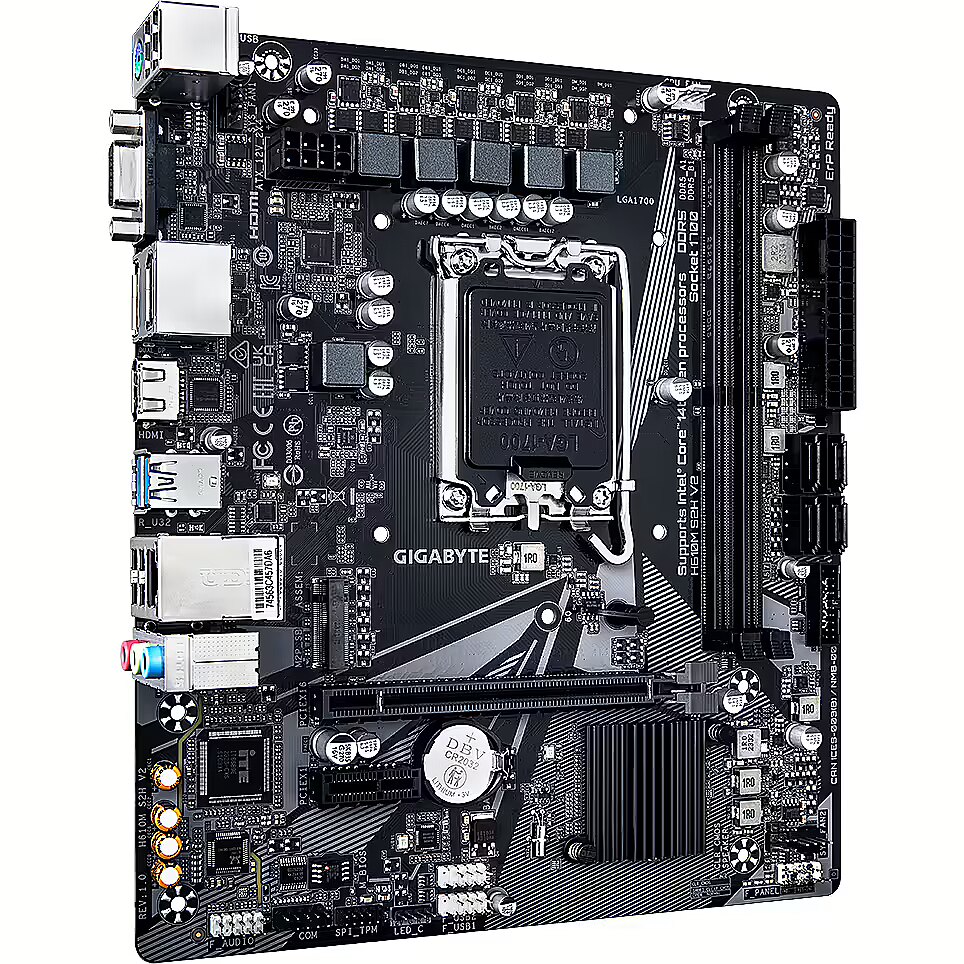

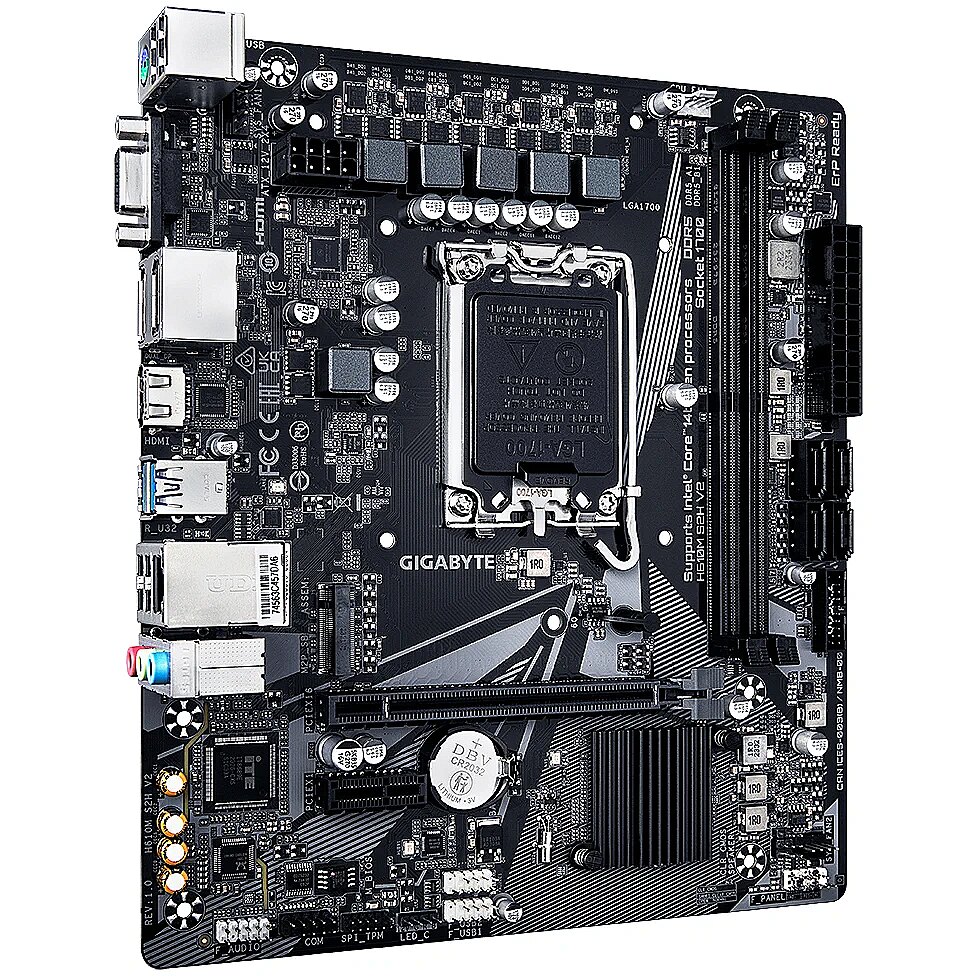

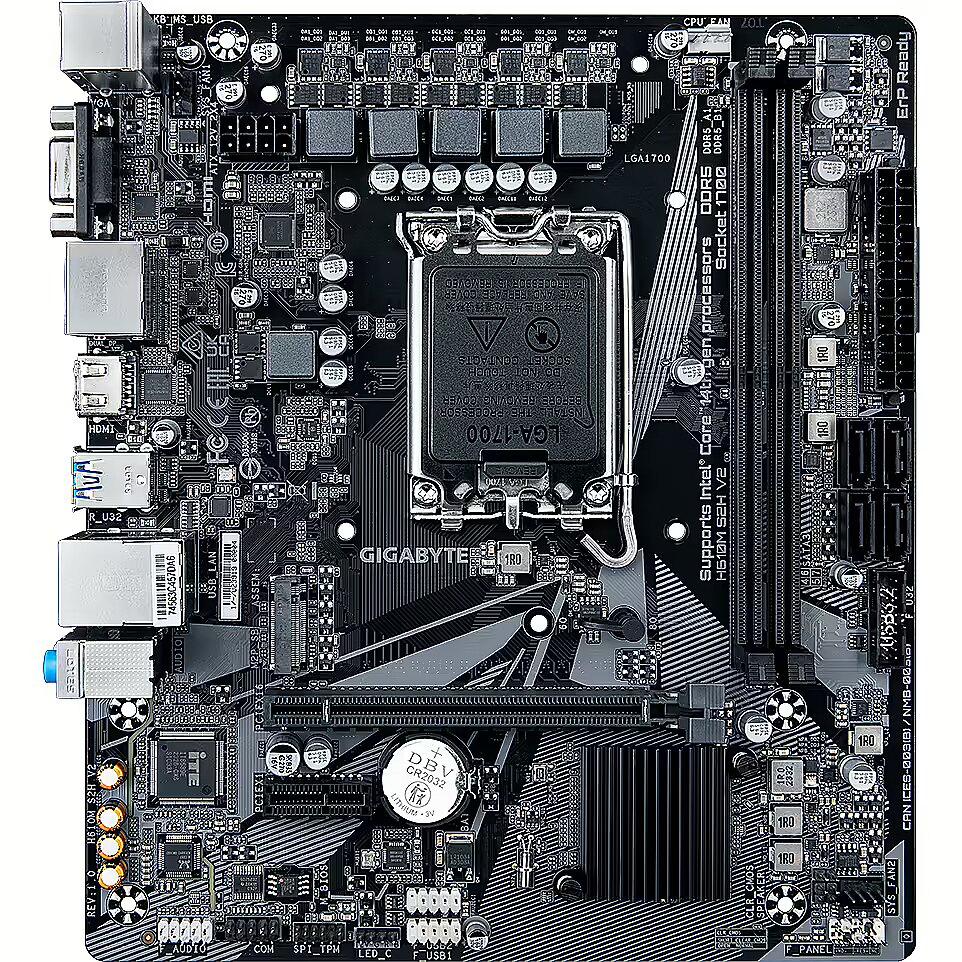

Gigabyte H610M S2H V2

12V power connector Internal I/O - Yes
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - H610M S2H V2
Bundled software Packaging content - Norton® Internet Security (OEM version)
LAN bandwidth management software
Cables included Packaging content - SATA
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset manufacturer - Intel
Chipset type - Intel H610 Express
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
CnCode - 84733020
Code - H610M S2H V2 1.0
COM connector / port - Yes
Compatible processor series Processor - Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Component for Features - PC
Cooling type Features - Active
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Dane techniczne: Chipset płyty głównej - Intel H610
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 215 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel® Core™ 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR5, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.22*DisplayPort / HDMI / D-Sub Ports for Multiple DisplayHigh Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
Description - H610M S2H V2 (rev. 1.0) Supports Intel Core 14th/ 13th /12th processors Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs 4+1+1 Hybrid Digital VRM Design GbE LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
description_en - The Gigabyte H610M S2H V2 motherboard is designed for home, office, and budget gaming PCs using Intel 12th and 13th Gen processors (Alder Lake & Raptor Lake). This Micro ATX board supports DDR4 memory up to 64GB, fast NVMe storage via M.2 PCIe 4.0, graphics cards via PCIe 4.0 x16, and features full connectivity for peripherals and networking. Ideal for builds balancing price and performance.
Expanded Specifications: Form factor: Micro ATX Chipset: Intel H610 CPU socket: LGA 1700, Intel 12th & 13th Gen Memory support: DDR4, dual-channel, up to 64GB, XMP 2666/3200 MHz Expansion slots: 1 x PCIe 4.0 x16 (GPU) 1 x PCIe 3.0 x1 (additional cards) Storage: 1 x M.2 PCIe 4.0 NVMe / SATA 4 x SATA 6Gb/s Networking: 1 x Gigabit LAN (Intel I219-V) Wake-on-LAN support Audio: Realtek ALC897, 7.1 channel, High Definition Audio USB ports: Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal headers: USB 3.2 Gen 1, 4 x USB 2.0 BIOS: UEFI with EZ Flash 2, Q-Flash, Dual BIOS Power delivery: 6+2 phase VRM with premium chokes Cooling: VRM heatsinks, support for 3 case fans, temperature sensors RAID support: RAID 0, 1, 5, 10 Protection features: Overvoltage protection Short-circuit protection DRAM ESD protection Smart features: Smart Fan 5, customizable fan profiles Intel Optane Memory support: Yes OS compatibility: Windows 10/11, Linux Integrated Intel UHD Graphics support: Yes Case compatibility: Micro ATX Dimensions, m: Length 0.244; Width 0.217; Height 0.035 Weight, kg: 0.62 Gross weight, kg: 0.95
description_lv - Gigabyte H610M S2H V2 mātesplate ir paredzēta mājas, biroja un budžeta spēļu datoriem, izmantojot Intel 12. un 13. paaudzes procesorus (Alder Lake & Raptor Lake). Formāta Micro ATX plate atbalsta DDR4 atmiņu līdz 64 GB, ātrus NVMe diskus caur M.2 PCIe 4.0, grafiskās kartes caur PCIe 4.0 x16, kā arī pilnīgu savienojamību ar perifēriju un tīklu. Ideāli piemērota datoru būvēm ar optimālu cenas un veiktspējas līdzsvaru.
Paplašinātās specifikācijas: Formāts: Micro ATX Čipsets: Intel H610 Procesora ligzda: LGA 1700, Intel 12. & 13. paaudze Atmiņas atbalsts: DDR4, divkanālu, līdz 64 GB, XMP 2666/3200 MHz Paplašināšanas sloti: 1 x PCIe 4.0 x16 (GPU) 1 x PCIe 3.0 x1 (papildu kartes) Datņu glabāšana: 1 x M.2 PCIe 4.0 NVMe / SATA 4 x SATA 6Gb/s Tīkla iespējas: 1 x Gigabit LAN (Intel I219-V) Wake-on-LAN atbalsts Audio: Realtek ALC897, 7.1 kanāli, High Definition Audio USB porti: Aizmugure: 2 x USB 3.2 Gen 1, 4 x USB 2.0 Iekšējie savienojumi: USB 3.2 Gen 1, 4 x USB 2.0 BIOS: UEFI ar EZ Flash 2, Q-Flash, Dual BIOS Enerģijas piegāde: 6+2 fāžu VRM ar kvalitatīviem drosselēm Dzesēšana: VRM radiatori, atbalsts 3 korpusa ventilatoriem, temperatūras sensori RAID atbalsts: RAID 0, 1, 5, 10 Aizsardzības funkcijas: Aizsardzība pret pārspriegumu Īssavienojuma aizsardzība DRAM ESD aizsardzība Smart funkcijas: Smart Fan 5, pielāgojamas ventilatoru profili Intel Optane Memory atbalsts: Jā OS savietojamība: Windows 10/11, Linux Atbalsts Intel UHD Graphics: Jā Korpusa savietojamība: Micro ATX Izmēri, m: Garums 0.244; Platums 0.217; Augstums 0.035 Svars, kg: 0.62 Bruto svars, kg: 0.95
description_ru - Материнская плата Gigabyte H610M S2H V2 предназначена для сборки домашних, офисных и малобюджетных игровых ПК на базе процессоров Intel 12-го и 13-го поколения (Alder Lake и Raptor Lake). Плата формата Micro ATX поддерживает память DDR4 до 64 ГБ, быстрые NVMe накопители через M.2 PCIe 4.0, видеокарты через PCIe 4.0 x16, а также оснащена всеми необходимыми интерфейсами для периферии и сетевого подключения. Идеальна для сборок с оптимальным соотношением цены и производительности.
Расширенные характеристики: Форм-фактор: Micro ATX Чипсет: Intel H610 Сокет процессора: LGA 1700, поддержка Intel 12-го и 13-го поколения Поддержка памяти: DDR4, двухканальная, до 64 ГБ, поддержка XMP 2666/3200 МГц Слоты расширения: 1 x PCIe 4.0 x16 (для видеокарты) 1 x PCIe 3.0 x1 (дополнительные карты) Хранение данных: 1 x M.2 PCIe 4.0 NVMe / SATA 4 x SATA 6 Гбит/с Сетевые возможности: 1 x Gigabit LAN (Intel I219-V) Поддержка Wake-on-LAN Аудио: Realtek ALC897, 7.1 канальный, поддержка High Definition Audio USB порты: Задняя панель: 2 x USB 3.2 Gen 1, 4 x USB 2.0 Внутренние разъёмы: USB 3.2 Gen 1, 4 x USB 2.0 BIOS: UEFI с поддержкой EZ Flash 2, Q-Flash, Dual BIOS Энергопитание: 6+2 фазная система питания с качественными дросселями Охлаждение: радиаторы на VRM, поддержка 3 корпусных вентиляторов, температурные датчики Поддержка RAID: RAID 0, 1, 5, 10 Особенности защиты: Защита от перенапряжения Защита от короткого замыкания Защита DRAM от статического электричества Функции Smart: Smart Fan 5 с индивидуальной настройкой вентиляторов Поддержка Intel Optane Memory: Да Совместимость с ОС: Windows 10/11, Linux Поддержка процессоров с графикой Intel UHD: Да Формат корпуса: Micro ATX Размеры, м: Длина 0.244; Ширина 0.217; Высота 0.035 Вес, кг: 0.62 Вес брутто, кг: 0.95
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
dimensionalWeight - 660
dimension depth - 50 mm
dimension height - 235 mm
Dimensions - 22.3 x 19.6 cm
dimension weight - 700 g
dimension width - 270 mm
DisplayPorts quantity Rear panel I/O ports - 1
DVI-D ports quantity Rear panel I/O ports - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
EAN - 4719331859817
ean - 4719331859817
Eans - 4719331859817
EAN_code - 4719331859817
ECC ?ompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

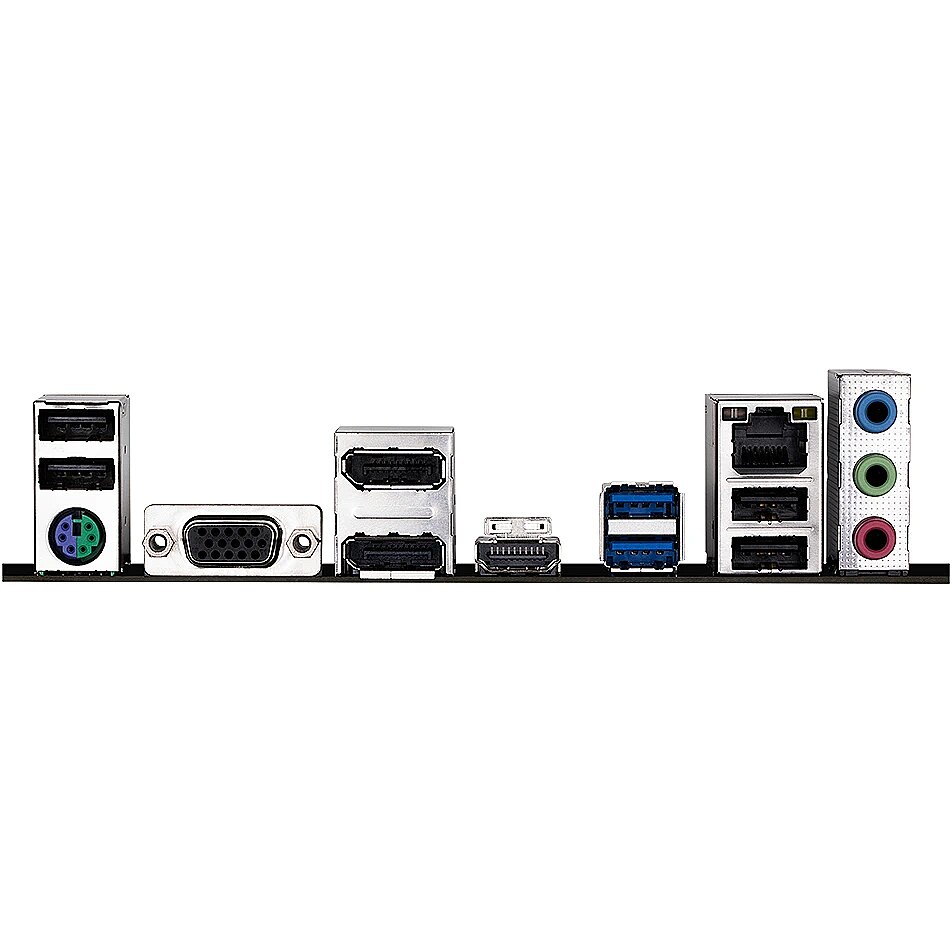

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x DisplayPort
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, LED, Temperature, Voltage, Water cooling
Features - PC health monitoring - LED
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Generation - Fourteenth
Generation - Thirteenth
Generation - Twelve
Graphics - Integrated Graphics Processor - Intel HD Graphics support 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version and HDCP 2.3.; Support native HDMI 2.1 TMDS compatible ports.) 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz (Support for DisplayPort 1.2 version and HDCP 2.3.)
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® HD Graphics
Graphics card family Graphics - Intel
Graphics card Graphics - HD Graphics
gross_weight - 0.95 kg
GTIN - 0889523040966
GTIN - 889523040966
GTIN - 4719331859817
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek GbE LAN)
Link - https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M S2H V2
Max. number of SATA devices - 4
Maximum internal memory Memory - 96 GB
Maximum internal memory supported by processor Processor - 96 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 4400 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - H610M S2H V2
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610 Express
Motherboard form factor Features - micro ATX
MPN - H610M S2H V2
Name - 1700 Gigabyte H610M S2H V2 mATX
Name - Gigabyte H610M S2H V2
Name - GIGABYTE H610M S2H V2 - Socket 1700 - motherboard
Name - Gigabyte | H610M S2H V2 1.0 | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard H610M S2H V2 s1700 2DDR 5 DP/HDMI/DSUB M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Number of battery cells Battery - 1
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 1
Number of DDR5 slots - 2
Number of HDDs supported Storage controllers - 4
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 1
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
On-board graphics card Graphics - Yes
On-board graphics card model Graphics - Intel HD Graphics
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other features - Supported DIMM module capacities - 8GB
Other features - Supported DIMM module capacities - 8GB, 16GB
Other features - Supported DIMM module capacities - 16GB
Package depth Packaging data - 235 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross height (mm) - 20 mm
Package features > Gross width (mm) - 225 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 853 pc(s)
Package features > Paper/Pasteboard - 190 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.0010125 m³
Package features > WEEE tax - No
Package height Packaging data - 52 mm
Package weight Packaging data - 690 g
Package width Packaging data - 265 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 690 g
Packaging data - Package width - 265 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
PC health monitoring Features - Fan/LED/Temperature/Voltage/Water cooling
PCI Express x1 slots Expansion slots - 1
PCI Express x16 slots Expansion slots - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
Processor family - Intel Pentium Gold
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven

producer - Gigabyte
Producer - Gigabyte
producerCode - H610M S2H V2
ProducerCode - H610M S2H V2
Product colour Features - Black
productName - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Product Net Weight - 0.5 kg
productSize - Normal
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Avoid direct contact with electronics to prevent electrostatic damage.
Safety warning - Warnings - Before starting any maintenance or installation, disconnect the product from the power supply.
Safety warning - Warnings - Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Serial port headers Internal I/O - 1
ShortDescription - Socket 1700| Chipset Intel H610 | DDR5 |
ShortSummaryDescription - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 96 GB, DDR5-SDRAM
sizeX - 265
sizeY - 235
sizeZ - 53
Software - Norton Internet Security (wersja OEM) LAN bandwidth management software
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Special functions - Wsparcie dla APP Center Obsługa @ BIOS EasyTune Smart Backup System Information Viewer Obsługa Q-Flash
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 1
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet
Supported DIMM module capacities Other features - 16GB/8GB
Supported memory clock speed (max) Memory - 5600 MHz
Supported memory clock speeds Memory - 4400/4800/5200/5600 MHz
Supported memory module capacities Memory - 12GB/1GB/2GB/32GB/48GB/4GB/8GB
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,SATA
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.8 kg
Technical details > Net weight - 0.6 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - H610M S2H V2 1.0
Technical_details - The GIGABYTE H610M S2H V2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The GIGABYTE H610M S2H V2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE H610M S2H V2 also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports and a number of USB interfaces. Item no.: 100038227 Mainboard type EAN 4719331859817 Manufacturer no. H610M S2H V2 Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® H610 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes BIOS 128 Mbit UEFI AMI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 96 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller Intel® H610 USB controller Intel® H610 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Realtek GbE LAN Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 197mm x Height: 188mm
Title - GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
title_en - Gigabyte H610M S2H V2 Motherboard Intel H610 / Socket LGA 1700 / Micro ATX / DDR4 / PCIe 4.0
title_lv - Gigabyte H610M S2H V2 Mātesplate Intel H610 / Socket LGA 1700 / Micro ATX / DDR4 / PCIe 4.0
title_ru - Gigabyte H610M S2H V2 Материнская плата Intel H610 / Socket LGA 1700 / Micro ATX / DDR4 / PCIe 4.0
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.235
Unit Calculated Volume - 0.004113 cubm
Unit Calculated Weight - 0.787 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.gigabyte.com
vendpn - H610M S2H V2
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
Warranty period Technical details - 3 year(s)
warrantyType - G
weight - 0.62 kg
Weight - 0.701
Weight - 1,30
weight - 690
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 196 mm
Wymiary: Wysokość - 223 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x Display Port
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
