Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - A620M H
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD A620
Chipset manufacturer - AMD
Chipset type - AMD A620
code - A620M H
Code - A620M H
COM connector / port - No
CPU socket - Socket AM5
Description - A620M H (rev. 1.2) - AMD Socket AM5:Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors - Unparalleled Performance:5+2+2 Phases Digital VRM Solution - Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support - SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector - EZ-Latch:PCIe x16 Slot with Quick Release Design - Fast Networks:GbE LAN - Extended Connectivity:DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Description - AMD AM5 socket: Supports AMD Ryzen 7000 series processors Unrivaled performance: 5+2+2 phase digital VRM solution Dual-channel DDR5 memory: 2*SMD DIMMs with support for AMD EXPO and Intel XMP memory modules Super-fast storage: PCIe 4.0 x4 M.2 EZ-Latch: PCIe x16 slot with Quick Release design Fast networks: GbE LAN Extended connectivity: DP, HDMI Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function Q-Flash Plus: BIOS update without installing CPU, memory and graphics card
Detailed data on disk/drive interfaces - CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
dimensionalWeight - 899
dimension depth - 55 mm
dimension height - 265 mm
Dimensions - 23 x 22.5cm
dimension weight - 820 g
dimension width - 265 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331855512
ean - 4719331855512
EAN_code - 4719331855512
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

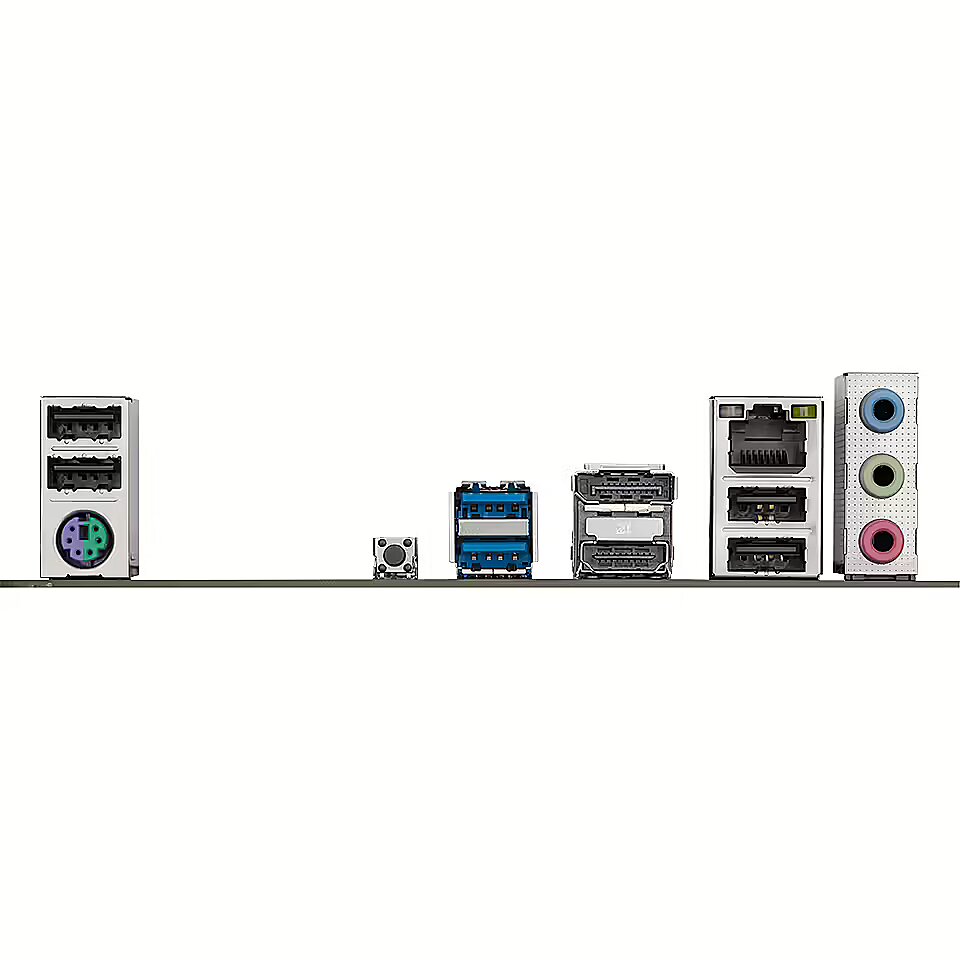

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A620
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz
Full Description Line - AMD A620|SAM5|Micro-ATX|DDR5|7200/6800/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 2|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.40 kg
Gross Weight Kg - 0,9
GTIN - 4719331855512
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Yes
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.aorus.com/motherboards/A620M-H-rev-10/Key-Features
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - A620M H
Manufacturer Name - Gigabyte
Manufacturer_code - A620M H
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 96 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6400,6800,7200 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 133 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
Model - A620M H
Model - A620M H 1.2
MPN - A620M H
name - A620M H AM5 2DDR5 HDMI/DP M.2 mATX
Name - AM5 Gigabyte A620M H
name - GIGABYTE A620M H, AMD A620 Mainboard - Sockel AM5, DDR5
Name - GIGABYTE A620M H - Socket AM5 - motherboard
Name - Gigabyte | A620M H 1.0 M/B | Processor family AMD | Processor socket AM5 | DDR5 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD A620 | Micro ATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information - Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning * Whether fan speed control is supported depends on the installed fan.
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 240.00 mm
Package features > Gross depth master carton - 286 mm
Package features > Gross height (mm) - 95.00 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 240.00 mm
Package features > Gross width master carton - 380 mm
Package features > Net weight master carton - 9.665 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 316 pc(s)
Package features > Paper/Pasteboard - 150.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.684 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 897 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD A620
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Compatible processor series - Supports AMD Ryzen 7000 Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
producerCode - A620M H
ProductName - A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
productName - GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
Product Net Weight - 0.5 kg
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 28.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 9.21 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
Short description - GIGA A620M H AM5/DDR5/µATX
ShortSummaryDescription - GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, 96 GB, DDR5-SDRAM
sizeX - 274
sizeY - 269
sizeZ - 61
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Special functions - GIGABYTE Control Center (GCC) Support * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Support for Q-Flash Plus Q-Flash support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 1.20 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - A620M H 1.0 M/B
Technical_details - The GIGABYTE A620M H is based on the AMD A620 chipset and supports AMD processors for Socket AM5. It has two DDR5 slots for up to 96 GB of memory. The GIGABYTE A620M H also features a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE A620M H also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, an M.2 port, CPU-dependent graphics outputs for DisplayPort and HDMI as well as a number of USB interfaces.Art. -No.: 100025060 Mainboard type EAN 4719331855512 Manufacturer no. A620M H Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD A620 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes BIOS 256 Mbit flash AMI UEFI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 96 GB Connections (external) Mouse/Keyboard Combo (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller AMD A620 Directly usable RAID levels 0, 1, 10 USB controller AMD A620 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek LAN Realtek GbE LAN chip Further information The graphics interfaces of the mainboard can only be used when using a processor with an integrated graphics chip. Dimensions Width: 230mm x Height: 225mm
Title - GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.27
Unit Box Width - 0.265
Unit Calculated Volume - 0.004752 cubm
Unit Calculated Weight - 0.921 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.gigabyte.com/Motherboard/A620M-H-rev-12#kf
vendpn - A620M H
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,82
Weight - 0.82
weight - 808
Weight & dimensions - Depth - 225 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
