BIOS - ACPI version - 6.5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - System Management BIOS (SMBIOS) version - 3.7
Brand - MSI
BrandPartCode - PRO B840M-P WIFI6E
Category - Motherboards
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset manufacturer - AMD
Chipset type - AMD B840
Code - PRO B840M-P WIFI6E
COM connector / port - Yes
CPU socket - Socket AM5
Description - Obudowa PRO B840M-P WIFI6E oferuje prosty design z harmonijną, srebrną kolorystyką, która idealnie pasuje zarówno do białych, jak i czarnych komputerów. Została zaprojektowana z wieloma ekskluzywnymi funkcjami MSI, w tym Wi-Fi 6E z anteną EZ, kartą sieciową 2.5G LAN oraz gniazdem PCIe 4.0 M.2, a także jest gotowa na procesory AMD Ryzen serii 9000. BIZNESOWA ELEGANCJA
Seria PRO została stworzona z myślą o profesjonalistach z różnych środowisk. Seria charakteryzuje się imponującą wydajnością i wysoką jakością, a jednocześnie zapewnia użytkownikom niesamowite wrażenia. Użytkownicy, którym zależy na produktywności i wydajności, z pewnością mogą liczyć na serię MSI PRO, która pomoże im w wielozadaniowości i zwiększeniu efektywności. Obsługuje procesory AMD Ryzen serii 9000/8000/7000 do komputerów stacjonarnych Obsługuje pamięć DDR5, dwukanałową pamięć DDR5 8000+ MT/s (OC) Ultrawydajność: System zasilania Direct 7+2+1 z P-PAK, 8-pinowe złącze zasilania procesora, Core Boost, Memory Boost, 6-warstwowa płytka PCB wykonana z 2 uncji miedzi (50 g) Frozr Guard: Rozszerzony radiator, termopady MOSFET o wydajności 7 W/mK i dodatkowe termopady dławikowe zapewniają wysoką wydajność systemu i nieprzerwaną pracę EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II i EZ Antenna Błyskawiczna gra: Gniazdo PCIe 4.0 i Lightning Gen 4 x4 M.2 Sieć LAN 2.5G z Wi-Fi 6E: Niezwykłe rozwiązanie do zastosowań profesjonalnych i multimedialnych, zapewniające bezpieczną, stabilną i szybką transmisję danych i sieci Audio Boost: Nagradzaj swoje uszy dźwiękiem o jakości studyjnej jakość dźwięku dla najbardziej wciągających wrażeń z gry
description_en - Manufacturer: MSI
Model Name: PRO B840M-P WIFI6E
Chipset: Intel B840
Socket: LGA 1851 (Supports Intel Core Ultra Processors)
Form Factor: Micro-ATX (mATX)
Memory Support: DDR5 Memory (Dual Channel)
Wireless Connectivity: Wi-Fi 6E Module, Bluetooth 5.3
Network: 2.5G LAN
Expansion Slots: 1 x PCIe 5.0/4.0 x16 slot
Storage Interface: M.2 Gen4 Slots, SATA 6Gb/s ports
Video Outputs: HDMI, DisplayPort
Features: Steel Armor, Frozr AI Cooling, EZ M.2 Clip
description_lv - Ražotājs: MSI
Modeļa nosaukums: PRO B840M-P WIFI6E
Čipsets: Intel B840
Ligzda: LGA 1851 (atbalsta Intel Core Ultra procesorus)
Formas faktors: Micro-ATX (mATX)
Atmiņas atbalsts: DDR5 atmiņa (divkanālu)
Bezvadu savienojums: Wi-Fi 6E modulis, Bluetooth 5.3
Tīkls: 2.5G LAN
Paplašināšanas sloti: 1 x PCIe 5.0/4.0 x16 slots
Atmiņas saskarne: M.2 Gen4 sloti, SATA 6Gb/s porti
Video izejas: HDMI, DisplayPort
Funkcijas: Steel Armor, Frozr AI dzesēšana, EZ M.2 klipsis
description_ru - Производитель: MSI
Модель: PRO B840M-P WIFI6E
Чипсет: Intel B840
Разъём: LGA 1851 (поддерживает процессоры Intel Core Ultra)
Форм-фактор: Micro-ATX (mATX)
Поддержка памяти: DDR5 (двухканальная)
Беспроводное подключение: модуль Wi-Fi 6E, Bluetooth 5.3
Сеть: 2.5G LAN
Слоты расширения: 1 x PCIe 5.0/4.0 x16
Интерфейс накопителей: слоты M.2 Gen4, порты SATA 6 Гбит/с
Видеовыходы: HDMI, DisplayPort
Особенности: Steel Armor, система охлаждения Frozr AI, зажим EZ M.2
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
dimensionalWeight - 1058
dimension depth - 75 mm
dimension height - 280 mm
Dimensions - 243.84 x 243.84 mm
dimension weight - 1240 g
dimension width - 290 mm
EAN - 4711377361804
ean - 4711377361804
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - 2 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Expansion slots - PCI Express x16 slots - 2
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B840
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - 1x HDMI Obsługa HDMI 2.1, maksymalna rozdzielczość 4K 60 Hz
Graphics - On-board graphics card - No
gross_weight - 1.2 kg
GTIN - 4711377361804
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 3
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-B840M-P-WIFI6E
LongDesc - PRO B840M-P WIFI6EPRO B840M-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 4.0 M.2, ready for the AMD Ryzen™ 9000 series processors.BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.DIRECT 7+2+1 POWER DESIGNUnleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B840M-P WIFI6E is ready for the challenge of heavy-loading tasks.OPTIMIZED PCB SOLUTIONThe PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.
LongProductName - Socket AM5, AMD B840 Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX
LongSummaryDescription - MSI PRO B840M-P WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
LPT connector / port - No
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5600,8000 MHz
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 8000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 8000 MHz
Memory type - DDR5
Model -
Model - PRO B840M-P WIFI6E
name - Motherboard PRO B840M-P WIFI6E AM5 4DDR5 ATX
Name - MSI PRO B840M-P WIFI6E | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125D
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11ac
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - 802.11n
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 8125D 2.5G LAN Wi-Fi 6E Moduł bezprzewodowy jest preinstalowany w gnieździe M.2 (Key-E) Obsługuje MU-MIMO TX/RX, 2,4 GHz/5 GHz/6 GHz* (160 MHz) do 2,4 Gb/s Obsługuje 802.11 a/b/g/n/ac/ax Obsługuje Bluetooth 5.3**, FIPS, FISMA
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x Tuning Controller connector
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x USB 2.0/1.1
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 272 mm
Package features > Gross height (mm) - 280 mm
Package features > Gross width (mm) - 70 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 324 pc(s)
Package features > Paper/Pasteboard - 350.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > TI weight (kg) - 0.08 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0053312 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Antenna included - Yes
Packaging content - Quick installation guide - Yes
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
Producer - MSI
producerCode - PRO B840M-P WIFI6E
productName - MSI PRO B840M-P WIFI6E motherboard
ProductName - PRO B840M-P WIFI6E
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortSummaryDescription - MSI PRO B840M-P WIFI6E, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 70
sizeY - 270
sizeZ - 280
Sound card - Realtek ALC897 7.1-Channel High Definition Audio
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, Micro SATA III
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 2.00 kg
Technical details > Net weight - 1.60 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO B840M-P WIFI6E
Title - MSI PRO B840M-P WIFI6E motherboard AMD B840 Socket AM5 micro ATX
title_en - MSI PRO B840M-P WIFI6E Intel B840 Motherboard
title_lv - MSI PRO B840M-P WIFI6E Intel B840 Mātesplate
title_ru - MSI PRO B840M-P WIFI6E Intel B840 Материнская плата
URL - https://www.msi.com/Motherboard/PRO-B840M-P-WIFI6E
USB ports at back panel - 8
USB ports on motherboard - 7

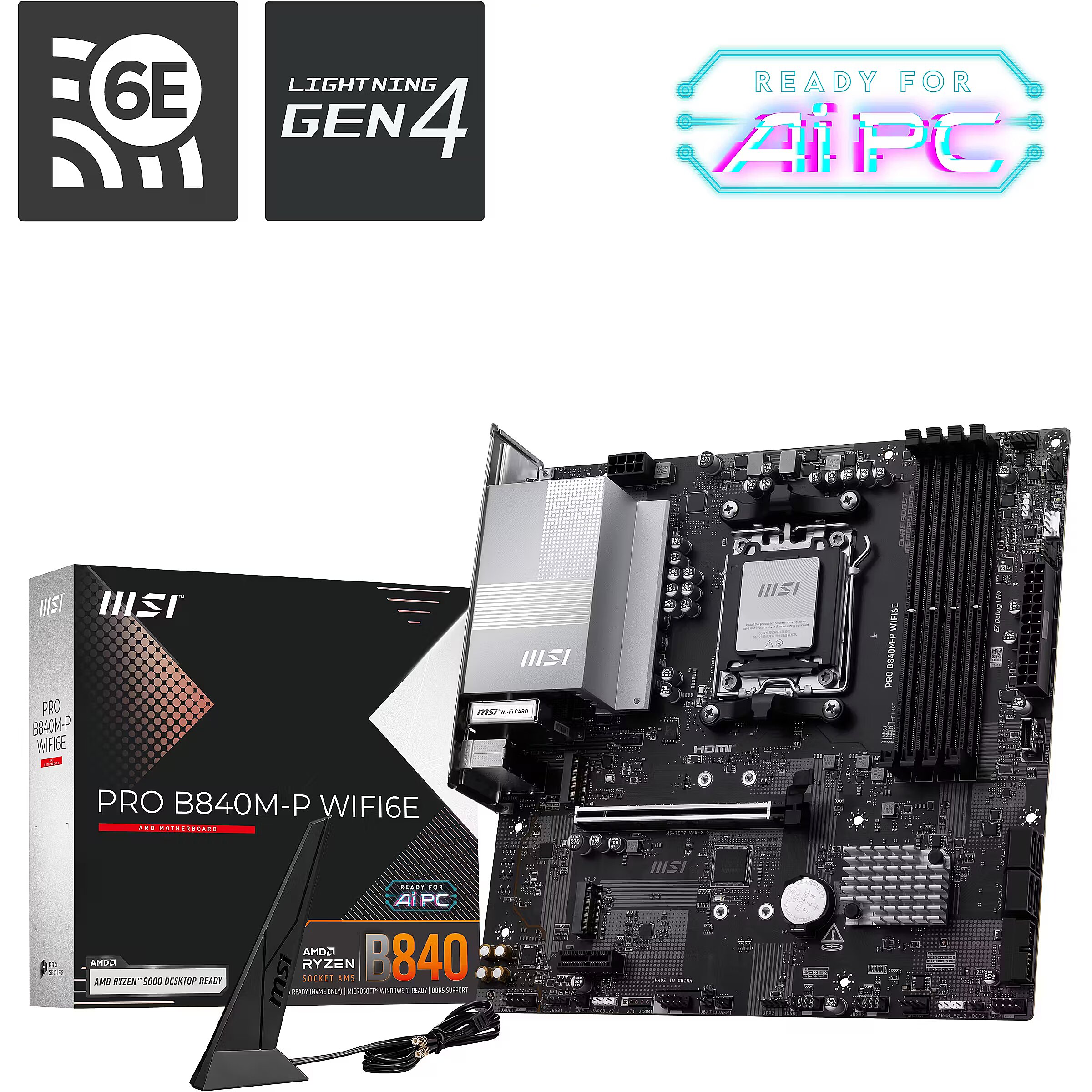

vendpn - PRO B840M-P WIFI6E
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 0.8 kg
weight - 1225
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
