1st M.2 highest PCI Express generation Expansion slots - 5.0
1st M.2 largest key size Expansion slots - 2280
2nd M.2 highest PCI Express generation Expansion slots - 4.0
2nd M.2 largest key size Expansion slots - 2280
3rd M.2 highest PCI Express generation Expansion slots - 4.0
3rd M.2 largest key size Expansion slots - 22110
12V power connector Internal I/O - Yes
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.3
Brand - ASUS
BrandPartCode - 90MB1M00-M0EAY0
Number of COM connectors Internal I/O - 1
CPU fan connector Internal I/O - Yes
Number of CPU fan connectors Internal I/O - 1
DisplayPorts quantity Rear panel I/O ports - 1
EAN_code - 4711387975596
ECC сompatibility Memory - ECC & Non-ECC
Motherboard chipset Features - AMD B650
Motherboard chipset family Features - AMD
Motherboard form factor Features - ATX
EPS power connector (8-pin) Internal I/O - Yes
Category_1 - Motherboards
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Ethernet LAN Network - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Warranty - 36 months
WarrantyInfo -
GTIN - 0197105975590
GTIN - 197105975590
GTIN - 4711387975596
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
HDMI ports quantity Rear panel I/O ports - 1
Cooling type Features - Passive
Cables included Packaging content - SATA
Weight - 1,65
Weight & dimensions - Width - 305 mm
Weight & dimensions - Depth - 244 mm
Category - Motherboards
Category Code - MBA
Category_2 - Motherboards - AMD AM5

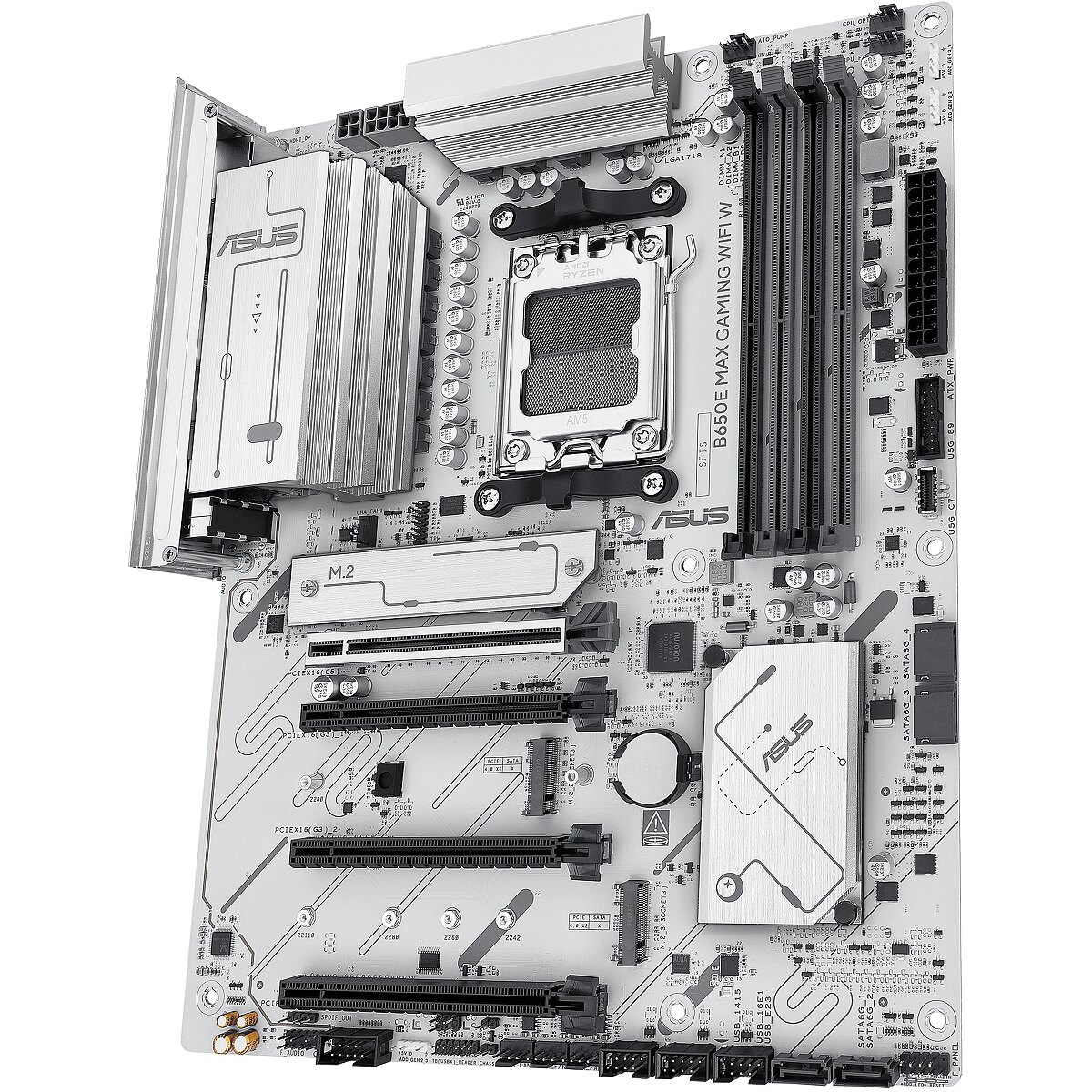

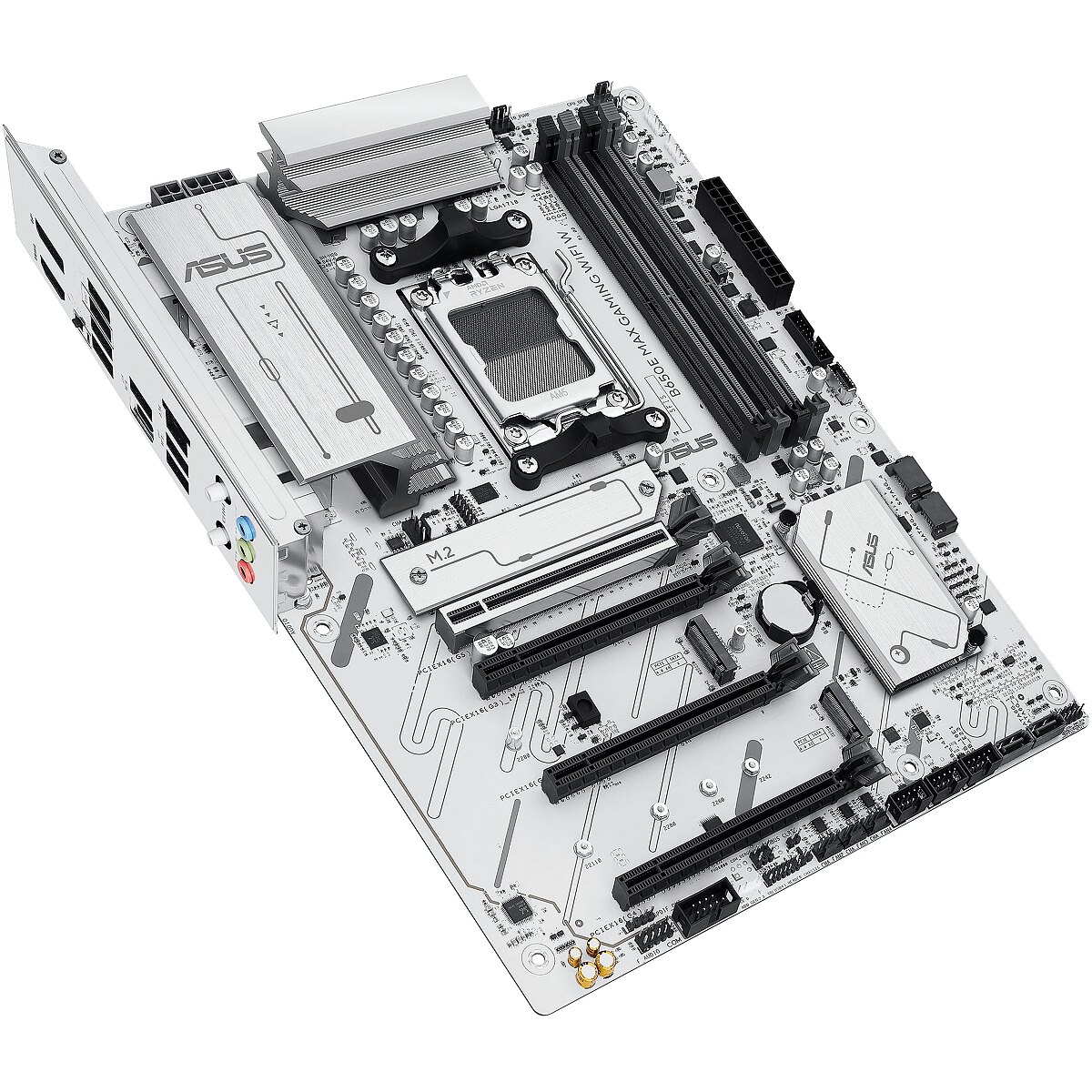

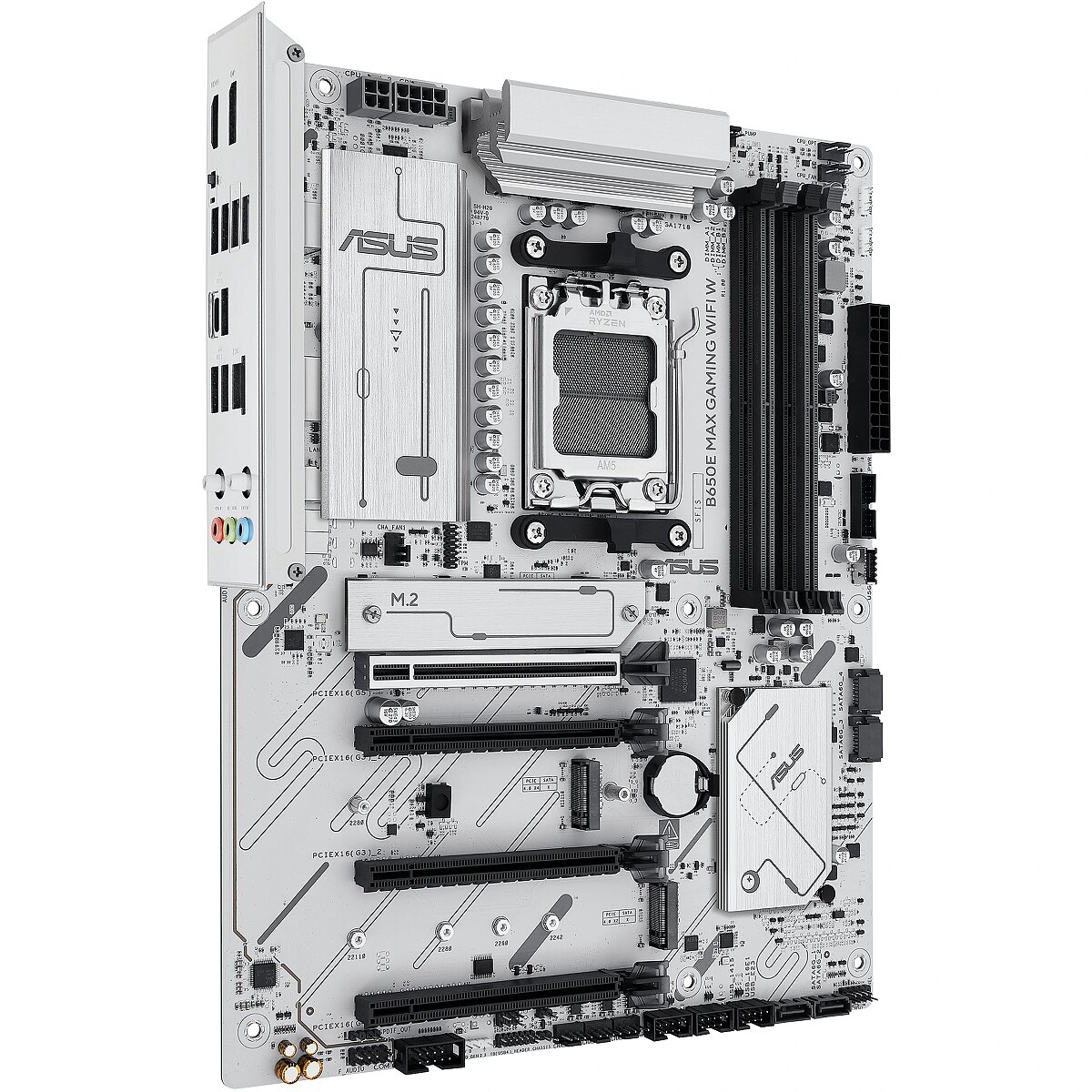

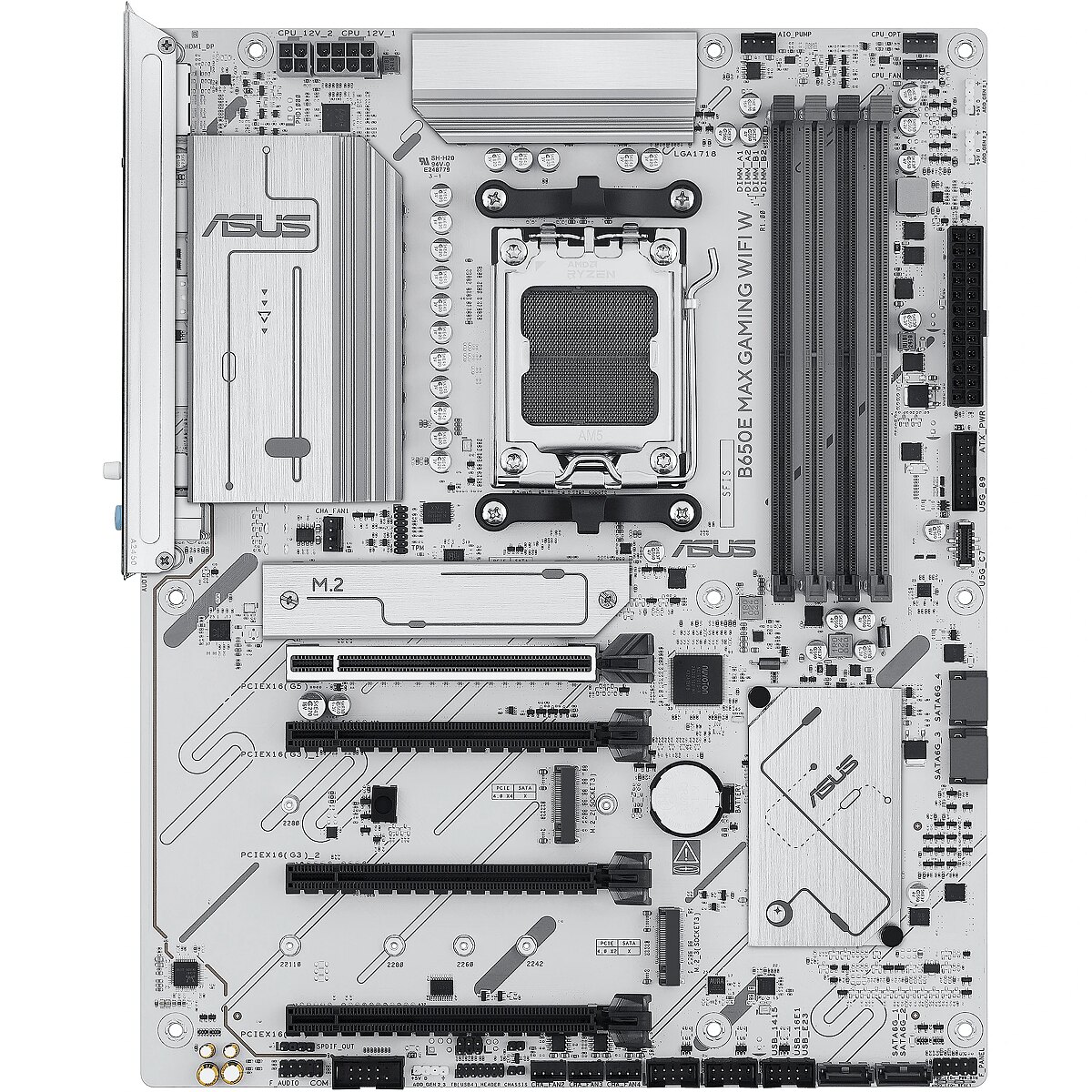

Description - B650E MAX GAMING WIFI W
ASUS B650E series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B650E MAX GAMING WIFI W provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop ProcessorsUltrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A & Type-C® ports, and front USB 5Gbps Type-C® supportComprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Antenna, Q-LED CoreUnmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lightingCEC Tier II ready
Summary - ASUS B650E MAX GAMING WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Component for Features - PC
Screws included Packaging content - Yes
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Width Weight & dimensions - 305 mm
Line-in Rear panel I/O ports - Yes
ShortSummaryDescription - ASUS B650E MAX GAMING WIFI W, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Number of M.2 (M) slots Expansion slots - 3
Maximum internal memory Memory - 256 GB
Microphone in Rear panel I/O ports - Yes
Model - B650E MAX GAMING WIFI W
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Number of memory slots - 4
Memory - Memory slots type - DIMM
Memory - Unbuffered memory - Yes
Memory - Supported memory types - DDR5-SDRAM
Memory channels Memory - Dual-channel
Number of memory slots Memory - 4
Memory slots type Memory - DIMM
Vendor Homepage - https://www.asus.com/motherboards-components/motherboards/others/b650e-max-gaming-wifi-w/
Name - Asus B650E MAX GAMING WIFI W (white) - Socket AM5
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Cooling type - Passive
Features - Component for - PC
Features - Product colour - White
Packaging data - Package weight - 1.26 kg
Packaging data - Package height - 68 mm
Packaging data - Package width - 353 mm
Packaging data - Package depth - 273 mm
Package weight Packaging data - 1260 g
Package height Packaging data - 68 mm
Package width Packaging data - 353 mm

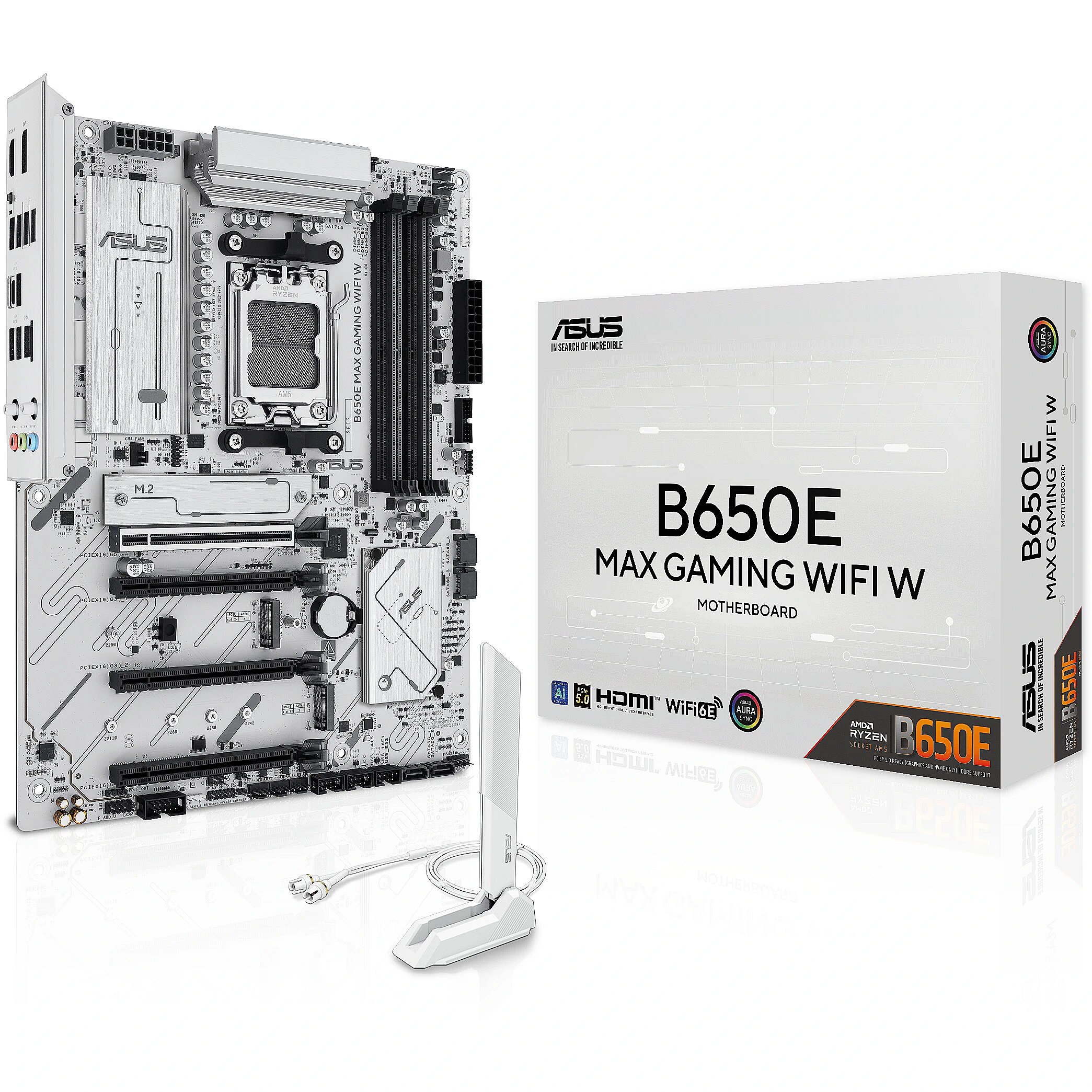

Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Package depth Packaging data - 273 mm
Parallel processing technology support Graphics - Not supported
Top Wi-Fi standard Network - Wi-Fi 6E (802.11ax)
PCI Express x16 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Title - ASUS B650E MAX GAMING WIFI W AMD B650 Socket AM5 ATX
Peripheral (Molex) power connectors (4-pin) Internal I/O - 1
LongDesc - B650E MAX GAMING WIFI WASUS B650E series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 & 8000 & 7000 Series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, B650E MAX GAMING WIFI W provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
LongSummaryDescription - ASUS B650E MAX GAMING WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LongProductName - AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, rear USB 10Gbps Type-A & Type-C support, BIOS FlashBack, Aura Sync
Processor - Processor socket - Socket AM5
Processor - Processor manufacturer - AMD
Processor socket Processor - Socket AM5
Processor manufacturer Processor - AMD
Processor - Supported processor sockets - Socket AM5
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Unbuffered memory Memory - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
RGB LED pin header Internal I/O - Yes
Number of RGB LED pin headers Internal I/O - 3
S/PDIF out connector Internal I/O - Yes
Storage controllers - Number of HDDs supported - 4
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Number of storage drives supported - 7
Number of SATA III connectors Internal I/O - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - Number of RGB LED pin headers - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
On-board graphics card Graphics - No
Depth Weight & dimensions - 244 mm

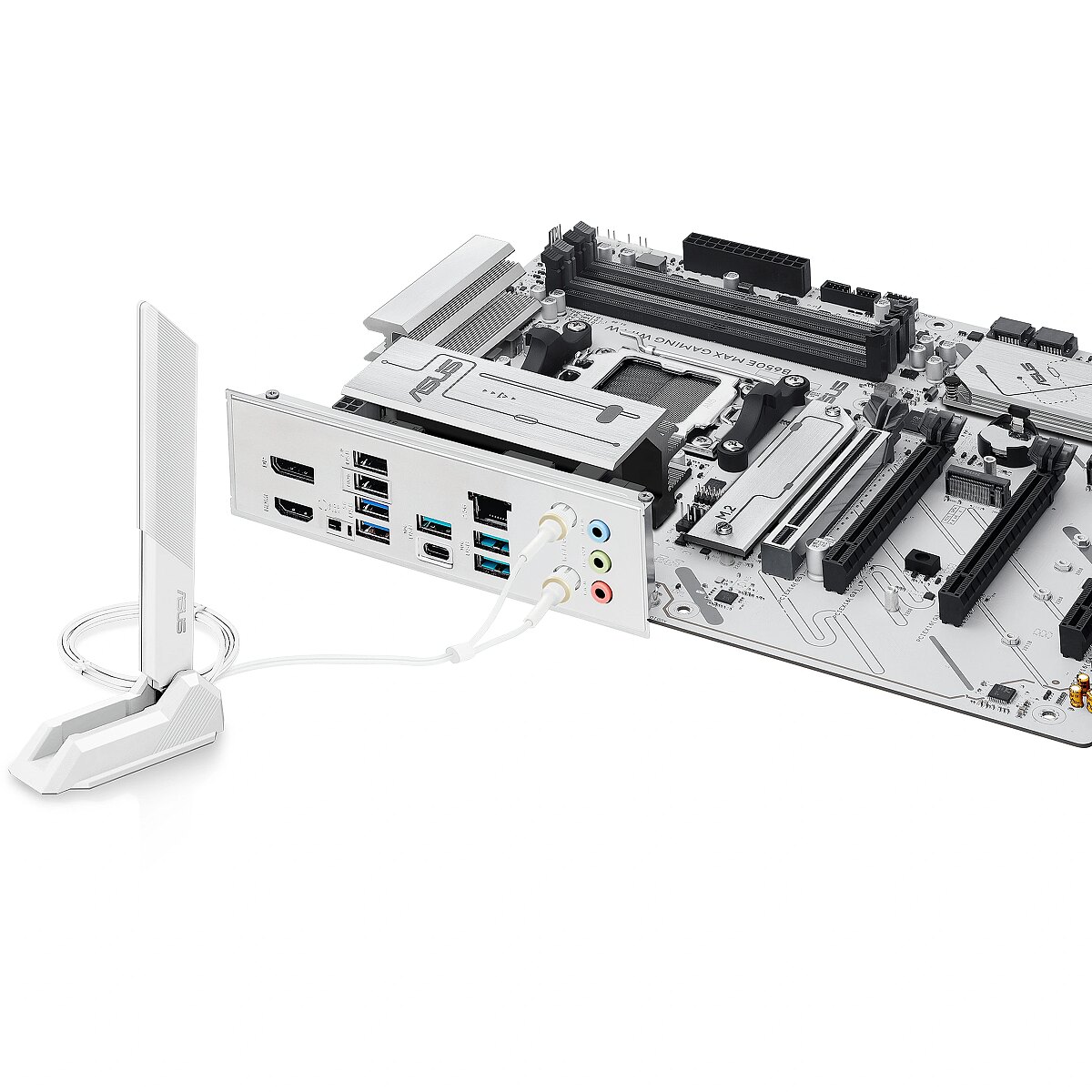

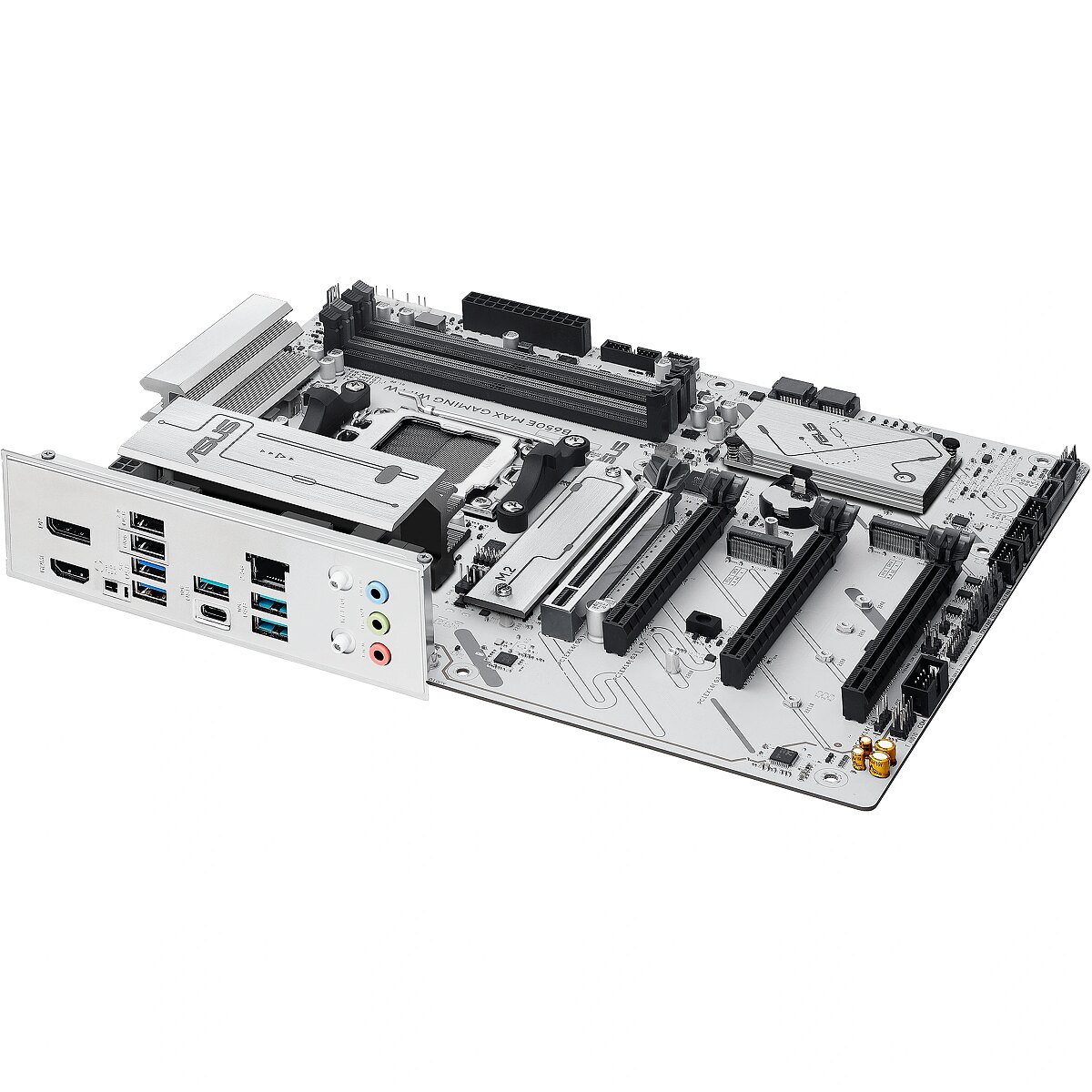

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - WiFi-AP antenna jack - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Thunderbolt headers Internal I/O - 1
Number of HDDs supported Storage controllers - 4
Supported memory types Memory - DDR5-SDRAM
Supported processor sockets Processor - Socket AM5
Number of storage drives supported Storage controllers - 7
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
Windows operating systems supported Features - Windows 10 x64/Windows 11
ProductName - B650E MAX GAMING WIFI W
Product colour Features - White
Manufacturer - Asus
Manufacturer_code - 90MB1M00-M0EAY0
TPM connector Internal I/O - Yes
USB 2.0 connectors Internal I/O - 3
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Rear panel I/O ports - 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 3
URL - https://www.asus.com/motherboards-components/motherboards/others/b650e-max-gaming-wifi-w/
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet LAN - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Wi-Fi standards Network - Wi-Fi 6E (802.11ax)
Wi-Fi Network - Yes
WiFi-AP antenna jack Rear panel I/O ports - 1
Unit Calculated Volume - 0.008022 cubm
Unit Calculated Weight - 1.82 kg
Compatible processor series Processor - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Units per Shipping Box - 5
Unit Box Height - 0.07
Unit Box Width - 0.273
Unit Box Length - 0.356
Chassis intrusion connector Internal I/O - Yes
Number of chassis fan connectors Internal I/O - 4
