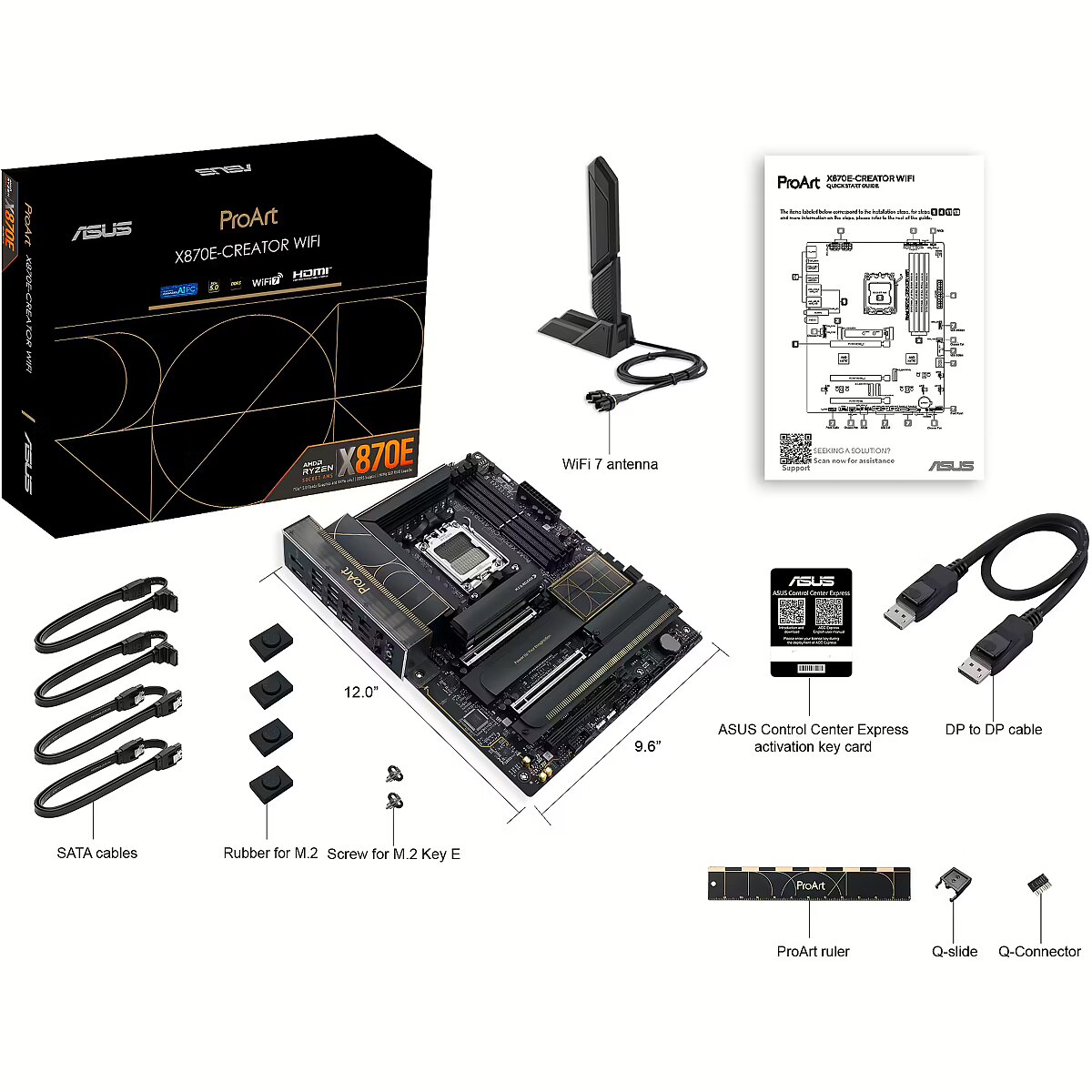

Accessories included - Kabel DisplayPort 4 kable SATA 6Gb/s Dodatkowy zestaw chłodzący Podkładka termiczna do M.2 22110 Antena Q-ASUS WiFi Złącze Q Pakiet Q-Latch M.2 Pakiet Q-Latch Q-Slide M.2 do tylnej płyty M.2 2 x gumowe pakiety do M.2 Linijka ProArt Szybki przewodnik Karta klucza aktywacyjnego ACC Express
Audio port Input/Output connectors - 3
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1IG0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IG0-M0EAY0
COM connector / port - Yes
CPU socket - Socket AM5

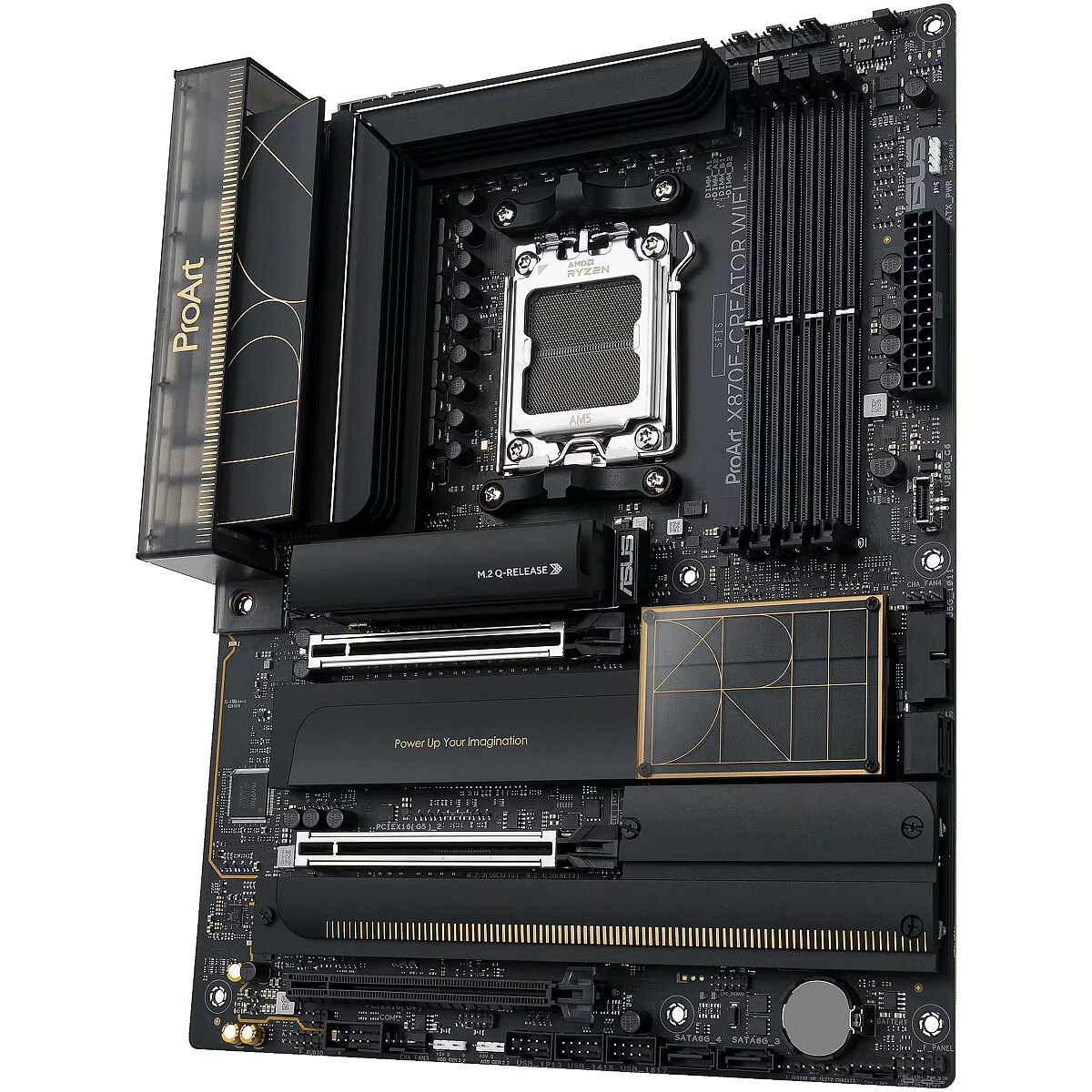

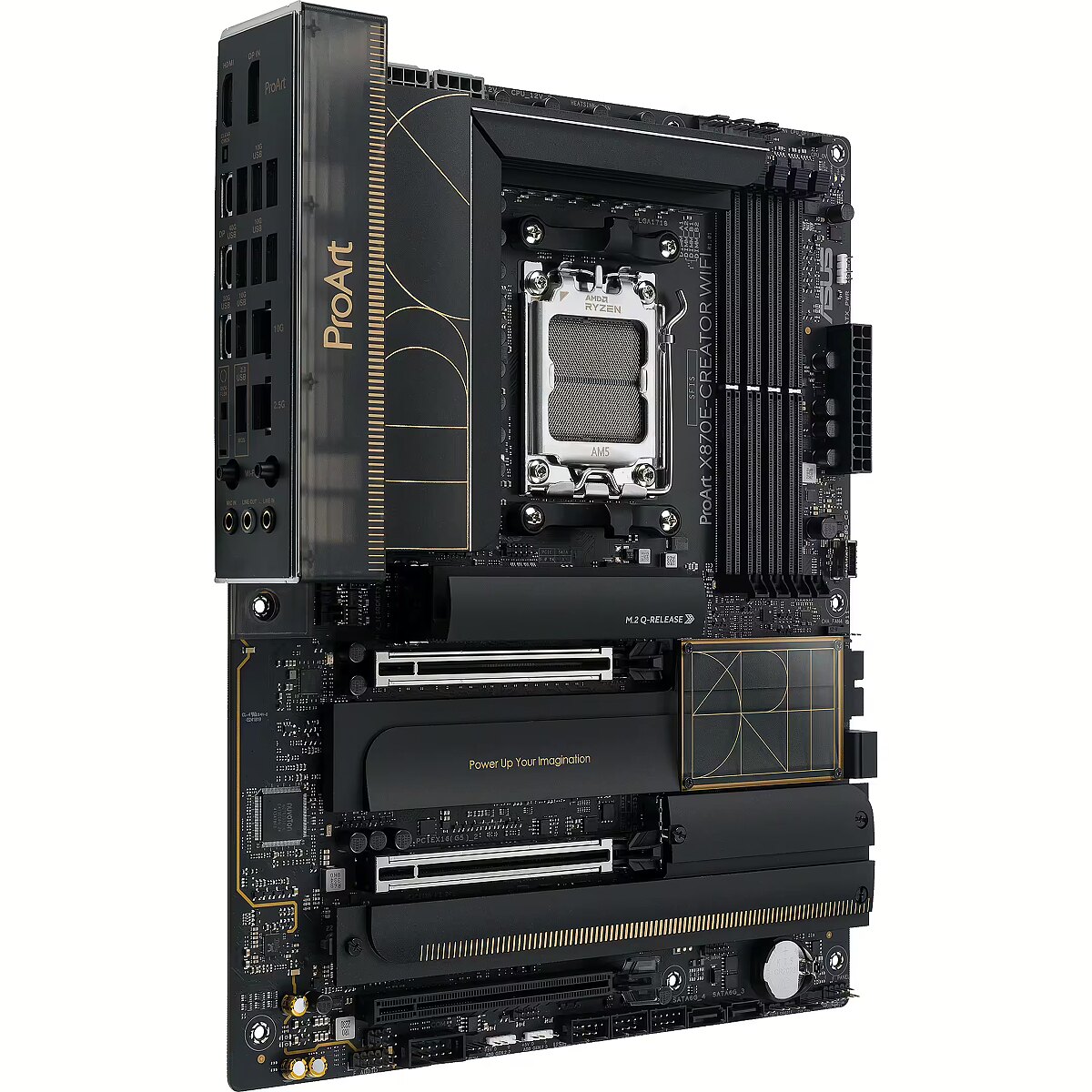

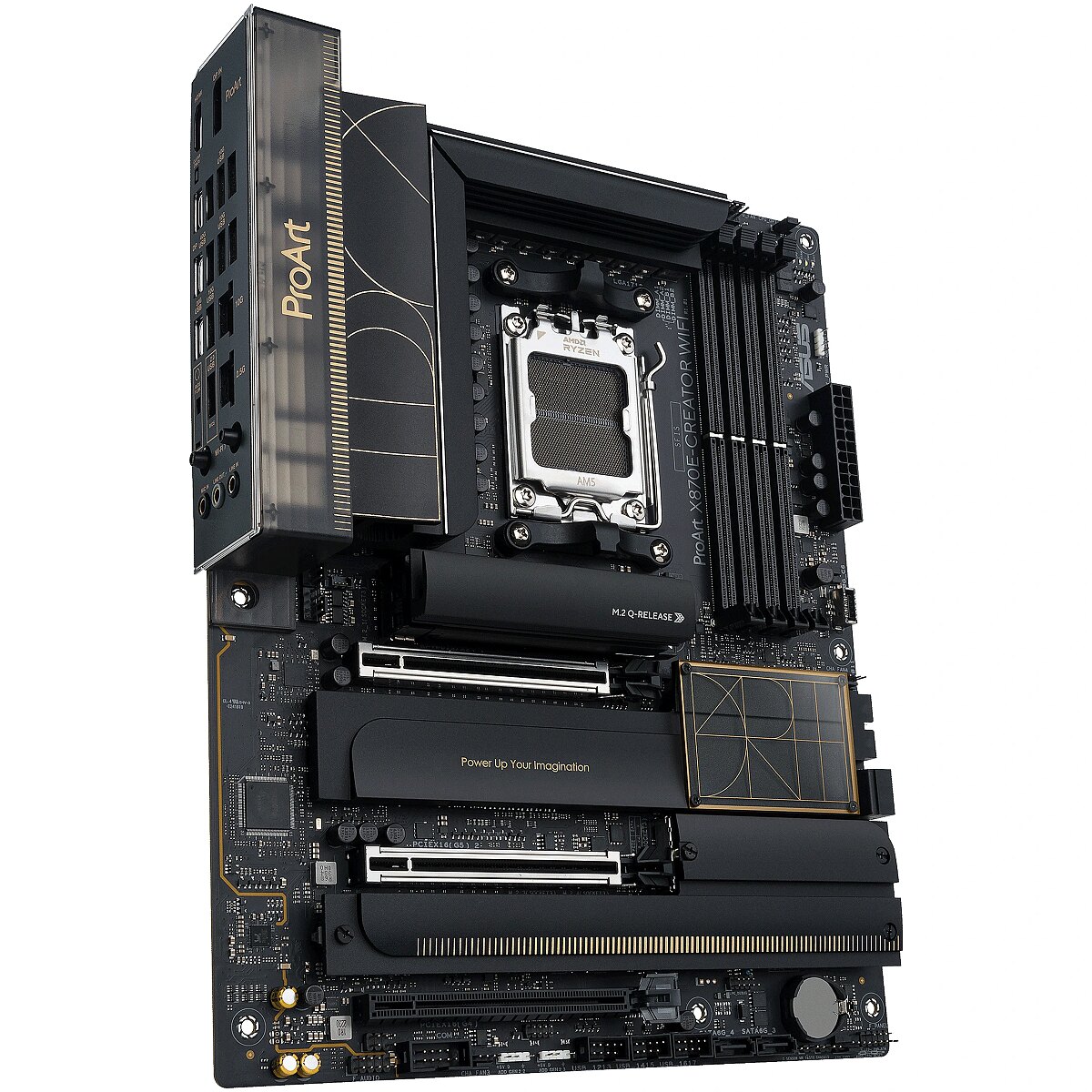

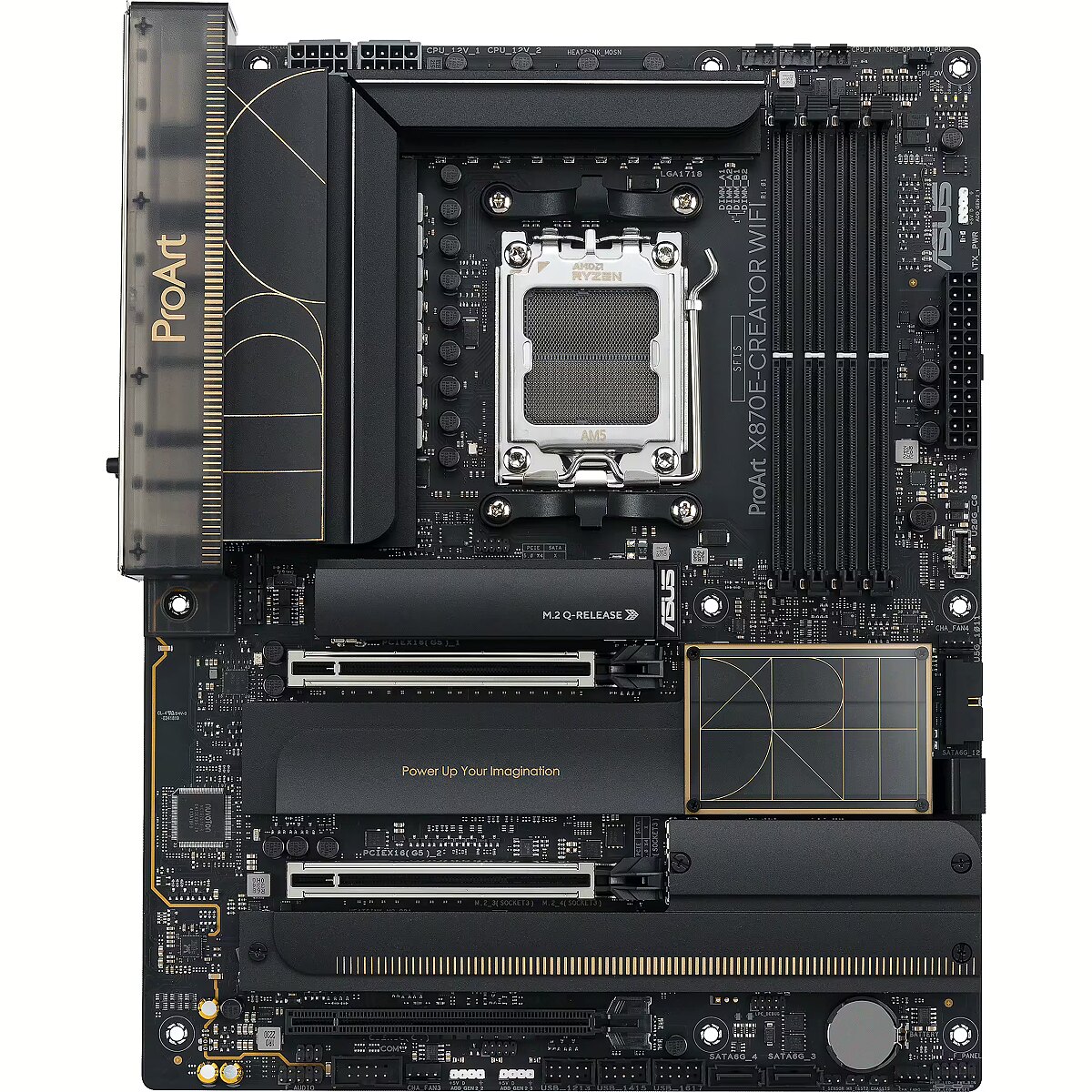

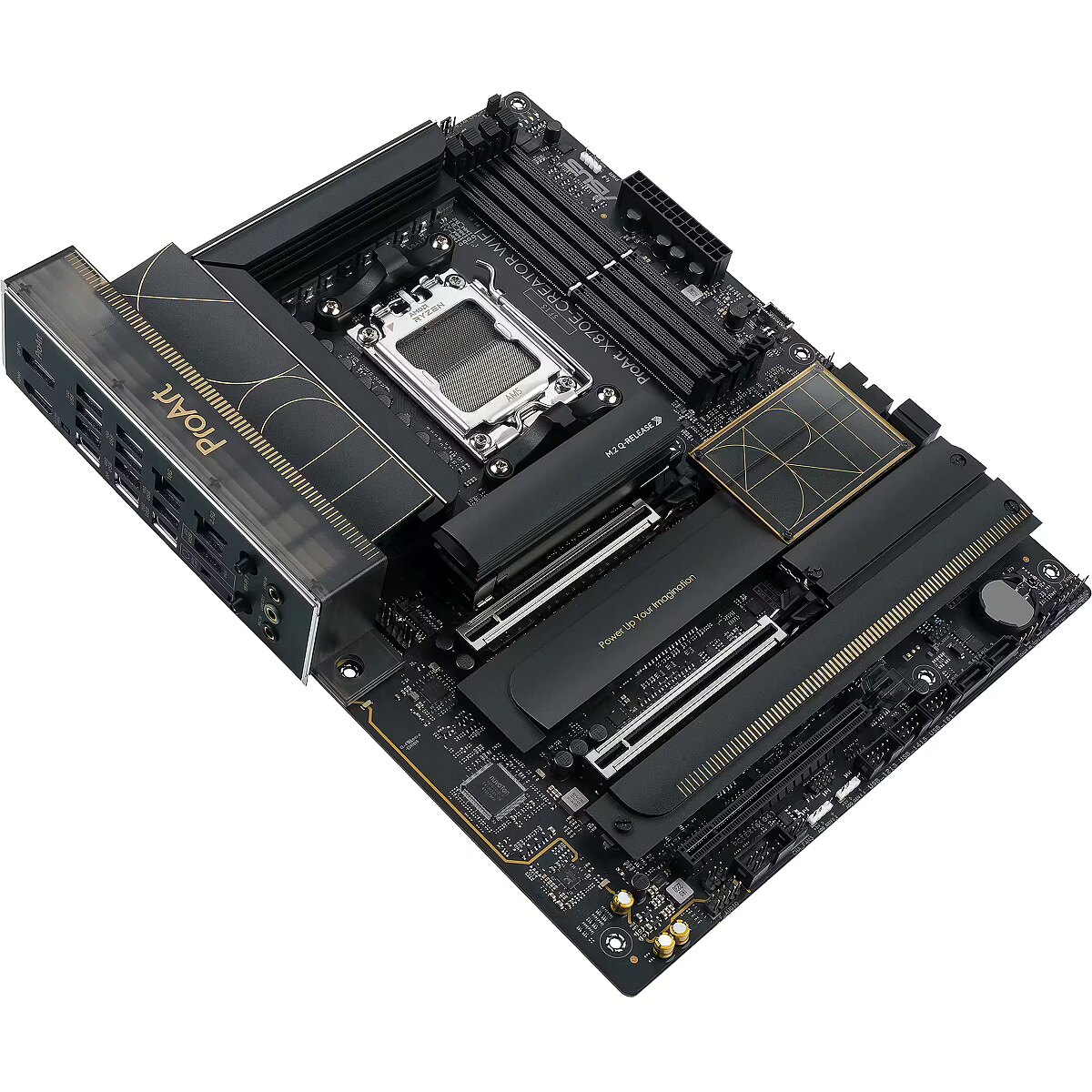

Description - ProArt logo X870E-CREATOR WIFI
Płyta główna ProArt X870E-Creator WiFi daje twórcom na każdym poziomie maksymalizację wydajności najnowszych procesorów AMD Ryzen serii 9000, 8000 i 7000 z 16+2+2 zespołami mocy, gniazdami DDR5, PCIe 5.0 i błyskawiczną łącznością, w tym podwójnym USB4, 10G i 2.5G Ethernet oraz WiFi 7.
Ta płyta główna ucieleśnia profesjonalną, elegancką i precyzyjną wizję dla twórców treści wszelkiego rodzaju, ze stylem podniesionym przez ton w ton warstwy czerni z metalicznymi złotymi akcentami. Przezroczysta osłona I/O zapewnia użytkownikom stylowy wgląd w najwyższej jakości złącza wewnątrz.
Description - PROART X870E-CREATOR WIFI The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.? This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.?
Detailed data on disk/drive interfaces - Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen 9000series CPU.
** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
dimensionalWeight - 1951
dimension depth - 90 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2615 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
ean - 4711387730775
Eans - 4711387730775
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x Side Speaker
External connectors - 1 x USB 2.0
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x RJ-45
External connectors - 2 x USB4 Type-C
External connectors - 7 x USB 3.1
Features - Audio chip - Realtek S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8000 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8000 MHz|Memory slots 4|3xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|7xUSB 3.2|3xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Serial|Video Depending on CPU|Audio Realtek ALC1220P|LAN 2.5 Gigabit
Graphics - 1 x HDMITM port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387730775
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220P
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.All You Need for Maximum ProductivityDual USB4® ConnectivityGet immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.
LongProductName - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E
LongSummaryDescription - ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PROART X870E-CREATOR WIFI
Name - ASUS PROART X870E-CREATOR WIFI
name - ASUS ProArt X870E-Creator WiFi Mainboard, AMD X870E, Sockel AM5, DDR5
name - Motherboard PROART X870E-CREATOR WI FI AM5 4DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Bezprzewodowe i Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz** Obsługuje pasmo Wi-Fi 7 320 MHz, do 6,5 Gb/s szybkości transferu. Bluetooth v5.4*** *Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego
W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E.
W przypadku systemu Windows 10 należy pamiętać, że nie ma dostępnego sterownika, zapoznaj się ze stroną internetową dostawcy chipsetu Wi-Fi, aby uzyskać szczegółowe informacje.
** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju.
*** Wersja Bluetooth może się różnić. Aby uzyskać najnowsze specyfikacje, zapoznaj się ze stroną internetową producenta modułu Wi-Fi.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 11
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 1x CPU/DRAM overvoltage jumper
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin Chassis fan
Other information -

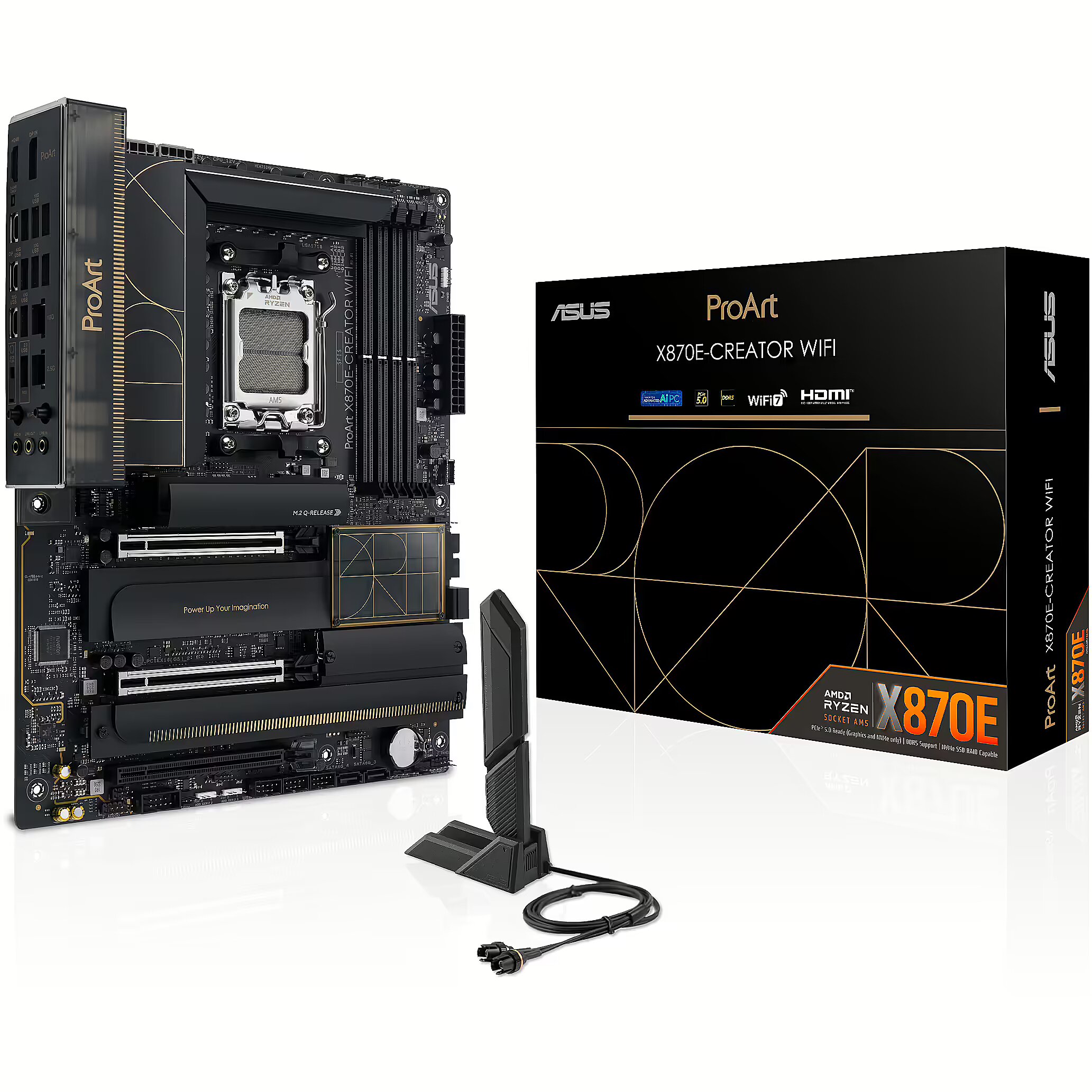

Packaging content - Cables included - DisplayPort, SATA
PCI-Express 4.0 16x Expansion slots - 3
PCI-Express 5.0 16x Expansion slots - 2
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1IG0-M0EAY0
ProducerCode - PROART X870E-CREATOR WIFI
productName - ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
ProductName - ProArt X870E-CREATOR WIFI
productSize - Normal
RAID - Yes

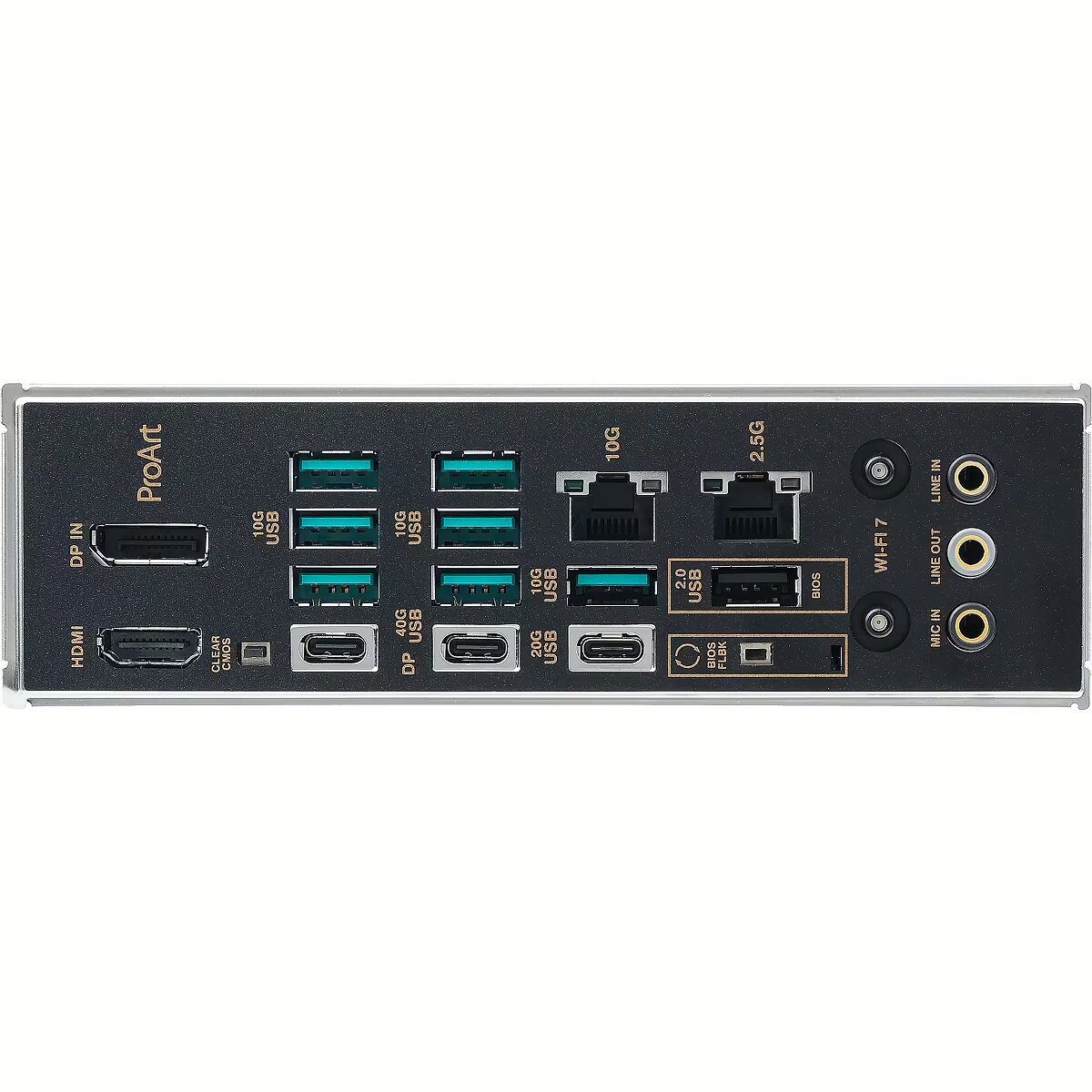

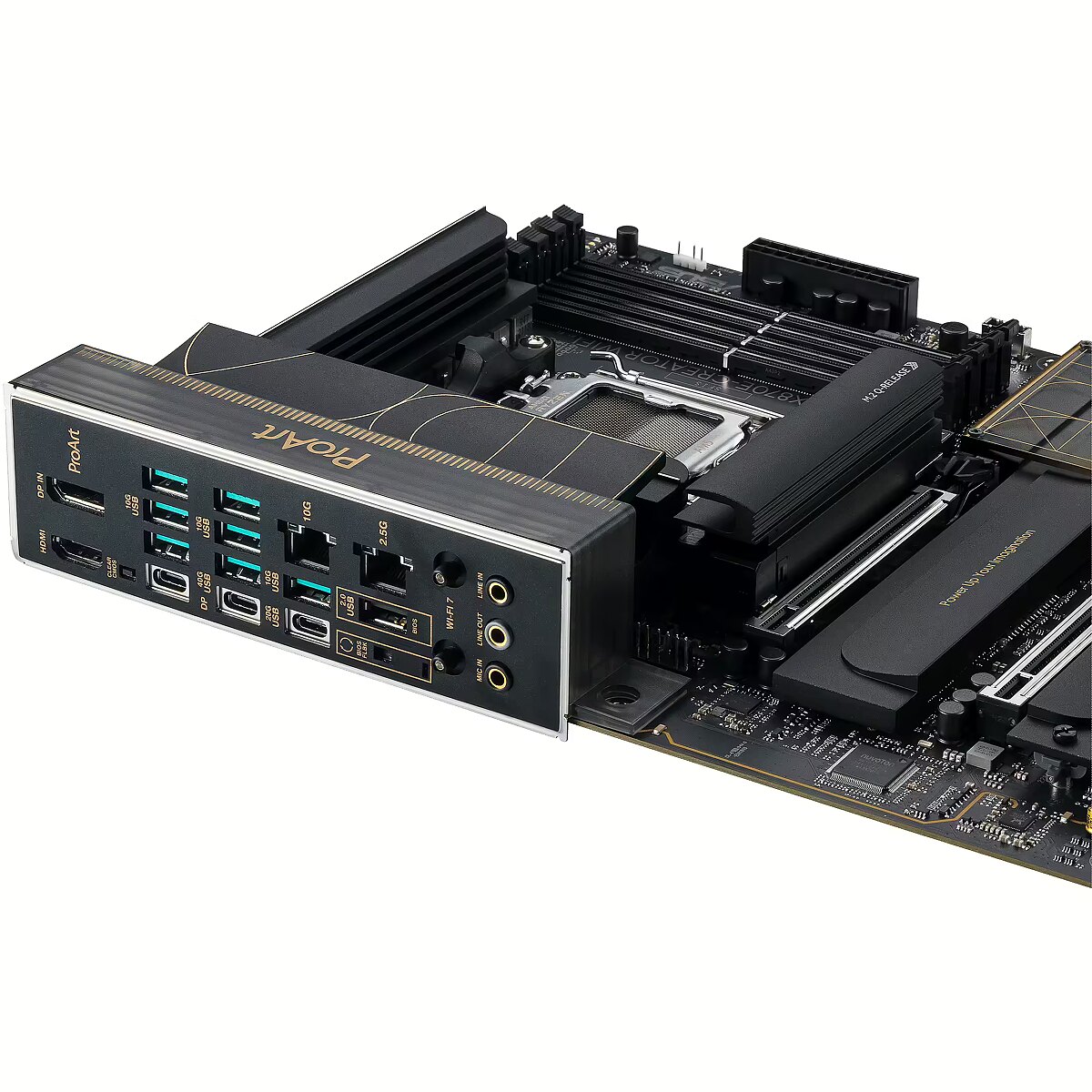

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 14.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 37.5 cm
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ProArt X870E-CREATOR WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 363
sizeY - 289
sizeZ - 93
Socket - SAM5
Software - ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
Sound card - Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* Wykrywanie impedancji dla przednich i tylnych wyjść słuchawkowych Wewnętrzny wzmacniacz audio w celu zwiększenia najwyższej jakości dźwięku dla słuchawek i głośników Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu Wysokiej jakości wyjście odtwarzania stereo SNR 120 dB i wejście nagrywania SNR 113 dB (wejście liniowe) Obsługuje odtwarzanie do 32-bitów/192 kHz* Funkcje audio Ekranowanie audio Kondensatory audio klasy premium Dedykowane warstwy audio PCB Unikalny obwód de-pop * Ze względu na ograniczenia szerokości pasma HDA,
32-bity/192 kHz nie są obsługiwane dla dźwięku przestrzennego 7.1.
** Do obsługi wyjścia audio przestrzennego 7.1 wymagana jest obudowa z modułem audio HD na panelu przednim.
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
Unit Box Height - 0.09
Unit Box Length - 0.36
Unit Box Width - 0.285
Unit Brutto Volume - 0.01093 cubm
Unit Gross Weight - 2.82 kg
Unit Net Weight - 2 kg
URL - https://www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
USB-C Input/Output connectors - 3
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
USB ports at back panel - 11
USB ports on motherboard - 9
Vendor Homepage - www.asus.com/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/
vendpn - ProArt X870E-CREATOR WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2618
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
