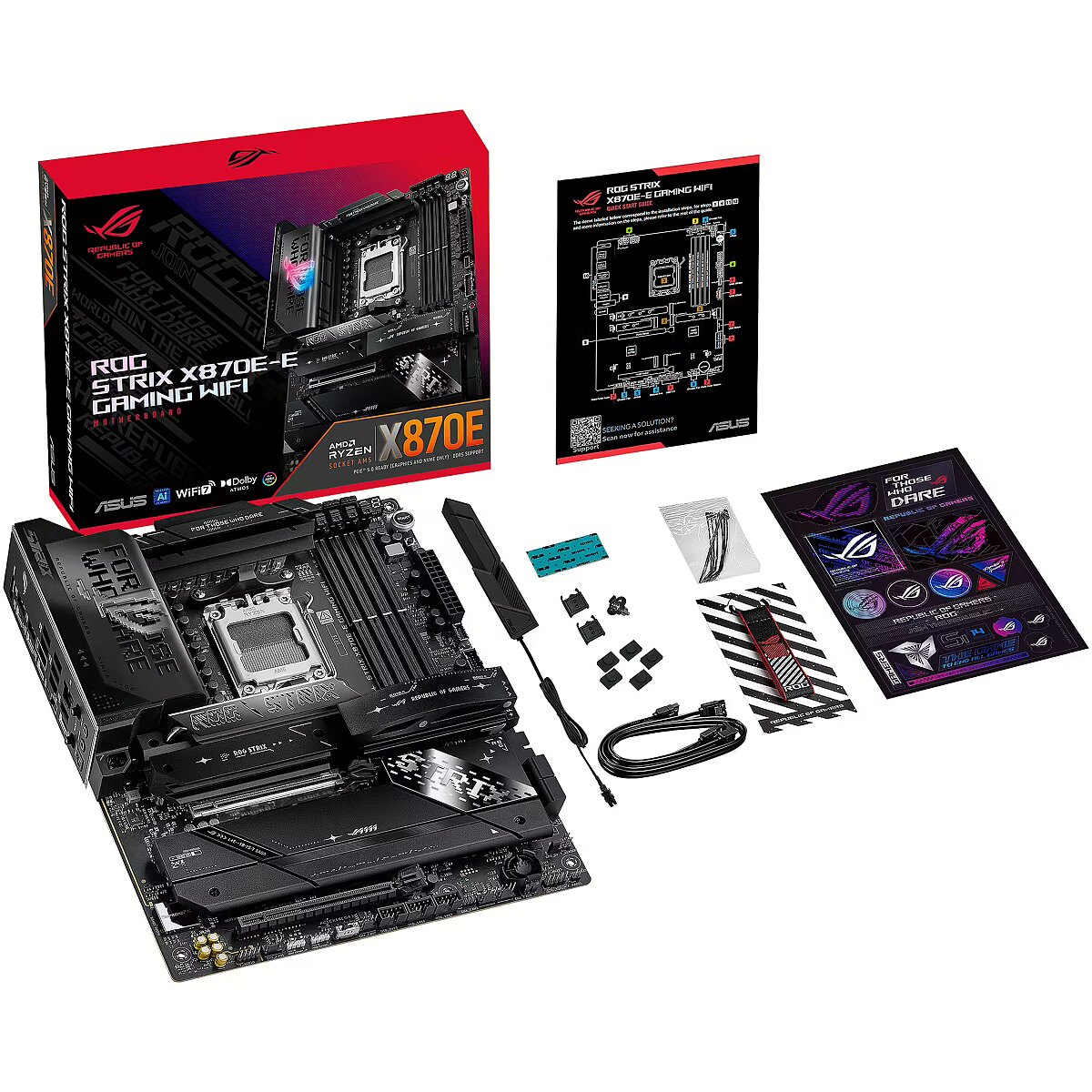

Accessories included - Cables 2 x SATA 6Gb/s cables Additional cooling kit 1 x M.2 22110 thermal pad Other 1 x ASUS Wi-Fi movable antennas 1 x Cable ties 1 x M.2 Q-Latch pack 2 x M.2 Q-Slides 1 x ROG keychain 1 x ROG Strix stickers 5 x M.2 rubber bands Documentation 1 x Quick start guide
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1IB0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IB0-M0EAY0
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD X870E
Dane techniczne: Grupa produktowa - Płyty główne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Asus
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Description - The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
Description - The ROG Strix X870E-E Gaming WiFi motherboard is designed to harness the full potential of AMD Ryzen 9000 series processors. With support for PCIe 5.0, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is simplified and performance is maximized. Two USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet provide top-of-the-line connectivity, while solid heatsinks keep M.2 drives cool under heavy load. This motherboard not only meets the demands of gaming and professional applications, but also provides the power and connectivity needed for advanced AI PC applications.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Supports 5 M.2 slots and 4 SATA 6Gb/s ports in total*
AMD Ryzen 9000, 8000 and 7000 series desktop processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 (M-Key) socket, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD X870E chipset M.2_4 (M-Key) socket, type 2280 (supports PCIe 4.0 x4 mode) M.2_5 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 function is only supported by AMD Ryzen 9000 series processors.
** M.2_2 and M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 and M.2_3 slots are occupied by SSD devices, PCIEX16(G5) will only operate at x8 mode.
dimensionalWeight - 1214
dimension depth - 90 mm
dimension height - 290 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2870 g
dimension width - 360 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC4080 7.1)
ean - 4711387724163
EAN - 4711387724163
Eans - 4711387724163
EAN_code - 4711387724163
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8400 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8400 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|9xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|SATA|USB 2.0|USB 3.2|SATA 3.0|Video|Audio Realtek ALC4082|LAN 5 Gigabit|RAID SATA 0, 1, 5, 10
Graphics - 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display output
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2
GTIN - 0197105724167
GTIN - 197105724167
GTIN - 4711387724163
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 5Gb Ethernet)
LongDesc - ASUS AI INTELLIGENCEai OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.AI Overclockingai cOOLING IIBalance the thermals and acoustics of any build with a single click.AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.PerformanceOVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
LongProductName - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E
LongSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1IB0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1IB0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG STRIX X870E-E GAMING WIFI
Model - ROG Strix X870E-E Gaming
MPN - 90MB1IB0-M0EAY0
Name - AM5 ASUS ROG STRIX X870E-E Gaming WIFI ATX
Name - ASUS ROG STRIX X870E-E GAMING WIFI
Name - ASUS ROG STRIX X870E-E GAMING WIFI - Socket AM5 - motherboard
name - ASUS ROG Strix X870E-E Gaming WiFi Mainboard, AMD X870E, Sockel AM5, DDR5
name - ROG STRIX X870E-E GAMIN G WIFI DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - Bluetooth
Network interface - Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency band Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speed. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 10
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.06 kg
Other information -
Packaging content - Cables included - SATA
Packaging data - Package depth - 281 mm
Packaging data - Package height - 87 mm
Packaging data - Package weight - 3.02 kg
Packaging data - Package width - 365 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
producer - Asus
Producer - Asus
producerCode - 90MB1IB0-M0EAY0
ProducerCode - ROG STRIX X870E-E GAMING WIFI
productName - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
ProductName - ROG STRIX X870E-E GAMING WIFI
Product Net Weight - 2.2 kg
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes

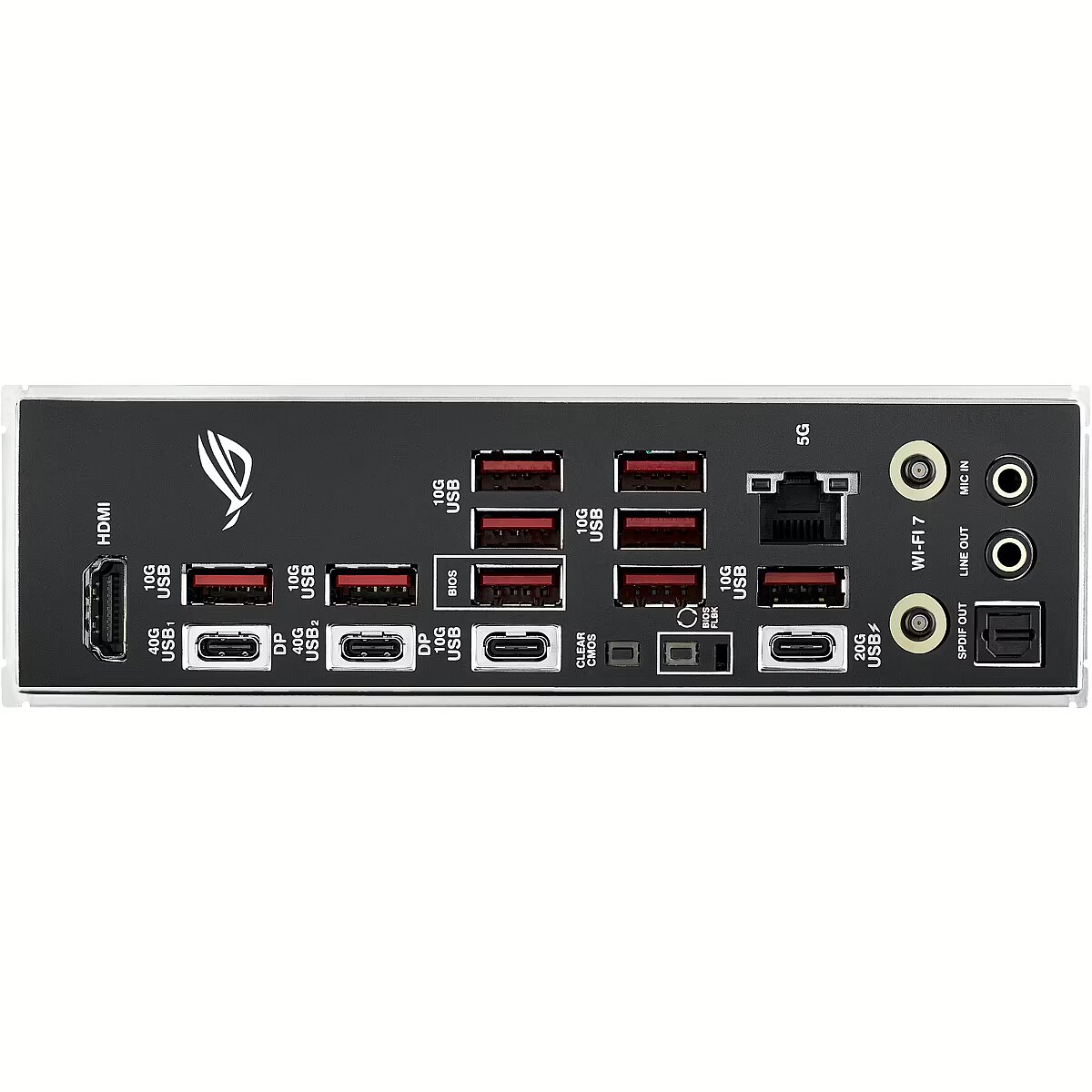

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 9
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
Safety warning - Warnings - Avoid contact with liquids to prevent electronic damage.
Safety warning - Warnings - Dispose of in accordance with local regulations for electronic waste.
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping Box Weight Shipping/Package Box Dimensions - 15.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
Short description - ASUS ROG STRIX X870E-E GAMING WIFI X870E/AM5/ATX
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ROG STRIX X870E-E GAMING WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 287
sizeY - 85
sizeZ - 249
Socket - SAM5
Software -
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, front panel microphone jack repurposing High-quality stereo playback output SNR 120 dB and recording input SNR 110 dB Supports up to 32-bit/384 kHz playback Audio features: Audio shielding Savitech SV3H712 amplifier Gold-plated audio jacks Rear optical S/PDIF output Premium audio capacitors Audio shield
Special functions - Extreme Engine Digi+ 5K Black Metallic Capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsinks M.2 heatsink backplate VRM heatsink design ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
Unit Calculated Volume - 0.01096 cubm
Unit Calculated Weight - 3.06 kg
Units per Shipping Box - 5
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 9
USB 3.2 Interface - Yes
USB4 Input/Output connectors - 2
USB ports at back panel - 13
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-x870e-e-gaming-wifi/

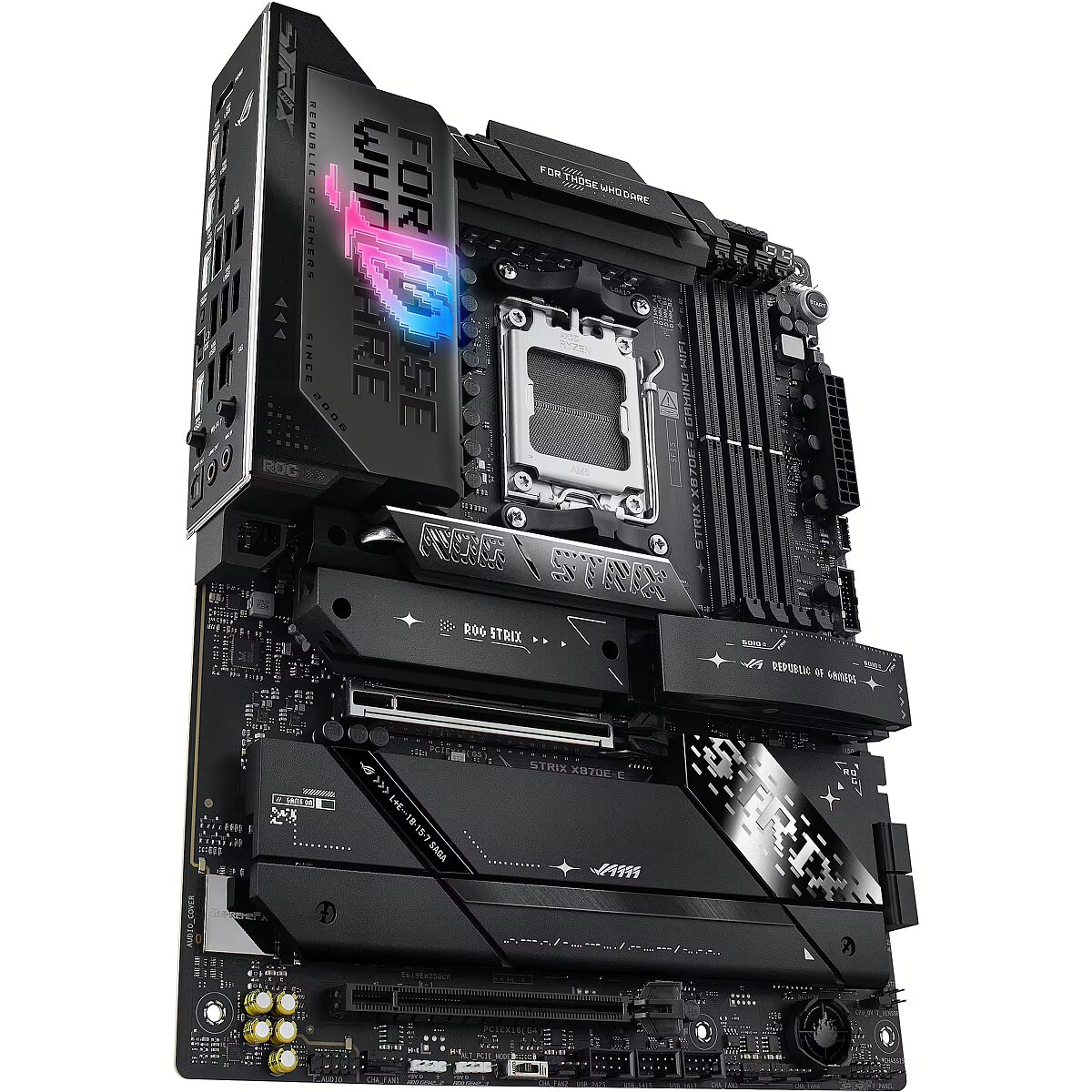

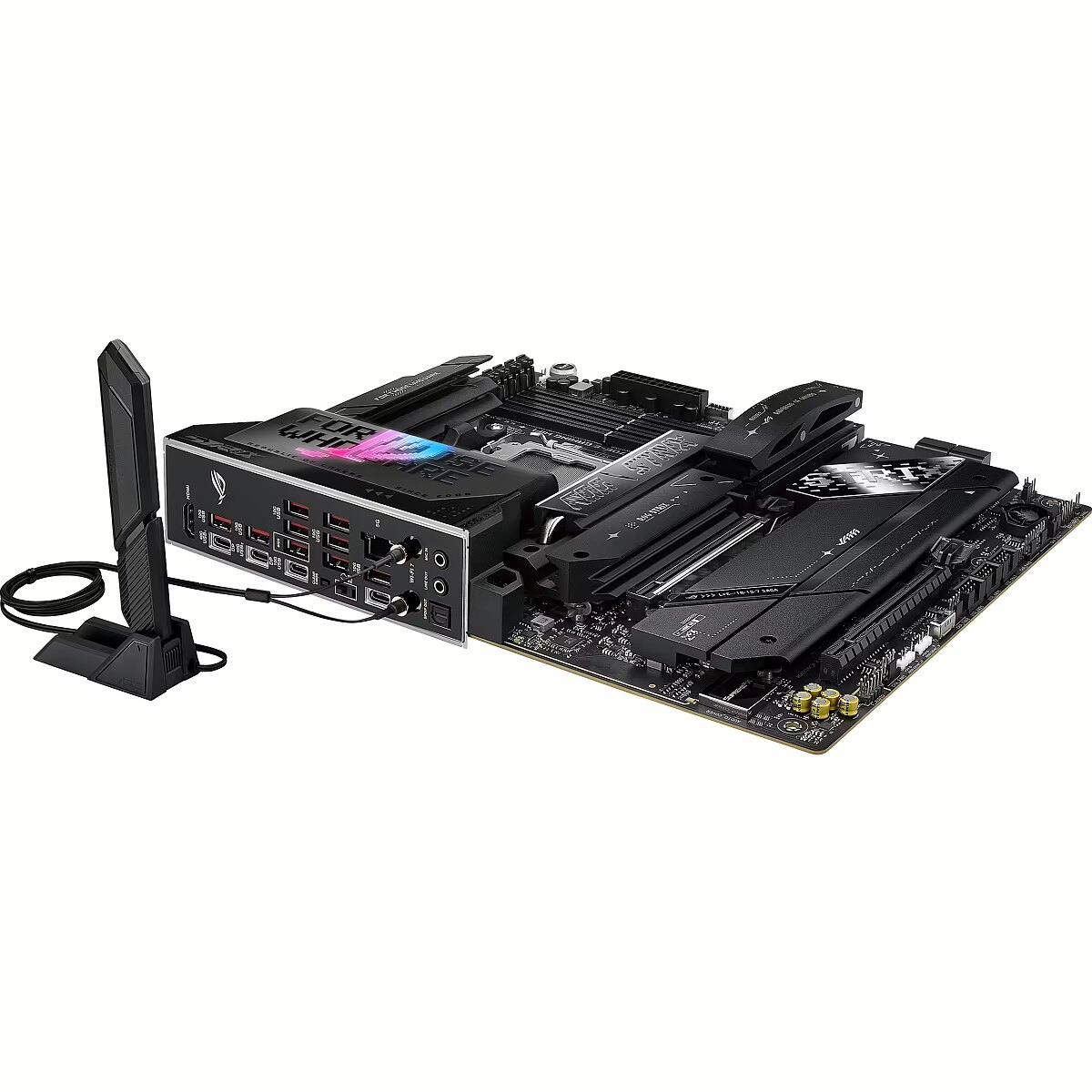

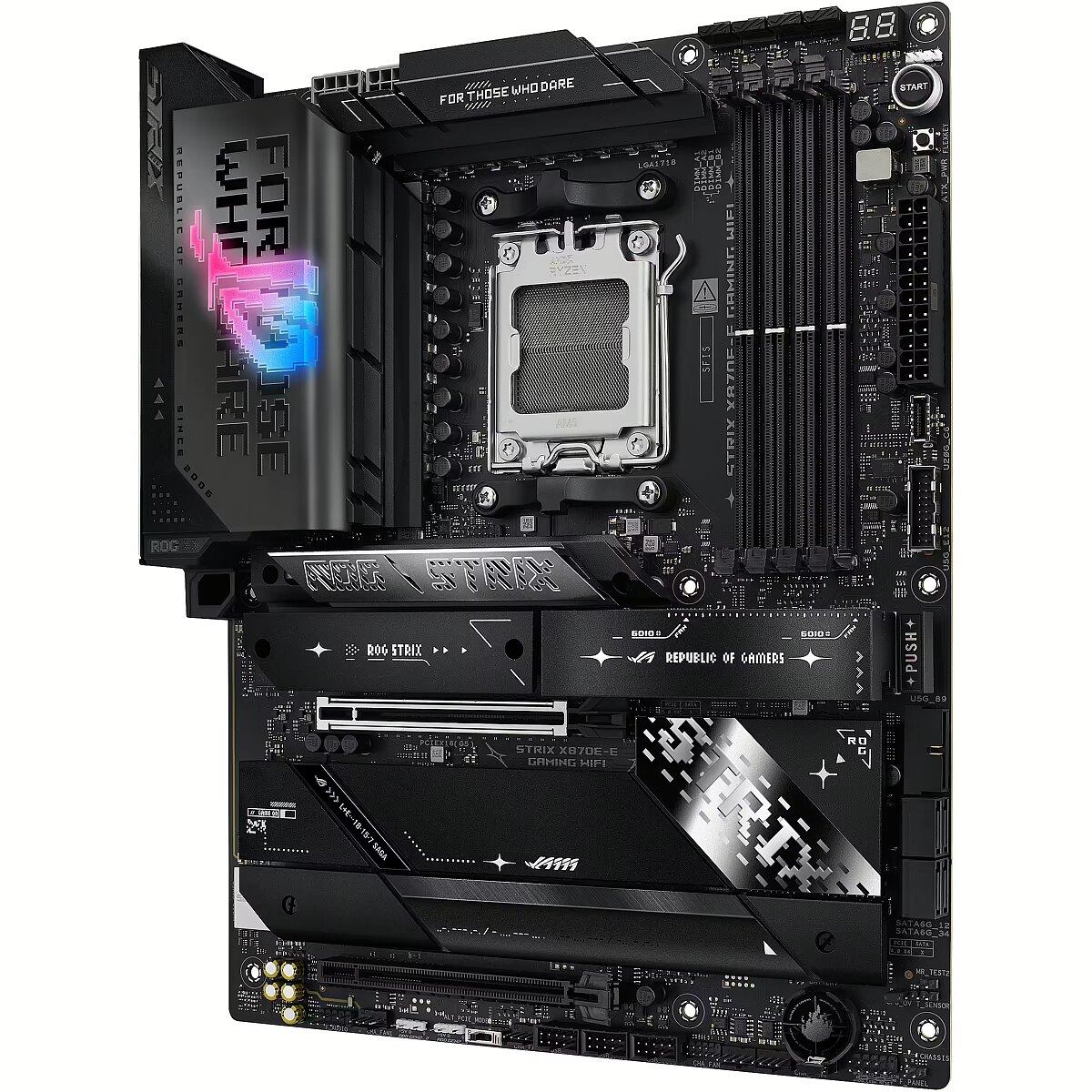

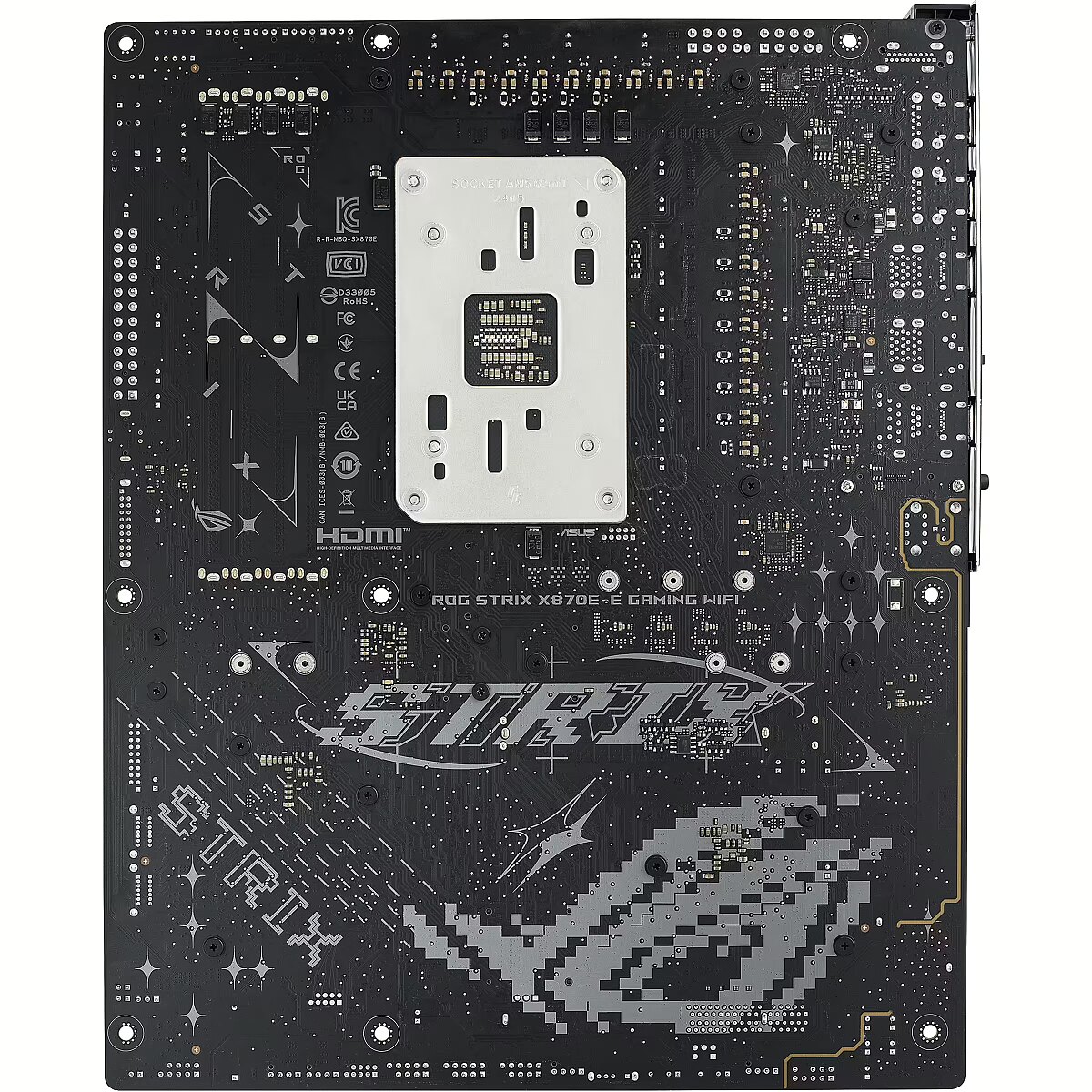

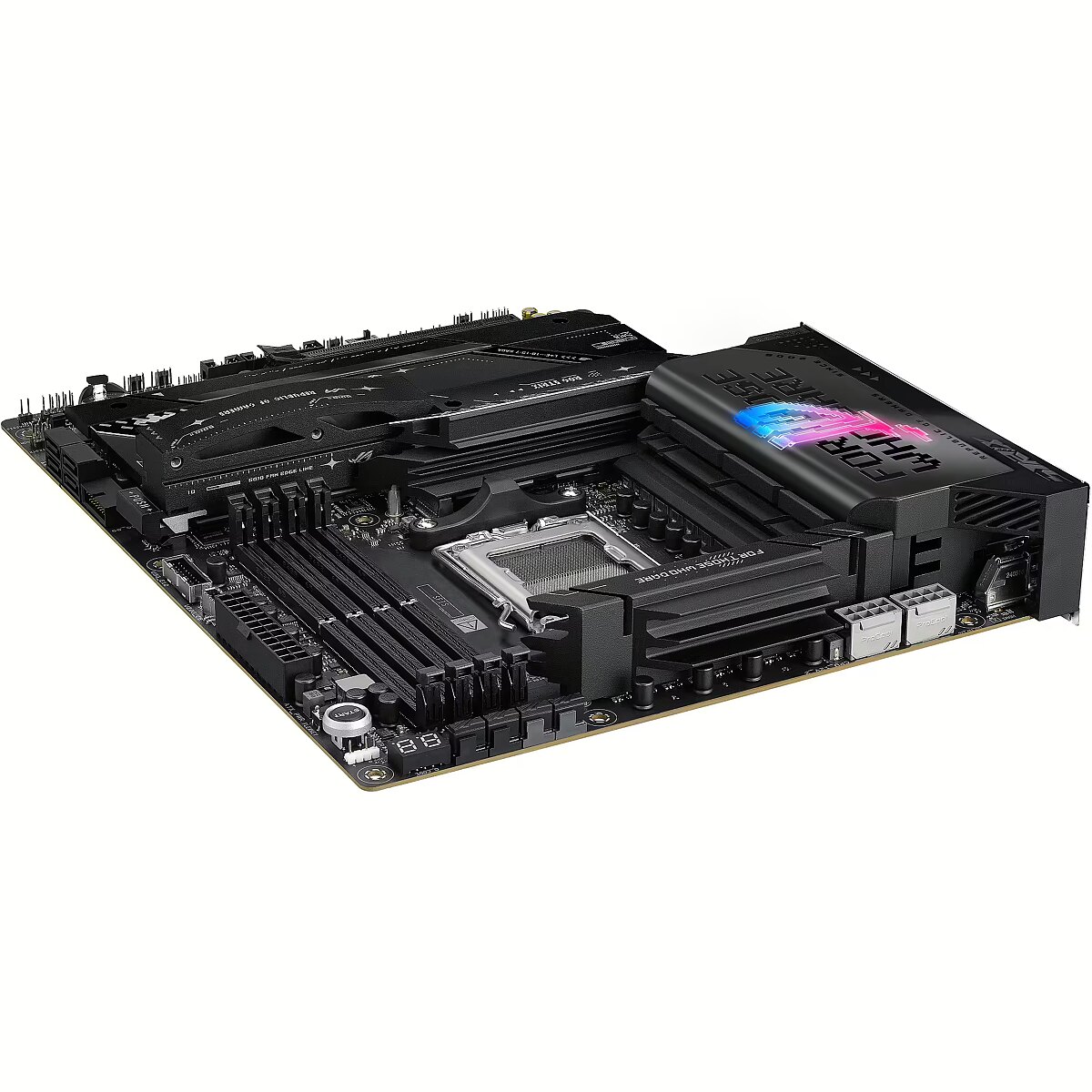

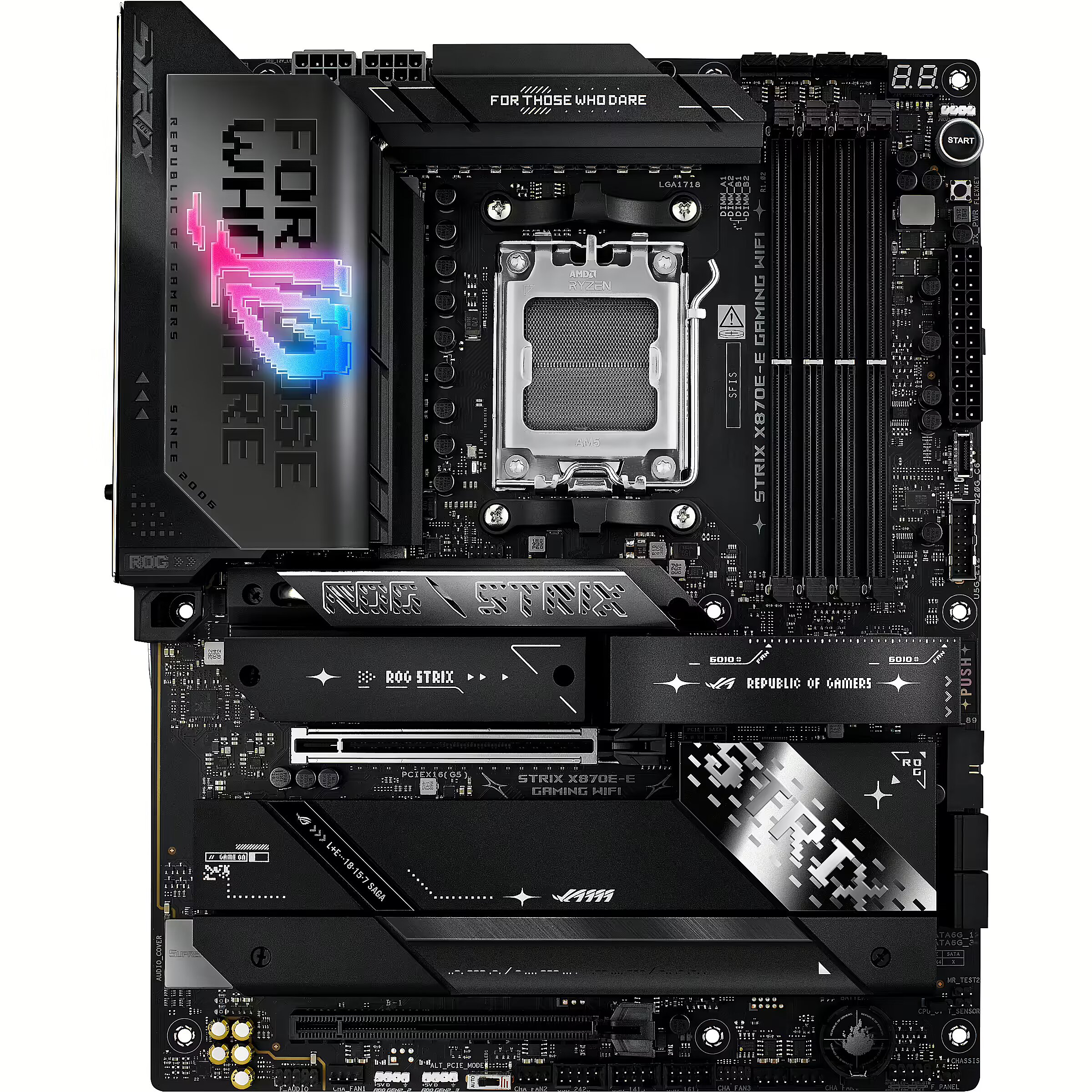

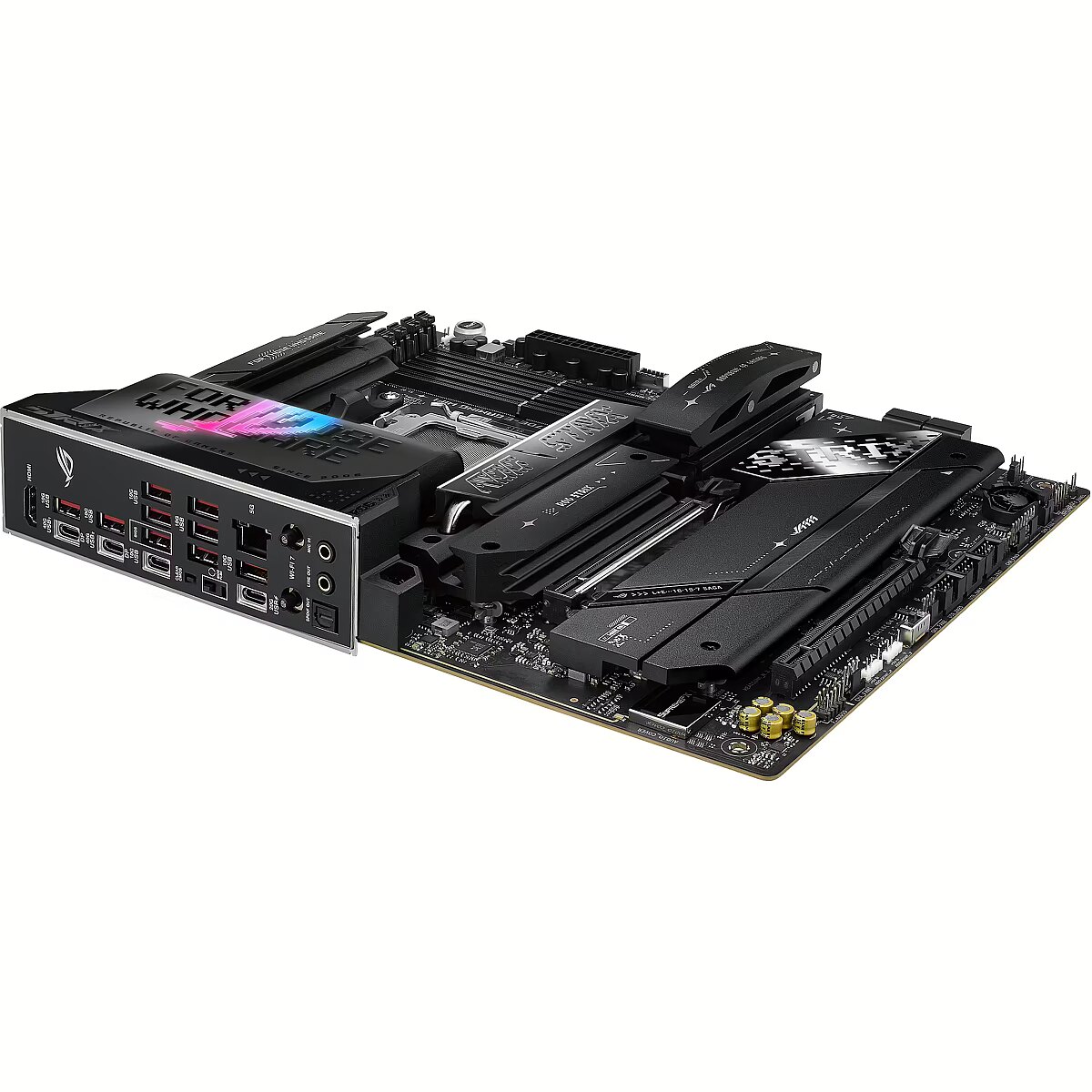

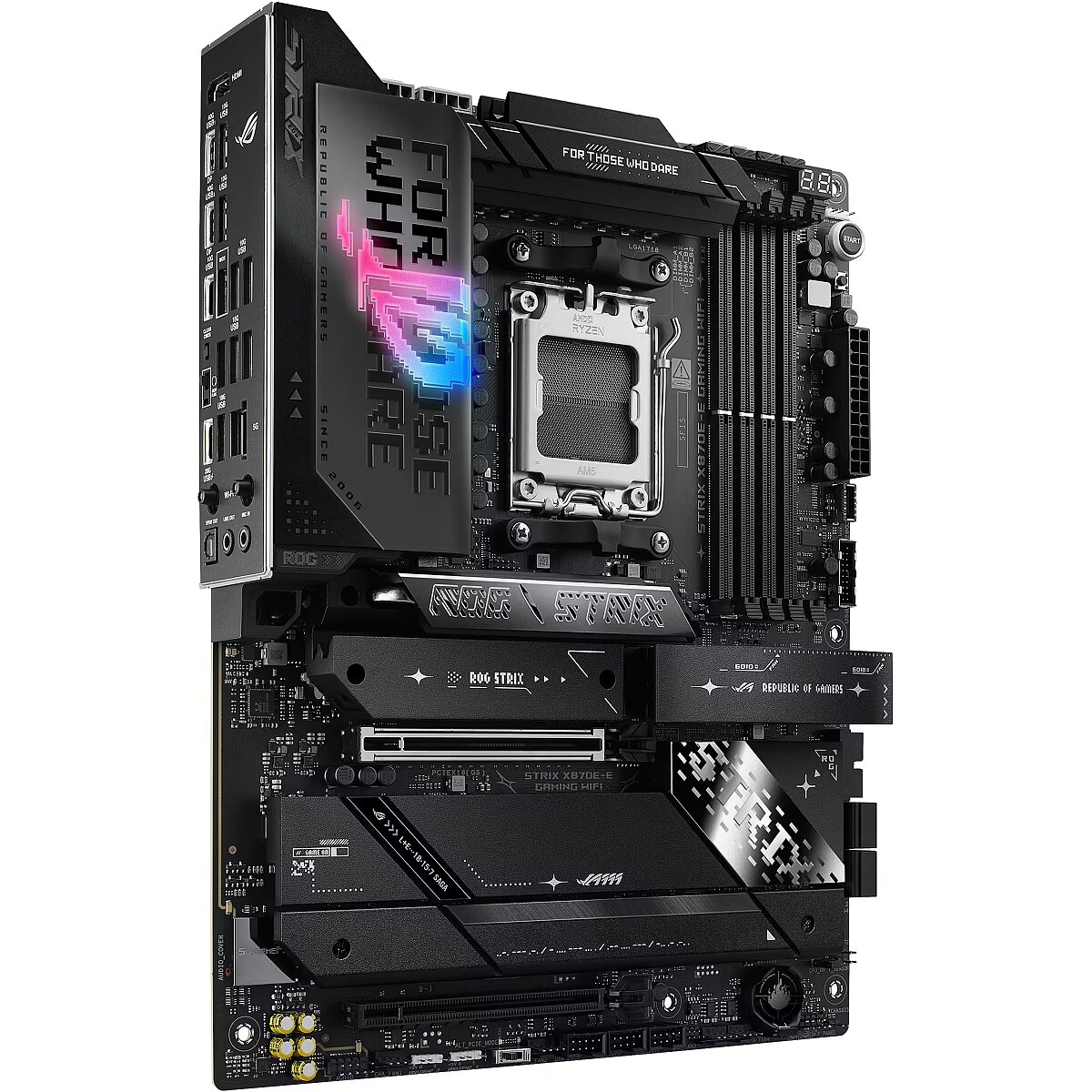

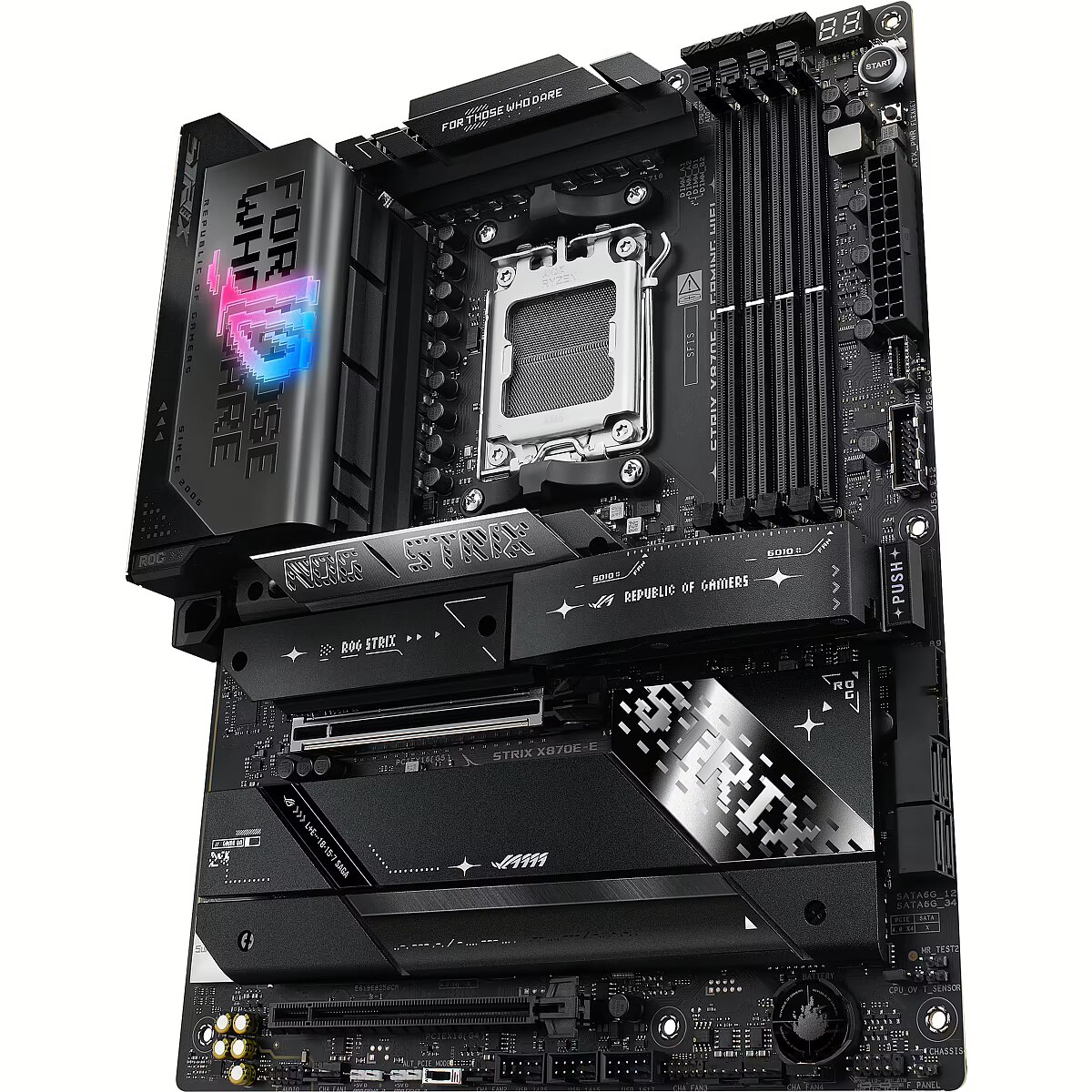

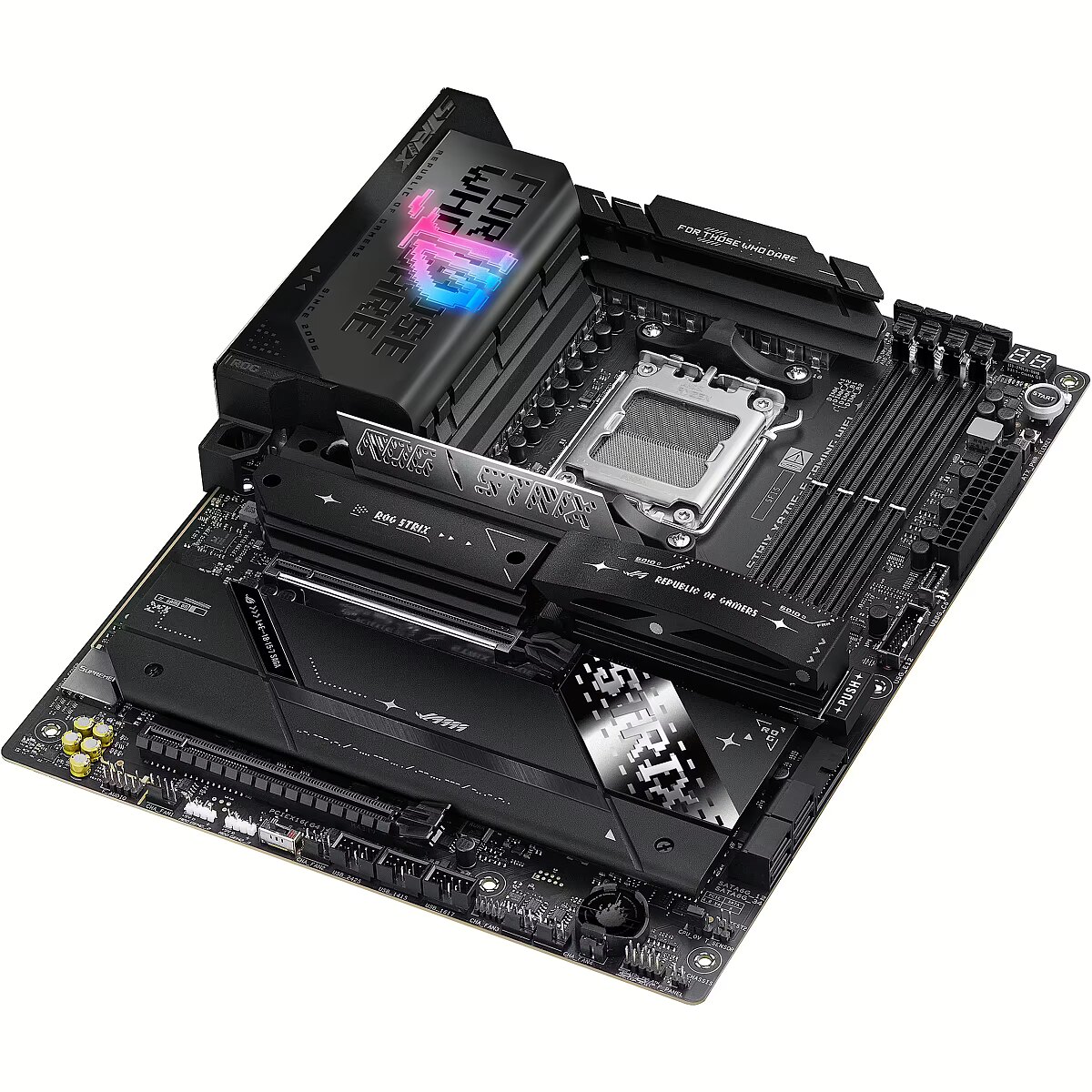

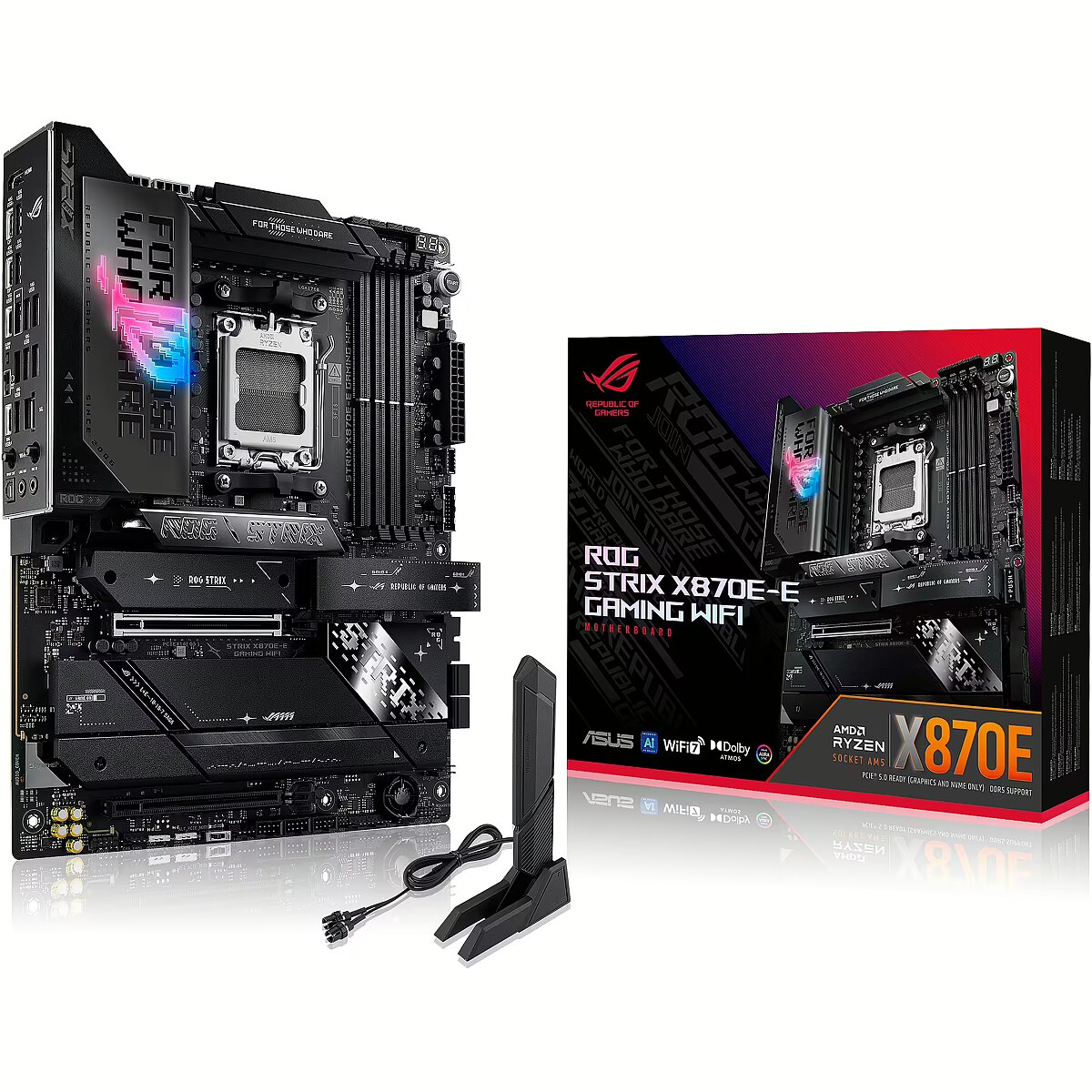

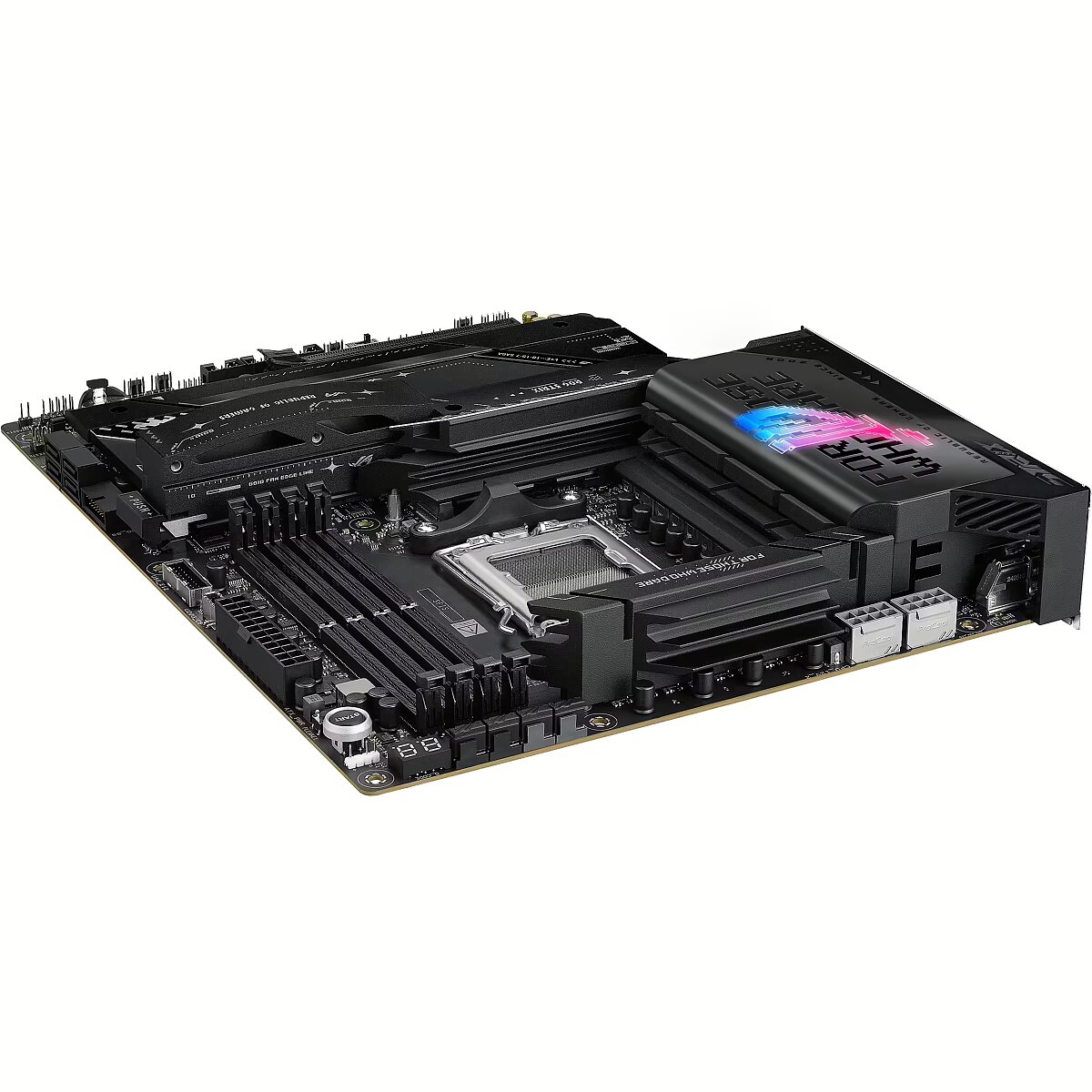

vendpn - ROG STRIX X870E-E GAMING WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,85
Weight - 2.926
weight - 2872
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB4
Złącza: Złącza na tylnym panelu - 9 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
