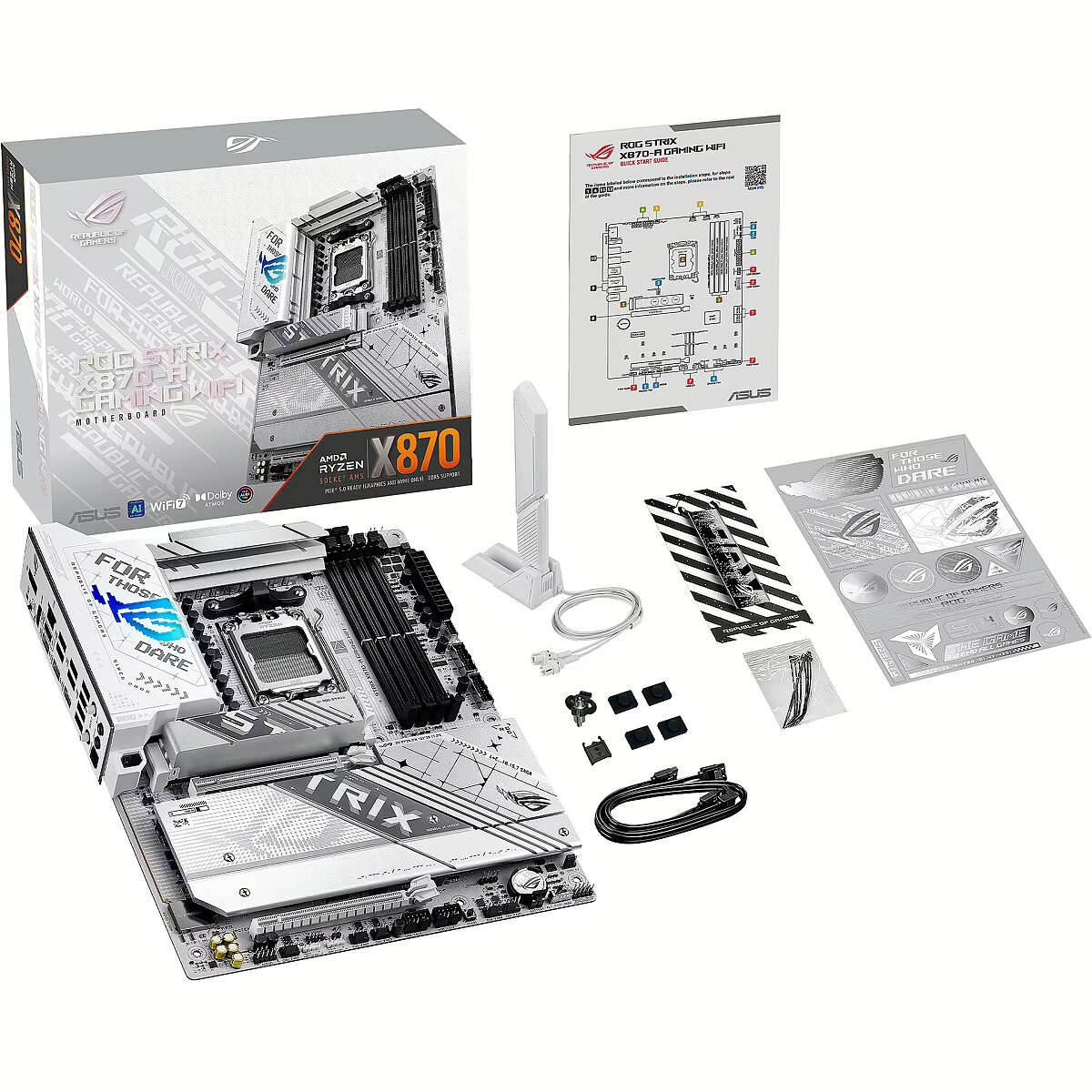

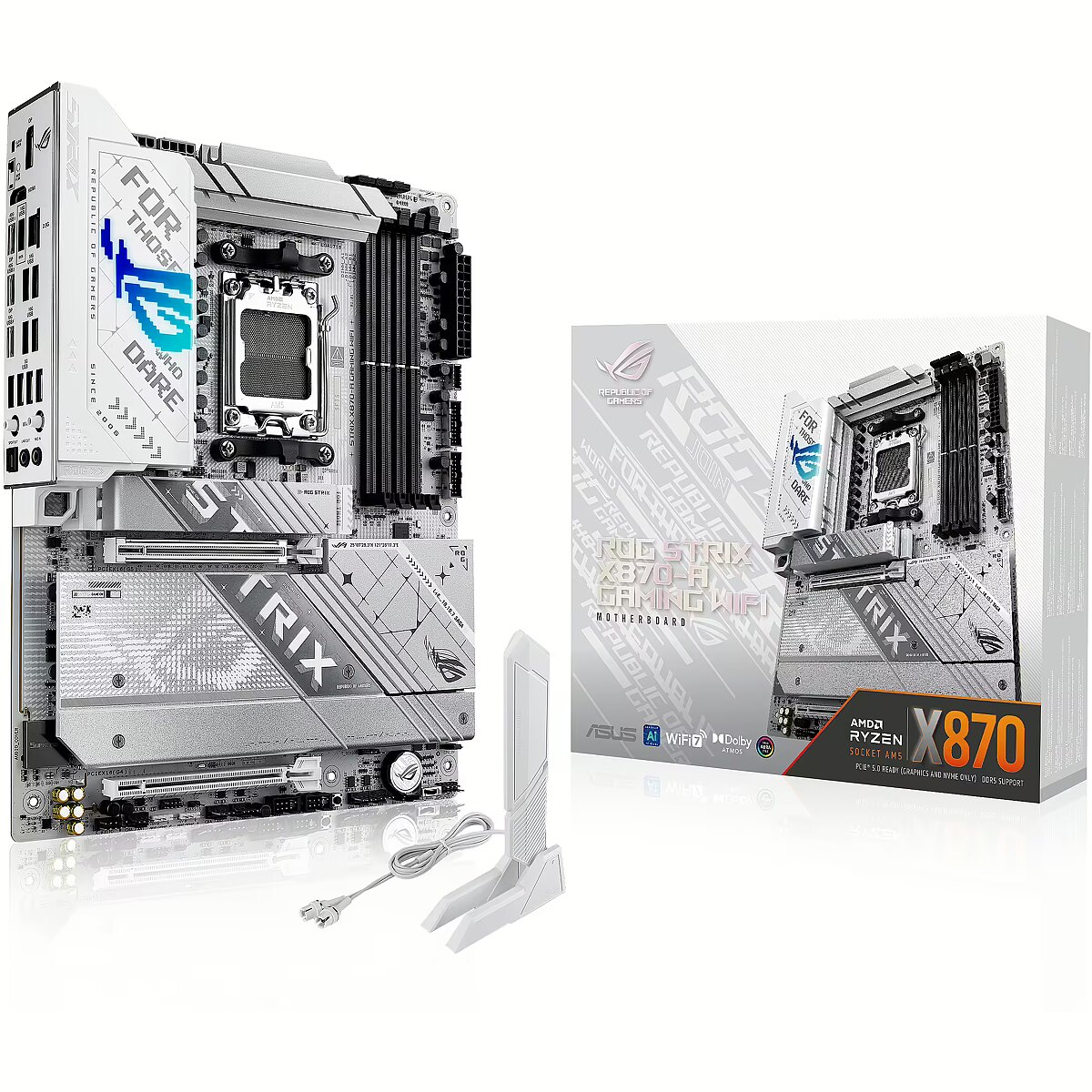

Accessories included - 2 x kable SATA 6Gb/s 1 x podkładka termiczna do M.2 22110 1 x antena ASUS WiFi Q-Antenna 1 x pakiet opasek kablowych 1 x pakiet M.2 Q-Latch 1 x pakiet M.2 Q-Slide 1 x brelok ROG 1 x naklejki ROG Strix 4 x gumowe opakowania M.2 1 x skrócona instrukcja obsługi
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1IF0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD X870
Chipset manufacturer - AMD
Chipset type - AMD X870
code - 90MB1IF0-M0EAY0
Code - 90MB1IF0-M0EAY0
COM connector / port - No
CPU socket - Socket AM5
Description - Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4® ports, and WiFi 7, it's the ultimate blend of style and performance.
Description - ROG STRIX X870-A gaming wifi
Ulepsz swój zestaw dzięki ROG Strix X870-A Gaming WiFi. Ta płyta główna, wyposażona w elegancką białą płytkę drukowaną i obsługująca procesory AMD Ryzen serii 9000, zapewnia moc i łączność potrzebną do zaawansowanych aplikacji AI. Dzięki obsłudze DDR5, pełnym możliwościom PCIe 5.0, dwóm portom USB4 i WiFi 7, jest to najlepsze połączenie stylu i wydajności.
Detailed data on disk/drive interfaces - Obsługuje 4 gniazda M.2 i 2 gniazda SATA 6 Gb/s* Procesory stacjonarne AMD Ryzen serii 9000 i 7000* Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 5.0 x4) Gniazdo M.2_2 (klucz M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 5.0 x4)** Procesory stacjonarne AMD Ryzen serii 8000** Gniazdo M.2_1 (klucz M), typ 2242/2260/2280 (obsługuje tryb PCIe 4.0 x4/x2) Gniazdo M.2_2 (klucz M), typ 2242/2260/2280/22110 (nieobsługuje)**** AMD Chipset X870 Gniazdo M.2_3 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4)*** Gniazdo M.2_4 (klucz M), typ 2280 (obsługuje tryb PCIe 4.0 x4) 2 porty SATA 6 Gb/s * Technologia AMD RAIDXpert2 obsługuje zarówno PCIe RAID 0/1/5/10, jak i SATA RAID 0/1. Funkcja RAID 5 jest obsługiwana tylko przez procesory AMD Ryzen serii 9000. ** M.2_2 współdzieli przepustowość z PCIEX16(G5). Gdy M.2_2 jest zajęte przez dysk SSD, PCIEX16(G5) będzie działać tylko w trybie x8. *** M.2_3 współdzieli przepustowość z PCIEX16(G4). Gdy M.2_3 jest zajęte przez dysk SSD, PCIEX16(G4) zostanie wyłączone. **** Złącze M.2_2 zostanie wyłączone w przypadku korzystania z procesorów stacjonarnych AMD Ryzen serii 8000.
dimensionalWeight - 1512
dimension depth - 70 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2530 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4711387737859
ean - 4711387737859
Eans - 4711387737859
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
External connectors - 4 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Aluminium
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600/7800/7900/8000 MHz
Full Description Line - AMD X870|SAM5|ATX|DDR5|8000/7900/7800/7600/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|4xUSB 3.0|5xUSB 3.1|1xUSB-C|2xUSB4|1xOptical S/PDIF|SATA|SATA 3.0|Video|Audio Realtek ALC4080|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10
Graphics - 1 x DisplayPort 1 x port HDMI 2 x porty USB4 (40 Gb/s) obsługują wyjścia wyświetlacza USB Type-C
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387737859
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 2
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-x870-a-gaming-wifi/
LongDesc - ASUS AI INTELLIGENCEai OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.ai cOOLING IIBalance the thermals and acoustics of any build with a single click.AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.PerformanceOVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
LongProductName - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870
LongSummaryDescription - ASUS ROG STRIX X870-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 2
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 7000 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 9000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5

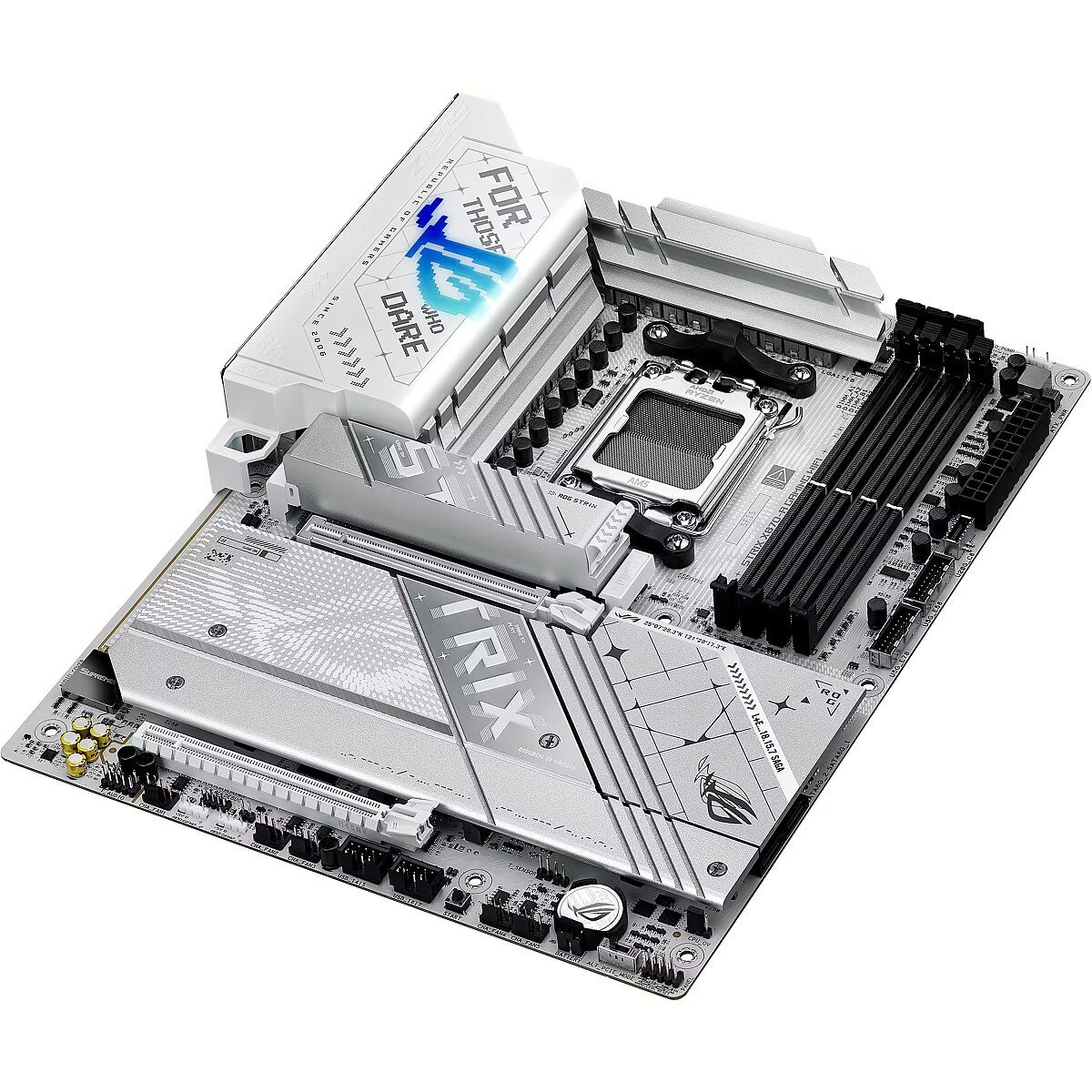

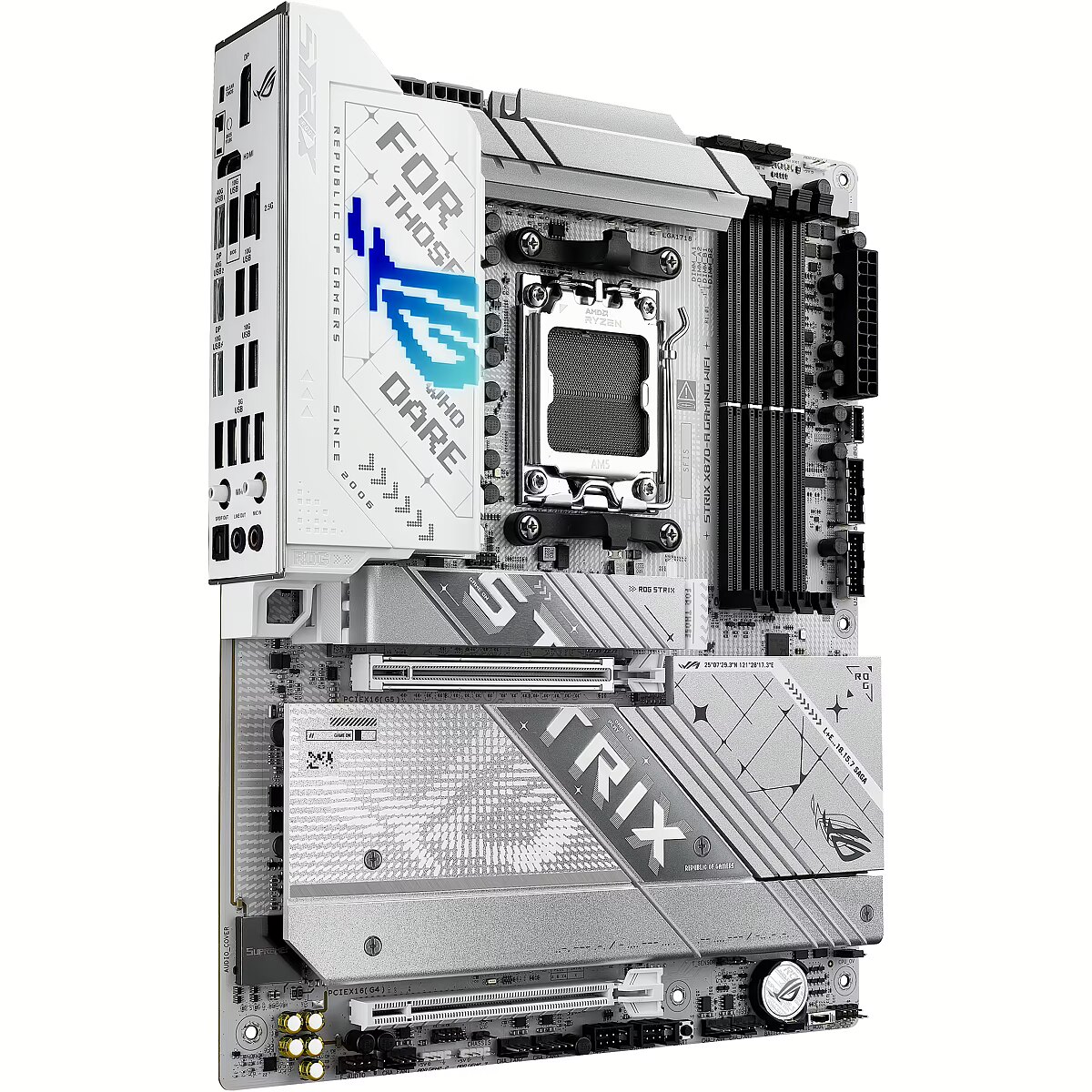

Model - ROG STRIX X870-A GAMING WIFI
Name - ASUS ROG STRIX X870-A GAMING WIFI
name - ASUS ROG Strix X870-A Gaming WiFi Mainboard, AMD X870, Sockel AM5, DDR5
Name - Asus ROG STRIX X870-A GAMING WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2
name - Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 7
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x OC PCIe switch
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x USB C
Onboard connectors - 2 x SATA III 6Gb/s
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 5 x 4pin Chassis fan
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 1.84 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

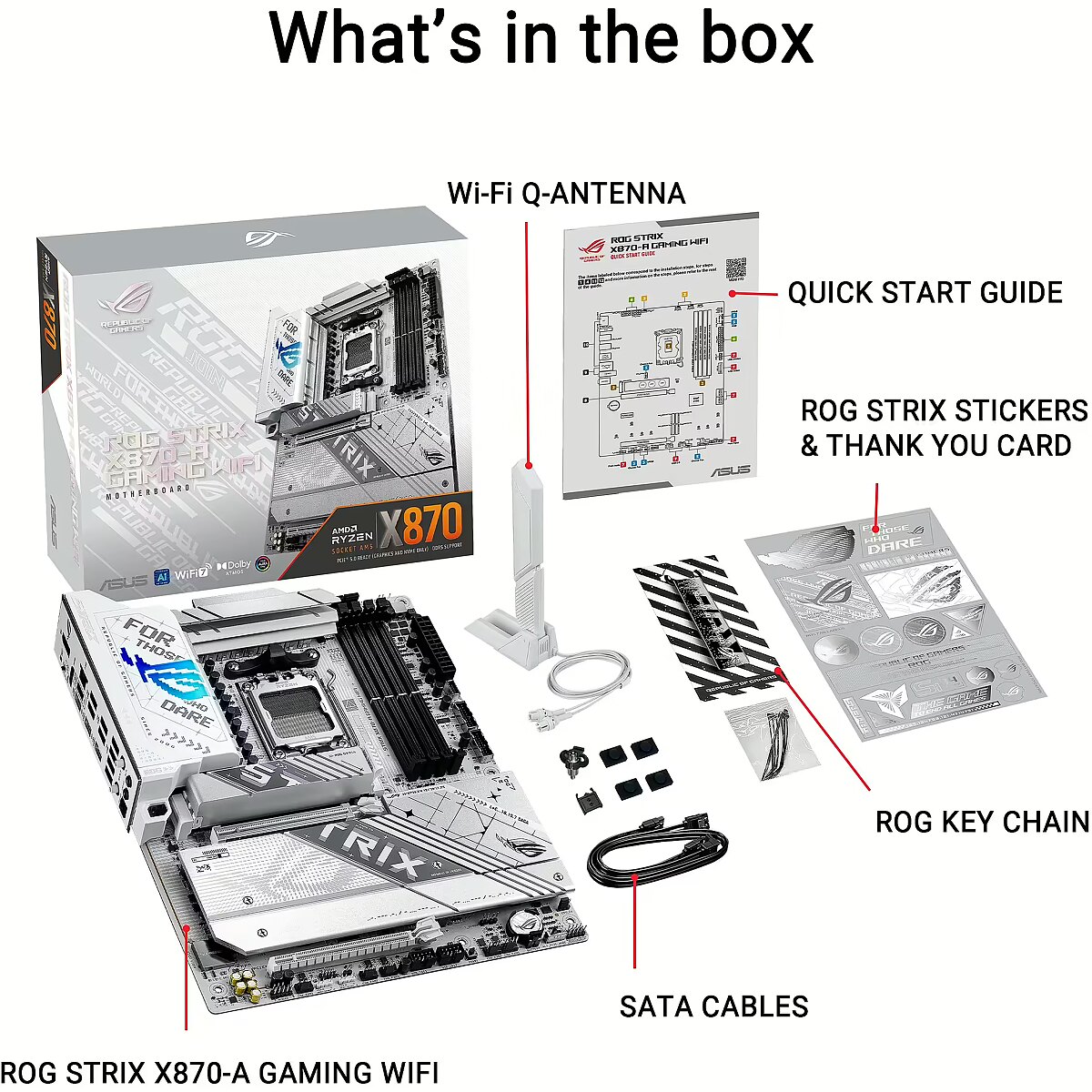

Packaging content - Cables included - SATA
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 2.32 kg
Packaging data - Package width - 353 mm
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1IF0-M0EAY0
ProducerCode - ROG STRIX X870-A GAMING WIFI
productName - ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
ProductName - ROG STRIX X870-A GAMING WIFI
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes

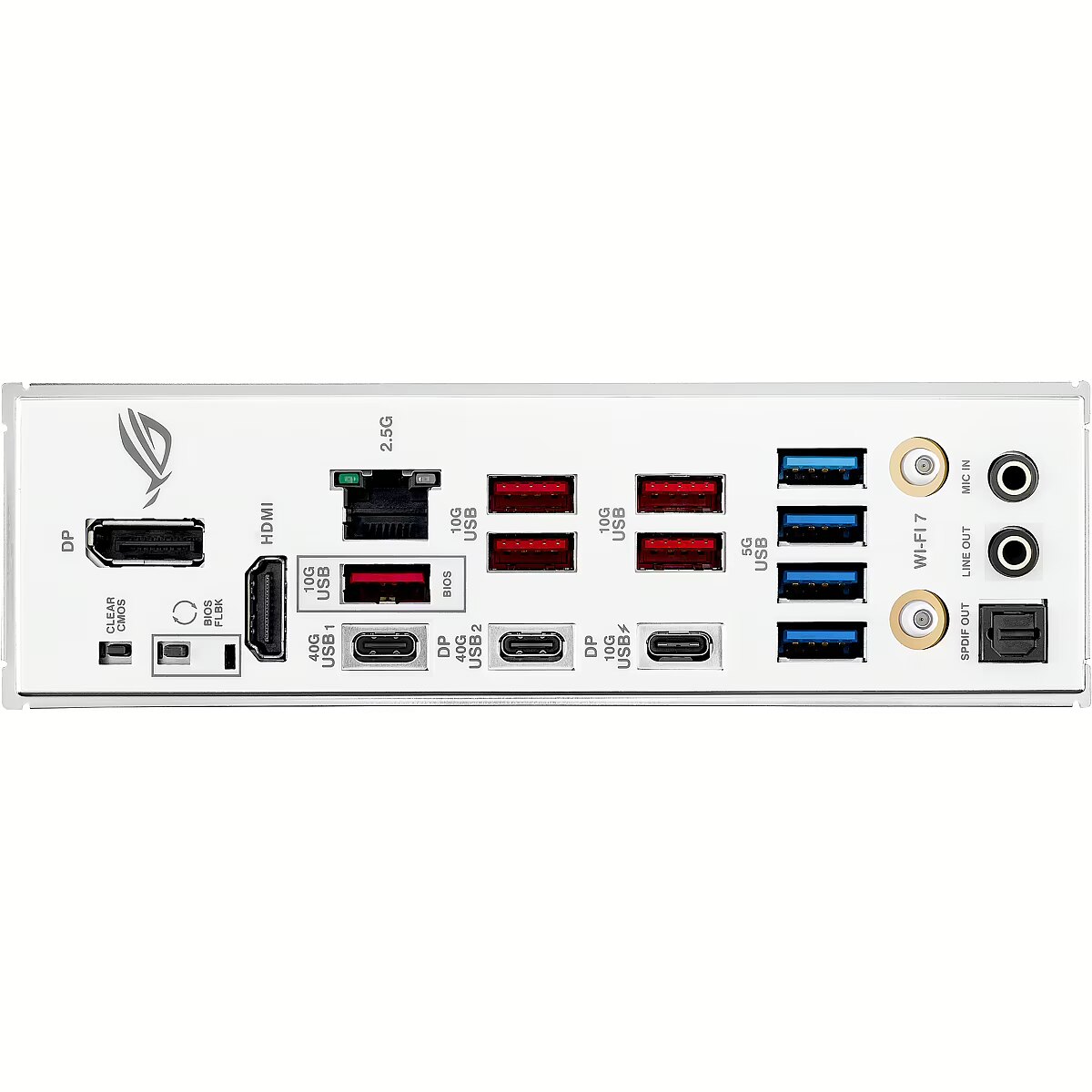

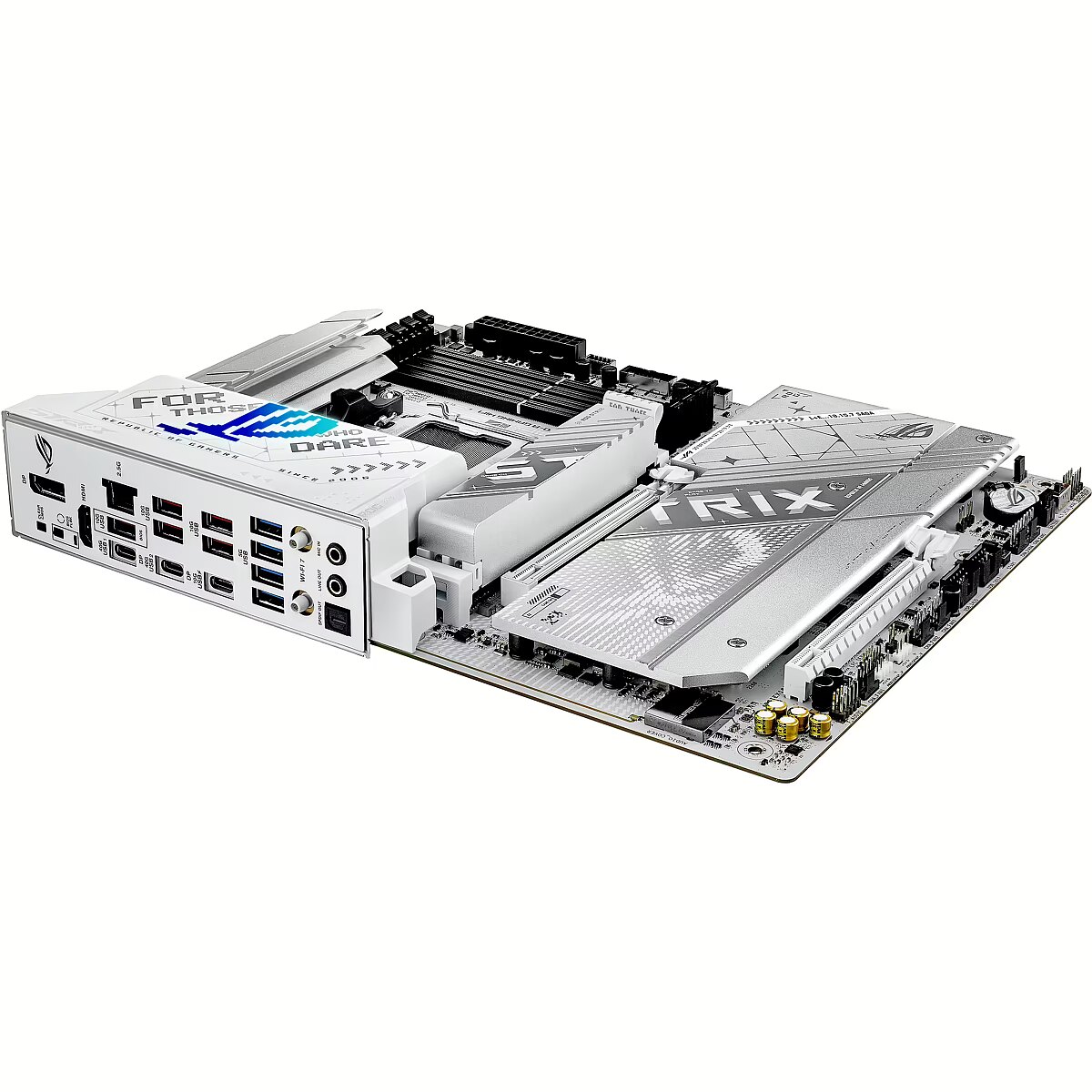

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 10.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket AM5 | Chipset AMD X870 | DDR5
ShortSummaryDescription - ASUS ROG STRIX X870-A GAMING WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 360
sizeY - 280
sizeZ - 75
Socket - SAM5
Software - ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Dynamic OC Switcher
FlexKey
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Special functions -
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG STRIX X870-A GAMING WIFI
Title - ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
Unit Box Height - 0.07
Unit Box Length - 0.355
Unit Box Width - 0.275
Unit Brutto Volume - 0.008325 cubm
Unit Gross Weight - 2.71 kg
Unit Net Weight - 2.1 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-x870-a-gaming-wifi/
USB-C Input/Output connectors - 1
USB 3.0 Input/Output connectors - 4
USB 3.1 Input/Output connectors - 5
USB4 Input/Output connectors - 2
USB ports at back panel - 12
USB ports on motherboard - 9
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-x870-a-gaming-wifi/
vendpn - ROG STRIX X870-A GAMING WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2500
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
