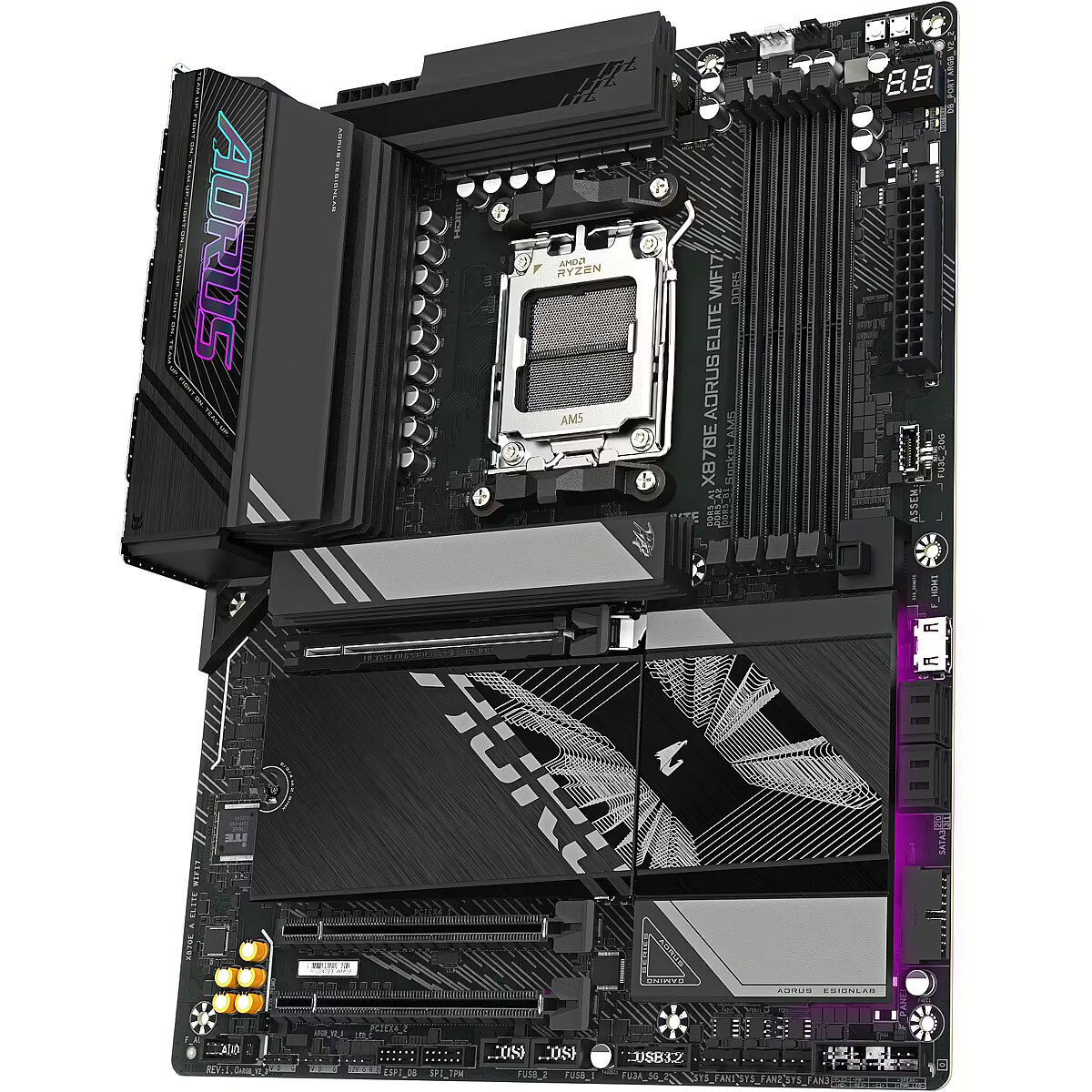

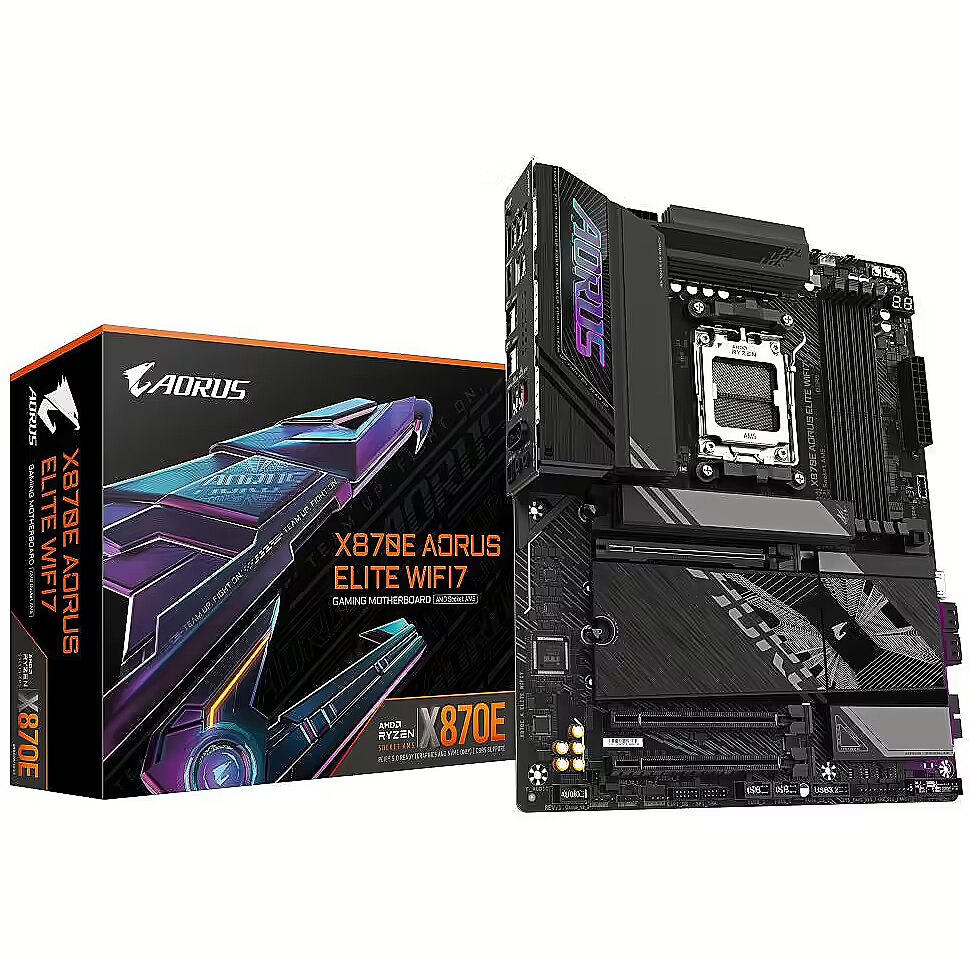

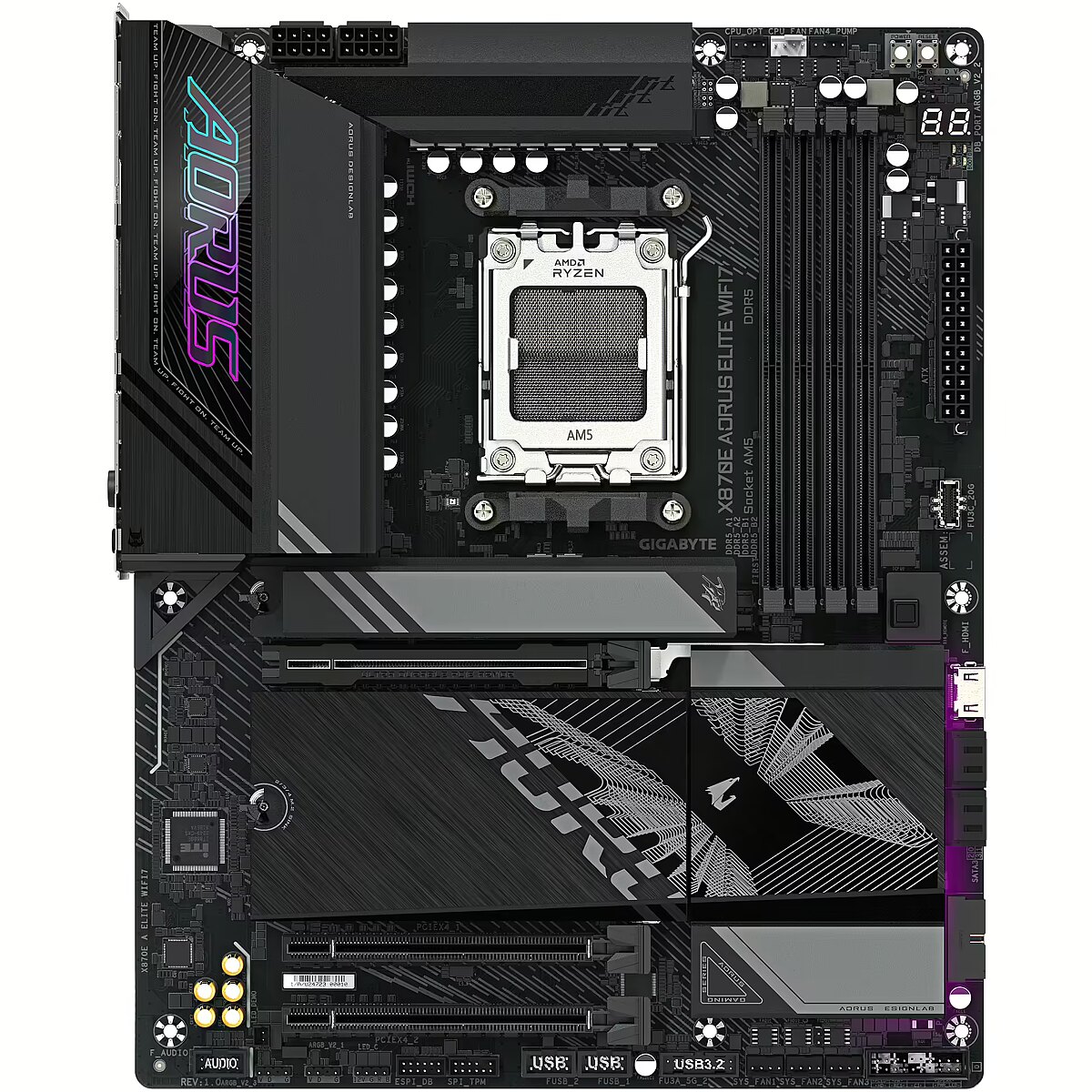

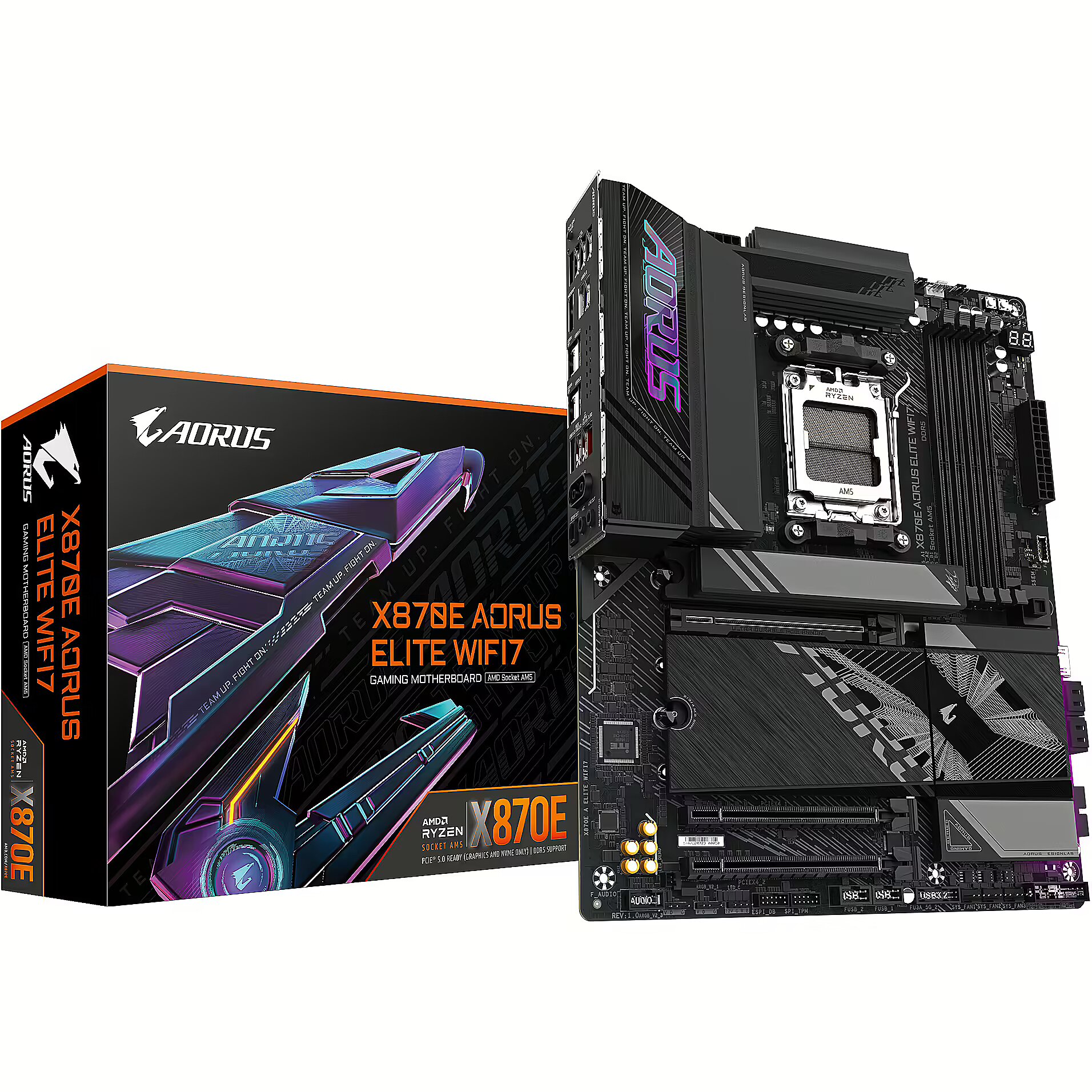

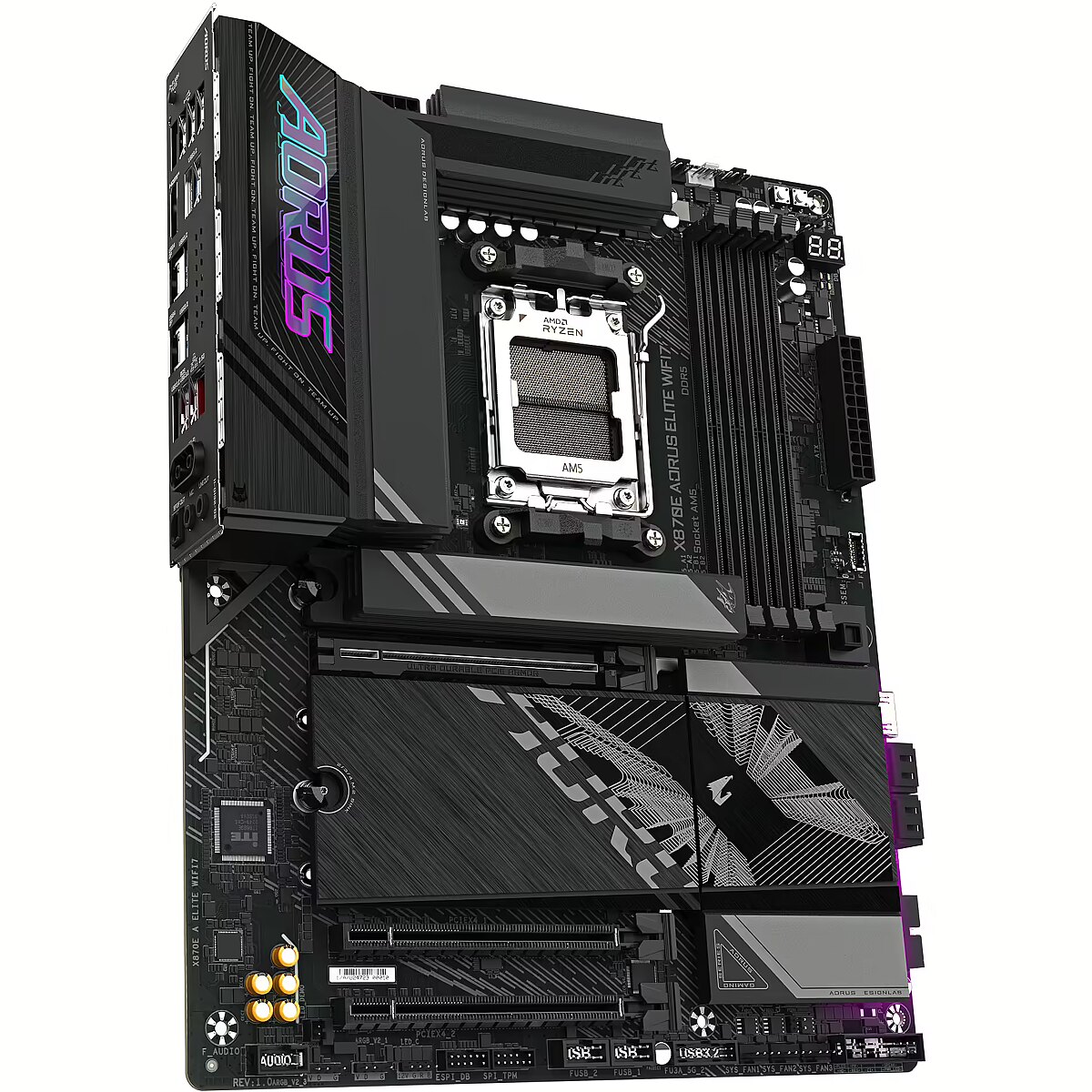

Gigabyte X870E AORUS ELITE WIFI7

Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
ID: 1141479 Tootekood: X870E A ELITE WIFI7
Laos 31 üksused
Garantii: 3 aastat
336.14 €
Peamised tooteparameetrid Kõik parameetrid
  • Seeria: Gigabyte AORUS
  • Plaadi suurus: ATX
  • Mikroskeemide siin (chipset): AMD X870E
  • Pistikupesa: AM5
  • Mälutüüp: DDR5
  • Mäluslott: 4
  • Sisseehitatud Wi-Fi: On
  • M.2 port: 4
Põhiteave
Seeria : Gigabyte AORUS
Plaadi suurus ATX

Emaplaadi füüsiline suurus. TopPC.ee pakub ATX (täissuuruse plaat), mATX (micro ATX) (vähendatud suurusega plaat) ja miniATX suurusega emaplaate. ATX suuruse arvutia korpusesse on võimalik paigaldada nii ATX kui ka mATX emaplaati, omakorda mATX korpusesse ei ole võimalik paigaldada ATX plaati.

Plaadil ATX on vähemalt 3 mälupesa ja vähemalt 5 lokaalset pesa PCI, seepärast sellele plaadile võib koostada hästi toimiva võimsa arvuti. Siski kodu- või bürooarvutile pole nii palju pesi üldse vajalikud, ja seoses sellega sobib samuti microATX.

Emaplaadi toiteploki liitmikuks on vooluallika pistikupesa, mis käesoleval ajal on ATX ja ATX2.0 standardi kohane. ATX on vanem standard 20 nõelaga liitmikuga (20 "jalaga"), omakorda ATX2.0 on täiendava 4 nõelaga (20+4). ATX standardi emaplaat suudab töötada ATX2.0 toiteplokiga (PSU), omakorda ATX2.0 emaplaadiga on vajalik ATX2.0 toiteplokk.

Kujufaktoril on ennekõike soovituslik iseloom. Siiski enne, kui soetate emaplaadi, veenduge korpuse suuruse vastavuses emaplaadi suurusele ja selle toiteliitmikule.

Mikroskeemide siin (chipset) AMD X870E

Mikroskeemide kiip on kõige tähtsam emaplaadi valiku näitaja (süsteemi loogika mikroskeemid jeb pingemuundurid). Mikroskeemide kiibist oleneb, milliseidprotsessoreid, mälu, liideseid jm. parameetreid toetab emaplaat.

Iga kiibistik on otseselt seotud teatud protsessori platvormiga, mis jagunevad protsessorite päritolu või protsessori ühenduskoha järgi.

Selleks ,et välja selgitada, milline mikroskeemide kiip on sobiv teie protsessorile jm. komponentidele, palume nõu küsida meie müügijuhtidelt.
Pistikupesa AM5
Protsessori (CPU) pesa on tähtis faktor plaadi valikul, protsessori pesa peab olema täpselt ühitatav protsessoriga, mille soovite monteerida plaadile. Vaatamata sellele, et protsessor sobib emaplaadi pessa, peab arvesse võtma ka selle protsessori tuge. Selleks, et välja selgitada, millist protsessorit toetab valitud emaplaat, palume külastada emaplaadi tootja kodulehte, leida konkreetse emaplaadi osas CPU support ja veenduda, et antud plaadi spetsifikatsioon näeb ette teie protsessori toetuse.
Juhusliku juurdepääsu mälu (RAM)
Mälutüüp : DDR5
Mäluslott 4
Kasutadaolevate mälupesade arv näitab, mitu mälumoodulit (plaati) võib paigaldada emaplaadile.
Mälusiin DDR5 5200MHz (8000MHz OC)

Operatiivmälu kiip määrab ära selle, mis tüüpi operatiivmälu toetab vastav emaplaat.

Kiibi tähistuses on mälu tüüp DDRII või DDRIII, kā samuti maksimaalne mälu taktisagedus, mida toetab emaplaat. Tähtsaim näitaja on mälu tüüp, erinevate tüüpide mälu on füüsiliselt erinev, seepärast DDRIII mälu ei tohi ühendada DDRII mälu toega emaplaadiga(välja arvatud juhul, kui on mõlemat mälu tüüpi toetav plaat). Omakorda emaplaat, mis toetab 800Mhz DDRII mälu, suudab töötada DDII667 ja DDRII533 mälu kiirustega. Emaplaat mälukiibi kiirusega, mis on madalam mälumooduli kiirusest, suudab töötada mitte kiiremini näidatud kiibi kiirusest, s.o.juhul, kui emaplaadi mälukiip on DDRII667, siis paigaldades DDRII800, mälu selles töötab DDRII667 kiirusega.

Graafikakaart
VGA port PCI-EXPRESS
VGA port (liides), ehk videokaardi pistik. VGA liides peab ühtuma teie videokaardi liidese spetsifikatsiooniga. Vanematel videokaartidel on AGP liides, uued videokaardid toodetakse PCI-EXPRESS (PCI-X) liidesega. AGP ja PCI-Xpress videokaardid ei ole omavahel asendatavad. Enne, kui soetate emaplaadi, veenduge videokaardi liidese vastavuses nii emaplaadiga kui ka videokaardiga.
Integreeritud Videokaart Only with iGPU-ready APU

Parameeter, mis määrab ära, kas emaplaadil on integreeritud videokaart. Integreeritud videokaart sobib töötamiseks büroo tarkvaraga, internetiga, filmide vaatamiseks ja lihtsate mängude mängimiseks. Juhul, kui soovite kasutada graafilisi programmas, mängida 3D mänge ja vaadata 3D animatsioone, on teile vajalik lisa-videokaart.

Integreeritud videokaart kasutab emaplaadil ievietotās operatiivmälu osa, seepärast juhul, kui teie emaplaadil on 1Gb mälu, ja emaplaadi videokaardi uzstādījumos on norādīts aizņemt 256mb, tad operētājsistēma uzrādīs pieejamo mälu daudzumu apt. 700 Mb.
Pirms iegādāties emaplaadi ar integreeritud videokaardiga, veenduge selles, kas sellele on lisa-videokaardi liides täiendusteks, juhul, kui sellised on vajalikud.

Sadamad ja seadmed
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integreeritud helikaart : Realtek ALC1220
PCI pordid 0
PCI liidesed on kõige levinuim arvutifunktsioonide täiendamise moodus lisa-kaartidega (heli-, võrgu-, kommunikatsioonide, videovalve jm.). Uusimatel plaatidel, tänu PCI-EXpress standardile, on väike PCI laiendamise liideste arv, seepärast, enne emaplaadi soetamist, veenduge selles, et PCI liideste arv võimaldaks teil paigaldada kõik teile vajaminevad PCI kaardid.
Traadita ühendused
Sisseehitatud Bluetooth : Ir
Sisseehitatud Wi-Fi : On
Välised sadamad
Väline USB 2.0 : 4
Väline USB Type-C (USB 3.2 Gen2) : 0
Väline USB Type-C (USB 4.0) : 2
Väline USB 3.0 (USB 3.2 Gen1) : 4
Väline USB 3.1 (USB 3.2 Gen2) : 2
Siseportid
Sisemine A-RGB 5V (3-pin) : 3
Sisemine RGB 12V (4-pin) : 1
Sisemine USB 2.0 : 2
Sisemine USB 3.0 : 1
Sisemine USB Type-C : 1
M.2 port : 4
SATA 3 Portid : 4
Toiteplokid (PSU)
Täpsem spetsifikatsioon
Accessories included -
Audio port Input/Output connectors - 2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - X870E A ELITE WIFI7
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - X870E A ELITE WIFI7
COM connector / port - No
CPU socket - Socket AM5
Description - Płyta główna X870E A ELITE WIFI7 AM5 4DDR5 HDMI/USB-C ATX AMD Socket AM5: obsługuje procesory AMD Ryzen serii 9000 / 8000 / 7000 Rozwiązanie Digital Twin 16+2+2 faz VRM Dual Channel DDR5: 4*DIMM z obsługą modułu pamięci AMD EXPO WIFI EZ-Plug: szybka i łatwa konstrukcja do instalacji anteny Wi-Fi EZ-Latch Plus: gniazda PCIe i M.2 z szybkim zwalnianiem i konstrukcją bezśrubową EZ-Latch Click: radiatory M.2 z konstrukcją bezśrubową Sensor Panel Link: wbudowany port wideo do bezproblemowej konfiguracji panelu w obudowie Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu Ultraszybkie przechowywanie: 4*gniazda M.2, w tym 3* PCIe 5.0 x4 Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard L Szybkie Sieć: 2,5 GbE LAN i Wi-Fi 7 z kierunkową anteną o bardzo wysokim wzmocnieniu Rozszerzona łączność: Podwójny USB4 typu C z DP-Alt, HDMI Niezawodny dźwięk: Realtek ALC1220 HD Audio i kondensatory klasy audiofilskiej Ultra wytrzymała osłona PCIe: Metalowa tylna płyta gniazda PCIe x16 zapewniająca zwiększoną trwałość Gniazdo PCIe UD X: Gniazdo PCIe 5.0 x16 o 10-krotnie większej wytrzymałości dla karty graficznej
Description - X870E AORUS ELITE WIFI7 Key Features - AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors - Digital twin 16+2+2 phases VRM solution - Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support - WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation - EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design - EZ-Latch Click:M.2 heatsinks with screwless design - Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup - Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW - Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4 - Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L - Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna - Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI - Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors - Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability - PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
Detailed data on disk/drive interfaces - 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
dimension depth - 85 mm
dimension height - 340 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2345 g
dimension width - 275 mm
ean - 4719331864613
EAN - 4719331864613
Eans - 4719331864613
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x4 slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

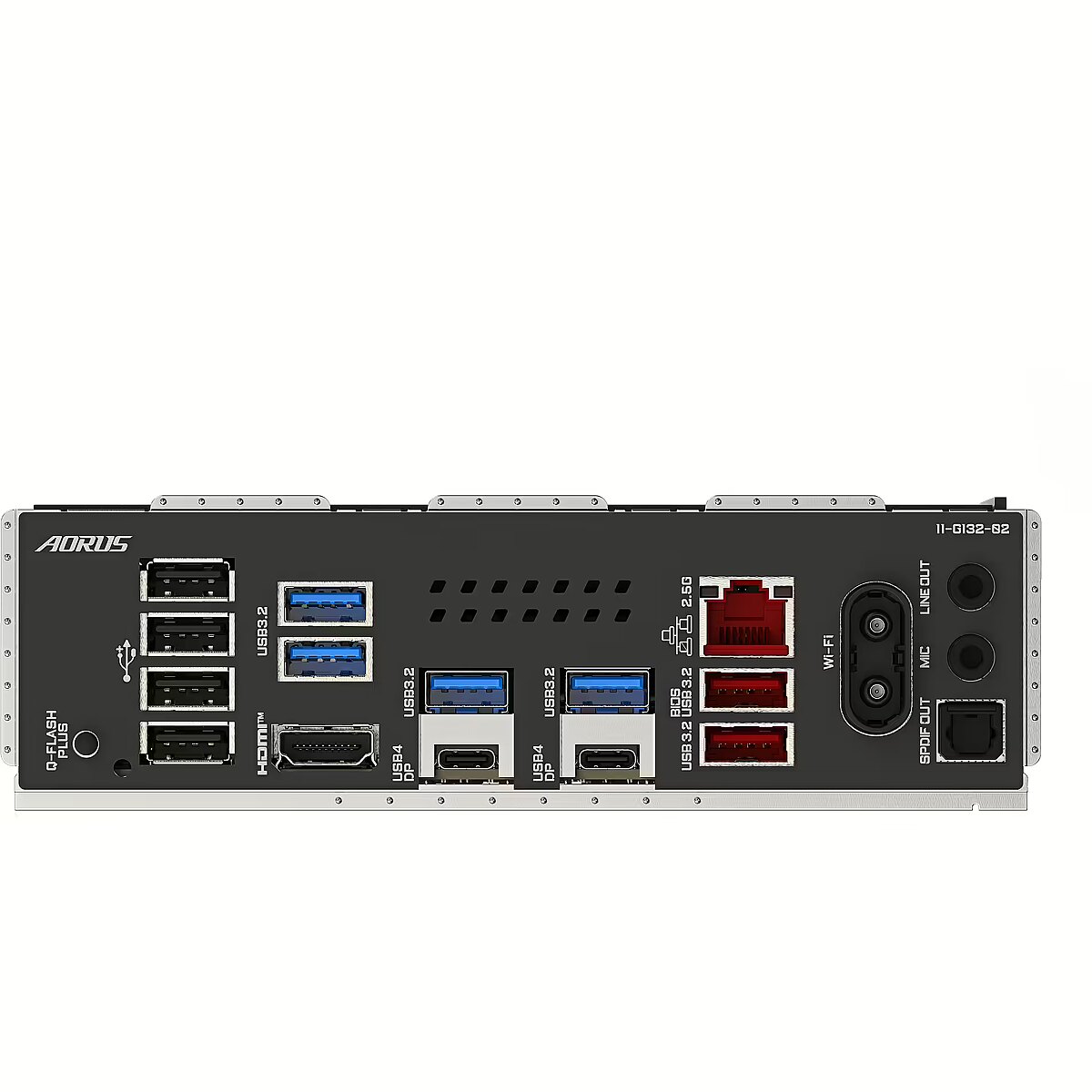

External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x USB 3.1
External connectors - 2 x USB4 Type-C
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio Realtek ALC1220|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - Zintegrowany procesor graficzny ze wsparciem AMD Radeon Graphics + kontroler ASMedia USB4: 2 x porty USB4 USB Type-C, obsługujące wyjścia wideo USB4 i DisplayPort oraz maksymalną rozdzielczość 3840x2160@240 Hz
* Obsługa wersji DisplayPort 1.4 i HDR. Zintegrowany procesor graficzny ze wsparciem AMD Radeon Graphics: 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1, HDCP 2.3 i HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. 1 x przedni port HDMI, obsługujący maksymalną rozdzielczość 1920x1080@30 Hz
Graphics - DirectX version - 12.0
Gross Weight Kg - 2,6
GTIN - 4719331864613
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC1220
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - X870E AORUS ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 3xPCIe 5.0, Wi-Fi 7, 2.5GbE LAN, USB 4
LongSummaryDescription - GIGABYTE X870E A ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 4xPCIe 5.0 + 4xM.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer Code - X870E AORUS ELITE WIFI7
Manufacturer Name - Gigabyte
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6666 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - X870E A ELITE WIFI7
Model - X870E AORUS ELITE WIFI7
Name - Gigabyte X870E A ELITE WIFI7
name - Gigabyte X870E AORUS Elite WiFi7, AMD X870E Mainboard - Sockel AM5, DDR5
name - Motherboard X870E A ELITE WIFI7 AM5 4DDR5 HDMI/USB-C ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network - WLAN controller model - MediaTek MT7925
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 2.5GbE LAN chip (2,5 Gbps/1 Gbps/100 Mbps) Moduł komunikacji bezprzewodowej MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, obsługujący pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.4 Obsługa standardu bezprzewodowego 11be 160MHz Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, obsługujący pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.4 Obsługa standardu bezprzewodowego 11be 160MHz
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x HDMI
Onboard connectors - 1 x Power button
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Optical S/PDIF Input/Output connectors - 1
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 294 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.74 kg
Packaging data - Package width - 345 mm
PCI-Express 3.0 4x Expansion slots - 1
PCI-Express 4.0 4x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
ProducerCode - X870E A ELITE WIFI7
ProductName - X870E A ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 4xPCIe 5.0 + 4xM.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
RAID - SATA 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 44.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 12.72 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
Short description - GIGA X870E AORUS ELITE WIFI7 AM5/DDR5/ATX
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - GIGABYTE X870E A ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 4xPCIe 5.0 + 4xM.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, 256 GB, DDR5-SDRAM
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC1220 CODEC
* Gniazdo wyjścia liniowego na tylnym panelu obsługuje dźwięk DSD. Dźwięk wysokiej rozdzielczości 2/4/5.1/7.1-kanałowy
* Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy uzyskać dostęp do oprogramowania audio w celu uzyskania ustawień audio. Obsługa wyjścia S/PDIF
Special functions -
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE X870E A ELITE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000Hz DDR5 (OC), 4xPCIe 5.0 + 4xM.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2x2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.27
Unit Brutto Volume - 0.01018 cubm
Unit Gross Weight - 2.54 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 2
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 9
Vendor Homepage - www.gigabyte.com/Motherboard/X870E-AORUS-ELITE-WIFI7#kf
vendpn - X870E A ELITE WIFI7
Warranty - 36 months
WarrantyInfo - 3 years
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
336.14 €
Gigabyte X870E AORUS ELITE WIFI7
Intel technology provider Platinum 2020
Kõik kategooriad
