Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - B650 GAMING X AX V2
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - B650 GAMING X AX V2
Code - B650 GAMING X AX V2
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD B650
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Description - B650 GAMING X AX V2 AMD AM5 Socket: Supports AMD Ryzen 7000/Ryzen 8000 Series Processors Unmatched Performance: 8+2+2 Phase Direct Digital VRM Dual-Channel DDR5 Memory: 4*SMD DIMM with AMD EXPO and Intel XMP Memory Module Support SuperSpeed Storage: 1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Slots Advanced Thermal Design and M.2 Heat Shield: To ensure VRM power stability and 25110 M.2 SSD performance EZ Latch: PCIe x16 slot with quick release design High-Speed Networking: 2.5GbE LAN and Wi-Fi 6E 802.11ax Extended Connectivity: DP, HDMI, 10Gbps USB-C on the back, USB-C 20Gbps Front Smart Fan 6: Includes multiple temperature sensors, hybrid fan headers with FAN STOP Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card
Description - GIGABYTE B650 GAMING X AX V2 AMD Socket AM5 Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors Unparalleled Performance Direct 8+2+2 Phases Digital VRM Solution Dual Channel DDR5 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support SuperSpeed Storage 1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & 25110 M.2 SSD Performance EZ-Latch PCIe x16 Slot with Quick Release Design Fast Networks 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital VRM Design 8+2+2 Phases Digital VRM Solution GIGABYTE UD series motherboards use a 8+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard. Fully Covered MOSFET Heatsink 3X Large Surface Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. Real One-piece Build TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design. Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. 2.5GbE LAN Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition. PCIe 4.0 Hardware Design GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. Hi-Fi Audio High-End Audio Capacitors. GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 1 x PCI Express x16 (PCIEX16) slot, integrated in the processor: AMD Ryzen 7000 Series processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x4 mode * The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, make sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and operating at x1 (PCIEX1_1/2) Storage Interface 1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M-key, 25110/2580 SSDs: AMD Ryzen 7000 Series processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated with the processor, supporting Socket 3, M-key, 25110/2580 SSDs: AMD Ryzen 7000 Series processors support PCIe 4.0 x4/x2 SSDs AMD Processors Ryzen 8000 Series-Phoenix 1 supports PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x2 SSDs 1 x M.2 (M2C_SB) connector, integrated into the chipset, supports Socket 3, M-key, Type 25110/2580 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors Supports RAID 0, RAID 1, and RAID 10 for NVMe SSD storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
dimension depth - 80 mm
dimension height - 270 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1926 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
EAN - 4719331860073
ean - 4719331860073
Eans - 4719331860073
EAN_code - 4719331860073
Expansion slots - 1 x PCIe x 16
Expansion slots - 2 x PCIe x 16
Expansion slots - 3 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 25110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 25110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

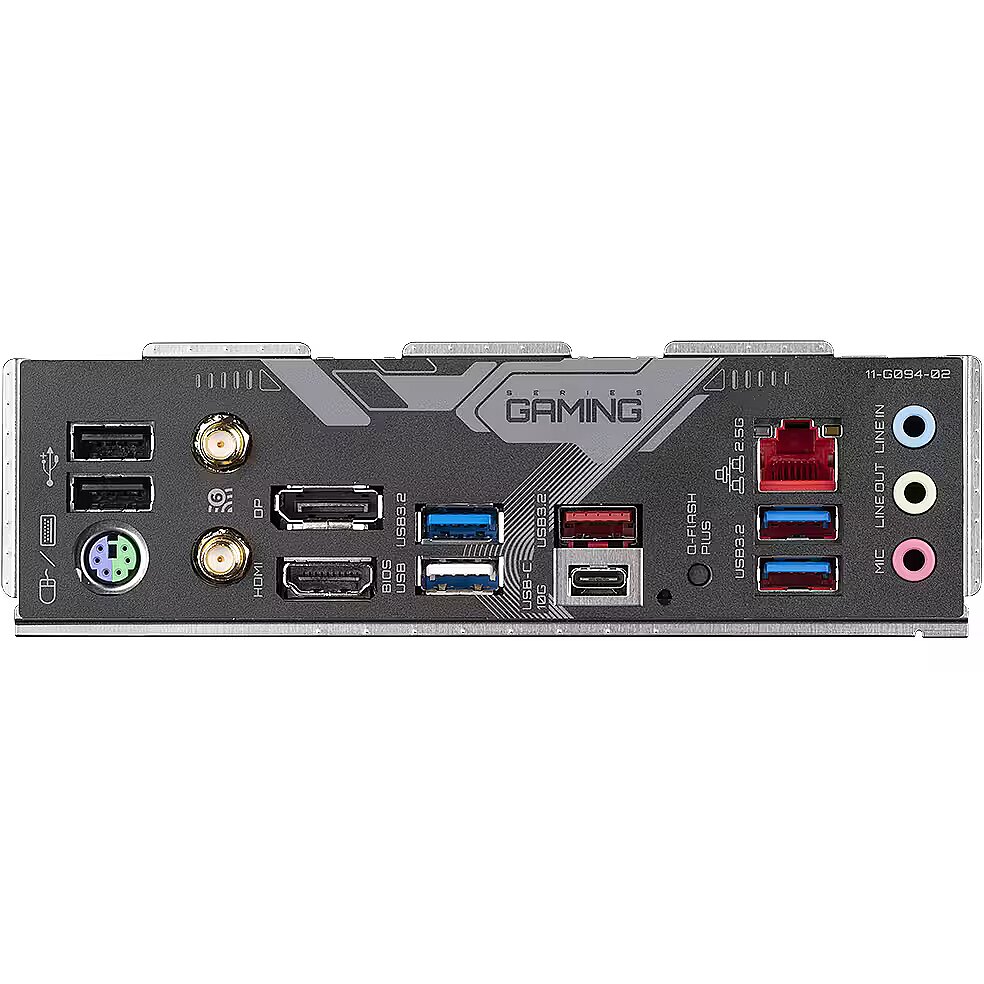

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 3 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
Graphics - Integrated graphics processor with AMD Radeon graphics support: 1 x DisplayPort supporting a maximum resolution of 3840x2160 at 144 Hz * Support for DisplayPort version 1.4 and HDR. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI version 2.1 and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on CPU support.)
Graphics - DirectX version - 12.0
Graphics - Discrete graphics support - Yes
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,16
GTIN - 0889523041376
GTIN - 889523041376
GTIN - 4719331860073
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Komunikacja: Karta bezprzewodowa - Wi-Fi 6E | Bluetooth 5.2
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B650 GAMING X AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE B650 GAMING X AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - B650 GAMING X AX V2
Manufacturer Name - Gigabyte
Manufacturer_code - B650 GAMING X AX V2
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B650 GAMING X AX V2
Model - B650 GAMING X AX V2 1.2
MPN - B650 GAMING X AX V2
Name - AM5 Gigabyte B650 GAMING X AX V2
Name - Gigabyte B650 GAMING X AX V2
Name - GIGABYTE B650 GAMING X AX V2 - Socket AM5 - motherboard
Name - Gigabyte B650 GAMING X AX V2 | Processor family AMD | Processor socket AM5 | DDR5 | Number of SATA connectors 4
name - GIGABYTE B650 Gaming X AX V2, AMD B650 Mainboard - Sockel AM5, DDR5
name - Motherboard B650 GAMING X AX V2 AM5 4DDR5 HDMI/DP M.2 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Realtek RTL8852CE
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package features > Palette Qty - 205 pc(s)
Package features > Paper/Pasteboard - 290 g
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.16 kg
Packaging data - Package width - 335 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 192 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
producer - Gigabyte
Producer - Gigabyte

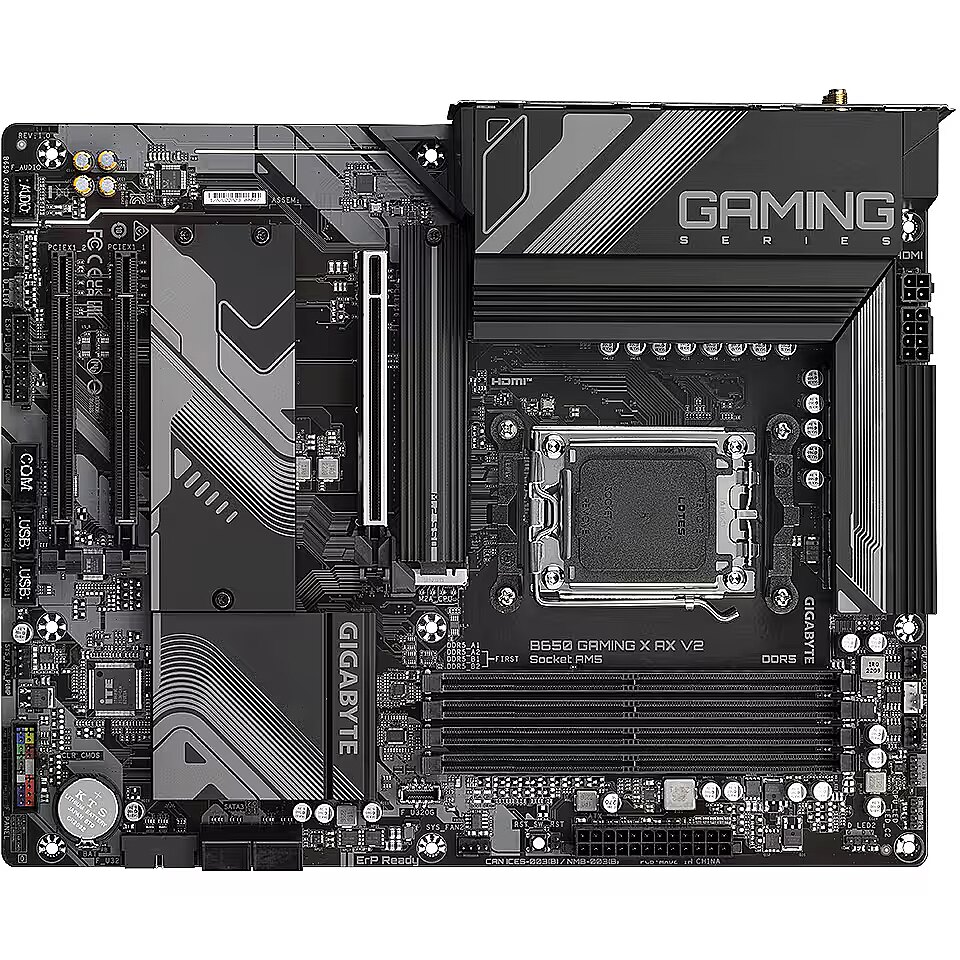

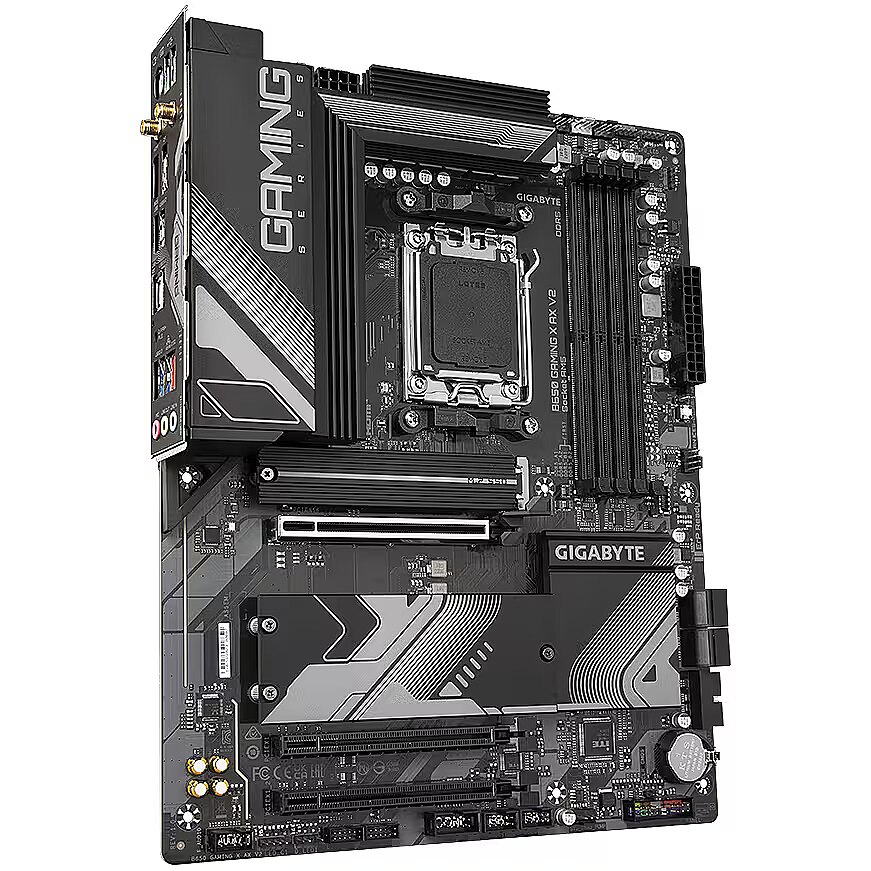

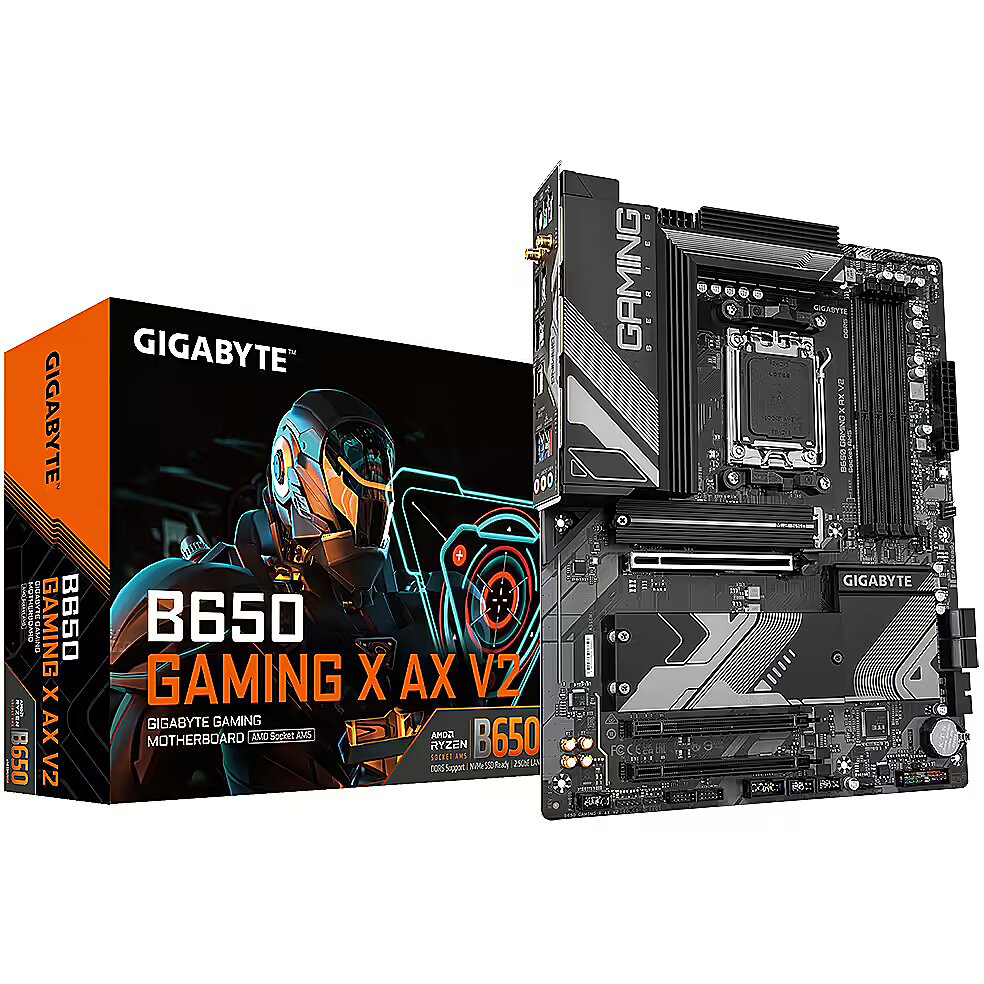

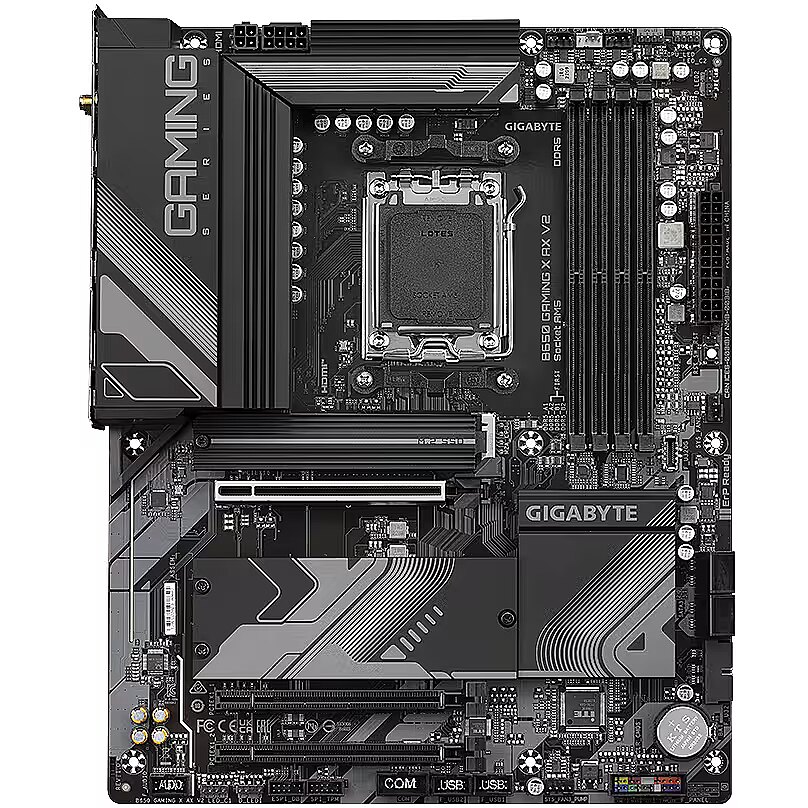

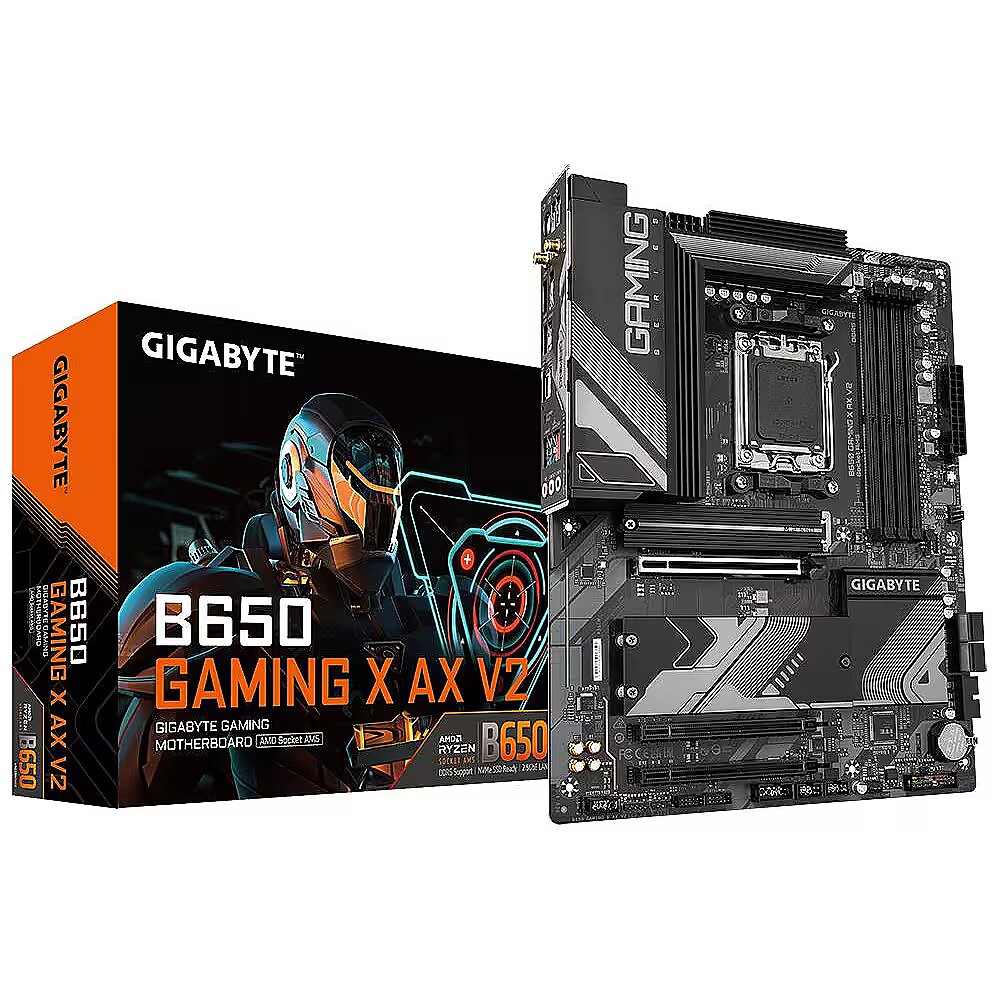

ProducerCode - B650 GAMING X AX V2
ProductName - B650 GAMING X AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
Product Net Weight - 2 kg
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Short description - GIGA B650 GAMING X AX V2 AM5/DDR5/ATX
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - GIGABYTE B650 GAMING X AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Audio CODEC Realtek High-quality audio 2/4/5.1/7.1-channel * You can change the audio jack functionality through your audio software. To configure 7.1-channel audio, go to your audio software for audio settings.
Special functions - GIGABYTE Control Center (GCC) Support * The available applications in GCC may vary depending on the motherboard model. The supported functions of each application may also vary depending on the motherboard specifications. Q-Flash Support Q-Flash Plus Support
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Producer - Gigabyte
Technical details > Producer product name - B650 GAMING X AX V2
Technical_details - The GIGABYTE B650 GAMING X AX V2 is based on the AMD B650 chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 192 GB of memory. The GIGABYTE B650 GAMING X AX V2's additional features include a PCIe 4.0 x16 slot and two PCIe 3.0 x16 slots. The GIGABYTE B650 GAMING No.: 100038181 Mainboard type EAN 4719331860073 Manufacturer no. B650 GAMING X AX V2 Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 3x (of which: 1x PCIe x16, 2x PCIe x1) BIOS 256 Mbit flash AMI UEFI BIOS Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin + 4-pin) Memory maximum 192 GB AMD Wi-Fi 6E RZ616 Connections (external) Mouse/Keyboard Combo (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard RGB Fusion SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek® Audio LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Further information In order to support the latest processor cores, a BIOS update may be required.
Title - GIGABYTE B650 GAMING X AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.334
Unit Box Length - 0.271
Unit Box Width - 0.081
Unit Calculated Volume - 0.0102 cubm
Unit Calculated Weight - 2.14 kg
Units per Shipping Box - 8
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B650-GAMING-X-AX-V2-rev-1x#kf
vendpn - B650 GAMING X AX V2
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 1,90
Weight - 1.927
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 3 x USB
Złącza: Złącza na tylnym panelu - 3 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
